Chapter  - Product Overview
Power
When the power light
stops blinking and is a
solid green, this indicates
that your adapter has
started up properly. Note
that both the power light
and the phone light must
be solid in order to make
a phone call.
Note: When the Vonage Device is downloading/upgrading firmware from Vonage,the lights will blink rapidly in unison.
Phone (1 & 2)
Plug your phone into
port #1 and if you've
signed up for a second
Vonage phone line, an
optional phone or FAX
machine into phone
port #2.
D-Link VWR User Manual

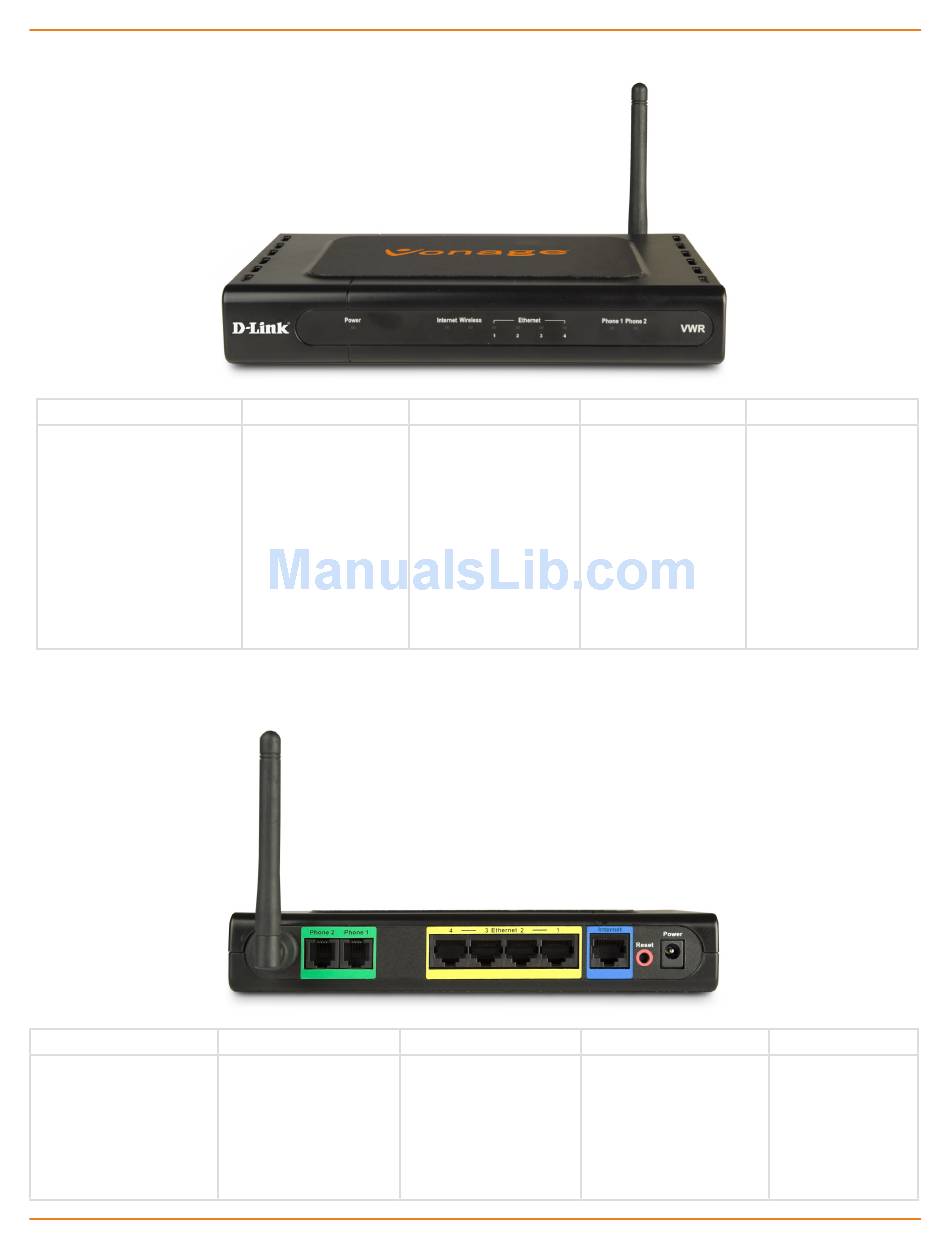

Front Panel

Internet
A solid light indicates
connection on the
Internet port. This
light blinks during
data transmission.

Rear Panel

Ethernet (1-4)
Connect to other
Ethernet devices such
as computers using
standard Ethernet
cables.
Wireless
A solid light indicates
that the wireless
segment is ready.
This light blinks
during wireless data
transmission.
Internet
This port is the
connection for the
Ethernet cable to the
Cable or DSL modem.
Ethernet (1-4)
A solid light indicates Solid light indicates
a connection to an that the phone
Ethernet-enabled line is ready for
computer on ports Vonage Internet
1-4. This light telephone or FAX
blinks during data calls. A slow blinking
transmission. light indicates that
voicemail is present.
When the line is in
use or ringing, the
light will blink rapidly.
Reset
Press the reset button
for at least 10 seconds
to reset the Vonage
VWR Device back to
the default settings.
Phone (1-2)
Power
Plug in the
supplied power
adapter.
