AMX TVM-RX03 Quick Start Manual

Overview
Installed at the display device, the TVM-RX03 (FG-TVM-RX03) converts
the signal received from the TVM-1600 Managed TV Distribution Hub into
composite video and stereo audio on standard RCA connectors.

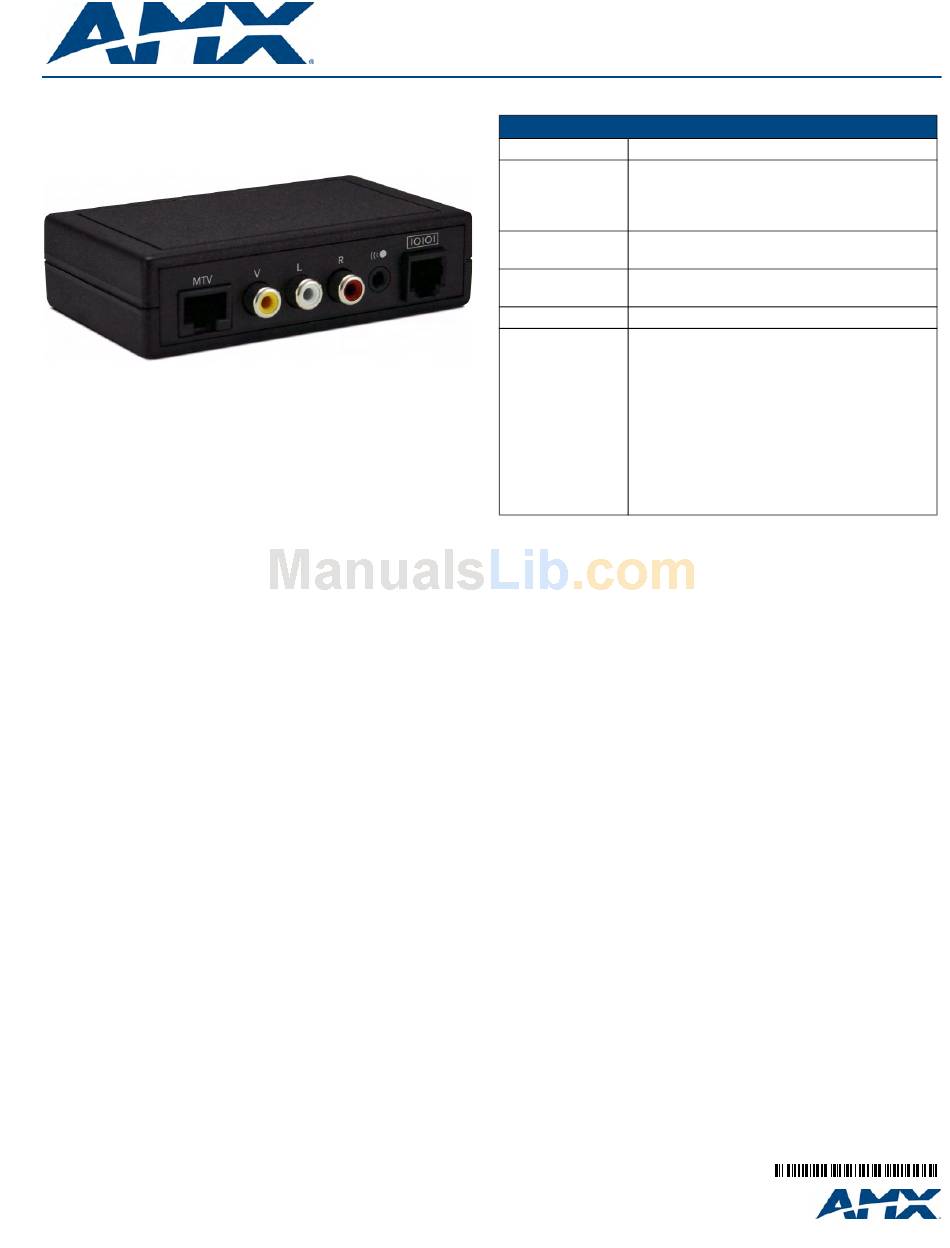

FIG. 1
TVM-RX03 Endeleo Managed TV Receiver
The Cat5, 5e or 6 cable provides audio/video transmission, power for the
receiver and a unique bi-directional IR pass-through for controlling displays
and video source devices such as DVD players or video recorders
connected to the Endeleo Distribution Hub or Receiver.
The TVM-RX03 also provides an LED display for channel identification and
local IR emitter and RS-232 serial ports for control of LCD/Plasma screens,
video projectors and other devices.
Features
• Provides RJ-45 connection to the TVM-1600
• Uses Cat5, 5e or 6 cable
• Supports distances of 1,000 meters/3,000 feet from the TVM-1600 to
the receiver
• Powered over cable by the TVM-1600 for convenient installation
• Offers dedicated connections for IR receiver and IR emitter devices
• Enables serial port connectivity for RS-232 controllable equipment
• Includes multi-digit LED display for channel number
For full warranty information, refer to the AMX Instruction Manual(s) associated with your Product(s).
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993 • www.amx.com
©2009 AMX. All rights reserved. AMX and the AMX logo are registered trademarks of AMX.
AMX reserves the right to alter specifications without notice at any time.
TVM-RX03
Product Specifications
TVM-RX03 Specifications
Inputs:
Outputs:
Power:
Dimensions (HWD):
Included Accessories:
Other AMX Equipment: • RS01: RS-232 Serial Transmit Cable, Straight Thru FG-
Additional Documentation
Refer to the TVM-1600 Operation/Reference Guide (available at
www.amx.com) for details on using the TVM-1600 Managed TV Distribution
Hub.
7/09
Quick Start Guide
Endeleo Managed TV Receiver
RJ-45 feed from the TVM-1600
• Composite video - RCA: 1
• Audio - RCA: 2
• Serial device control - RJ-12: 1
• IR device control - 3.5 mm socket: 1
• Phantom powered by TVM-1600
• 12 VDC, 280 mA
• 1" x 4" x 2 3/4"
• (25 mm x 100 mm x 70 mm)
TVM-AV1 Composite Video Cable (FG-TVM-AV1)
RS01
• IR01: IR Emitter Module FG-IR01
• TVM-IR04: Managed TV IR Breakout Box FG-TVM-IR04
• TVM-RC02: Managed TV IR Remote Control
FG-TVM-RC02
• TVM-UD01: Managed TV USB A/V Adapter for PC
FG-TVM-UD01
• TVM-SW01: Managed TV Enterprise Software
FG-TVM-SW01
• TVM-SW01ENT: Managed TV Enterprise Software,
Enterprise Site License FG-TVM-SW01ENT
93-TVM-RX03 REV: B
