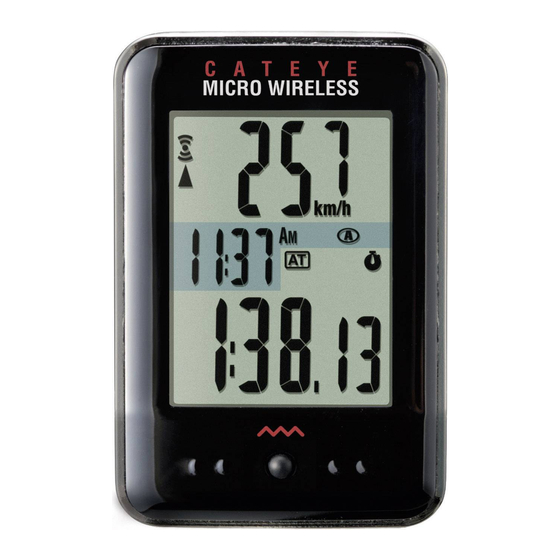

CATEYE
MICRO Wireless
CYCLOCOMPUTER
CC-MC200W
Before using the computer, please thoroughly read
this manual and keep it for future reference.
Please visit our website, where detailed instruc-
tions with movies are available and the instruction
manual can be downloaded.
Warning / Caution
• Do not concentrate on the computer while riding. Ride safely!
• Install the magnet, sensor, and bracket securely. Check these peri-
odically.
• If a child swallows a battery, consult a doctor immediately.
• Do not leave the computer in direct sunlight for a long period of
time.
• Do not disassemble the computer.
• Do not drop the computer to avoid malfunction or damage.
• When using the computer installed on the bracket, change the
MODE by pressing on the four dots below the screen, or by press-
ing on the SSE simultaneously, to start or stop the timer. Pressing
hard on other areas may result in malfunction or damage to the
computer.
• Be sure to tighten the dial of the FlexTight™ bracket by hand.
Tightening it strongly using a tool, etc. may damage the screw
thread.
• When cleaning the computer, bracket and sensor, do not use thin-
ners, benzene, or alcohol.
• Dispose of used batteries according to local regulations.
• LCD screen may be distorted when viewed through polarized sun-
glass lenses.
Wireless Sensor
The sensor was designed to receive signals within a maximum range
of 70 cm, to reduce chance of interference. When adjusting the wire-
less sensor, note the following:
• Signals cannot be received if the distance between the sensor and
the computer is too large. The receiving distance may be short-
ened due to low temperature and exhausted batteries.
• Signals can be received only when the back of the computer is
facing the sensor.
Interference may occur, resulting in incorrect data, if the computer is:
• Near a TV, PC, radio, motor, or in a car or train.
• Close to a railroad crossing, railway tracks, TV stations and/or ra-
dar base.
• Using with other wireless devices in close proximity.
CC-MC200W
ENG
1
Advertisement
Table of Contents
Related Manuals for Cateye CC-MC200W
Summary of Contents for Cateye CC-MC200W
- Page 1 CC-MC200W Warning / Caution • Do not concentrate on the computer while riding. Ride safely! • Install the magnet, sensor, and bracket securely. Check these peri- odically. • If a child swallows a battery, consult a doctor immediately. • Do not leave the computer in direct sunlight for a long period of time. CATEYE • Do not disassemble the computer. • Do not drop the computer to avoid malfunction or damage. • When using the computer installed on the bracket, change the MICRO Wireless MODE by pressing on the four dots below the screen, or by press- ing on the SSE simultaneously, to start or stop the timer. Pressing hard on other areas may result in malfunction or damage to the computer. • Be sure to tighten the dial of the FlexTight™ bracket by hand.
-
Page 2: How To Install The Unit On Your Bicycle
How to install the unit on your bicycle CC-MC200W Bracket Bracket Dial Bracket Sensor Sensor Nylon ties Magnet band rubber pad rubber pad (x 2) Attach the bracket to the stem or handlebar Remove/Install the computer The FlexTight™ bracket can be attached to either the stem or the handlebar, depending on how the bracket fits into the bracket band. Caution: Be sure to tighten the dial of the FlexTight™ bracket by hand. -
Page 3: Preparing The Computer
Preparing the computer CC-MC200W Perform the clear all data operation as shown below, when you use the Tire circumference unit for the first time or restore the unit to the condition checked at the factory. Battery case cover You can find the tire circumference (L) of your tire size in the chart be- low, or actually measure the tire circumference (L) of your bicycle. Clear all data (initialization) • How to measure the tire circumference (L) Press the AC button on the back of the computer. For the most accurate measurement, do a wheel roll out. With the tires under proper pressure, place the valve stem at the bottom. Mark the spot L mm on the floor and with the rider’s weight on the... -
Page 4: Switching Computer Function
Operating the computer [Measuring screen] CC-MC200W Sensor signal icon Current speed Starting / Stopping measurement Flashes in synch with a sensor signal. 0.0 ( :4.0 / :3.0) – 105.9 km/h MODE operation when There are two measurement methods; manual mode and auto mode. [0.0 ( :3.0 / :2.0) – 65.0 mph] the computer is mount- * “Spd” icon is displayed when display- See “Changing the computer settings: Selecting the auto Setting ed on the bracket ing current speed at the bottom. -
Page 5: Power Saving Function
Operating the computer [Various functions] CC-MC200W Backlight (Night mode Setting the function to display Upper display selection With the night mode turned on, pressing the MODE Displaying only selected data can be done. Any data can be selected for the top display, and constantly be displayed. button turns on the backlight (for 5 seconds). Tm Dst Dst2 Pressing any button while the backlight is still on extends the illumination for another 5 seconds. Tm Dst MODE See “Changing the computer settings: Setting the upper dis- Setting MODE method play” (Page 6). See “Changing the computer settings: Setting the function” Setting * The stopwatch cannot be set when the auto-mode is off. method (Page 7). Pressing and holding the MODE button proceeds to setting * The current speed (Spd), and the elapsed time (Tm) cannot be hidden. - Page 6 Changing the computer settings [Menu screen] CC-MC200W Pressing MENU on the measurement screen changes to the menu screen. Various settings can be changed on the menu screen. From “Selecting the measurement unit” * After changes are made, be sure to register the setting(s) by pressing the MENU button. * Leaving the menu screen without any operation for 1 minutes returns to the measurement screen, and chang- Selecting the night mode es are not saved. Select ON/OFF of the night mode. * Pressing and holding the MODE button shortcuts to this screen from the measurement screen. Changing the settings MODE MODE Selecting the Setting the Switching the MODE ON ↔ OFF Measuring MENU night mode upper display circumference (Press & hold)
-
Page 7: Setting The Tire Circumference
Changing the computer settings [Menu screen] CC-MC200W From “Switching the circumference” From “Setting the clock” Setting the tire circumference Setting the function Enter the tire circumference. Select the function to be hidden. Changing the settings Changing the settings Av → Mx → Odo Increase ON ↔ OFF MODE MODE Move digits (Press & hold) (Press & hold) the value MODE (press & hold) -
Page 8: Entering The Total Distance
Changing the computer settings [Menu screen] CC-MC200W From “Selecting the auto mode” Entering the total distance Enter the total distance. * Once you enter any value to the total distance, you can start from the value you entered. Use this function when you renew and/or reset your unit. Changing the settings Increase the value MODE MODE MODE (Press & hold) Move digits 00000 – 99999 (press & hold) Register the setting MODE MENU Selecting the measurement unit Select the speed unit (km/h or mph). Changing the settings MODE km/h ↔... -
Page 9: Maintenance
2-8-25, Kuwazu, Higashi Sumiyoshi-ku, Osaka 546-0041 Japan Attn: CATEYE Customer Service Section Replace the computer battery according to the procedure Phone : (06)6719-6863 Fax : (06)6719-6033 E-mail : support@cateye.co.jp URL : http://www.cateye.com specified in the section “Replacing the battery”. [For US Customers] CATEYE AMERICA, INC. 2825 Wilderness Place Suite 1200, Boulder CO80301-5494 USA Phone : 303.443.4595 Toll Free : 800.5CATEYE Fax : 303.473.0006 E-mail : service@cateye.com Spare accessories Standard accessories Optional accessories...
