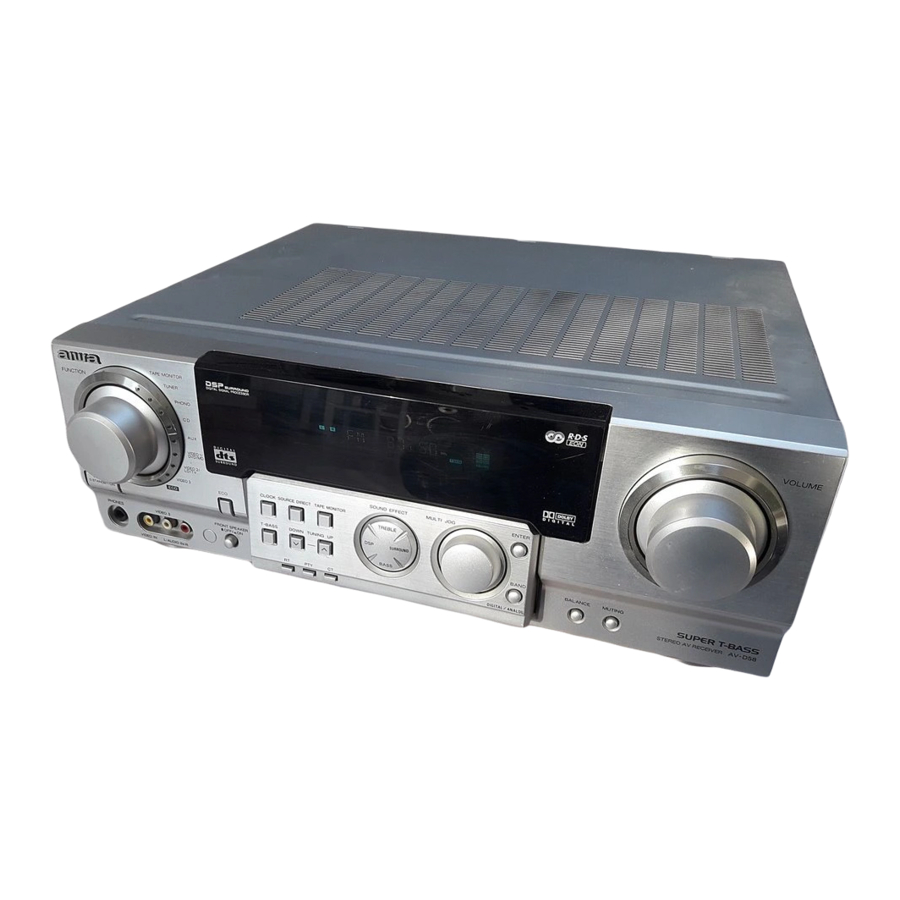

AV-D58
U
SERVICE MANUAL
STEREO RECEIVER
• This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
AV-D58 (U), (S/M Code No. 09-012-444-0T1).
S/M Code No. 09-013-444-0R1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-D58 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aiwa AV-D58

Summary of Contents for Aiwa AV-D58

  • Page 1 AV-D58 SERVICE MANUAL STEREO RECEIVER • This Service Manual is the "Revision Publishing" and replaces "Simple Manual" AV-D58 (U), (S/M Code No. 09-012-444-0T1). S/M Code No. 09-013-444-0R1...

  • Page 2: Specifications

    SPECIFICATIONS <FM tuner section> Outputs AUDIO OUT (REC OUT) : 300 mV Tuning range 87.5 MHz to 108 MHz (1 kohm) Usable sensitivity (IHF) 13.2 dBf VIDEO OUT (MONITOR) : 1 Vp-p Antenna terminals 75 ohms (unbalanced) (75 ohms) SUPER WOOFER : 1.5 V <AM tuner section>...

  • Page 3: Electrical Main Parts List

    ELECTRICAL MAIN PARTS LIST REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION 87-A40-764-080 ZENER,UZ10BSC 87-A40-740-080 ZENER,UZ3.3BSA 87-A21-760-040 C-IC,NJM4580V 87-A40-757-080 ZENER,UZ7.5BSC 8B-AR1-601-030 C-IC,UPD780228GF-082 87-A40-488-080 DIODE,1SS244 87-A21-831-010 IC,SPS-422-1-F1 87-A40-751-080 ZENER,UZ6.2BSB 87-020-784-040 C-IC,TC4053BF 87-A21-703-040 C-IC,SN74LV244APW 87-A40-646-010 DIODE,FMB-G16L 87-017-149-080 ZENER,HZS6A2L 87-A21-916-040 C-IC,SN74LV125APW 87-A21-825-040...
  • Page 4 REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION C323 87-A11-548-080 C-CAP,S 560P-50 K B C566 87-A12-090-080 CAP,E 4.7-50 SMG C325 87-012-368-080 C-CAP,S 0.1-50 F C567 87-A12-090-080 CAP,E 4.7-50 SMG C326 87-012-282-080 CAP, U 4700P-50 C568 87-A12-090-080 CAP,E 4.7-50 SMG C327 87-012-274-080...
  • Page 5 REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION FRONT C.B C218 87-012-368-080 C-CAP,S 0.1-50 F C219 87-012-336-080 CAP, CHIP SS 3300 SL C101 87-012-195-080 C-CAP,U 100P-50CH C220 87-012-336-080 CAP, CHIP SS 3300 SL C102 87-012-195-080 C-CAP,U 100P-50CH CN101 87-A60-079-010 CONN,08P H 9604S-08F...
  • Page 6 REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION C831 87-A12-092-080 CAP,E 22-50 SMG X991 87-A70-306-010 VIB,XTAL 4.500MHZ CSA-309ST C836 87-012-286-080 CAP, U 0.01-25 C842 87-012-286-080 CAP, U 0.01-25 C844 87-012-286-080 CAP, U 0.01-25 DIGITAL C.B C850 87-A11-056-080 C-CAP,U 1-10 Z F C101...
  • Page 7 REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION C221 87-012-278-080 C-CAP,U 2200P-50 B FB603 87-008-372-080 FILTER, EMI BL OIRNI C222 87-012-278-080 C-CAP,U 2200P-50 B FB701 87-008-372-080 FILTER, EMI BL OIRNI C223 87-012-282-080 CAP, U 4700P-50 FB702 87-008-372-080 FILTER, EMI BL OIRNI C224...

  • Page 8: Chip Resistor Part Code

    REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION C808 87-012-195-080 C-CAP,U 100P-50CH PT C.B C809 87-A12-092-080 CAP,E 22-50 SMG C810 87-A12-092-080 CAP,E 22-50 SMG 87-A12-074-080 CAP,E 470-25 SMG C811 87-012-273-080 C-CAP,U 820P-50 B 87-A12-089-080 CAP,E 3.3-50 SMG C812 87-012-273-080 C-CAP,U 820P-50 B...

  • Page 9: Transistor Illustration

    TRANSISTOR ILLUSTRATION E C B E C B G D S B C E 2SK3053 2SA1931 CC5551 2SC2001K FN1016 CSC4115BC FP1016 2SA1015GR KTA1046Y 2SA1980G 2SC1815GR 2SC5343Y E C B 2SK2158 2SK360E 2SA1037K(R) CSA1362GR 2SC4115SRS DTC114ES 2SA1514K(S) CSD1306E 2SA1235F DTC114YKA 2SC2714O DTC123JKA 2SC3052F KRA102S...
  • Page 10 WIRING – 1 (MAIN) – 10 –...
  • Page 11 SCHEMATIC DIAGRAM – 1 (MAIN 1 / 2) – 11 –...
  • Page 12 SCHEMATIC DIAGRAM – 2 (MAIN 2/ 2) – 12 –...
  • Page 13 WIRING – 2 (FRONT) – 13 –...
  • Page 14 SCHEMATIC DIAGRAM – 3 (FRONT) – 14 –...
  • Page 15 WIRING – 3 (TUNER) (DC BAL.) (DC BAL.) – 15 –...
  • Page 16 SCHEMATIC DIAGRAM – 4 (TUNER) – 16 –...
  • Page 17 WIRING – 4 (HP / VIDEO / VOLUME / SPEAKER) – 17 –...
  • Page 18 SCHEMATIC DIAGRAM – 5 (HP/VIDEO / VOLUME / SPEAKER) – 18 –...
  • Page 19 WIRING – 5 (DIGITAL) – 19 –...
  • Page 20 SCHEMATIC DIAGRAM – 6 (DIGITAL) – 20 –...
  • Page 21 WIRING – 6 (AMP) – 21 –...
  • Page 22 SCHEMATIC DIAGRAM – 7 (AMP) – 22 –...
  • Page 23 WIRING – 7 (PT / AC OUTLET) – 23 –...
  • Page 24 SCHEMATIC DIAGRAM – 8 (AC OUTLET / PT) – 24 –...
  • Page 25 FL (HNA-12SM12 BAR-3) GRID ASSIGNMENT / ANODE CONNECTION GRID ASSIGNMENT ANODE CONNECTION – 25 –...

  • Page 26: Ic Block Diagram

    IC BLOCK DIAGRAM – 26 –...
  • Page 27 – 27 –...
  • Page 28 IC DESCRIPTION IC, UPD780228GF-082 Pin No. Pin Name Description O-K-SCAN Switch scan timing output. TUNER ON Tuner ON/OFF output. O-DATA(M) Data output for sound. Connected to a pulled up resistor. O-STB(M) Latch strobe output for sound control. O-MUTE System mute ON/OFF output.. O-CLK (M) Clock output.
  • Page 29 Pin No. Pin Name Description HOLD Power failure detected input "L" to stop and hold memory. I-RE-VOL Volume rotary encoder signal input (Main vol L & R). RDS-SIG RDS signal level input. (Not used) I-JOG2 Multi jog rotary encoder signal input. I-FU-JOG1 Function rotary encoder signal input.
  • Page 30 ADJUSTMENT <TUNER / FRONT> < TUNER SECTION > < FRONT SECTION > 1. Clock frequency Check 1. µ-CON OSC Adjustment Settings : • Test point : TP2 (CLK) Method : Set to AM 1710kHz and check that the test point is Settings : •...

  • Page 31: Mechanical Exploded View

    MECHANICAL EXPLODED VIEW 1 / 1 BINDER,WIRE HT-SINK F-BEAD HT-SINK ASSY PLATE, BOTTOM CHAS MAIN – 31 –...

  • Page 32: Mechanical Parts List

    8B-AR3-002-010 RING,VOL M 87-033-209-010 TERMINAL, EARTH 8B-AR3-003-010 RING,FUN M 8B-AR1-207-010 HLDR,SIDE R 8A-AR3-009-010 REFLECTOR,FUN 8B-AR1-208-010 HLDR,SIDE L 87-CE3-023-010 BADGE,AIWA 30N SILV 88-912-131-110 FF-CABLE,12P 1.25 130MM 8B-AR1-055-010 KEY,SOUND 8B-AR1-216-010 HLDR,P/T H8.0 8B-AR3-020-010 CABI,FR U 87-067-703-010 TAPPING SCREW, BVT2+3-10 8B-AR3-004-010 RING,FOOT SP...

  • Page 33: Accessories / Package List

    ACCESSORIES / PACKAGE LIST REF. NO. PART NO. KANRI DESCRIPTION 1 8B-AR3-903-010 IB,U(ESF)M 2 87-006-226-010 AM-LOOPANT C0 3 87-043-115-010 ANT,FEEDER FM 4 8A-AR2-701-110 RC UNIT,RC-AAR02 BLK – 33 –...
