Nitek MC71XSG-XX Installation And Operation Manual

Model MC71XSG-XX
Gigabit 1000Base FIBER MEDIA CONVERTER
Introduction
The MC71XSG‐XX auto‐negotiating fast Ethernet media converter set is designed to translates 1000Base‐TX copper and
1000Base‐FX fast Ethernet fiber cabling. The media converter enables you to extend the distance of your Gigabit Ethernet network
up to 40km (XX in the part number will indicate max distance).
The Converters are equipped with [1] duplex SC fiber connector to transmit data Bi‐directionally over a single fiber optic cable.
Six LED indicators are built in for easy monitoring and system diagnostics for power, fiber and UTP, link and activity.
Front Panel

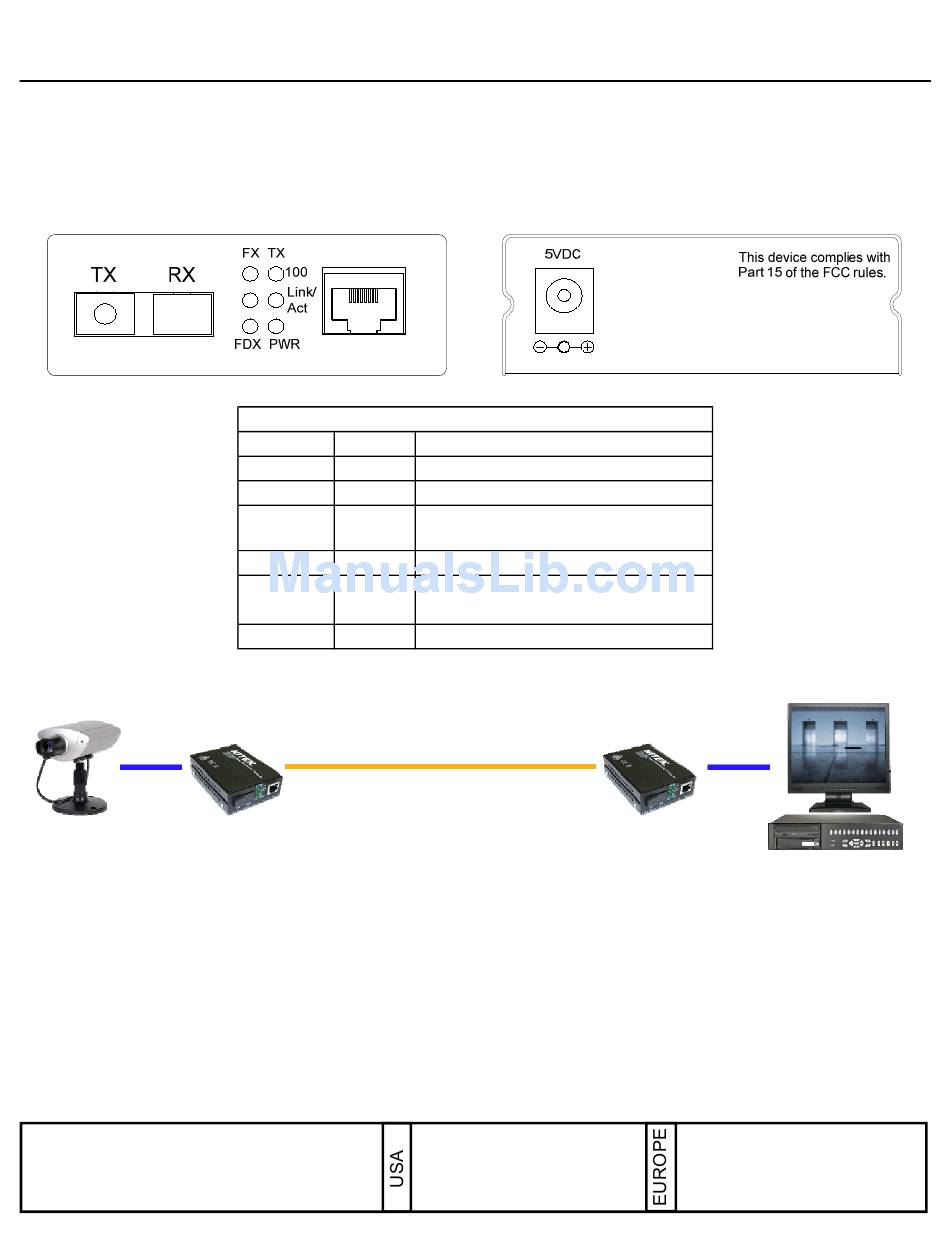

MC71XSG‐XX Fiber Media Converter Installation Drawing
MC71XSG‐XX
Installing the MC71XST‐XX Fiber Media Converters
Refer to the above diagram when installing. Use best industry practices and follow all local building codes.
1) Connect a network patch cable from the network equipment's Ethernet s to the receiver.
2) Connect a Single Mode fiber cable between the transmitter and the receiver using SC fiber connectors.
3) Connect a network patch cable from the transmitter's Ethernet jack to the remote IP device (IP camera in this example).
4) Connect the supplied power transformers to the transmitter and receiver.
Trouble Shooting
(Continued on Page 2)
NITEK
20810 681200105
LED Indicators
LED Color
TP 100 Green Lit when TP speed is 100Mbps
TP1000 Green Lit when TP speed is 1000Mbps
TP TX Green Lit when TP data is transmitting
TP RX Green Lit when TP data is receiving
FX/Link Act Green Lit when fiber connection is made
Blinks when data transfer is active
PWR Green Lit when 5 Volt DC power is applied
