Instruction Manual of IP Camera
TECHview IP Camera
(For Windows OS)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP Camera and is the answer not in the manual?

Questions and answers

Related Manuals for TECHVIEW IP Camera

Summary of Contents for TECHVIEW IP Camera

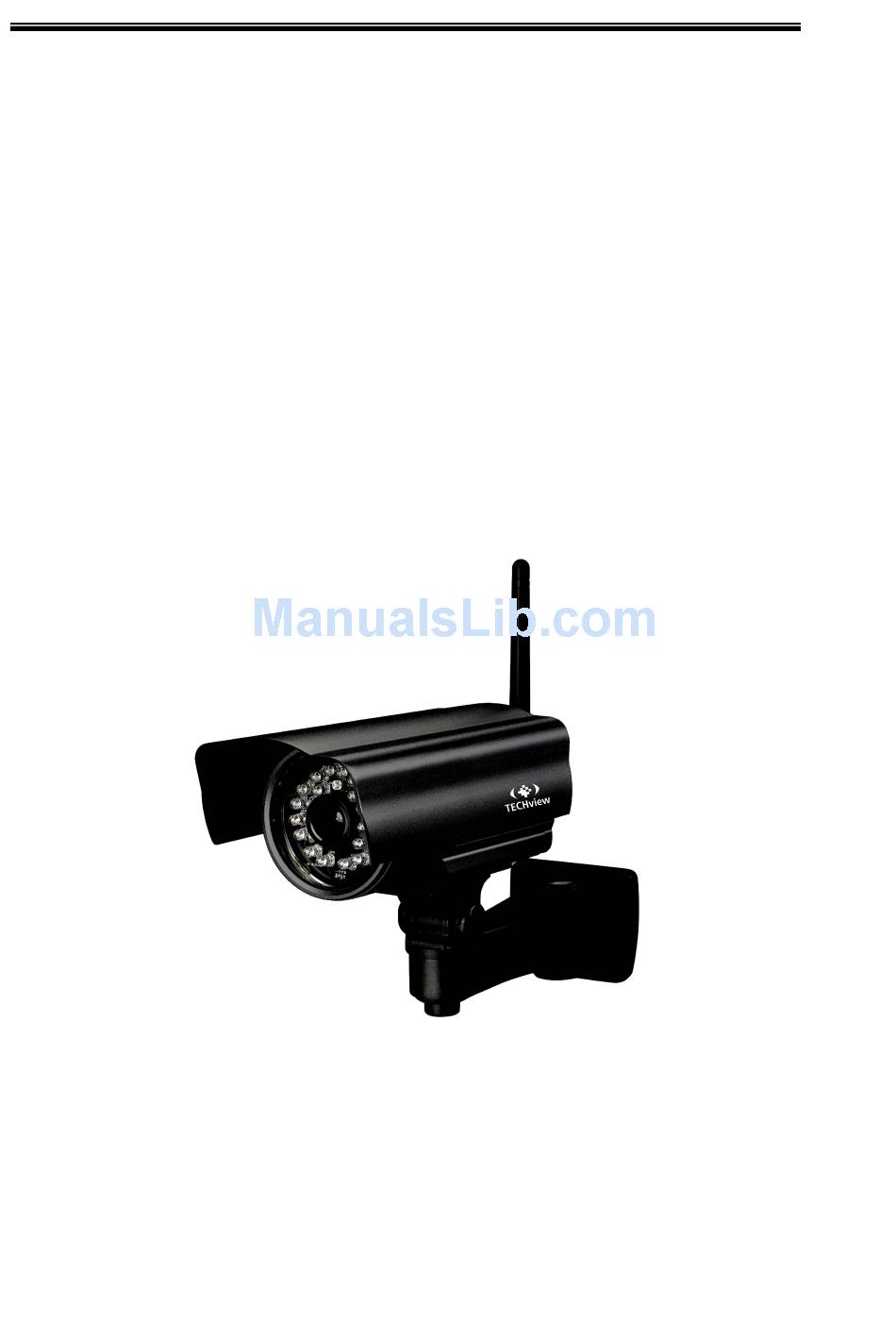

  • Page 1 Instruction Manual of IP Camera TECHview IP Camera (For Windows OS)

  • Page 2: Table Of Contents

    Visit IP CAMERA IN INTERNET .................... 20 Connection way in Internet ....................20 Relate and setiing and visit IP camera ................20 The device like Mobile phone , PAD Etc. visit IP CAMERA..........24 Input IP Address in the browser to visit .................
  • Page 3 ..................60 Why pop-up the prompt"Fail to connect the device"? 8.3.6 ..........60 8.3.7 IP camera has connected with internet, why it can't visit though IP camera ..61 The solution for Operation Common problems ............61 The default Parameters .....................

  • Page 4: Product Overview

    IPCAM User Manual 1 Products overview IP Camera is a IP integrated camera solution. For the user based on the local network ( LAN ) and wide area network ( WAN ) remote video surveillance products provides a clear, high integration, low cost solution.

  • Page 5: Device Apprearance And Interface Installation

    IPCAM User Manual 2 Device appearance and interface 2.1 Device appearance Picture 1: Device appearance 1. Sensitive Hole: According to outside of light decide whether open infrared LED 2. Infrared LED 3. Lens :CMOS Sensor .You can turn around the lens manually to adjust the focus range 4.

  • Page 6: Interface Installation

    RESET BUTTON: Press and hold down the RESET BUTTON for 5 seconds.Release the power button and IP camera will be reset back to the factory default parameter 3 Device installation System configuration requirements: ( Example for view four IP Camera ) CPU: 2.06GHZ or above Memory: 512M or above...

  • Page 7: Hardware Installation

    2) Plug cable with IP camera, and another side of cable should connect with DSL or router. In additional, make sure power of IP camera work properly and IP camera and PC are in the same Subnet( it can be...
  • Page 8 IPCAM User Manual Picture 5 You can search PC IP and DNS Server as belows： This Server address which is provided by network server Picture 6...
  • Page 9 Windows(START- RUN-CMD), and then input : ping 192.168.1.111 in the order windows. Picture 8 ping IP Camera Check whether it can "Ping" IP camera, If yes, then it means IP Camera has been worked properly and connected correctly.

  • Page 10: Software Installation

    If no such an interface, please click “autorun.exe”in the CD ‘ search.exe” . Clink and install LAN Tool to PC system,then you ●And then find can view " IP Camera Tool" in Computer desktop for LAN Search tool.“IP Camera Tool”...

  • Page 11: Visit Ip Camera In Lan

    3：When we power IP camera, we should wait 20 second then it can works Search IP camera When we run Search tool" IP camera Tool", we can find the IP camera showing IP address, Port, Name. If we use Wi-fi connection, we will find Wi-fi IP address. For the details, we can view the following picture.
  • Page 12 IPCAM User Manual SIX Options Choose the IP Camera list and Click right mouse button, there are six options, Basic Properties, Network Configuration, Upgrade Firmware, Refresh Camera List, Flush Arp, About IP camera tool as shown Picture 12. Picture 12...
  • Page 13 Router which the device connect with has DHCP function). NOTE: when the prompt ”subnet doesn t match, double click to change!”, please set the IP Camera IP address once again. Upgrade Firmware Enter the correct User and Password to upgrade system Firmware and Web UI. (User should have administering authority.

  • Page 14: Login Ip Camera

    You can view IP camera tool version and ActiveX version.. 4.3 Login IP camera Double click the IP address of the IP Camera listed IE will be opened automatically and display the camera login ● page Or Access the camera by IE browser directly, type in the camera s IP address. For example :http://192.168.1.111:8999.
  • Page 15 IPCAM User Manual Language options:you can choose operation language according to your demand Picture 18 Picture 19 · When Users login in,they can view images. At the same time, users(Administrator, Operator or Visitor) can operate according to their permissions By Firefox and sofari browser as below：...
  • Page 16 IPCAM User Manual Picture 20 Picture 21...

  • Page 17: Ip Camera Operation

    Open vedio Record Picture 22 The right upper is status's indicator area which can show 9 IP camera status. l When the button is gray, it means IP camera didn't connect l Green means IP camera has connected l Yellow means there is something wrong with connection...

  • Page 18: For Operator

    IPCAM User Manual October 11, 2010.When use motion detection and checked Send Mail on Alarm. The name of the picture received in mailbox is like this: device id(Alias)_ Current time.jpg 4.42 For operator When login as operator, you can operate Pan/Tilt and adjust video parameter. Image around flip color parameter Image fluctuation flip...
  • Page 19 Administrator: You can setup the advanced configurations of the IP Camera. UpnP Settings: If you access IP Camera, to be make sure UpnP Status is Succeed. Upgrade Device Firmware: Upgrade Device Firmware and device embeded web UI software in this page.

  • Page 20: Visit Ip Camera In Internet

    5.2 Related setting and login IP camera 1. If the network your IP camera using is using static IP, you just need to input this IP address and IP camera's port in the browser, then it can visit Ip camera.
  • Page 21 IPCAM User Manual ④ Obtain from router We take" Nur8555M " from " Xinxiang" 's router as example A.According to router's manual, we get Router's IP is 192.168.1.,1 B.Login in router,: Input 192.168.1.1 in the browser. Find the status of Router and find Router's WAN( In this example, WAN'S IP is 116.24.235.122；...
  • Page 22 IPCAM User Manual Our products have been configured the DDNS services, of course, you can also apply for the domain name in registration website for one of your own domain name to configuration. For example: www.dyndns.org DDNS inside Factory DDNS You need fill in DDNS and port.
  • Page 23 IPCAM User Manual The input device user name and password to login to equipment If input domain name, but can't open IP camera in the browser, such as the situation is as blows · Please open the device and check status of IP camera in the local area network, confirm whether UPNP ·...

  • Page 24: Input Ip Address In The Browser To Visit

    Etcs. There are two kinds of ways to access IP camera: One is to input IP address in browser directly, It can be IP address and also can be DDNS. Another is to use clients to visit.！...
  • Page 25 IPCAM User Manual Input IP camera's IP address, for example: (http://c0001.topipcam.org;8999) ● Picture 37 " Search" enter your account and password on the login page as shown By default，administrator’s username is: admin ● and no password. Surf the user and password...
  • Page 26 IPCAM User Manual Option for operation language Picture 40 Click view on-line video Picture 41 Open IP camera successfully ● Picture 42...

  • Page 27: Ip Camera

    IPCAM User Manual Now we take Android system device as example: ● Open menu and firstly open the browser, and input IP camera 's IP address in the browser ,for example: ：(http://c0001.topipcam.org：8999) Open menu Input IP camera's username and password and click " sign in", and then enter into browser ●...
  • Page 28 IPCAM User Manual...
  • Page 29 IPCAM User Manual...
  • Page 30 IPCAM User Manual Fill in the domain address Completed please click or IP address here Fill in the Http port of the camera, login user name and password, click "next" to open the camera Preview video、 click on the next save Save the camera added...
  • Page 31 IPCAM User Manual Selected camera to view images Click image to expand more cameras operating functions...

  • Page 32: Other Setting

    7.1 Network Setting 7.11 Basic Network Settings If the router that the IP camera connect has DHCP function, you can choice “Obain IP from DHCP Server”else fill in the network parameters manually. Http Port: In most cases, you can leave this value as 80, however, if your Internet Service Provider blocks this port, you may switch to another port number such as, 85，8080，8888，9000...
  • Page 33 IPCAM User Manual Figure 54 As Administrator to Login camera, open wireless LAN Settings page, fill in every Setting (ensure keep the same as router’s ), and then pulled out of the cable, wireless network function can be used. For example: as shown in belows Pls click the scan buttom twice...

  • Page 34: Adhoc P To P Wireless Connection Setting

    1) Open the basic network setting interface,check the device status remember the IP address of IP camera and Http port Picture 57 2) Open the wireless lan setting interface, choose Adhoc for network type, you can define SSID such as Click the Settings, Ip Camera will restart and save...
  • Page 35 .if not, please reset the ip address of your laptop manually. Picture 60 Now we can use the ip camera tool or enter ip address of camera derectly in browser blank to visit 1. visit by ip camera tool ：...
  • Page 36 IPCAM User Manual 2：Enter ip address in the browser Enter user name and password in the login interface Picture 62 Click “Sign in”and visit Picture 63...

  • Page 37: Multi-Device Setting

    IPCAM User Manual 7.2 Multi-Device Settings Add cameras in LAN In the Multi-Device Settings page, you can see all devices searched in LAN. The 1 St Device is this device in default. You can add more cameras list in LAN for monitoring. This Web software supports up to 9 IP Cameras online simultaneously.

  • Page 38: Msn Setting

    Fill in your MSN account and password, then add account which need to receive IPCAM’S ip address to IPCAM S MSN list (Picture 67),click submit then you’d better restart IP camera. After it ,login your MSN to add IPCAM’s MSN account to MSN List that you can receive IPCAM’s ip address.
  • Page 39 IPCAM User Manual Figure68 Next： Figure69 . Figure70 When IPCAM’s MSN account shows online you can chat with it, input path command "url?" camera account will show its IP address in chatting box promptly as below :...

  • Page 40: Ddns Setting

    IPCAM User Manual Picture 71 You can input the IP address to browser then can browse ip camera as below: Figure72 Attention:You should fill MSN account in IPCAM first. 7.4 DDNS Service Settings DDNS Service: The system supports protocols from some DDNS providers: Dyndns.org. System support DDNS ,such as topipcam.org，peanut shell，3322.org，DynDNS...

  • Page 41: Factory Ddns

    Such as： manufacturer had already give every device a DDNS address which is unique. Users only need to fill in this DDNS IP ADDRESS and port in the browser, then they can monitor remote IP camera DDNS Hostname...

  • Page 42: Mail And Ftp Service

    IPCAM User Manual Note: the third party domain name is the realization of analytical way, input the domain in the browser, it will keep this string of characters. If the port of the device isn’t 80, then need to add colon and port number .For example: http://reotest1.dyndns.org:8999 7.5 Mail and FTP Service...
  • Page 43 IPCAM User Manual Gmail also set as the same: It only needs you to fill in correct SMTP Sever address, user and password. Picture 78 Mail notes Internet IP address: In this option, When Internet IP and port have changed, IP Will be sent via mail.
  • Page 44 IPCAM User Manual ·FTP Server of LAN as below: 1. Create an account 2. Step by step setting until finish it.！ Picture 82 3.Start Server...
  • Page 45 IPCAM User Manual Continue to finish it ： This is a FTP server address Picture 84 4．IPCAM’S account can be used. Save path Picture 85...

  • Page 46: Motion Detection

    IPCAM User Manual 5. IP camera’s FTP Server set like this Picture 86 6. Set up and complete testing is successful,when it alarms, IP camera will upload pictures to the FTP server Settings of main directory path (as shown ) Picture 87 FTP Server: the FTP server address.
  • Page 47 IPCAM User Manual Send E-mail alarm informatio Ø Transmit pictures to the FTP server, and can set the time interval of sending pictures; Ø 2) Alarm time Settings Only in the alarm period, detection device to alarm will only have alarm action. All the time (not check the schedule) also can alarm within specified time.
  • Page 48 IPCAM User Manual Tick: send to your setted mails Picture 90 Upload Image on Alarm Enable upload image on alarm and set upload interval(Seconds). After Setting up later ,when have the alarm ,the image will send designated email and FTP server Picture 91 REC automatically and save to PC When you enable motion detect and open the camera monitoring page on the PC.

  • Page 49: Time Of Device And Ptz Setting

    If IP camera connected with Internet, it can automatically check the time & date via running NTP Server. And need to choose properly IP camera's Time zone. Otherwise it need PC Time to check IP camera time & Date. Picture 94...

  • Page 50: Upgrade Device Firmware

    PGRADE EVICE FIRMWARE Picture 96 Firmware upgrade IP CAMERA has two kinds of programme: One is system firmware, another is application firmware. It can be upgraded separately. 7.9 B ACKUP AND RESTORE SETTING ，and choose this file to restore setting！...
  • Page 51 IPCAM User Manual Figure98 Step2: enter your information Figure99...
  • Page 52 IPCAM User Manual Figure100 Step3: After a minute, you will receive an E-mail from DynDNS Support and it will give you a confirmation address (e.g. https://www.dyndns.com/confirm/create/e-YS60Gz9oBASMm7rbO6AA Figure101...
  • Page 53 IPCAM User Manual Step4: Open the link to active your Domain Name as below. Figure102 Figure103...
  • Page 54 Step6: Now you obtained a Dynamic Domain Name(Figure 105),and can use it in the DDNS Service Settings(details: 7.4) 2.For DDNS which is applied successfully, you can fill in the IP CAMERA. When set successfully, the status of IP will be shown as blows:...

  • Page 55: Some Special Application For Ipcamera

    IPCAM User Manual picture 107 3、How to set DDNS on line? The first way：Menu ”start”- “run”—> Input CMD，Clink ”enter”。It can check DDNS Statas via. As shown below： Picture 108 Through the PING command, this dynamic domain name can be back in the network response information. It proves that the domain name has been online.

  • Page 56: Open Ip Camera Though Flow-Media Player

    IPCAM User Manual brightness ，0~255 brightness： contrast ，0~6 contrast： Mode, 0:50 hz; For 60 hz; 2: outdoor mode： Flip: rotation, 0: primitive; 1: vertical reverses; 2: horizontal; 3: vertical flip + horizontal flip： The flow media player VLC player and mplayer can real-time broadcast ipcamera and send 8.2.1 of streaming media format video data.
  • Page 57 IPCAM User Manual the "CLC media player" open play position: Picture 115 LAN play address; Picture 116 Picture 117...
  • Page 58 IPCAM User Manual Open the Internet play position: User User Picture 118 Size: 640X480 As shown in the following picture, It can see the ipcamera send video streaming format Picture 119...

  • Page 59: Frequently Asked Questions

    Default administrator password: No password 8.3.2 IP Address configuration Check whether IP address of the IP Camera server shares the same subnet as your work station: Click My Computer > Control Panel>Network & Dial-up Connections > LAN > Attributes >Internet Protocols (TCP/IP), and check IP Address and Subnet Mask.

  • Page 60: Network Bandwidth Problems

    3. the number of visitors (Too many visitors will slow down the image frame rate.); 4. choice of switch or hub (Use a switch for multiple IP Camera Servers rather than a HUB.). The Device use MJEPT Compression, it needs good network bandwidth, If it is too narrow, it will lead to slowly browser.

  • Page 61: Ip Camera Has Connected With Internet, Why It Can't Visit Though Ip Camera

    When use ADSL, the IP is dynamic. You should set DDNS(see more details 3.5.4 & 5.1.6) and also make sure port mapping success. Operate common problem solving IP camera tool can’t find the camera? Except of the camera broken 1. Make sure the cable connector no problem, recommend connector (AMP),it is with international standard.

  • Page 62: The Default Parameters

    IPCAM User Manual 4. Reason:Web port has been modified Solution:contact network administrator to obtain port information. 5. Reason:unknown Solution:Press reset button to factory default state,then reconnecting.systen default to gain ip address automatic,subnet mask is 255.255.255.0 8.5 Default Parameters ·Default network Parameters IP address: dynamic obtain Subnet mask:255.255.255.0 Gateway: dynamic obtain...

  • Page 63: Technical Parameters

    IPCAM User Manual 8.6 Technical Parameters ITEM IP CAM （QC -3836 ） Mage sensor 1/5" Color CMOS Sensor Display 640 x 480 (300K Pixels) Image Sensor Lens f:3.6mm, F:2.4 (IR Lens) Mini.illumination 0.5 Lux Lens Type Glass Lens Lens Viewing Angle 60 Degree Without the microphone Audio...
