Power On/Off - Kellyco MP5 PRO Owner's Manual

usinG THe mP5 Pro meTal deTeCTor —
The mP5 Pro is a slow motion type detector, in other words the coil
must be in slow motion to respond to any target. By simply moving
the coil back and forth over the ground this motion will activate the
automatic ground balance and tuning circuits of you detector and keep
it at its optimum tuning levels. When scanning the ground try to keep
the search coil about 1 inch off the ground. DO NOT scrub the ground,

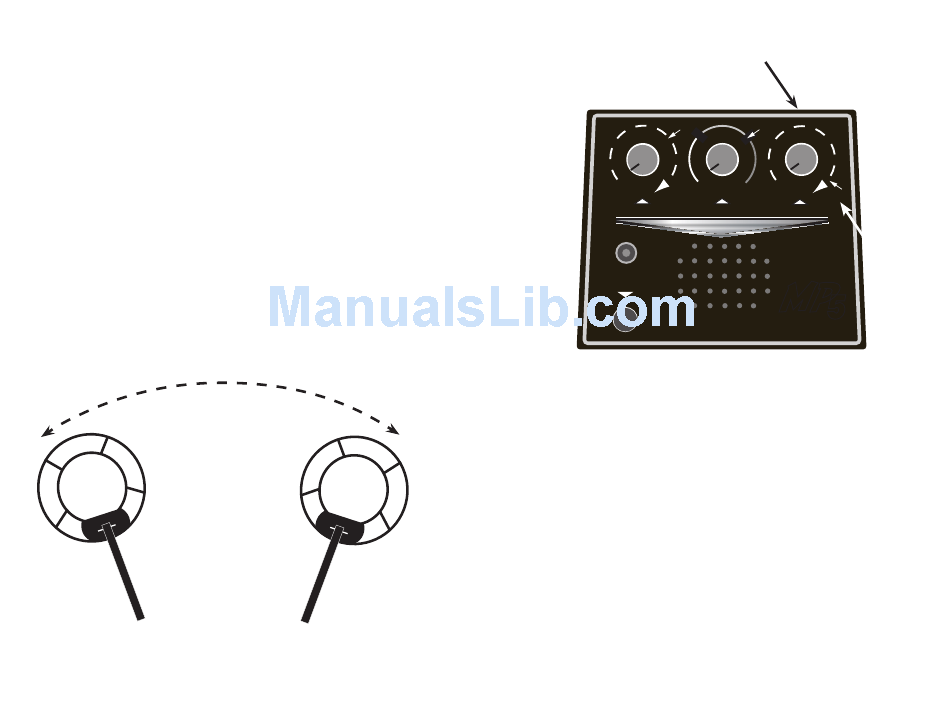

you may get some "False Signals" by doing that. Please refer to the
following drawings for the correct way to sweep and hold your metal
detector.
Simply move the coil back and forth
over the ground.
FeeT
Per
SeCOND
2
8
oPeraTion of ConTrols —
PoWer on / off
Volume Switch.
PRE SET
5
4 6
3
7 3
2
8 2
1
9 1
0 10 0
SENSITIVITY DISCRIMINATE
PINPOINT
High Performance – Deep Searching
To operate and turn on the mP5 Pro simply turn the on/off Vol-
ume Control fully clockwise. Turning this same control counter-
clockwise will lower the volume.
TIP: Adjust the Volume level that is comfortable for your personal
hearing if using an optional headphone. When not using headphones
keep volume at maximum so you will not miss the deeper targets.
After you have turned on the mP5 Pro you should now adjust the
Sensitivity Control and the Discriminate Control to their Pre-set
positions. This is only a starting point and will help you get familiar
with your new mP5 Pro.
PRE SET
5
4 5
4
6 6
7 3 7
8 2 8
9 1 9
10 0 10
ON / OFF
PRE SET
VOLUME
• Factory
recommend
starting
point
MP
(Pre-Set
Position)
5
PRO
5
