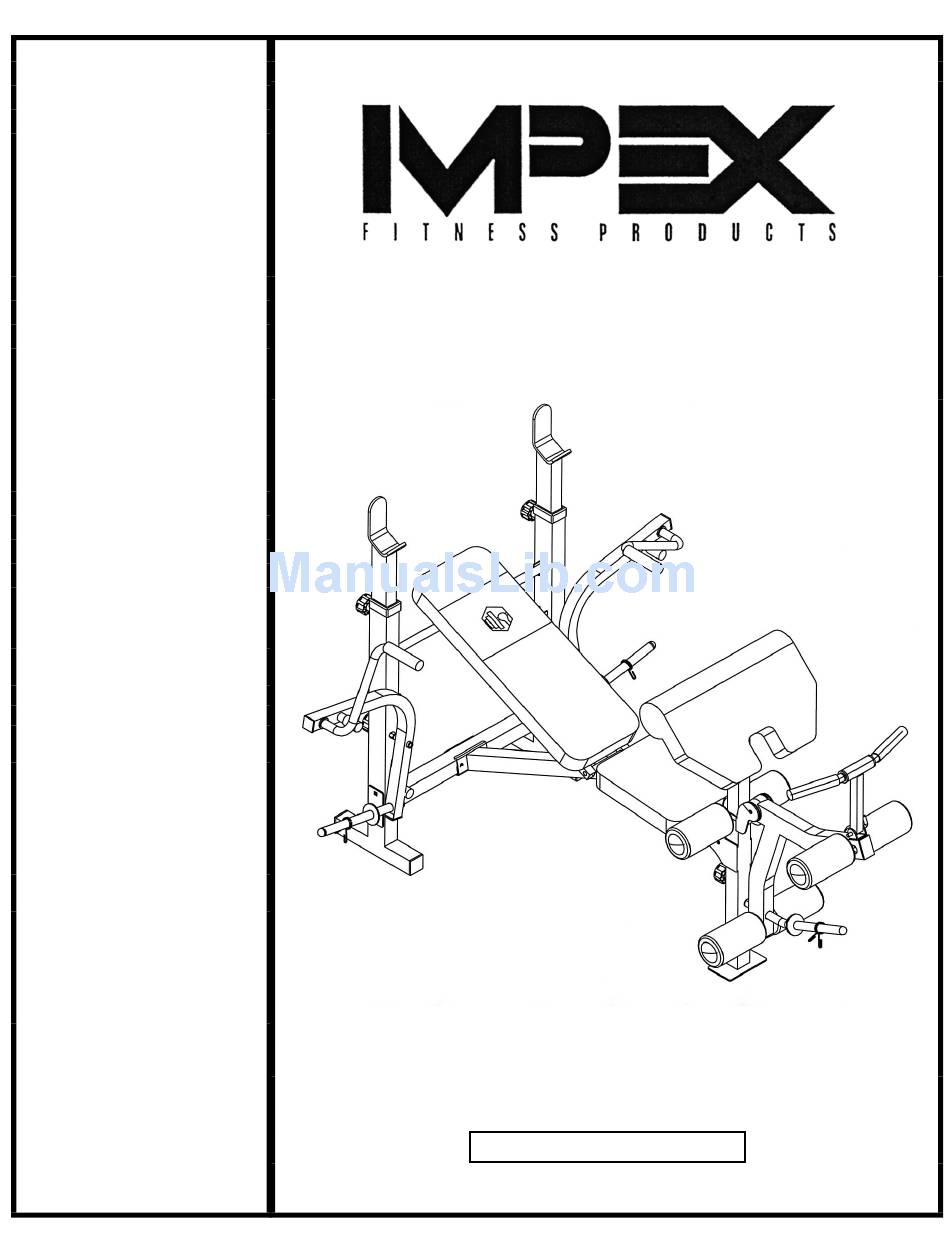

Hardware Pack PHC-700 Assembly Instruction Parts List Warranty Ordering Parts Model PHC 700 Retain This Manual for Reference 07-19-03 OWNER'S MANUAL IMPEX FITNESS PRODUCTS 14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746 Tel: (800) 999-8899 Fax: (626) 961-9966 www.impex-fitness.com info@impex-fitness.com...

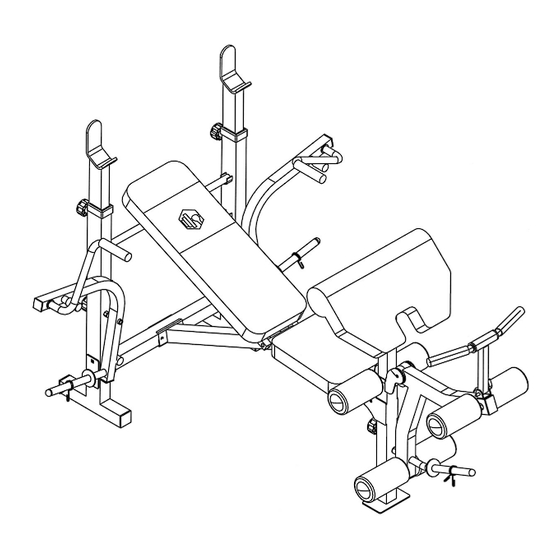

WARRANTY...… ORDERING PARTS... BEFORE YOU BEGIN Thank you for selecting the Powerhouse Bench PHC 700 by IMPEX FITNESS PRODUCTS. For your safety and benefit, read this manual carefully before using the machine. complete customer satisfaction. If you have any questions, or find there are missing or damaged parts, we guarantee you complete satisfaction through direct assistance from our factory.
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT. SAVE THESE INSTRUCTIONS. READ ALL IMPEX INC.
ASSEMBLY INSTRUCTION Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches. NOTE: It is strongly recommended two or more people assembling this machine to avoid possible injury. STEP 1 (See Diagram 1) A.) Connect the Right and Left Upright Beams (#1 & 2) by a Cross Brace (#3) in the mid- span.
Page 6
STEP 2 (See Diagram 2) A.) Attach the Main Seat Support (#6) to the Cross Brace (#3). Secure it with a Bracket (#17), two M10 x 2 ¾” Carriage Bolts (#37), two Aircraft Nuts (#43). B.) Attach the Front Support (#8) to the Main Seat Support (#6). Secure it with three M10 x 2 ¾”...
Page 7
STEP 3 (See Diagram 3) A.) Attach the Leg Developer (#10) to the open bracket on the Front Support (#8). Secure it with an Axle (#44), two (#39). B.) Insert one Foam Tube (#16) halfway through the hole on the Front Support (#8). Insert two Foam Tubes halfway through the holes on the Leg Developer.
Page 8
STEP 4 (See Diagram 4) A.) Attach the hole-side of the Backrest Supports (#7) to both ends of the pivot on the Main Seat Support (#6). Secure it with one M12 x 7 ¼” Hex Bolt (#38) and M12 Aircraft Nut (#42). Place the other end of Backrest Supports rest against the Backrest Adjustment Bar.
Page 9
STEP 5 (See Diagram 5) A.) Insert a M12 x 6 ¼” Hex Bolt (#54) through the Right Butterfly (#12). Secure the Bolt with a M12 Regular Nut (#53). Insert the Bolt through the hole on the Right Upright Beam (#1) and secure it with a M12 Lock Knob (#49). B.) Attach the Butterfly Handle (#14) to the Right Butterfly (#12).
PARTS LIST KEY NO. DESCRIPTION Right Upright Beam Left Upright Beam Cross Brace Crutch Backrest Adjustment Bar Main Seat Support Backrest Support Front Support Arm Curl Stand Leg Developer Curl Handle Right Butterfly Left Butterfly Butterfly Handle Curl Handle Tube Foam Tube Bracket Seat...
IMPEX. IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages or whatsoever natures.
