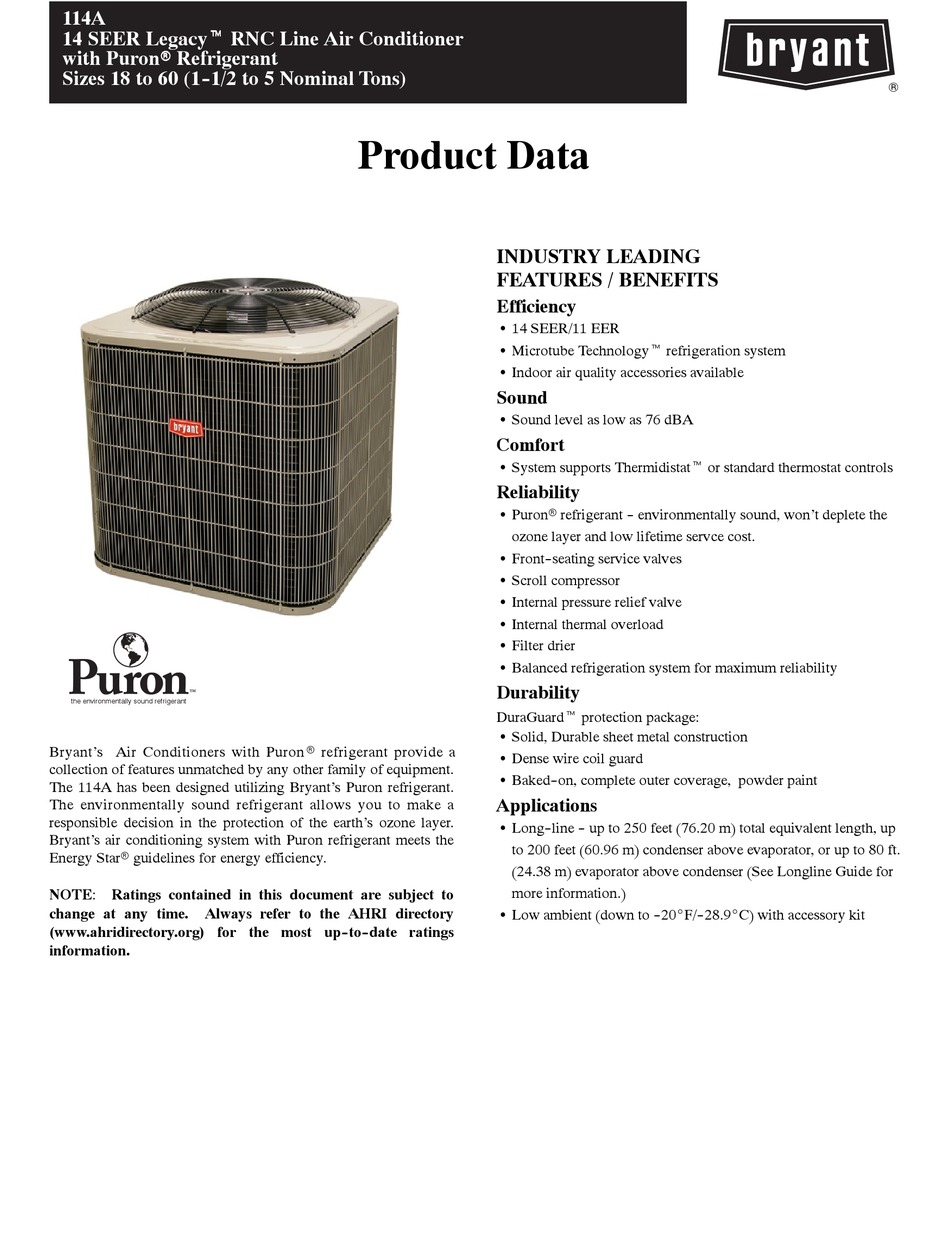

114A
14 SEER Legacyt RNC Line Air Conditioner
with Puronr Refrigerant
Sizes 18 to 60 (1- - 1/2 to 5 Nominal Tons)
the environmentally sound refrigerant
Bryant's Air Conditioners with Puron r refrigerant provide a
collection of features unmatched by any other family of equipment.
The 114A has been designed utilizing Bryant's Puron refrigerant.
The environmentally sound refrigerant allows you to make a
responsible decision in the protection of the earth's ozone layer.
Bryant's air conditioning system with Puron refrigerant meets the
Energy Starr guidelines for energy efficiency.
NOTE: Ratings contained in this document are subject to
change at any time.
Always refer to the AHRI directory
(www.ahridirectory.org) for the most up- -to- -date ratings
information.
Product Data
INDUSTRY LEADING
FEATURES / BENEFITS
Efficiency
S 14 SEER/11 EER
S Microtube Technologyt refrigeration system
S Indoor air quality accessories available
Sound
S Sound level as low as 76 dBA
Comfort
S System supports Thermidistatt or standard thermostat controls
Reliability
S Puronr refrigerant - - environmentally sound, won't deplete the
ozone layer and low lifetime servce cost.
S Front- -seating service valves
S Scroll compressor
S Internal pressure relief valve
S Internal thermal overload
S Filter drier
S Balanced refrigeration system for maximum reliability
Durability
DuraGuardt protection package:
S Solid, Durable sheet metal construction
S Dense wire coil guard
S Baked- -on, complete outer coverage, powder paint
Applications
S Long- -line - - up to 250 feet (76.20 m) total equivalent length, up
to 200 feet (60.96 m) condenser above evaporator, or up to 80 ft.
(24.38 m) evaporator above condenser (See Longline Guide for
more information.)
S Low ambient (down to - -20_F/- -28.9_C) with accessory kit
Advertisement
Table of Contents
Related Manuals for Bryant 114A Series
Summary of Contents for Bryant 114A Series
-
Page 1: Product Data
S Dense wire coil guard collection of features unmatched by any other family of equipment. S Baked- -on, complete outer coverage, powder paint The 114A has been designed utilizing Bryant’s Puron refrigerant. Applications The environmentally sound refrigerant allows you to make a responsible decision in the protection of the earth’s ozone layer. -
Page 2: Model Number Nomenclature
MODEL NUMBER NOMENCLATURE Product Major Cooling Capacity Tier SEER Voltage Variations Open Open Open Series Family Series 0=Not N= 208 ---230 ---1 0=Not 0=Not 1=AC Legacy 4=14 SEER A=Puron A = Standard Defined Original or 208/230 ---1 Defined Defined Series ISO 9001:2000 the environmentally sound refrigerant REGISTERED... -
Page 3: Physical Data
PHYSICAL DATA UNIT SIZE --- SERIES 018---C 024---D 030---D 036---C 042---D 048---D 060---D Operating Weight lb (kg) (76.6) (73.5) (73.9) (86.6) (102.1) (104.8) (123.4) Shipping Weight lb (kg) (89.4) (92.5) (93.4) (102.1) (119.3) (122.0) (140.6) Compressor Type Scroll REFRIGERANT Puron® (R--- 410A) Control TXV (Puron®... - Page 4 ACCESSORY THERMOSTATS THERMOSTAT / SUBBASE PKG. DESCRIPTION T6---PRH ---01 Programmable Thermidistat T6---NRH ---01 Non--- programmable Thermidistat T1---PAC ---01 Legacy RNC Series Programmable AC Stat T1---NAC ---01 Legacy RNC Series Non--- programmable AC Stat TSTATBBPRH01---B Thermidistat Control --- Programmable / Non--- Programmable Thermostat with Humidity control TSTATBBPAC01 ---B Thermostat --- Auto Changeover, 7--- Day Programmable, _F/_C, 1--- Stage Heat, 1--- Stage Cool TSTATBBNAC01 ---C...
- Page 5 Required in long line applications. 9. Outdoor Air Temperature Sensor Suggested in all commercial applications. Designed for use with Bryant Thermostats listed in this publication. This device enables the thermostat to display the outdoor temperature. This device also is required to enable special thermostat features such as auxiliary heat lock out.
- Page 6 Accessory Description and Usage (Listed Alphabetically) (Continued) 10. Sound Hood 13. Time- -Delay Relay Wraparound sound reducing cover for the compressor. Reduces the An SPST delay relay which briefly continues operation of indoor blower motor to provide additional cooling after the compressor sound level by about 2 dBA.
-
Page 7: Electrical Data
ELECTRICAL DATA OPER MIN WIRE MIN WIRE MAX FUSE** COMPR LENGTH LENGTH VOLTS* UNIT SIZE V/PH SIZE{ SIZE{ or CKT BRK ft (m)} ft (m)} 60° C 75° C AMPS RLA FLA 60° C 75° C 018 -- C 48.0 11.7 67 (20.4) 64 (19.5) - Page 10 Wall...
- Page 11 COMBINATION RATINGS ARI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER Phase 3042449 114ANA018 ---C 18000 11.50 14.00 {CAP**2414A**+TDR 3042483 114ANA018 ---C CAP**1814A** 313*AV024045 17900 12.50 15.00 3042451 114ANA018 ---C CAP**1814A** 315(A,J)AV036070 17600 12.50 15.00 3042450 114ANA018 ---C CAP**1814A**+TDR 17800 11.20...
-
Page 12: Combination Ratings Continued
COMBINATION RATINGS CONTINUED ARI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER Phase 3042520 114ANA024 ---D CNPH*2417A** 315(A,J)AV066155 23000 13.00 15.00 3099817 114ANA024 ---D CNPH*2417A** 353AAV036040 23200 13.00 15.50 3099818 114ANA024 ---D CNPH*2417A** 353AAV036060 23200 13.00 15.50 3099819 114ANA024 ---D CNPH*2417A** 353AAV036080... - Page 13 COMBINATION RATINGS CONTINUED ARI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER Phase 3042550 114ANA024 ---D CSPH*3012A** 355(A,C)AV060080 23000 13.00 15.00 3042551 114ANA024 ---D CSPH*3012A** 355(A,C)AV060100 23400 13.00 15.00 3042552 114ANA024 ---D CSPH*3012A** 355(A,C)AV060120 23200 13.00 15.00 3042546 114ANA024 ---D CSPH*3012A**+TDR 23400...
- Page 14 COMBINATION RATINGS CONTINUED ARI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER Phase 3042619 114ANA030 ---D CNPH*3617A** 355(A,C)AV042060 28800 12.50 15.00 3042620 114ANA030 ---D CNPH*3617A** 355(A,C)AV042080 28800 12.50 15.00 3042621 114ANA030 ---D CNPH*3617A** 355(A,C)AV060080 28800 12.50 15.00 3042622 114ANA030 ---D CNPH*3617A** 355(A,C)AV060100...
- Page 15 COMBINATION RATINGS CONTINUED ARI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER Phase 3042665 114ANA030 ---D FV4BN(B,F)005 30000 13.20 15.00 3042663 114ANA030 ---D FV4BNF002 29000 12.50 15.00 3042656 114ANA030 ---D FX4CN(B,F)036 29400 12.20 14.50 3042655 114ANA030 ---D FX4CNF030 29200 12.50 15.00...
- Page 16 COMBINATION RATINGS CONTINUED ARI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER Phase 3042729 114ANA036 ---C CNPV*3617A**+TDR 35400 11.50 14.00 3042689 114ANA036 ---C CNPV*3621A** 313*AV048090 35200 12.50 15.00 3042690 114ANA036 ---C CNPV*3621A** 313*AV060110 35400 12.50 15.00 3042734 114ANA036 ---C CNPV*3621A** 315(A,J)AV060110 35000...
- Page 17 COMBINATION RATINGS CONTINUED ARI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER Phase 3042865 114ANA042 ---D CAP**4817A** 313*AV048070 40500 12.00 14.00 3042777 114ANA042 ---D CAP**4817A** 315(A,J)AV048090 39500 12.50 15.00 3099903 114ANA042 ---D CAP**4817A** 353AAV036040 40000 12.70 15.00 3099904 114ANA042 ---D CAP**4817A** 353AAV036060...
- Page 18 COMBINATION RATINGS CONTINUED ARI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER Phase 3099910 114ANA042 ---D CNPV*4217A** 355(A,C)AV042060 40000 12.50 14.50 3099909 114ANA042 ---D CNPV*4217A**+TDR 40000 12.00 14.00 3042869 114ANA042 ---D CNPV*4221A** 313*AV048090 39500 12.20 15.00 3042870 114ANA042 ---D CNPV*4221A** 313*AV060110 39500...
- Page 19 COMBINATION RATINGS CONTINUED ARI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER Phase 3042858 114ANA042 ---D FE5ANB004+UI 41500 13.00 15.50 3042859 114ANA042 ---D FV4BN(B,F)003 39500 12.50 15.00 3042860 114ANA042 ---D FV4BN(B,F)005 41000 13.00 15.50 3042861 114ANA042 ---D FV4BNB006 41500 13.00 15.50...
- Page 20 COMBINATION RATINGS CONTINUED ARI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER Phase 3099950 114ANA048 ---D CNPV*4821A** 353AAV060100 47000 12.00 14.50 3042909 114ANA048 ---D CNPV*4821A** 355(A,C)AV060080 46500 12.00 14.00 3042910 114ANA048 ---D CNPV*4821A** 355(A,C)AV060100 46500 12.00 14.00 3042908 114ANA048 ---D CNPV*4821A**+TDR 47500...
- Page 21 TDR — Time ---Delay Relay. In most cases, only 1 method should be used to achieve TDR function. Using more than 1 method in a system may cause degrada tion in performance. Use either the accessory Time ---Delay Relay KAATD0101TDR or a furnace equipped with TDR. Most Bryant furnaces are equipped with TDR.
- Page 33 CONDENSER ONLY RATINGS* CONDENSER ENTERING AIR TEMPERATURES ° F (° C) ° F (° C) 55 (12.78) 65 (18.33) 75 (23.89) 85 (29.44) 95 (35.0) 105 (40.56) 115 (46.11) 125 (51.67) 114ANA018--- C 16.80 15.70 14.70 13.80 12.80 11.80 10.80 9.70 66.70 76.10...
- Page 34 CONDENSER ONLY RATINGS* CONTINUED CONDENSER ENTERING AIR TEMPERATURES ° F (° C) ° F (° C) 55 (12.78) 65 (18.33) 75 (23.89) 85 (29.44) 95 (35.0) 105 (40.56) 115 (46.11) 125 (51.67) 114ANA042--- C 37.40 35.70 33.80 31.80 29.70 27.40 25.00 22.50 68.10...
- Page 35 GUIDE SPECIFICATIONS AIR- -COOLED, SPLIT- -SYSTEM AIR CONDITIONER 114A GENERAL 1- -1/2 TO 5 NOMINAL TONS System Description Fans Outdoor- -mounted, air- -cooled, split- -system air conditioner unit — Condenser fan will be direct- -drive propeller type, suitable for ground or rooftop installation. Unit consists of a discharging air upward.
- Page 36 Catalog No: PDS114A ---04 Copyright 2009 Bryant Heating & Cooling Systems. S 7310 W. Morris St. S Indianapolis, IN 46231 Printed in U.S.A. Edition Date: 02/09 Replaces: PDS114A--- 03 Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
