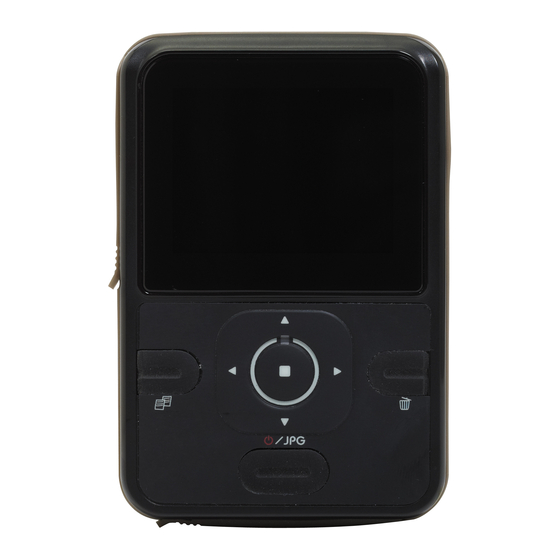

Cuddeback CuddeView X2 Owner's Manual

Scouting camera viewer
Hide thumbs

Advertisement

Table of Contents

Owner's Manual
10225

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CuddeView X2 and is the answer not in the manual?

Questions and answers

Related Manuals for Cuddeback CuddeView X2

Summary of Contents for Cuddeback CuddeView X2

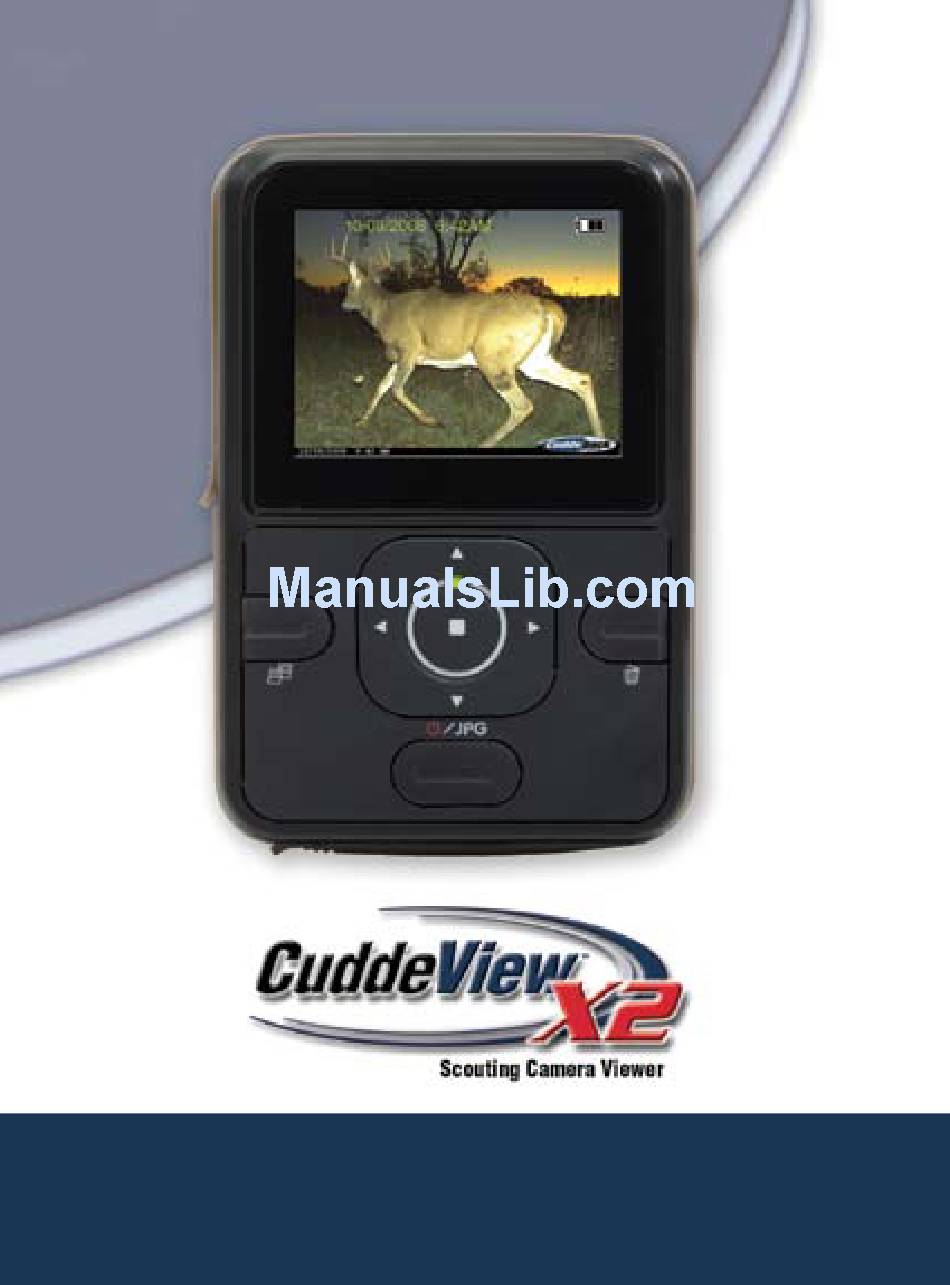

  • Page 1 Owner’s Manual 10225...

  • Page 2: Table Of Contents

    Table of contents Get to know your CuddeView X2 ..................1 Install batteries ......................2 Install SD card(s) ......................3 Power on/off ........................4 Card status screen ......................5 Viewing images ....................... 6 Zoom in/out ........................7 Panning ..........................8 Copy images ........................

  • Page 3: Get To Know Your Cuddeview X2

    Get to know your CuddeView X2 Battery life TV out indicator (behind flap) Time/date Source information (SD) card (behind flap) LCD screen Operation keys Delete key Copy key Power (on/off)/JPG key USB port Destination (behind flap) (SD) card (behind flap)

  • Page 4: Install Batteries

    • Battery life indicator appears on LCD screen when CuddeView X2 is powered on. • Remove batteries when CuddeView X2 will not be used for one month or more. Dead batteries can leak acid and destroy your product.

  • Page 5: Install Sd Card(S)

    Install SD card(s) CuddeView X2 takes SD cards. It will hold two SD cards which allows you to copy images from one card to the other. • Only install or remove SD cards when CuddeView X2 is off! • Install SD cards with label facing down into either slot (see below).

  • Page 6: Power On/Off

    Power CuddeView X2 On/Off To power your CuddeView “ON” push the key labeled: /JPG. • To turn CuddeView X2 “OFF”, hold down /JPG button for 3 seconds. Power (on/off)/JPG key...

  • Page 7: Card Status Screen

    Card status screen After CuddeView X2 powers ON, a Card Status screen appears which allows you to select between the Source and Destination cards. • Yellow box around card indicates active card. • Red X over card indicates empty card slot.

  • Page 8: Viewing Images

    Viewing images To view images on the selected card, press either the keys. • To view next image, press key. • To view previous image, press key. • To return to card status screen (to select other card), press JPG key. Time/date information Battery indicator Image #:...

  • Page 9: Zoom In/Out

    Zoom in/out CuddeView X2 allows you to “zoom” in on an image to get a closer look at details like antlers. • To zoom in, press the key. • To zoom in even further, continue to press to key. •...

  • Page 10: Panning

    Panning To pan up, down, left or right you must first zoom in on displayed image (by pressing key). Next, press key to switch to “pan” mode. • Press arrow keys to pan up, down, left, right. • To exit panning mode, press JPG key. •...

  • Page 11: Copy Images

    Copy images To copy images from Source card to Destination card, press JPG key to go to card status screen. • Press copy key. • Select Yes (use to toggle between Yes, No). • Press to copy images to Destination card. Copy key Note: Copy speed is dependent upon image file size, number...

  • Page 12: Delete Images

    Delete images CuddeView X2 allows you to delete individual images or all images from your SD card. You must be in “view images” mode. • Press Delete key. once (to display single image delete). twice (to display all-image delete). three times (to exit delete mode).

  • Page 13: Rotation Method For Checking Cameras

    Each scouting camera has an SD card installed. We recommend 1 GB cards for Cuddeback cameras. • Install 2 blank SD cards into the CuddeView X2, one in the Source card slot, one in the Destination card slot. Again, we recommend 1 GB cards.
  • Page 14 • View these new images by selecting the Destination card and using the key to view the most recent images. Continue viewing in reverse order to eliminate having to view all the images on the Destination card. • Check additional cameras using this same “Rotation Method.”...

  • Page 15: Pc Card Reader

    When “USB Mode?” is displayed, select YES to use CuddeView X2 as a card reader, press NO to use CuddeView X2 as a viewer. • The SD card(s) in your CuddeView X2 will be available on your PC. • If you use Cuddeback’s Trophy Room Image Management Software, all you need to do is press “G”...

  • Page 16: View Images On Tv

    Using CuddeView X2 to view images on your TV CuddeView X2 also allows you to view images on your TV screen. • Turn CuddeView X2 “OFF”. • Plug video cable (included) into CuddeView X2’s TV out. Side view TV out •...

  • Page 17: Limited Warranty

    LIMITED WARRANTY 1. Limited Warranty. Non Typical, Inc. (“Non Typical”) warrants the Product to be free from malfunctions and defects in both materials and workmanship for 1 year from the date of purchase (“Warranty Period”). Non Typical will repair or replace, at its option, the Product if it fails to function properly during the Warranty Period, subject to the conditions and/or limitations stated herein.
  • Page 18 You can get answers to common questions, run a troubleshooting wizard, or authorize a product return on our web site (www.cuddeback.com). Note – if you use our web site to authorize a return you DO NOT need to call us.
  • Page 19 “Thanks for making a great camera, beats all the others I’ve tried, hands down.” – Ken Luko - Black Earth, WI “Cuddeback is the best there is! I wouldn’t use anything else!” – Luke Mitchell - Perry, MO “I have tried many other game cameras but nothing compares or is anything close to a Cuddeback.”...
  • Page 20 “I would recommend these cameras to anyone looking for a great trail camera! Lightning fast trigger speed, longest lasting battery life!” – Weston Lovelette - Elk River, MN “I love my Cuddeback, it is the best on the market.” – Chris Ransom - Vandalia, OH...
