Copytrax MONET 5000 Pro User Manual

Cd/dvd ink jet printer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
MONET 5000 Pro
and
MONET 5000 Pro-Recorder
April 2005 Issue1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MONET 5000 Pro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Copytrax MONET 5000 Pro

Summary of Contents for Copytrax MONET 5000 Pro

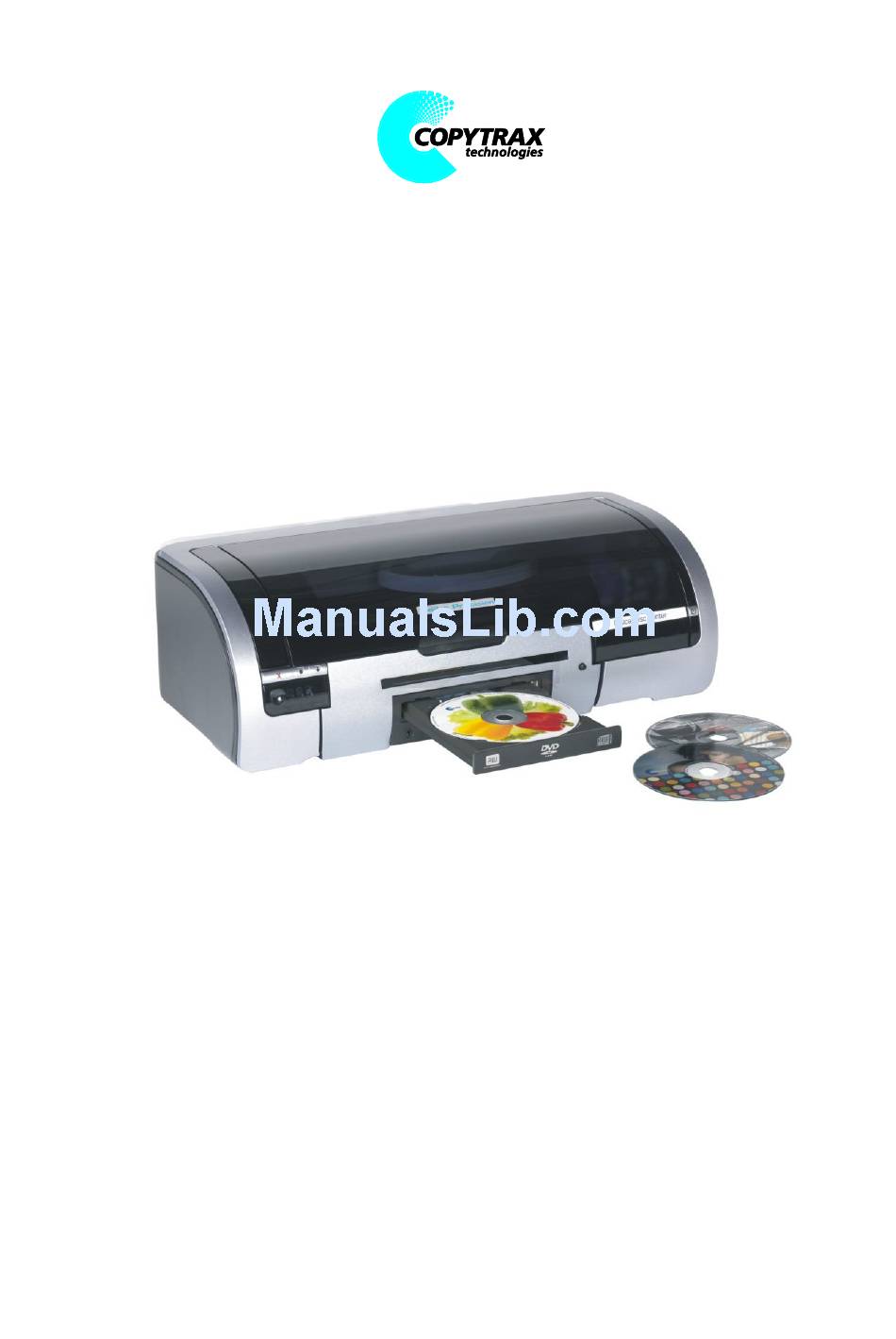

  • Page 1 User Manual MONET 5000 Pro MONET 5000 Pro-Recorder April 2005 Issue1...

  • Page 2: Table Of Contents

    COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder General ........................ 3 Introduction......................4 1.1.1 Front View ....................4 1.1.2 User Buttons and Status-LED’s ..............4 1.1.3 Rear view ....................7 Printer driver ....................... 8 Installation ......................8 2.1.1 First Installation (Plug & Play) ..............8 2.1.2...

  • Page 3: General

    COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder General Description: The CD Printer 5000 Pro & Pro-Recorder is a CD/DVD ink jet printer, based on the HP DeskJet 5000 series printer technology from Hewlett Packard. The form feed is replaced by a compact disc printer drawer (Tray).

  • Page 4: Introduction

    COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder Introduction Front View 1.1.1 Front cover to access cartridges and printer mechanics Power on switch and Power LED User buttons and Media Tray – Print only. Status LED`s Optional CD / DVD Recorder ( 5000 Pro –...
  • Page 5 COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder Power on switch and Power LED Power Button and - LED With the Power Button you can switch the printer on and off. After pressing it takes a couple of seconds until the printer becomes ready.
  • Page 6 COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder Cancel Button Print Cartridge Status - LED Resume Button and LED Cancel Button The current print job is aborted by pressing the Cancel Button. Print Cartridge Status - LED The Print Cartridge Status LED blinks when a cartridge needs to be replaced or requires maintenance as well as when the front cover is open.

  • Page 7: Rear View

    COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder Rear view 1.1.3 Power LED ( Green ) Rear cover Power connector 100 - 230V USB connector (CDP 5000 Pro & Pro-Recorder) On / Off Switch May 2005 www.copytrax.com...

  • Page 8: Printer Driver

    COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder Printer driver Installation First Installation (Plug & Play) 2.1.1 Connect the CD Printer 5000 Pro & Pro-Recorder to the power supply. Switch-on is not necessary since the personal computer recognizes the printer also in idle status.
  • Page 9 COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder Completing the Add Printer Wizard and starting the installation, by pressing the button „Finish“. This dialog field informs you that the driver is not registered officially with the manufacturer of the operating system.

  • Page 10: Manual Installation

    COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder Manual Installation 2.1.2 Please open the dialog „Printers and faxes“. Run the „Add Printer Wizard“ by pressing the button „Add a printer“. May 2005 www.copytrax.com...
  • Page 11 COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder Click “Next” to continue. Select the option „Local printer attached to this computer“ and press the „Next“ button to continue. Select a free USB Port. May 2005 www.copytrax.com...
  • Page 12 COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder Again, click „Next“ to continue. Press the button „Have Disk...“.to select the path to the installation file Search the path by clicking on the button „Browse...“. May 2005 www.copytrax.com...
  • Page 13 COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder Select the drive. Select the path. Select the installation file. May 2005 www.copytrax.com...
  • Page 14 COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder Press “OK” to continue. To continue the installation press “Next”. It is not necessary to print a test page. May 2005 www.copytrax.com...
  • Page 15 COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder In this dialog, you can change the name of the printer and you can set the printer as default. We recommend to use the suggested name CD PRINTER 5000. Complete the Add Printer Wizard and start the installation by pressing the button „Finish“.
  • Page 16 COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder Please wait until the driver is installed and all files were copied. This can take some minutes. NOTE : At the end of the installation the personal computer must be restarted! May 2005...

  • Page 17: Uninstalling

    COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder Uninstalling 2.1.3 In order to uninstall the printer driver, the personal computer must be restarted first of all. This is necessary so that all files which are used by the old printer driver are not blocked by other applications or the operating system.
  • Page 18 COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder If no problems occur during the installation, you get this Information dialog. The uninstalling is finished after the restart of the Personal Computer. This window comes up, when some files could not deleted by the Uninstaller.

  • Page 19: Driverupdate

    At first, download the latest driver from the FTP download server if the latest driver is available on CD. Look on www.copytrax.com to find the latest CD PRINTER 5000 PRO driver. In order to update the printer driver, the personal computer must first be restarted.
  • Page 20 COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder If one file can not be deleted, this dialog box appears. Press OK to go on with the update. In this case, take care of the Finish Dialog. Restart the PC after finishing the program and run the Update program again.
  • Page 21 COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder If this Dialog Box appears, the update was successfull. Press OK to finish the Update program. NOTE : At the end of the update the personal computer must be restarted! Update b.) All files of the driver will be replaced.
  • Page 22 COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder Press OK if the PC was restarted.f no problems occur during the uninstall, this Dialog Box will finish the first step of the update process. Press OK to continue. If the Uninstaller finishes with...
  • Page 23 COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder Open the Context menu with a right mouse click and select the properties.The following Message Box comes up on the Screen: Press the „Yes“ button to continue the update process. Click “Next” to continue.
  • Page 24 COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder Search the path by clicking on the button „Browse...“. Select the drive. Select the path. May 2005 www.copytrax.com...
  • Page 25 COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder Select the installation file. Press “OK” to continue. To continue the installation press “Next”. May 2005 www.copytrax.com...
  • Page 26 COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder When a Dialog Box appears on the screen, which ask you what to do with the old driver, select the option „replace existing driver“ and click on „Next“ to continue. Complete the Add Printer Wizard and start the installation, by pressing the button „Finish“.
  • Page 27 COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder Please wait until the driver is installed and all files were copied. This can take some minutes. NOTE : At the end of the update the personal computer must be restarted! c.) Windows specific update solution, which we not recommend to use, because you can not be sure that all necessary files are updatet succesfully.
  • Page 28 COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder Select Advanced Press New Driver. We will stop the description at this point, because of the known reasons. Use the other update possebilies a.) and b.) which are described above. May 2005 www.copytrax.com...

  • Page 29: Description

    COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder Description The printer software, which is called printer driver sends the printing requests from the different applications to the printer. Many options are possible to modify the printing data which will be sent to the printer.

  • Page 30: Printer Properties

    COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder Printer Properties 2.2.1 The current settings will be saved with the option „Print Task Quick Sets. The CDP 5000 Pro supports 120 mm * 120 mm CD and DVD formats. *cd & Recordable Cards is possible with proper templates and settings.
  • Page 31 COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder In the „Basics“ dialog, you can set the number of copies and enable the print preview. If the CDP is driven by an autoloader, you have to disable the print preview and the number of copies has to be 1.
  • Page 32 COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder This setting forces the printer to print in Greyscale. More information is given in the chapter „How to set print quality and mode” To print without colour and photo Cartridge, you can set the option „Black Print Cartridge Only“.
  • Page 33 COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder The dialog Maintenance helps you to set and check the physical options of the CDP 5000 Pro and will be explained in the next chapter. Version number of the driver May 2005 www.copytrax.com...

  • Page 34: Maintenance Dialog

    COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder Maintenance Dialog 2.2.2 This dialog box helps you to set and check the physical options of the CD PRINTER 5000 Pro. Each option of this dialog will be explained separately. ThePrinting tray of the CD PRINTER 5000 PRO RECORDER can be opened and closed with this two buttons.
  • Page 35 COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder This group of functions allows the calibrating of the printer. Pressing the button „Print Calibration File“ generates a special print image, which will be used to calibrate and centre the printout. These print image shows the values how much the printing is away from the centre of the printer tray.
  • Page 36 COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder This area is used for the cartridge alignment. Press the button „Print Alignment File“ to print a special print image, which shows you the alignment plot. Choose the values, where the lines are straight, write values into the proper fields and press the button „Save Alignment“...
  • Page 37 COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder This setting allows you to set a level which stops the printing if the calculated ink level is less. There are 4 different settings available. Early: Stop printing, when the ink level is less than 10 %.

  • Page 38: How To Set Print Quality And Mode

    COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder How to set print quality and mode 2.2.3 Standard Premium Photo Mode: (In this mode, the printer does not use the Quality: black cartridge.) Normal Simple Text Text and Graphics Simple Photos (fast printing)
  • Page 39 COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder You can force the printer to use the black cartridge only, when you select it in the Colour options. You can use the CD Printer 5000 Pro with only one cartridge. If you do so, you are able to remove the other cartridge completely out of the printer.

  • Page 40: Maintenance And Cleaning

    COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder Maintenance and Cleaning Lubrication of Shafts Because of dirt and remains of ink it’s necessary to clean and lubricate the shafts of the tray frequently. Open the front cover. Put tone drop of oil onto the shafts (left and right, inner and outer position).

  • Page 41: Maintenance Waste Ink Pad

    COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder Maintenance – Replacement of waste Ink Pads. Required Parts and Tools 3.2.1 Screw driver Tweezers Gloves Insert for ink-jet head clean Part-No.: 37-9006-01 To make sure, that the printer will work without problems, we recommend the waste Ink pads should be replaced after 12 sets cartridges.
  • Page 42 COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder Move the cartridges carefully to the left. Now you can see the waste ink pads at the bottom. Now, you can see the clamping mechanism. clamper waste ink Pad small waste ink pad cover May 2005 www.copytrax.com...
  • Page 43 COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder Lift up the small cover, by releasing the bails. Lift the cover up to the topmost position. Now, remove the ink waste Ink pad with the tweezers. May 2005 www.copytrax.com...
  • Page 44 COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder Put the new waste Ink pad under the clamping mechanism. After changing the waste Ink pad, move the small cover back down and move carefully the cartridges back to the basic position. Finally, close the main cover and wait until the printer has finished the initialisation.

  • Page 45: Maintaining The Printer Body

    COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder Maintaining the Printer Body Printer Case Exterior 3.3.1 Follow these guidelines when cleaning the outside of the printer: Use distilled water only. Do not use household cleaners or detergents. Use a soft, damp cloth to remove dust, smudges, stains, and spilled ink from the exterior of the printer case.

  • Page 46: Troubleshooting

    COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder Troubleshooting The CD Printer 5000 Pro print engine shows an error If the Printer has an error condition and the ink or paper LEDs are flashing, the opening and closing function of the drawer will not work.

  • Page 47: Printer-Led's Are On Or Flashing

    COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder Printer-LED’s are on or flashing Functions of LED’s 4.2.1 Printer-LED’s display the printer status. Print Cartridge-Status LED on or flashing 4.2.2 Top Cover is open Close Top Cover This may be a problem with a print cartridge Verify that the correct print cartridges are installed.

  • Page 48: Technical Data

    COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder Technical Data Category Value Max. 2 Watt if printer is switched off. Power consumption Min. 4 Watt in Stand By Mode Max. 32 Watt average while printing. Voltage 100 - 240 VAC (+/- 10 %)

  • Page 49: May 2005 Www.copytrax.com

    COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder CD/DVD Recording Push EJECT button on recorder Put blank CD/DVD onto the tray of recorder. Push EJECT button again and tray will go back into recorder. Start the programm NERO Burning ROM on your PC.
  • Page 50 COPYTRAX TECHNOLOGIES MONET 5000 Pro & Pro-Recorder For consumables or Support please contact your local dealer or supplier Manufactured by : Copytrax Technologies Ltd 4 Viking Way, Bar Hill, Cambridge. CB3 8EL TEL : +44 (0) 1954 782929 FAX: +44 (0) 1954 784646 Email: info@copytrax.com...
