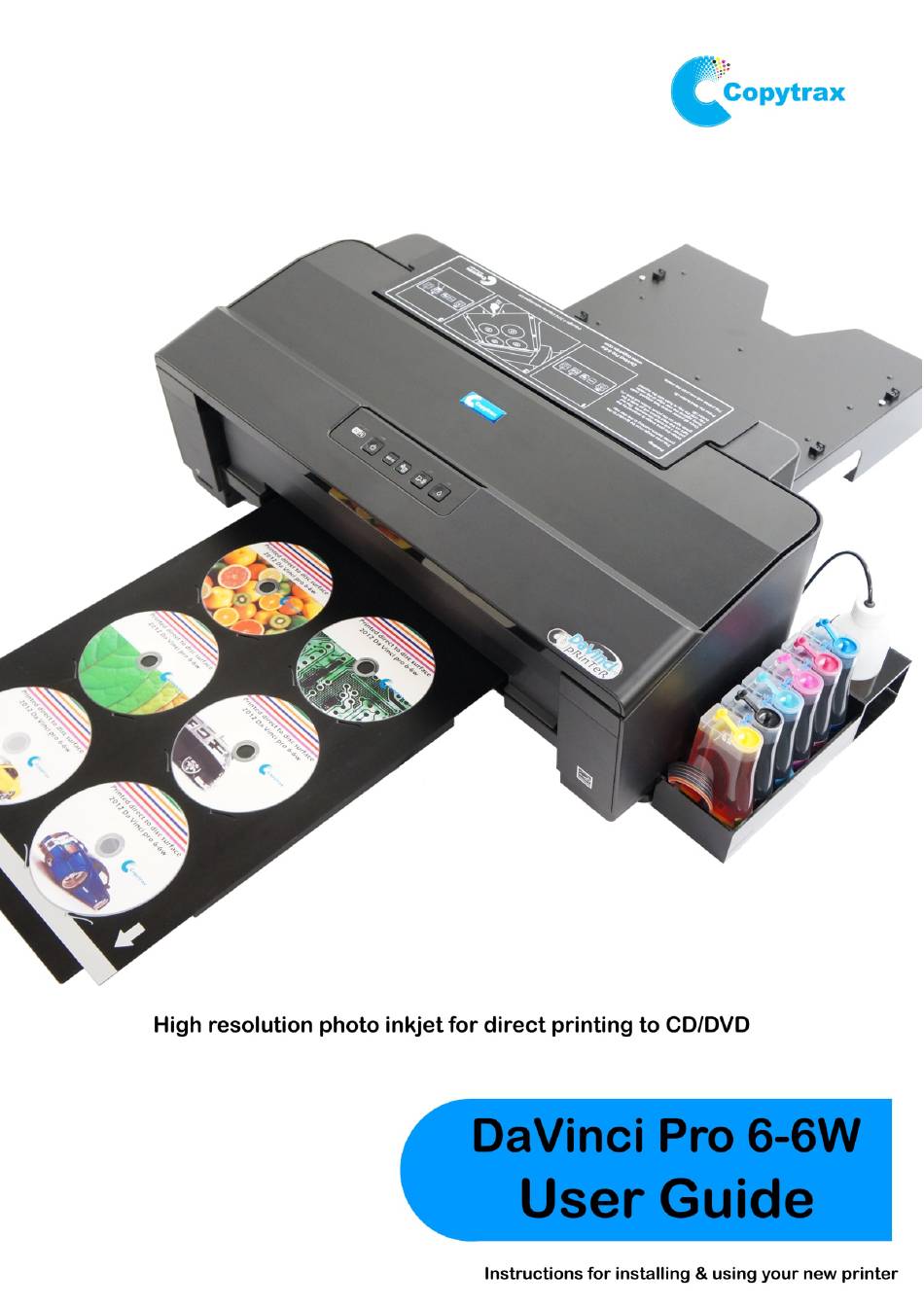

High resolution photo inkjet for direct printing to cd/dvd
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DaVinci Pro 6-6W and is the answer not in the manual?

Questions and answers

Related Manuals for Copytrax DaVinci Pro 6-6W

Summary of Contents for Copytrax DaVinci Pro 6-6W

  • Page 2 Version 1.0 26/09/2012 First Release Version 1.1 18/01/2013 Updated Version 1.2 20/02/2013 Updated Version 1.3 01/04/2014 Updated...
  • Page 3 Waste electrical products should not be thrown away with household waste. Please recycle where facilities exist or call us and we can arrange collection (Uk only) and disposal. Copytrax reserve the right to amend or modify the specifications and design criteria applying to these products.

  • Page 4: Table Of Contents

    Unpacking. DaVinci Pro 6-6W CD printer. Preparing the ink Tanks. Contents. Installing the ink system. Setting up. Space to work. Connecting the cables. Fitting the input guide. Fitting the output support. Connection and software installation(windows). Connection. Installing the printer driver.

  • Page 5: Unpacking

    DaVinci Pro 6-6W CD printer. Unpacking. Input guide Output support Printer CD tray Bulk ink system (CISS)* Already fitted Packing checklist USB cable Mains cable User manual Printer driver Image software** Reset Utility 1. Unpacking. Prepare a clean area of desk space to unpack the printer parts.
  • Page 6 DaVinci Pro 6-6W CD printer. Ink System Installation. Carefully lift the supply bottles out of the cradle. Foam packaging removed ready for ink installation. Remove the bubble wrap from the supply bottles. Peel off the packing tape from the top of the supply bottles .
  • Page 7 DaVinci Pro 6-6W CD printer. Ink System Installation continued. The rear section of the supply bottles should now have Open the smaller plugs for each colour. a small air gap (necessary for normal operation). Place the supply bottles back into the cradle Insert the six supplied air filters.
  • Page 8 DaVinci Pro 6-6W CD printer. Ink System Installation continued. The cartridge carriage will stop in the Carefully lift the six cartridges. ‘change cartridge’ position. Tip the six cartridges as shown above. Move the six cartridges to the left of the carriage and remove the two strips of packing material.

  • Page 9: Setting Up

    DaVinci Pro 6-6W CD printer. 1. Space to work. Setting up. Prepare an area of desk space to set up the printer. A space of 135cm wide x 62 cm deep Output support is required. Input guide The desk should be stable and level, in a place free from dust, humidity, movement, vibrations and away from direct sunlight.

  • Page 10: Connection

    DaVinci Pro 6-6W CD printer. Connection and software installation .(Windows) 1. Connection. Connect the USB cable to your PC. Connect the mains plug to the mains supply. If the printer comes on when you plug in the mains cable turn it OFF by pressing the on/off button.
  • Page 11 DaVinci Pro 6-6W CD printer. Connection and software installation continued (Windows). E. Only check the boxes for ‘Epson Driver and Utilities’ and ‘Epson Network Utilities’*. Uncheck all other options before selecting ‘Install’. F. The installation will now begin. If your PC is connected to the internet the latest driver will be found and downloaded.
  • Page 12 DaVinci Pro 6-6W CD printer. Connection and software installation continued (Windows). H. Select ‘Yes:First time setup’ and and ‘Next’. Follow the onscreen instructions to complete the installation. I. Select ‘Finish’ to complete the installation. Printing the test page is not necessary, but...

  • Page 13: Connection

    DaVinci Pro 6-6W CD printer. Connection and software installation .(Macintosh) 1. Connection. Connect the USB cable to your mac. Connect the mains plug to the mains supply. If the printer comes on when you plug in the mains cable turn it OFF by pressing the on/off button.

  • Page 14: Printer Installation

    DaVinci Pro 6-6W CD printer. Connection and software installation continued .(Macintosh) 3. Printer Installation. Once the driver installation is complete the printer connection window will appear. ON/OFF Turn on the printer by pressing the power button on the front of the printer.

  • Page 15: Control Panel Functions

    DaVinci Pro 6-6W CD printer. Control panel functions. On/Off button WiFi button (for use with WPS push button A. Used to turn the printer on and off. compatible routers) B. Used to clear the printers memory if pressed Press the WPS push button on your router.

  • Page 16: Discus Setup

    Click choose layout to select the first template. In the ‘Choose a kind’ menu, select CD/DVD & in the ‘Choose a Layout’ menu select Copytrax Da Vinci pro 6-6W. You will see a thumbnail image of the 6 disc tray on the right. Click OK.

  • Page 17: Discus Quick Start

    DaVinci Pro 6-6W CD printer. Discus Quick Start. 1. Quick Start. Open Discus & select the Copytrax Da Vinci pro 6-6W template. Click on the ‘Canvas’ Tab top left of the window. To choose a background from the default supplied images, click the ‘Show all’ button bottom left.

  • Page 18: Discus Image Import

    DaVinci Pro 6-6W CD printer. Discus Image Import. 1. Importing an Image into Discus. Open Discus print software & select the Copytrax Da Vinci pro 6-6W template. Click on the ‘Photo’ tab top left. Click the ‘Add’ button to bring up the ‘Open’...

  • Page 19: Printing Quick Start

    Orientation = Portrait Click OK. PLEASE NOTE: The above settings are suggested by Copytrax. However, they can be altered as desired to achieve different results e.g. a faster print/lower resolution, slower print/higher resolution and for colour adjustments. The only settings that must be set as shown are ‘Source=Sheet’, ‘Size=A3+’...

  • Page 20: Printer Settings (Advanced)

    Devices. Select the Epson Stylus Photo 1500, right click and select Printer Properties. In the window type ‘DaVinci Pro 6-6W’ and click OK. Select the DaVinci pro 6-6W and right click and select Printing preferences 2. Optimizing print quality.

  • Page 21: Printing Software & Template

    DaVinci Pro 6-6W CD printer. Printing Software & Template. 1. Image software. Discus Discus is a high quality dedicated software package for printing CDs and Jewel case inserts etc. It is supplied with your printer. It is very easy to use and we offer telephone support should you need it.

  • Page 22: Printing Cds

    DaVinci Pro 6-6W CD printer. 1. Positioning the CD tray. Printing CDs. Place the empty CD tray onto the input guide. The silver strip on the tray is positioned towards the printer and the cutouts for the CDs to the top of the tray.

  • Page 23: Ink Filling

    DaVinci Pro 6-6W CD printer. Ink Filling. Ink Filling You will need: Copytrax CD printer refill ink (dye based). Protective gloves & goggles. Remove the top from the refill bottle(1) & fit the supplied nozzle(2). Cut the top of the nozzle off with a sharp knife(3) to allow the ink to flow.

  • Page 24: Error Indications

    DaVinci Pro 6-6W CD printer. Error Indications. If you experience a problem with your printer refer to the table below to identify and resolve WiFi the issue. In most cases this will be sufficient to regain full operation. If you are not able to...

  • Page 25: Warranty & Support

    Warranty & Support. COPYRIGHT © Copytrax Technologies UK Ltd. 2008. All rights reserved. This manual and the software described in it are copyrighted with all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language in any form by any means without the written permission of Copytrax Technologies UK Ltd.
