Operator's manual
Please read the operator's manual carefully
and make sure you understand the
instructions before using the machine.
GR2032D GR2036

Advertisement

Table of Contents
loading

Related Manuals for Jonsered GR2036

Summary of Contents for Jonsered GR2036

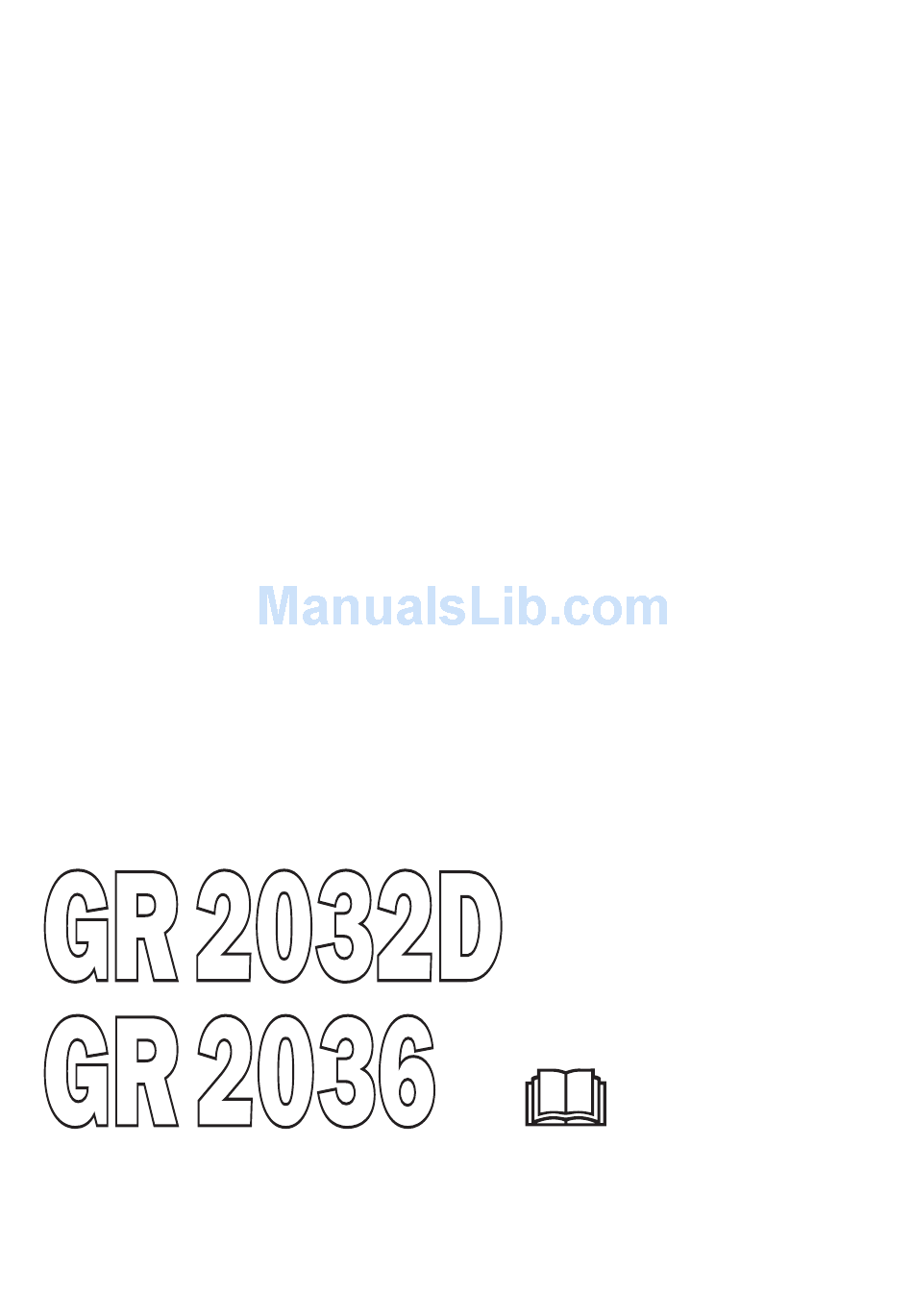

  • Page 1 Operator’s manual Please read the operator’s manual carefully and make sure you understand the instructions before using the machine. GR2032D GR2036...

  • Page 2: Key To Symbols

    KEY TO SYMBOLS Symbols Noise emission to the environment according to the European Community’s Directive. The machine’s emission is specified in chapter WARNING! Careless or incorrect use can Technical data and on label. result in serious or fatal injury to the operator or others.

  • Page 3: Table Of Contents

    CONTENTS Contents Note the following before starting: KEY TO SYMBOLS Jonsered has a policy of continuous product development and therefore reserves the right to modify the design and Symbols ............... appearance of products without prior notice. CONTENTS Contents ..............Long-term exposure to noise can result in permanent hearing impairment.

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS Personal protective equipment CLOTHING Wear clothes made of a strong fabric and avoid loose clothing that can catch on twigs and branches. Always wear heavy, IMPORTANT! You must use approved personal protective long pants. Do not wear jewellery, shorts sandals or go equipment whenever you use the machine.
  • Page 5 SAFETY INSTRUCTIONS Cutting attachment guard Quick release This guard is intended to prevent loose objects from being There is an easily accessible, quick release fitted at the front thrown towards the operator. The guard also protects the as a safety precaution in case the engine catches fire, or in operator from accidental contact with the cutting attachment.

  • Page 6: Checking, Maintaining And Servicing The Machine ' S Safety Equipment

    SAFETY INSTRUCTIONS Cutting equipment • Press the throttle lock and make sure it returns to its original position when you release it. Saw blades are intended for cutting fibrous types of wood. Grass blades and grass cutters are intended for cutting coarse grass.

  • Page 7: Cutting Equipment

    SAFETY INSTRUCTIONS Cutting attachment guard • If the muffler on your machine is fitted with a spark arrestor mesh then it should be cleaned regularly. A blocked mesh causes the engine to overheat, which can lead to serious damage. Never use a muffler with a defective spark arrestor mesh.

  • Page 8: Cutting Equipment

    SAFETY INSTRUCTIONS Quick release Cutting equipment • Check that the harness straps are correctly positioned. IMPORTANT! Once the harness and machine have been adjusted, check that the harness quick release works correctly. This section describes how to choose and maintain your cutting equipment in order to: Reduce the risk of blade thrust.

  • Page 9: General Safety Precautions

    SAFETY INSTRUCTIONS Sharpening grass cutters and grass General safety precautions blades IMPORTANT! The machine is only designed for trimming grass, grass clearing and/or forestry clearing. • See the cutting attachment packaging for correct The only accessories you can operate with this engine unit sharpening instructions.

  • Page 10: General Working Instructions

    SAFETY INSTRUCTIONS Starting Transport and storage • Store and transport the machine and fuel so that there is no risk of any leakage or fumes coming into contact with sparks or naked flames, for example, from electrical machinery, electric motors, electrical relays/switches or WARNING! When the engine is started with boilers.

  • Page 11: Adjusting The Harness And Clearing Saw

    SAFETY INSTRUCTIONS 3 Make sure you can move and stand safely. Check the area Spreading the load on your shoulders around you for possible obstacles (roots, rocks, branches, A well-adjusted harness and machine makes work much ditches, etc.) in case you have to move suddenly. Take easier.

  • Page 12: Basic Working Techniques

    SAFETY INSTRUCTIONS Basic working techniques • Work systematically to and fro across the area, clearing a width of around 4-5 m on each pass. This exploits the full • Always slow the engine to idle speed after each working reach of the machine in both directions and gives the operation.
  • Page 13 SAFETY INSTRUCTIONS Grass clearing using a grass blade • To fell to the right, the bottom of the tree should be pushed to the left. Tilt the blade and bring it diagonally up to the right. Cut with the area of the blade between 3 o’clock and 5 o’clock so that the direction of rotation of the blade pushes the bottom of the tree to the left.
  • Page 14 SAFETY INSTRUCTIONS Grass trimming with a trimmer head Cutting Trimming • The trimmer is ideal for cutting grass that is difficult to reach using a normal lawn mower. Keep the cord parallel to the ground when cutting. Avoid pressing the trimmer •...

  • Page 15: What Is What

    WHAT IS WHAT? What is what? 1 Blade 15 Air purge 2 Grease filler cap 16 Air filter cover 3 Bevel gear 17 Handle adjustment 4 Cutting attachment guard 18 Locking nut 5 Shaft 19 Support flange 6 Handlebar 20 Support cup 7 Throttle control 21 Drive disc 8 Stop switch...

  • Page 16: Assembly

    ASSEMBLY Fitting the handlebar Fitting the handlebar (GR2032D) (GR2036) • Remove the screw at the rear of the throttle handle. • Remove the screw at the rear of the throttle handle. • Slide the throttle handle onto the right side of the •...

  • Page 17: Transport Position, Handlebar

    ASSEMBLY Transport position, handlebar • Fit the drive disc (B) on the output shaft. • Turn the blade shaft until one of the holes in the drive disc • The handlebar can easily be turned to fit along the shaft aligns with the corresponding hole in the gear housing.

  • Page 18: (Gr2032D)

    To dismantle, follow the instructions in the reverse order. (GR2032D) Fitting the trimmer guard and trimmer head Trimmy SII (GR2036) • Fit the correct trimmer guard (A) for use with the trimmer head. Secure the trimmer guard/combination guard using four screws (L) and the support plate (M) as shown.

  • Page 19: Fitting Other Guards And Cutting Attachments

    ASSEMBLY Fitting other guards and cutting Spreading the load on your shoulders attachments A well-adjusted harness and machine makes work much easier. Adjust the harness for the best working position. Tension the side straps so that the weight is evenly distributed across both shoulders.

  • Page 20: Fuel Handling

    Mixture 1:50 (2%). When refuelling, open the fuel cap slowly so • If JONSERED two-stroke oil is not available, you may use that any excess pressure is released gently. another two-stroke oil of good quality that is intended for Tighten the fuel cap carefully after refuelling.

  • Page 21: Starting And Stopping

    STARTING AND STOPPING Check before starting Starting and stopping For safety reasons follow these recommendations! WARNING! The complete clutch cover and • Check the blade to ensure that no cracks have formed at shaft must be fitted before the machine is the bottom of the teeth or by the centre hole.
  • Page 22 STARTING AND STOPPING Air purge: Press the air purge diaphragm repeatedly until fuel begins to fill the diaphragm. The diaphragm need not be completely filled. Stopping Stop the engine by switching off the ignition. WARNING! When the engine is started with the choke in either the choke or start throttle positions the cutting attachment will start to rotate immediately.

  • Page 23: Maintenance

    CAUTION! If the cutting attachment rotates when the engine is idling the idle adjustment screw T should be turned anti- clockwise until the cutting attachment stops. Your Jonsered product has been designed and manufactured to specifications that reduce harmful exhaust fumes. The Rec. idle speed 2700 rpm engine will be run in after it has used 8-10 tanks of fuel.

  • Page 24: Muffler

    MAINTENANCE Fine adjustment of the idle speed T Correctly adjusted carburettor Adjust the idle speed using the idle adjustment screw T, if it is When the carburettor is correctly adjusted the machine will necessary to readjust. First turn the idle adjustment screw T accelerate without hesitation and burble a little at maximum clockwise until the cutting attachment starts to rotate.

  • Page 25: Cooling System

    filled 3/4 full with grease. Use If the machine is used in dusty conditions the air filter should JONSERED special grease. be soaked in oil. See instructions under the heading Oiling the The grease in the bevel gear does not normally need to be air filter.

  • Page 26: Spark Plug

    MAINTENANCE Spark plug Sharpening the saw blade The spark plug condition is influenced by: WARNING! Using an incorrect cutting • Incorrect carburettor adjustment. attachment or an incorrectly sharpened • An incorrect fuel mixture (too much or incorrect type of blade increases the risk of kickback. oil).

  • Page 27: Maintenance Schedule

    MAINTENANCE Maintenance schedule Weekly maintenance Below you will find some general maintenance instructions. If 0,5 mm you need further information please contact your service workshop. Daily maintenance 1 Check the starter and starter cord. 2 Check that the vibration damping elements are not damaged.

  • Page 28: Technical Data Technical Data

    TECHNICAL DATA Technical data Technical data GR 2032D GR 2036 Engine Cylinder displacement, cm 30,8 36,3 Cylinder bore, mm Stroke, mm Idle speed, rpm 2700 2700 Recommended max. speed, rpm 11000-11700 11000-11700 Speed of output shaft, rpm 10000 10000 Max. engine output, acc. to ISO 8893, kW/ rpm 1,1/8400 1,3/9000 Catalytic converter muffler...

  • Page 29: Ec-Declaration Of Conformity

    We, Jonsered, SE-561 82 Huskvarna, Sweden, tel: +46-36-146500, declare that the clearing saws Jonsered GR2032D and GR2036 with serial numbers dating from 2002 onwards (the year is clearly stated on the rating plate, followed by the serial number), comply with the requirements of the COUNCIL’S DIRECTIVE: of June 22, 1998 ”relating to machinery”...
  • Page 30 Trimmy H II 15 cm 6" 7,5 m ~ 3,7 m 15 cm 6"...
  • Page 31 Tap-N-Go Pro 7,5 m 15 cm 6" ~ 3,7 m 15 cm 6" 15 cm “Click” 6"...
  • Page 32 Tap-N-Go 35 8,5 m 10 cm 4" 4,3 m "Clic" 15 cm 6"...
  • Page 33 8,5 m 10 cm 4" 4,2 m "Clic" 15 cm 6"...
  • Page 34 4,25 m 4,25 m 15 cm 6" 15 cm 6"...
  • Page 35 Auto 32 4,0 m 15 cm ~2,0 m 6 " 6,5 ' 15 cm 6 "...
  • Page 36 Trimmy SII 7,0 m 12 cm 5" ~ 3,5 m ~ 15 cm "Clic" 35-50 NM...
  • Page 38 ´®z*x{r¶61¨ ´®z*x{r¶61¨...
  • Page 40 1088918-26 ´®z*x{r¶61¨ ´®z*x{r¶61¨ 2004-01-20...
