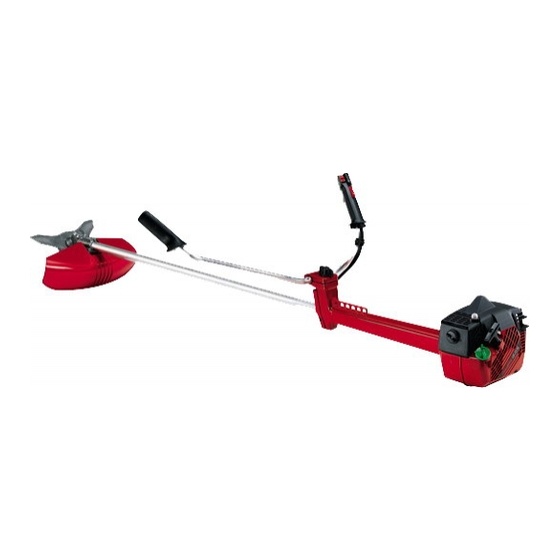

Jonsered GR 2032D Operator's Manual

Jonsered GR 2032D Operator's Manual

Trimmer
Hide thumbs Also See for GR 2032D:

Advertisement

Operator's manual (EPA)
Please read the operator's manual carefully
and make sure you understand the
instructions before using the machine.
GR2032D GR2036

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GR 2032D and is the answer not in the manual?

Questions and answers

Summary of Contents for Jonsered GR 2032D

  • Page 1 Operator’s manual (EPA) Please read the operator’s manual carefully and make sure you understand the instructions before using the machine. GR2032D GR2036...
  • Page 2: Key To Symbols

    KEY TO SYMBOLS Symbols Switch off the engine by moving the stop switch to the STOP position before carrying out any checks or maintenance. WARNING! Careless or incorrect use can result in serious or fatal injury to the operator Always wear approved protective gloves. or others.
  • Page 3: Table Of Contents

    CONTENTS Contents Note the following before starting: KEY TO SYMBOLS Jonsered has a policy of continuous product development and therefore reserves the right to modify the design and Symbols ............... appearance of products without prior notice. CONTENTS Contents ..............Long-term exposure to noise can result in permanent hearing impairment.
  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS Personal protective equipment FIRST AID KIT Always have a first aid kit nearby. IMPORTANT! You must use approved personal protective equipment whenever you use the machine. Personal protective equipment cannot eliminate the risk of injury but it will reduce the degree of injury if an accident does happen.
  • Page 5 SAFETY INSTRUCTIONS Vibration damping system In countries that have a warm and dry climate there is a significant risk of fire. We therefore fit certain mufflers with a Your machine is equipped with a vibration damping system spark arrestor mesh. Check whether the muffler on your that is designed to minimize vibration and make operation machine is fitted with this kind of mesh.
  • Page 6: Checking, Maintaining And Servicing The Machine ' S Safety Equipment

    SAFETY INSTRUCTIONS Locking nut independent return springs. This arrangement means that the throttle control is automatically locked at the idle A locking nut is used to secure some types of cutting setting. attachment. • See instructions under the heading Start. Start the machine and apply full throttle.
  • Page 7 SAFETY INSTRUCTIONS • Check that the vibration damping element is undamaged 3 Maintain the correct blade setting! Follow our instructions and securely attached. and use the recommended blade setting tool. An incorrectly set blade increases the risk of jamming and kickback.
  • Page 8: Cutting Equipment

    SAFETY INSTRUCTIONS Cutting equipment • Adjust the blade setting. This should be 1 mm. IMPORTANT! This section describes how to choose and maintain your cutting equipment in order to: Reduce the risk of blade thrust. Obtain maximum cutting performance. Extend the life of cutting equipment. Sharpening grass cutters and grass Only use cutting attachments with the guards we blades...
  • Page 9: General Safety Precautions

    SAFETY INSTRUCTIONS General safety precautions • Place the machine on the ground, ensure the cutting attachment is clear of twigs and stones. Hold the body of the machine on the ground using your left hand IMPORTANT! (CAUTION! Not with your foot). Then grip the starter The machine is only designed for trimming grass, grass handle with your right hand and pull the starter cord.
  • Page 10: General Working Instructions

    SAFETY INSTRUCTIONS General working instructions Adjusting the harness and clearing saw IMPORTANT! This section describes the basic safety precautions for working with clearing saws and trimmers. WARNING! When using a clearing saw it If you encounter a situation where you are uncertain how to must always be hooked securely to the proceed you should ask an expert.
  • Page 11: Basic Working Techniques

    SAFETY INSTRUCTIONS Correct balance WARNING! Avoid cutting with the area of the 1 Forestry clearing blade between the 12 o’clock and 3 o’clock positions. Because of the speed of rotation Move the hanging ring on the machine forward or of the blade kickback can occur if you backward.
  • Page 12: Grass Clearing Using A Grass Blade

    SAFETY INSTRUCTIONS • To fell to the left, the bottom of the tree should be pushed • With groups of hardwood stems, first clear around the to the right. Tilt the blade and bring it diagonally down to group. Start by cutting the stems high up around the the right, exerting firm pressure.
  • Page 13: Grass Trimming With A Trimmer Head

    SAFETY INSTRUCTIONS Cutting WARNING! Watch out for thrown objects. Always wear eye protection. Never lean over the cutting attachment guard. Stones, rubbish, etc. can be thrown up into the eyes causing blindness or serious injury. • The trimmer is ideal for cutting grass that is difficult to reach using a normal lawn mower.
  • Page 14: What Is What

    WHAT IS WHAT? What is what? 1 Blade 15 Air purge 2 Grease filler cap 16 Air filter cover 3 Bevel gear 17 Handle adjustment 4 Cutting attachment guard 18 Locking nut 5 Shaft 19 Support flange 6 Handlebar 20 Support cup 7 Throttle control 21 Drive disc 8 Stop switch...
  • Page 15: Assembly

    ASSEMBLY Fitting the handlebar Fitting the handlebar (GR2032D) (GR2036) • Remove the screw at the rear of the throttle handle. • Remove the screw at the rear of the throttle handle. • Slide the throttle handle onto the right side of the •...
  • Page 16: Transport Position, Handlebar

    ASSEMBLY Transport position, handlebar CAUTION! Always use the recommended guard for the cutting attachment you are using. See chapter on • The handlebar can easily be turned to fit along the shaft Technical data. for easier transportation and storage. • Fit the drive disc (B) on the output shaft.
  • Page 17: (Gr2032D)

    ASSEMBLY • Turn the blade shaft until one of the holes in the drive disc • To fit the trimmer head, first separate the two halves (see aligns with the corresponding hole in the gear housing. diagram). Proceed as follows: •...
  • Page 18: Fitting Other Guards And Cutting Attachments

    ASSEMBLY Fitting other guards and cutting Spreading the load on your shoulders attachments A well-adjusted harness and machine makes work much easier. Adjust the harness for the best working position. Tension the side straps so that the weight is evenly distributed across both shoulders.
  • Page 19: Fuel Handling

    Always stop the engine and let it cool for a Two-stroke oil few minutes before refuelling. • For the best results and performance use JONSERED When refuelling, open the fuel cap slowly so two-stroke oil, which is specially formulated for our two- that any excess pressure is released gently.
  • Page 20: Starting And Stopping

    STARTING AND STOPPING Check before starting Starting and stopping For safety reasons follow these recommendations! WARNING! The complete clutch cover and • Check the blade to ensure that no cracks have formed at shaft must be fitted before the machine is the bottom of the teeth or by the centre hole.
  • Page 21 STARTING AND STOPPING Air purge: Press the air purge diaphragm repeatedly until fuel begins to fill the diaphragm. The diaphragm need not be completely filled. Stopping Stop the engine by switching off the ignition. WARNING! When the engine is started with the choke in either the choke or start throttle positions the cutting attachment will start to rotate immediately.
  • Page 22: Maintenance

    CAUTION! If the cutting attachment rotates when the engine is idling the idle adjustment screw T should be turned anti- clockwise until the cutting attachment stops. Your Jonsered product has been designed and manufactured to specifications that reduce harmful exhaust fumes. The Rec. idle speed 2700 rpm engine will be run in after it has used 8-10 tanks of fuel.
  • Page 23: Muffler

    MAINTENANCE Correctly adjusted carburettor will run smoothly in every position. The idle speed should also be well below the speed at which the cutting attachment starts When the carburettor is correctly adjusted the machine will to rotate. accelerate without hesitation and burble a little at maximum speed.
  • Page 24: Cooling System

    If the machine is used in dusty conditions the air filter should that the bevel gear is filled 3/4 full with grease. Use be soaked in oil. See instructions under the heading Oiling the JONSERED special grease. air filter. The grease in the bevel gear does not normally need to be changed except if repairs are carried out.
  • Page 25: Spark Plug

    MAINTENANCE Spark plug Sharpening the saw blade The spark plug condition is influenced by: WARNING! Using an incorrect cutting • Incorrect carburettor adjustment. attachment or an incorrectly sharpened blade increases the risk of kickback. • An incorrect fuel mixture (too much or incorrect type of oil).
  • Page 26: Maintenance Schedule

    MAINTENANCE Maintenance schedule Monthly maintenance • Clean the fuel tank. Below you will find some general maintenance instructions. If you need further information please contact your service • Clean the outside of the carburettor and the space around workshop. • Check fuel hose for cracks or other damage.
  • Page 27: Technical Data Technical Data

    TECHNICAL DATA Technical data Technical data GR 2032D GR 2036 Engine Cylinder volume, cu.in/cm 1,88/30,8 2,21/36,3 Cylinder bore, inch/mm 1,38/35 1,50/38 Stroke, inch/mm 1,28/32 1,28/32 Idle speed, rpm 2700 2700 Recommended max. speed, rpm 11000-11700 11000-11700 Speed of output shaft, rpm...
  • Page 28 TECHNICAL DATA Approved accessories GR 2032D Type Cutting attachment guard, Art. no. Centre hole in blades/cutters, Ø 25,4 mm Arbor shaft thread M10 Grass blade/grass cutter Grass 255-4 (Ø 255 4 teeth) 503 74 40-03 Grass 255-8 (Ø 255 8 teeth) 503 74 40-03 Multi 275-4 (Ø...
  • Page 29: Federal Emission Control Warranty Statement

    ADD -ON OR MODIFIED PARTS by Jonsered. The use of add-on or modified parts can be grounds for OWNER′S WARRANTY disallowing a warranty claim. Jonsered is not liable to cover failures of warranted parts caused by the use of add-on or RESPONSIBILITIES modified parts.
  • Page 30 Trimmy H II 15 cm 6" 7,5 m ~ 3,7 m 15 cm 6"...
  • Page 31 Tap-N-Go Pro 7,5 m 15 cm 6" ~ 3,7 m 15 cm 6" 15 cm “Click” 6"...
  • Page 32 Tap-N-Go 35 8,5 m 10 cm 4" 4,3 m "Clic" 15 cm 6"...
  • Page 33 8,5 m 10 cm 4" 4,2 m "Clic" 15 cm 6"...
  • Page 34 4,25 m 4,25 m 15 cm 6" 15 cm 6"...
  • Page 35 Auto 32 4,0 m 15 cm ~2,0 m 6 " 6,5 ' 15 cm 6 "...
  • Page 36 Trimmy SII 7,0 m 12 cm 5" ~ 3,5 m ~ 15 cm "Clic" 35-50 NM...
  • Page 38 ´®z*x{y¶5S¨ ´®z*x{y¶5S¨...
  • Page 40 1088918-95 ´®z*x{y¶5S¨ ´®z*x{y¶5S¨ 2004-01-29...
