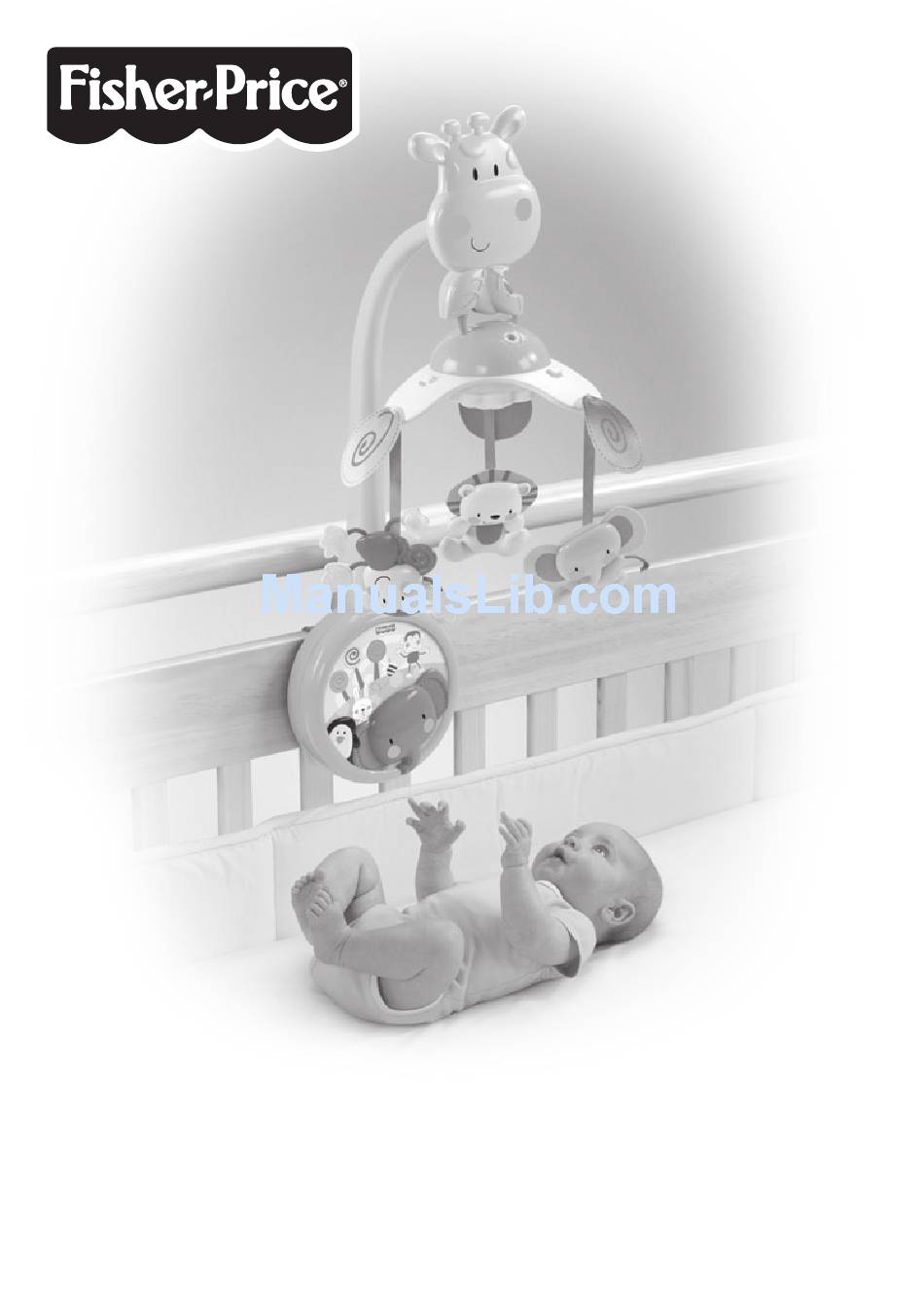

W9913
Please keep this instruction sheet for future reference,
as it contains important information.
Adult assembly is required.
Tool required for assembly: Phillips screwdriver (not included).
www.fisher-price.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the W9913 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fisher-Price W9913

Summary of Contents for Fisher-Price W9913

  • Page 1 W9913 Please keep this instruction sheet for future reference, as it contains important information. Adult assembly is required. Tool required for assembly: Phillips screwdriver (not included). www.fisher-price.com...
  • Page 2 Important Information WARNING Prevent Entanglement Injury Crib Mobile Use • Keep out of baby's reach. • Remove mobile from crib or playpen when baby begins to push up on hands and knees. • This product may not attach to all crib designs. Do not add additional strings or straps to attach to a crib or playpen. Stroller Toy Use • Do not attach link directly to crib or playpen. CAUTION This package contains small parts in an unassembled state. Adult assembly is required. • Use as a mobile from birth until 5 months. • A mobile is intended for visual stimulation and not to be grasped by a child.
  • Page 3 Assembled Parts Mobile Link Cover (Upper) Mobile Link Giraffe (Lower) Mobile M3,5 x 15 mm Screw – 5 Base Screw is shown actual size. Tighten all screws with a Phillips screwdriver. Do not over-tighten the screws.
  • Page 4 Assembly Base Socket (Lower) • Fit the lower arm into the socket in the back of the base. Hint: You may need to pull the attachment strap on the base down to fit the arm in the base. • Insert a screw into the lower arm and tighten.
  • Page 5 Assembly (Upper) (Lower) • Fit the upper arm to the lower arm.
  • Page 6 Assembly • Insert four screws into the arm assembly and tighten. Giraffe Slots Arm Tabs • First, align the tabs on the end of the arm with the slots in the back of the giraffe. • Then, turn the giraffe to "snap" in place on the end of the arm. Fisher Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052 U.S.A. ©2011 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc. PRINTEd IN CHINA W9913a-0920...
  • Page 7 Assembly Mobile Link Mobile Groove • Fit the flat end of the mobile link into the groove in the mobile. Mobile Link Cover Mobile Link • Fit the mobile link cover onto the top of the mobile. • Tighten the screws. Hint: The screws are assembled to the mobile link cover.
  • Page 8 Assembly Mobile Arm Mobile Link • Fit the ends of the mobile link onto the mobile arm. • Push to “snap” the link in place.
  • Page 9 Mobile Use Crib Attachment IMPORTANT! Always attach all provided fasteners (strings, straps, clamps, etc.) tightly to a crib or playpen according to the instructions. do not add additional strings or straps to attach to a crib. Check frequently. Crib Rail Slot Attachment Strap • Position the toy inside the crib.
  • Page 10 Mobile Use Crib Attachment Crib Spindle • Tie the toy’s strings to a crib spindle. Note: It is better to tie the strings in a knot than a bow, since a bow may be easily untied. Bottom of Base At Least 7 Inches (18 cm) Mattress • Make sure the distance between the bottom of the product and the crib mattress is at least 7 inches (18 cm). • If the distance is less than 7 inches (18 cm): readjust the attachment straps to lift the product; or lower the crib mattress.
  • Page 11 Musical Crib Mobile Turn the dial • Turn the dial on the bottom of the mobile clockwise for a musical tune. Do not over-wind the dial. Stroller Link Toy Turn the dial Mobile Mobile Link Strap • Pull the mobile link off the mobile arm to use as a stroller toy! • Shorten the toy straps. Pull the toy straps up and then under the tabs on top of the toy. • Fit the open end of the mobile link onto a stroller canopy. • Turn the dial on the bottom of the mobile clockwise for a musical tune. Do not over-wind the dial.

  • Page 12: Consumer Assistance

    US Instructions CONSUMER ASSISTANCE 1-800-432-5437 (US & Canada) 1300 135 312 (Australia) Fisher-Price, Inc., 636 Girard Avenue, East Aurora, NY 14052. Hearing-impaired consumers: 1-800-382-7470. Outside the United States: Canada: Mattel Canada Inc., 6155 Freemont Blvd., Mississauga, Ontario L5R 3W2; www.service.mattel.com.
