Please keep this instruction sheet for future reference,
•
as it contains important information.
Adult assembly is required.
•
Tool required for assembly: Phillips screwdriver
•
(not included).
W9913
W9913

Advertisement

loading

Related Manuals for Fisher-Price W9913

Summary of Contents for Fisher-Price W9913

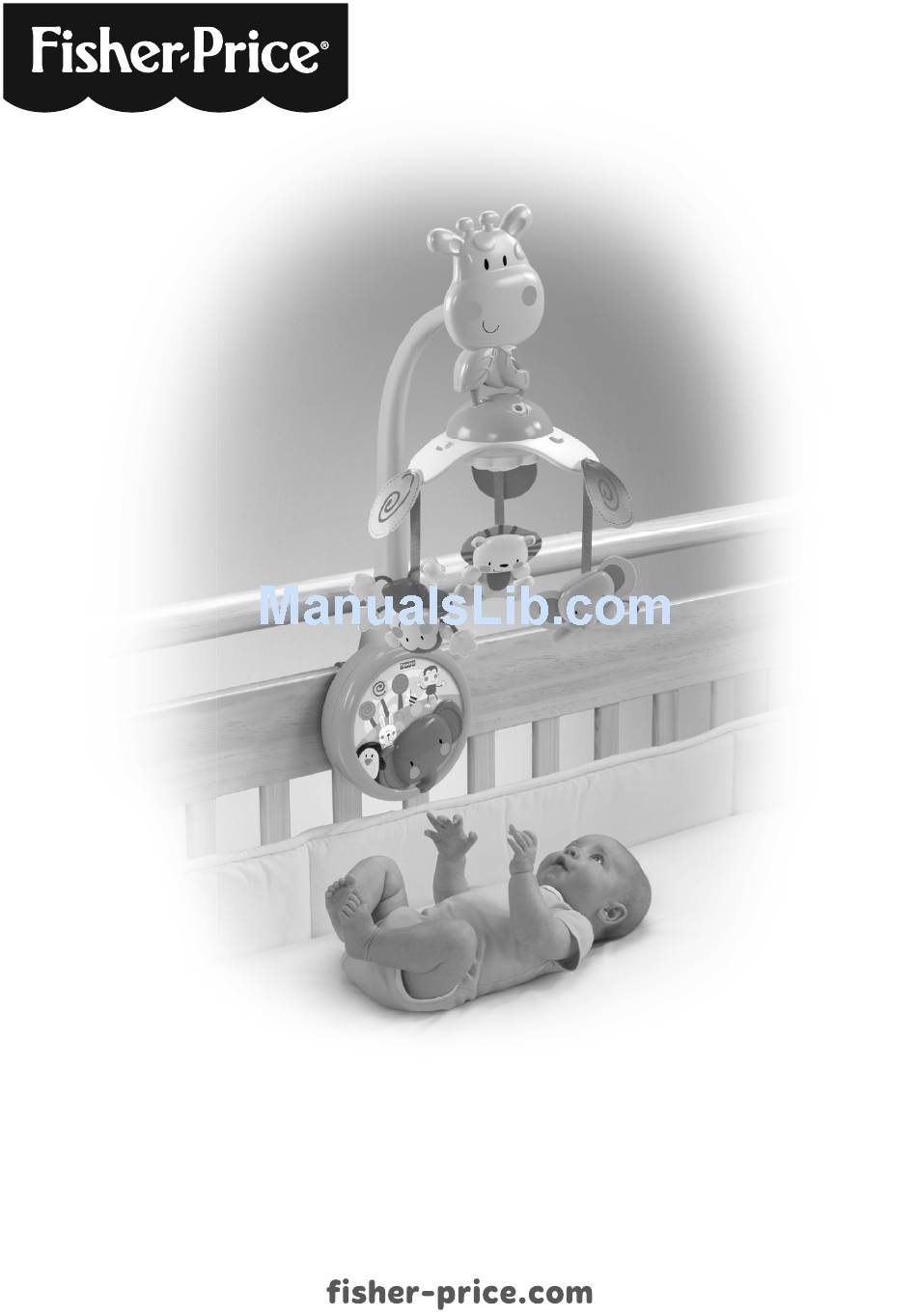

  • Page 1 W9913 W9913 Please keep this instruction sheet for future reference, • as it contains important information. Adult assembly is required. • Tool required for assembly: Phillips screwdriver • (not included).
  • Page 2 Important Information WARNING Prevent Entanglement Injury Crib Mobile Use • Keep out of baby's reach. • Remove mobile from crib or playpen when baby begins to push up on hands and knees. • This product may not attach to all crib designs. Do not add additional strings or straps to attach to a crib or playpen.
  • Page 3 Assembled Parts Mobile Link Cover (Upper) Mobile Link Giraffe (Lower) Mobile M3,5 x 15 mm Screw – 5 Screw is shown actual size. Base Tighten all screws with a Phillips screwdriver. Do not over-tighten the screws.
  • Page 4 Assembly Base Socket (Lower) • Fit the lower arm into the socket in the back of the base. Hint: You may need to pull the attachment strap on the base down to fit the arm in the base. • Insert a screw into the lower arm and tighten.
  • Page 5 Assembly (Upper) (Lower) • Fit the upper arm to the lower arm.
  • Page 6 Assembly • Insert four screws into the arm assembly and tighten. Giraffe Slots Arm Tabs • First, align the tabs on the end of the arm with the slots in the back of the giraffe. • Then, turn the giraffe to "snap" in place on the end of the arm. ©2012 Mattel, Inc.
  • Page 7 Assembly Mobile Link Mobile Groove • Fit the flat end of the mobile link into the groove in the mobile. Mobile Link Cover Mobile Link • Fit the mobile link cover onto the top of the mobile. • Tighten the screws. Hint: The screws are assembled to the mobile link cover.
  • Page 8 Assembly Mobile Arm Mobile Link • Fit the ends of the mobile link onto the mobile arm. • Push to “snap” the link in place.
  • Page 9 Mobile Use Crib Attachment IMPORTANT! Always attach all provided fasteners (strings, straps, clamps, etc.) tightly to a crib or playpen according to the instructions. Do not add additional strings or straps to attach to a crib. Check frequently. Crib Rail Slot Slot Attachment Strap...
  • Page 10 Mobile Use Crib Attachment Crib Spindle Crib Spindle • Tie the toy’s strings to a crib spindle. Note: It is better to tie the strings in a knot than a bow, since a bow may be easily untied. Bottom of Base Bottom of Base At Least 7 Inches (18 cm) At Least 7 Inches (18 cm)
  • Page 11 Musical Crib Mobile Turn the dial Turn the dial • Turn the dial on the bottom of the mobile clockwise for a musical tune. Do not over-wind the dial. Stroller Link Toy Turn the dial Turn the dial Mobile Mobile Mobile Link Mobile Link Strap...

  • Page 12: Consumer Assistance

    CONSUMER ASSISTANCE 1-800-432-5437 (US & Canada) 1300 135 312 (Australia) Fisher-Price, Inc., 636 Girard Avenue, East Aurora, NY 14052. Hearing-impaired consumers: 1-800-382-7470. Outside the United States: Canada: Mattel Canada Inc., 6155 Freemont Blvd., Mississauga, Ontario L5R 3W2; www.service.mattel.com. Great Britain: Mattel UK Ltd, Vanwall Business Park, Maidenhead SL6 4UB.
