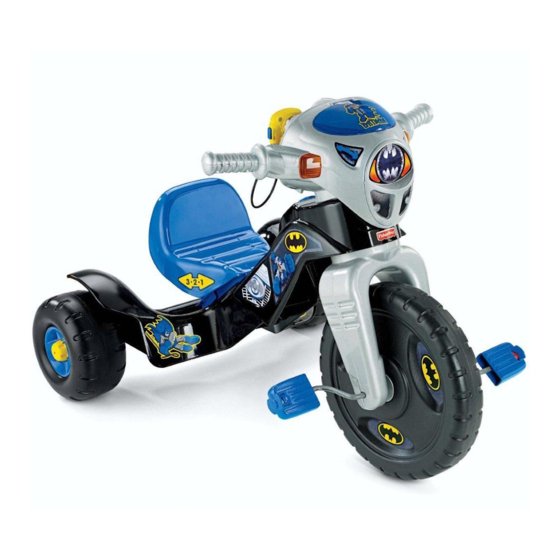

W9981
Please keep this instruction sheet for future reference, as it contains important information.
Product features and decorations may vary from the photograph.
Adult assembly is required. Tools required for assembly:
Phillips Screwdriver, Hammer and Scrap Block of Wood (not included).
Requires three "AA" batteries (included).
Age: 2-6 years.
Weight limit: 60 lbs (27 kg).
Choose areas for riding that are free of obstacles.
Learn to stop safely.
Use with caution as this product requires skill to operate safely to avoid falls, collisions,
and injuries to yourself (the rider) and others.
IMPORTANT! It is good practice to start training children very young regarding the importance of helmet use.
When children are older and riding bicycles and faster vehicles, it is important that they use a helmet each and every time they
ride. For this reason, even while riding a tricycle, it is a good idea to familiarize your child with helmet use, so that it becomes
a habit for life. Choose a helmet that complies with requirements of the applicable certifying agency for bicycle helmets.
fisher-price.com

Advertisement

Table of Contents
loading

Related Manuals for Fisher-Price W9981

Summary of Contents for Fisher-Price W9981

  • Page 1 W9981 Please keep this instruction sheet for future reference, as it contains important information. Product features and decorations may vary from the photograph. Adult assembly is required. Tools required for assembly: Phillips Screwdriver, Hammer and Scrap Block of Wood (not included). Requires three "AA" batteries (included). Age: 2-6 years. Weight limit: 60 lbs (27 kg). Choose areas for riding that are free of obstacles. Learn to stop safely. Use with caution as this product requires skill to operate safely to avoid falls, collisions, and injuries to yourself (the rider) and others. IMPORTANT! It is good practice to start training children very young regarding the importance of helmet use. When children are older and riding bicycles and faster vehicles, it is important that they use a helmet each and every time they ride. For this reason, even while riding a tricycle, it is a good idea to familiarize your child with helmet use, so that it becomes a habit for life. Choose a helmet that complies with requirements of the applicable certifying agency for bicycle helmets. fisher-price.com...

  • Page 2: Consumer Information

    Consumer Information WARNING FASTENERS SHOWN ACTUAL SIZE TO AVOID SERIOUS INJURY: • Continuous adult supervision is required. • Never use near cars and other motor vehicles, #6 x ½" (1,3 cm) Screw – 3 #8 x " (1,9 cm) Screw – 4 near streets, steps, sloped driveways, hills, roadways, alleys, swimming pools or other bodies of water. • Always wear shoes. Cap Nut – 1 • Never allow more than one rider. #8 x 3" (7,6 cm) Screw – 1 • Please save all packaging material until assembly is complete to ensure that no parts are discarded. • Please wipe each part with a clean, dry cloth before assembly. • Some parts shown are assembled to both sides of the trike. • Tighten assembled screws with a Phillips screwdriver. Do not over-tighten the screws. • Parts not shown: labels and assembly tool. Headlight Cover Handlebar Seat Frame Seat Retainer Straight Axle Fork 2 Fork Covers 2 Hubcaps Front Wheel Axle Assembly...
  • Page 3 Assembly CAUTION This product contains small parts Hubcap in an unassembled state. Cap Nut (Peg Side Down) Adult assembly is required. Rear Wheel (Indented Side Up) Cover Straight Axle Frame Hubcap Cap Nut Rear Wheel Assembly Tool Assembled (Indented Side Rear Wheel Down) Scrap Block Hubcap of Wood (Peg Side Straight Axle • Turn the frame on its side with the exposed end of the • Slide a hubcap (peg side up) onto the straight axle. straight axle up. • Slide a rear wheel (indented side down) onto the • Place the cap nut assembly tool under the assembled rear straight axle.
  • Page 4 Assembly Pedal Hubs Pedal Axle Assembly Front Wheel Pedal Pedal Axle • While holding the pedal hubs on the pedal axle assembly, insert the pedal axle through the hole in the center of the Scrap Block front wheel. of Wood • Push the pedal hubs into the center of the front wheel until they are flush with the surface of the front wheel. • Fit the pedal on the pedal axle. Tap the pedal with Pedal Hub a hammer until it is secure. • Pull the pedal up to be sure it is secure. If you can remove it, you have not secured it properly. Tap it with the hammer again. Fork Arms Fork Cover Pedal Hub Groove • Turn the front wheel assembly over. • Insert the remaining pedal hubs on top of and below the Pedal Axle pedal axle and into the hole in the center of the front wheel. • Push the pedal hubs into the center of the front wheel until they are flush with the surface of the front wheel. • Place the front wheel assembly between the fork arms. Make sure the pedal axle fits into the groove at the bottom of each fork arm.
  • Page 5 Assembly Handlebar Headlight Cover Frame Neck Fork Post Fork Cover • Fit the the headlight cover onto the front of the handlebar. Rear of Trike • Insert three #6 x " (1,3 cm) screws into the headlight cover. Tighten the screws. Seat Retainer • Insert the fork post up through the hole in the neck of the frame. Make sure the fork is positioned so that the fork Seat covers face the rear wheels. • Place the handlebar onto the fork post and push it down onto the frame. Make sure the handlebar is positioned so that the screw hole faces the rear wheels and aligns with Peg the screw hole in the fork post.

  • Page 6: Label Decoration

    Label Decoration Attaching the Seat Hint: The seat can be attached to the frame in any of three positions, depending on the size of your child. Check your child’s fit on the trike by observing the seat to pedal distance, as it is being ridden. If the pedals seem too far away or too close for your child, move the seat up or down.

  • Page 7: Battery Replacement

    Battery Replacement Battery Safety Information Note: For best performance, we recommend replacing the In exceptional circumstances, batteries may leak fluids that can cause a chemical burn injury or ruin your product. To avoid batteries that came with this trike with three, new "AA" (LR6) battery leakage: alkaline batteries. • Do not mix old and new batteries or batteries of different Headlight Cover types: alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium). • Insert batteries as indicated inside the battery compartment. • Remove batteries during long periods of non-use. Always remove exhausted batteries from the product. Dispose of batteries safely. Do not dispose of this product in a fire. The batteries inside may explode or leak. • Never short-circuit the battery terminals. • Use only batteries of the same or equivalent type, as recommended. • Do not charge non-rechargeable batteries. • Remove rechargeable batteries from the product before charging. • If removable, rechargeable batteries are used, they are only to be charged under adult supervision. FCC Statement (United States Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 • Loosen and remove the screws from the headlight cover.

  • Page 8: Removing The Seat

    Consumer Information Seat CONSUMER ASSISTANCE 1-800-432-5437 (US & Canada) 1300 135 312 (Australia) Fisher-Price, Inc., 636 Girard Avenue, East Aurora, NY 14052. Seat Retainer Tab Hearing-impaired consumers: 1-800-382-7470. Outside the United States: Canada: Mattel Canada Inc., 6155 Freemont Blvd., Mississauga, Ontario L5R 3W2; www.service.mattel.com.

Table of Contents
