IKEA GÖRLIG User Manual

IKEA GÖRLIG User Manual

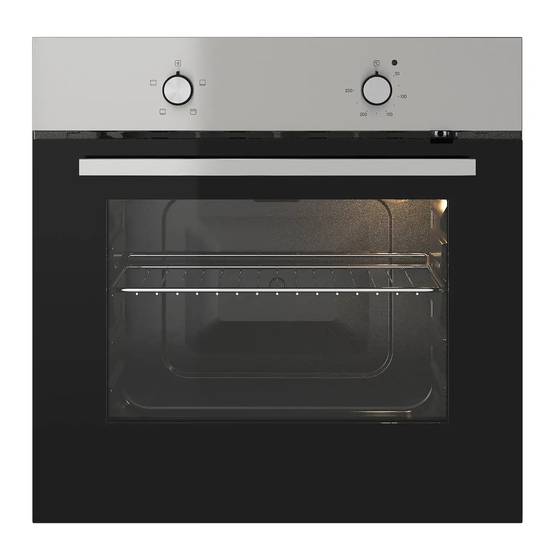

Built-in oven
Hide thumbs Also See for GÖRLIG:
Table of Contents

Advertisement

Quick Links

See also: Instructions , User Manual
GÖRLIG
GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GÖRLIG and is the answer not in the manual?

Questions and answers

Related Manuals for IKEA GÖRLIG

Summary of Contents for IKEA GÖRLIG

  • Page 1: Cooking Tables 1

    GÖRLIG...
  • Page 3 ENGLISH...

  • Page 4: Table Of Contents

    Product description Technical data Control panel Installation Daily use Electrical connection Cooking tables Environmental concerns Cleaning and maintenance IKEA GUARANTEE Safety Information Your safety and that of others supply before carrying out are very important. any installation work. - Electrical installation and This manual and the appliance itself provide important safety...
  • Page 5 ENGLISH must be incorporated in the be made by children without fixed wiring in accordance supervision. - The accessible parts of the with the national wiring rules. - Do not use multiple plug appliance may become very hot during use. Young children adapters or extension leads.
  • Page 6 ENGLISH function). care not to touch the heating elements. - During and after the - Do not place flammable Pyrolytic cleaning, every pets materials in or near the (especially birds) have to be kept away from the area of appliance: a fire may break the appliance location.

  • Page 7: Product Description

    ENGLISH Product description Control panel Rear oven lamp Cooling fan (not visible) Bottom heating element (hidden) Upper heating element Oven door Grill heating element Accessories Baking tray Grill Pan Set / Drip tray Wire Shelf...
  • Page 8 ENGLISH Inserting wire shelves and other 3. Return the wire shelf to the horizontal accessories in the oven position and push it in fully to “C” The wire shelf and other accessories are (Fig. 3). provided with a locking mechanism to prevent their unintentional removal. 1. Insert the wire shelf horizontally, with the raised part “A”...

  • Page 9: Control Panel

    ENGLISH Control panel Function selector knob Thermostat indicator light (red) Thermostat knob Daily use How to operate the oven • Turn the selector knob to the required function. The oven light switches on. • Turn the thermostat knob clockwise to the required temperature. The red thermostat led lights up, switching off again when the oven reaches the selected temperature.
  • Page 10 ENGLISH Oven functions table The oven has 4 cooking levels. Count up from the lower level. Function Description of function OVEN OFF CONVENTIONAL To cook meat, fish and chicken on the same level. (Top and Bottom Preheat the oven to the required cooking temperature and place Heat) the food inside as soon as the red thermostat L.E.D.
  • Page 11 ENGLISH Cooking tables Dishes Function Preheating Level (from Temperature Cooking time the bottom) (°C) (min.) MEAT Lamb, kid, mutton 90-1 10 Veal, beef, pork 90-1 10 Chicken, rabbit, duck 70-80 Turkey (3-5 kg) 160-180 Goose (2 kg) 100-130 FISH Gilt-head, bass, tuna, 60-80 salmon, cod(1 kg) Swordfish, tuna 50-60 (<1 kg - in tcutlets)
  • Page 12 ENGLISH Cooking table with DUAL GRILL function Dishes Function Preheating Level (from the Temperature Cooking time bottom) (°C) (min) Toast – 3 (high) Fish fillets / – 2 (mid) 20-35 steaks Sausages/ – 2-3 (mid-high) 15-40 kebabs/ spare ribs/ hamburgers Note: cooking temperatures and times are for guidance only.

  • Page 13: Cleaning And Maintenance

    ENGLISH Cleaning and maintenance CLEANING Accessories • Soak the accessories in water with WARNING! washing up detergent immediately after Never use steam cleaning equipment. use, handling them with oven gloves if Only clean the oven when it is cool to still hot. the touch.
  • Page 14 (see note for lamp type) and screw the lamp cover back on. 3. Reconnect the oven to the power supply. NOTE: Only use 25-40W/230V type E-14, T300°C incandescent lamps. Lamps are available from IKEA After Sales Fig. 3 Service. Fig. 4...

  • Page 15: What To Do If

    “What to do if ...” table. If any repairs are required, please contact 2. Switch the appliance off and back on IKEA After Sales Service (to guarantee that again it to see if the fault persists. original spare parts will be used and repairs If after the above checks the fault still occurs, carried out correctly).

  • Page 16: Technical Data

    ENGLISH Technical data Dimensions Width Height Depth Usable volume l Area of largest baking sheet (net surface) cm 1200 Bottom heating element W 1000 Grill W 2500 Cooling fan W 12-21 Oven lamp W Total rating W 2600 Number of functions Energy consumption kWh 0.79 The technical informations are situated in the rating plate inside the appliance.

  • Page 17: Installation

    ENGLISH Installation During use After unpacking the oven, make sure that it has not been damaged during transport Do not place heavy objects on the door and that the oven door closes properly. In as they could damage it. the event of problems, contact the dealer or Do not cling to the door or hang your nearest After-sales Service.
  • Page 18 ENGLISH Door lock device To open the door with the door lock device see Fig 1. Fig. 1 The door lock device can be removed by following the sequence of images (see Fig. 2). Fig. 2...

  • Page 19: Electrical Connection

    1,5 mm ) must be carried out by a qualified the mains voltage. The rating plate is on electrician. Contact IKEA After Sales Service. the front edge of the oven (visible when the door is open). Environmental concerns...

  • Page 20: Ikea Guarantee

    IKEA five (5) years guarantee? • Consumable parts including batteries and The range of appliances named LAGAN and lamps. all appliances purchased in IKEA before 1st of • Non-functional and decorative parts which August 2007. do not affect normal use of the appliance, including any scratches and possible color Who will execute the service? differences.
  • Page 21 IKEA appliance in the dedicated IKEA However, if an IKEA appointed Service kitchen furniture; Provider or its authorized service partner • ask for clarification on functions of IKEA appliances. repairs or replaces the appliance under the terms of this guarantee, the appointed...
  • Page 22 9.00 - 21.00 Takst: Lokal takst Åbningstid: Mandag - fredag 9.00 - 21.00 REPUBLIC OF IRELAND Lørdag 9.00 - 18.00 Phone number: 016590276 (Åbent udvalgte søndage, se IKEA.dk) Rate: Local rate DEUTSCHLAND Opening hours: Monday - Friday 8.00 - 20.00 Telefon-Nummer: 06929993602 ROMÂNIA Tarif: Ortstarif Număr de telefon:...
  • Page 24 © Inter IKEA Systems B.V. 2012 18535 AA-718189-1...
