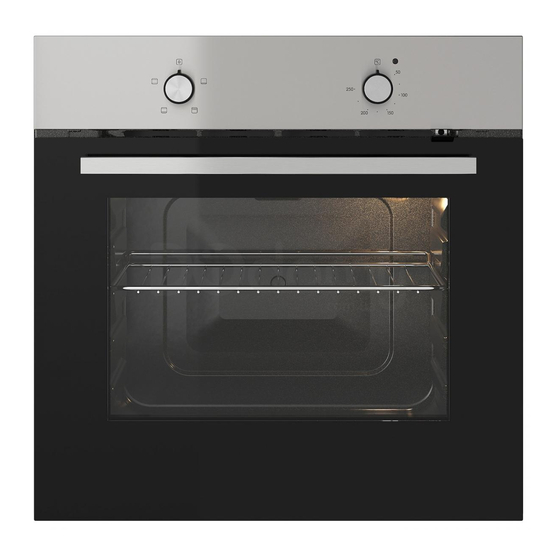

IKEA GÖRLIG Installation Instructions Manual

Hide thumbs Also See for GÖRLIG:
Table of Contents

Advertisement

Quick Links

See also: Instructions , User Manual
AU
GÖRLIG

Advertisement

Table of Contents
loading

Related Manuals for IKEA GÖRLIG

Summary of Contents for IKEA GÖRLIG

  • Page 1 GÖRLIG...
  • Page 2 ENGLISH Please refer to the chapter IKEA GUARANTEE for contact details of the after sales customer service centre.
  • Page 3 ENGLISH...

  • Page 4: Table Of Contents

    Before first use Energy efficiency Daily use Environmental concerns Using the accessories IKEA guarantee Subject to change without notice. Safety information Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages.

  • Page 5: Conditions Of Use

    ENGLISH Keep children and pets away from the appliance when it • operates or when it cools down. Accessible parts are hot. If the appliance has a child safety device, it should be • activated. Children shall not carry out cleaning and user maintenance of •...

  • Page 6: Safety Instructions

    ENGLISH Safety instructions • The shock protection of live and Installation insulated parts must be fastened in such Warning! Only a qualified a way that it cannot be removed without person must install this tools. appliance. • Connect the mains plug to the mains socket only at the end of the installation.
  • Page 7 ENGLISH • Do not let sparks or open flames to come Care and Cleaning in contact with the appliance when you Warning! Risk of injury, fire, or open the door. damage to the appliance. • Do not put flammable products or items that are wet with flammable products in, •...

  • Page 8: Installation

    ENGLISH • Cut off the mains electrical cable close to international abbreviations such as PE, the appliance and dispose of it. PS, etc. Dispose of the packaging • Remove the door to prevent children and material in the containers provided for pets to get closed in the appliance.

  • Page 9: Product Description

    ENGLISH Product description General overview Control panel Knob for the heating functions Control knob Temperature indicator Air vents for the cooling fan Grill Lamp Rating plate Shelf positions • Grill pan set x 1 Accessories To bake and roast or as pan to collect •...

  • Page 10: Daily Use

    ENGLISH To remove the child lock, open the oven Using the Mechanical child lock door and remove the child lock with the torx The oven has the child lock installed. It is on key. The torx key is in the oven fitting bag. the right side of the oven, below the control panel.

  • Page 11: Using The Accessories

    ENGLISH Heating func- Application tion This function is designed to save energy during cook- ing. For the cooking in- ECO Cooking structions refer to "Hints and tips" chapter, ECO Cooking. The oven door should be closed during cooking so that the func- tion is not interrupted and to ensure that the oven op- erates with the highest en-...

  • Page 12: Additional Functions

    ENGLISH Grill pan set: Put the trivet into the grill / roasting pan. Put the grill pan set onto the wire shelf or baking tray and put them into the oven at the desired shelf position. Additional functions Cooling fan Safety thermostat When the oven operates, the cooling fan Incorrect operation of the oven or defective...
  • Page 13 ENGLISH Cooking table Quantity Food Function Shelf posi- Temperature Time (min) (kg) tion (°C) Pork / Lamb 110 - 130 Veal / Beef 70 - 100 Chicken / Rabbit 70 - 80 Duck 120 - 150 Goose 150 - 200 Turkey 210 - 240 Fish...
  • Page 14 ENGLISH Food Accessories Temperature Shelf posi- Time (min) (°C) tion Sweet rolls, 12 baking tray or dripping 35 - 40 pieces Rolls, 9 pieces baking tray or dripping 35 - 40 Pizza, frozen, wire shelf 35 - 40 0.35 kg Swiss roll baking tray or dripping 30 - 40...
  • Page 15 ENGLISH Food Accessories Temperature Shelf posi- Time (min) (°C) tion Savory pastry, baking tray or dripping 35 - 45 16 pieces Short crust bis- baking tray or dripping 40 - 50 cuits, 20 pieces Tartlets, 8 baking tray or dripping 20 - 30 pieces Poached vege-...
  • Page 16 ENGLISH Accessories Size Picture Flan base tin, dark, non- 28 cm diameter reflective Information for test institutes Tests according to IEC 60350-1. Food Function Accesso- Shelf Temper- Time (min) Comments ries posi- ature tion (°C) Small Convention- Baking 20 - 30 Put 20 small cake al (Top and...

  • Page 17: Care And Cleaning

    ENGLISH Food Function Accesso- Shelf Temper- Time (min) Comments ries posi- ature tion (°C) Beef bur- Grilling Wire max. 20 - 30 Put the wire shelf shelf and on the third level 6 pieces, dripping and the dripping 0.6 kg pan on the sec- ond level of the oven.
  • Page 18 ENGLISH Cleaning the oven door The oven door has two glass panels. You can remove the oven door and the internal glass panel to clean it. The oven door can close if you try to remove the internal glass panel before you remove the 90°...

  • Page 19: Troubleshooting

    ENGLISH Warning! Danger of electrocution! Disconnect the fuse before you replace the lamp. The lamp and the lamp glass cover can be hot. 1. Turn off the oven. 2. Remove the fuses from the fuse box or turn off the circuit breaker. 3.

  • Page 20: Technical Data

    ENGLISH Problem Possible cause Remedy The lamp is turned off. The ECO Cookingfunction is Normal behaviour of the turned on. ECO Cooking function. Refer to "Daily Use" chapter, Heating Functions. Service data the front frame of the oven cavity. Do not remove the rating plate from the oven If you cannot find a solution to the problem cavity.

  • Page 21: Energy Efficiency

    ENGLISH Energy efficiency Product information according to EU 66/2014 Model identification GÖRLIG 804.132.28 Energy Efficiency Index 94.9 Energy consumption with a standard load, conven- 0.75 kWh/cycle tional mode Number of cavities Heat source Electricity Volume 56 l Type of oven Built-In Oven Mass 25.9 kg...

  • Page 22: Environmental Concerns

    IKEA Service Office original date of purchase of Your appliance L1 Clock Tower, 630 Princes Highway at IKEA Pty Ltd, ABN 84006270757 or at Tempe, NSW 2044 Cebas Pty Ltd, ABN 15 009 156 003 (Both Trading as IKEA). The original sales receipt Contact - IKEA Customer Service at is required as proof of purchase.
  • Page 23 • Repairs not carried out by our appointed Australia. service providers and/or an authorized What will IKEA do to correct the problem? service contractual partner or where non-original parts have been used. IKEA appointed service provider will exam- •...
  • Page 24 Our goods come with guarantees that 3. Ask for clarification on user manual con- cannot be excluded under the Australian tents and specifications of the IKEA ap- Consumer Law (ACL). You are entitled to a pliance. replacement or refund for a major failure...
  • Page 25 It is your proof of purchase and required for the guarantee to apply. Note that the receipt reports also the IKEA article name and number (8 digit code) for each of the appliances you have purchased.
  • Page 26 ENGLISH...
  • Page 27 ENGLISH...
  • Page 28 21552 © Inter IKEA Systems B.V. 2018 AA-2048826-1...
