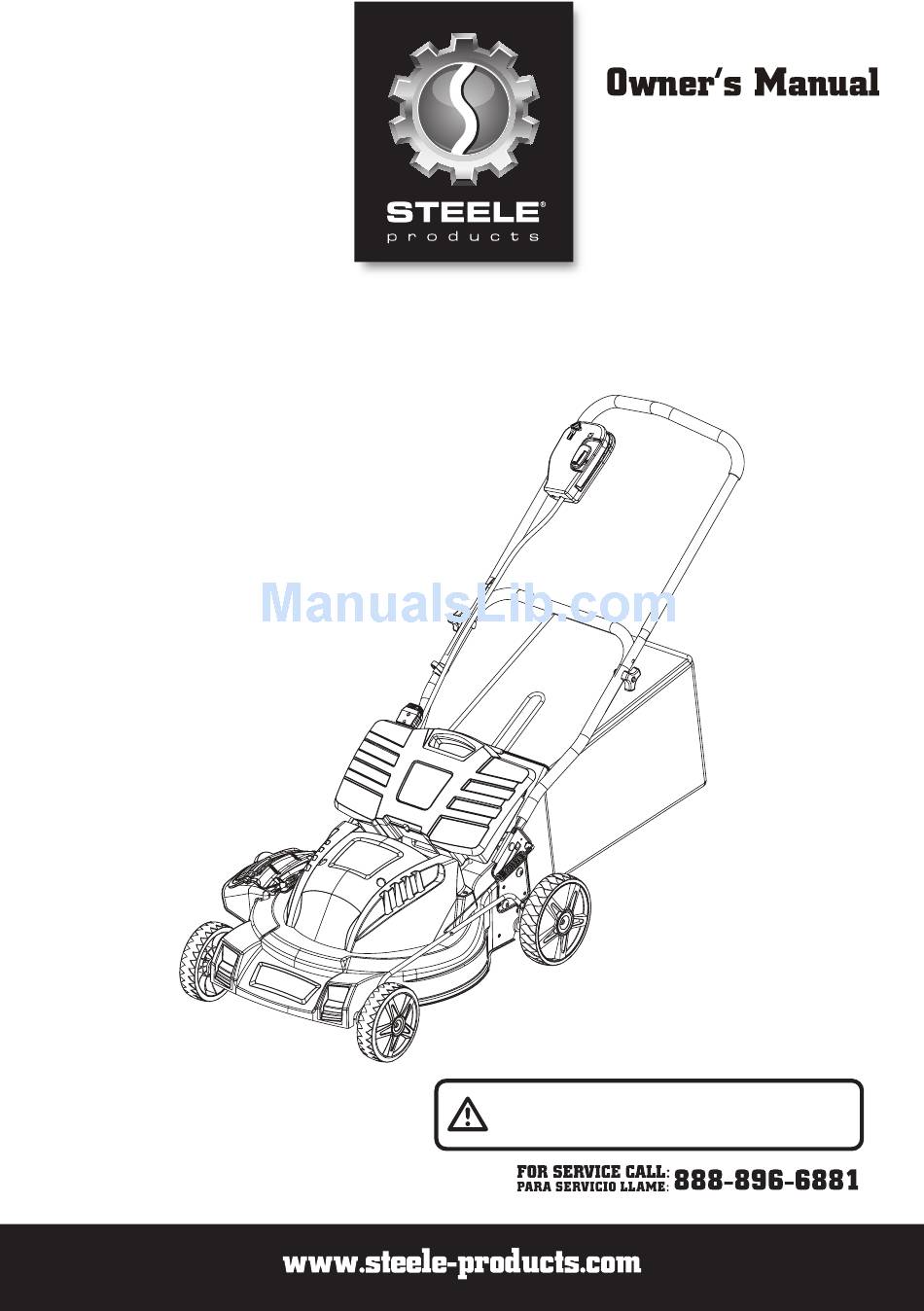

- Page 1 Cordless Lawn Mower WARNING! To Reduce The Risk Of Injury, User Must Read And Understand Instruction Manual. SP-PM207DC...
-
Page 2: Product Specification
PRODUCT SPECIFICATION Component Specifications Battery Capacity 24 V d.c. 12-hour Charge Time No-load Speed 3,500 /min Cutting Path 20 in. (508 mm) Height Adjustment 1-3/4–3-3/4 in. ( 45mm – 95mm) Wheels Size 7in. (front)/ 8 in. (rear) Unit Weight 90 lb (41 kg) with battery 57Ib (26kg) without battery SYMBOL SYMBOL... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS WARNING: Read all instructions when using electric gardening appliances. Basic safety precautions should always be followed to reduce the risk of fire,electric shock, and personal injury. FOR ALL LAWN MOWERS a) Avoid Dangerous Environment Don’t use appliances in damp or wet locations. b) Don’t Use In Rain. - Page 4 SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS FOR BATTERY-OPERATED LAWN MOWERS a) Do not charge lawn mower in rain, or in wet locations. b) Do not use battery-operated lawn mower in rain. c) Remove or disconnect safety key before servicing, cleaning, or removing material from the lawn mower. d) Use only the following type and size battery: type A22001, A22002 lead acid battery e) Do not dispose of the battery in a fire.
-
Page 5: Slope Operation
SAFETY INSTRUCTIONS II. SLOPE OPERATION Slopes are a major factor related to slip and fall accidents, which can result in severe injury. Operation on all slopes requires extra caution. If you feel uneasy on a slope, do not mow it. 1. -
Page 6: Battery And Charger
BATTERY & CHARGER CAUTION: USE ONLY APPROVED REPLACEMENT BATTERIES, OTHER BATTERIES MAY CAUSE INJURY OR DAMAGE TO THE MOWER. The battery that is supplied with this mower is a maintenance-free, sealed, 24 V storage battery. It can be tipped without danger of acid spillage. The charger will require approximately 12 hours to recharge a fully discharged battery. -
Page 7: Know Your Product
KNOW YOUR PRODUCT Read this owner's manual and safety rules carefully before operating the mower. Compare the illustration below to the mower in order to become familiar yourself with the location of the various controls and adjustments. Save this manual for future reference. Fig.1 Handle grip Power button... -
Page 8: Assembling Your Lawn Mower
ASSEMBLING YOUR LAWN MOWER Parts List Note: ASSEMBLING THE HANDLE... - Page 9 ASSEMBLING YOUR LAWN MOWER INSTALLING THE GRASS CATCHER BAG (see Fig.4) 1. UNPLUG THE POWER CORD, AND WAIT FOR BLADE TO COME TO A COMPLETE STOP. 2. Lift the chute cover (1). 3. While holding up the cover (1), place the grass catcher bag hanger hooks (2) into the opening on the chute cover (1) to allow the hanger hooks to attach to the rod (3) which secures the chute cover.
- Page 10 ASSEMBLING YOUR LAWN MOWER INSTALL THE SIDE DISCHARGE CHUTE (see Fig.5) This mower has 3 different functions-mulch, side discharge, and rear bag. If you wish to discharge the clippings rather than mulch, perform these steps. 1. UNPLUG THE POWER CORD, AND WAIT FOR BLADE TO COME TO A COMPLETE STOP. 2.
- Page 11 ASSEMBLING YOUR LAWN MOWER INSTALLATION OR REMOVAL OF THE MULCH PLUG (see Fig.6) 1. UNPLUG THE POWER CORD, AND WAIT FOR BLADE TO COME TO A COMPLETE STOP. 2. To remove the mulch plug lift the chute cover (1) and pull out on the handle. 3.
- Page 12 ASSEMBLING YOUR LAWN MOWER ADJUST THE UPPER HANDLE HEIGHT (see Fig.7) 1. Loosen the upper handle knob. 2. Adjust the handle to the most comfortable of the 3 positions. 3. Tighten the upper handle knob as tight as you can. Fig.7...
-
Page 13: Starting / Stopping The Mower
OPERATION YOUR MOWER TO START & STOP THE MOWER: Carefully follow the illustration below, in order, when starting or stopping the mower. (see Fig.8 & Fig.9) STARTING / STOPPING THE MOWER See Fig 8 & Fig 9. 1. For the proper operation of this lawn mower , you need to inert the disable key in position, then the lawn mower can be operated by move the level release first to make the switch control level available, then hold the switch control level for operation . - Page 14 OPERATION YOUR MOWER ADJUST THE CUTTING HEIGHT ( see Fig.10) 1. Simply depress the lever (1) towards the wheel and move to desired position. This sets all wheels to the same position. 2. To raise the height, pull the height adjustment lever from the current stop position towards the back of the mower.
-
Page 15: Charging Procedure
OPERATION YOUR MOWER CHARGING PROCEDURE Note: The battery can be charged in or out of the mower. The charger that is supplied with this mower is a specially designed 2-stage charger. Step 1: The red light will light up during the recharge cycle. Step 2: The green light will light up when the battery is fully charged. -
Page 16: Mowing Tips
OPERATION YOUR MOWER WARNING: Do not mow a slope that has an angle of greater than 15° (a rise of approximately2-1/2 ft. [ 75 m]every 10 ft. [3m]).Mow a cross the face of a slope, and never up and down. MOWING TIPS NOTE: A sharp blade will greatly enhance the performance of the mower, especially when cutting high grass. - Page 17 OPERATION YOUR MOWER Fig.11 Fig.12 Loosen Tighten NOTE: Be sure to replace the parts in the exact order in which they were removed. When installing the cutting blade, verify that it is installed with the curved ends pointing toward the mower deck. CLEAN THE MOWER WARNING: To reduce the risk of electric shock, do not expose the mower to water.
-
Page 18: Environmentally Safe Battery Disposal
ENVIRONMENTALLY SAFE BATTERY DISPOSAL The following toxic and corrosive materials are in the batteries used in this battery pack: a toxic material. WARNING All toxic materials must be disposed of in a specified manner to prevent contamination of the environment. Dispose of batteries according to local by-laws because this Lead-acid batteries contain lead that are hazardous materials. -
Page 19: Parts List
PARTS LIST... - Page 20 PARTS LIST APA Part No. Part No. Description 8220801 Tapping Screw St 4.8×18-f PM207DC-01-QQ 8410201 Front Cover PM207DC-02-QQ 8228701 Cap Screw M6 × 30 PM207DC-03-QQ 8228801 Cap Screw M6 × 25 PM207DC-04-QQ 8410301 Front Wheel Lower Board PM207DC-05-QQ 8330101 Front Axle Assembly PM207DC-06-QQ 8321002 Front Axle Sleeve...
- Page 21 PARTS LIST Description APA Part No. Part No. 8330801 Right Height Adjustment Board Assy PM207DC-43-QQ 8247501 Open Circlip 7 PM207DC-44-QQ 8220501 Bolt M10×20 PM207DC-45-QQ 8221001 Hex Lock Nut M4 PM207DC-46-QQ 8247701 Wash Ø 4 PM207DC-47-QQ 8221101 Cap Screw M4 × 14 PM207DC-48-QQ 8411201 Mulch Plug...
- Page 22 Steele® warrants to the original purchaser who uses the product in a consumer application (personal, residential or household usage) that all products covered under this warranty are free from defects in material and workmanship for one year from the date of purchase. All products covered by this limited warranty which are used in commercial applications (i.e.
- Page 23 Merchandise sold by Steele® which has been manufactured by and identified as the product of another company, such as gasoline engines. The product manufacturer’s warranty, if any, will apply. ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL LOSS, DAMAGE, OR EXPENSE THAT MAY RESULT FROM ANY DEFECTS, FAILURE OR MALFUNCTION OF THE PRODUCT IS NOT COVERED BY THIS WARRANTY.
