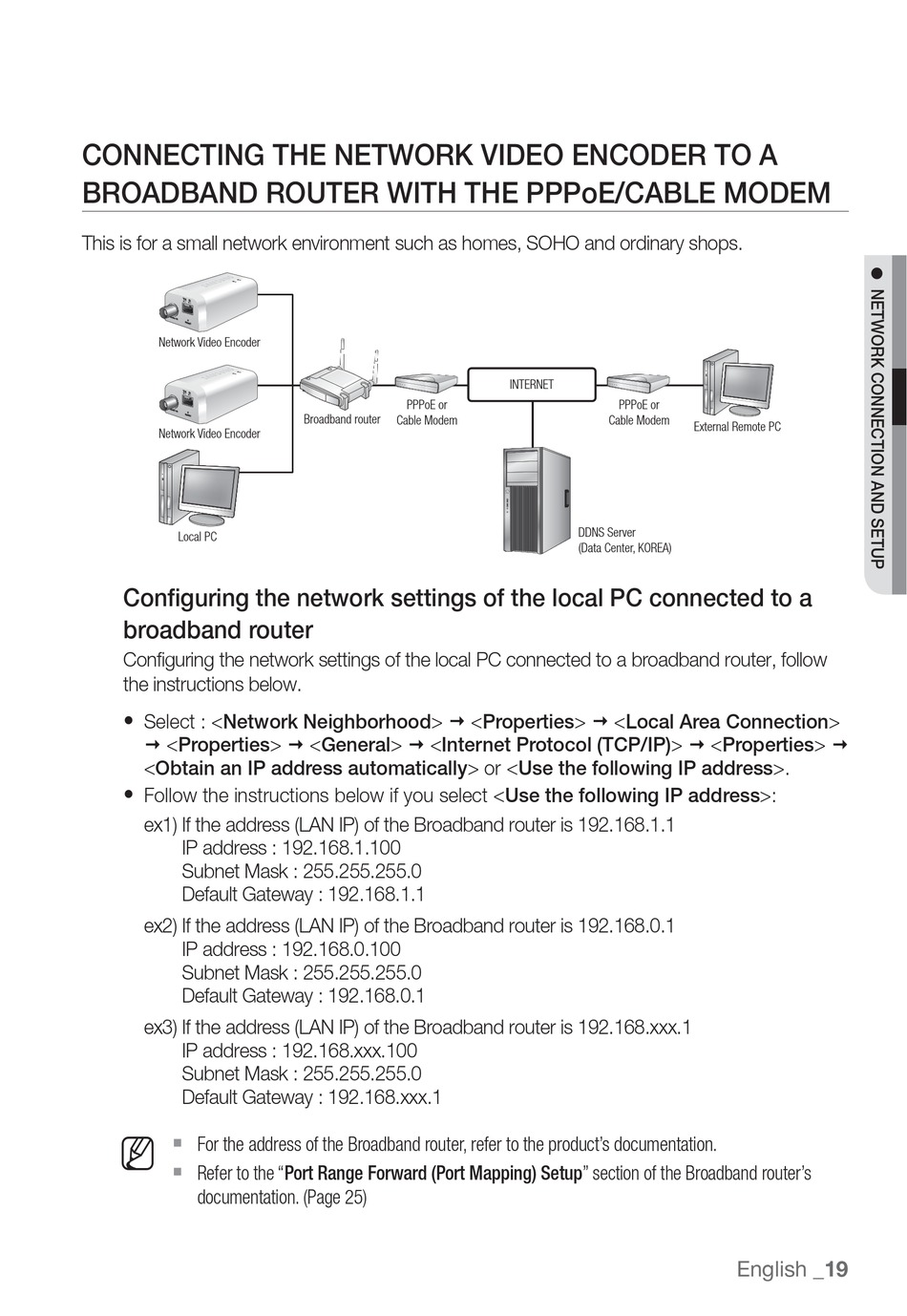

CONNECTING THE NETWORK VIDEO ENCODER TO A
BROADBAND ROUTER WITH THE PPPoE/CABLE MODEM
This is for a small network environment such as homes, SOHO and ordinary shops.
Network Video Encoder
Network Video Encoder
Local PC
Configuring the network settings of the local PC connected to a
broadband router
Configuring the network settings of the local PC connected to a broadband router, follow
the instructions below.
 Select : <Network Neighborhood>  <Properties>  <Local Area Connection>
 <Properties>  <General>  <Internet Protocol (TCP/IP)>  <Properties> 
<Obtain an IP address automatically> or <Use the following IP address>.
 Follow the instructions below if you select <Use the following IP address>:
ex1) If the address (LAN IP) of the Broadband router is 192.168.1.1
IP address : 192.168.1.100
Subnet Mask : 255.255.255.0
Default Gateway : 192.168.1.1
ex2) If the address (LAN IP) of the Broadband router is 192.168.0.1
IP address : 192.168.0.100
Subnet Mask : 255.255.255.0
Default Gateway : 192.168.0.1
ex3) If the address (LAN IP) of the Broadband router is 192.168.xxx.1
IP address : 192.168.xxx.100
Subnet Mask : 255.255.255.0
Default Gateway : 192.168.xxx.1

M
For the address of the Broadband router, refer to the product's documentation.

Refer to the "Port Range Forward (Port Mapping) Setup" section of the Broadband router's
documentation. (Page 25)
