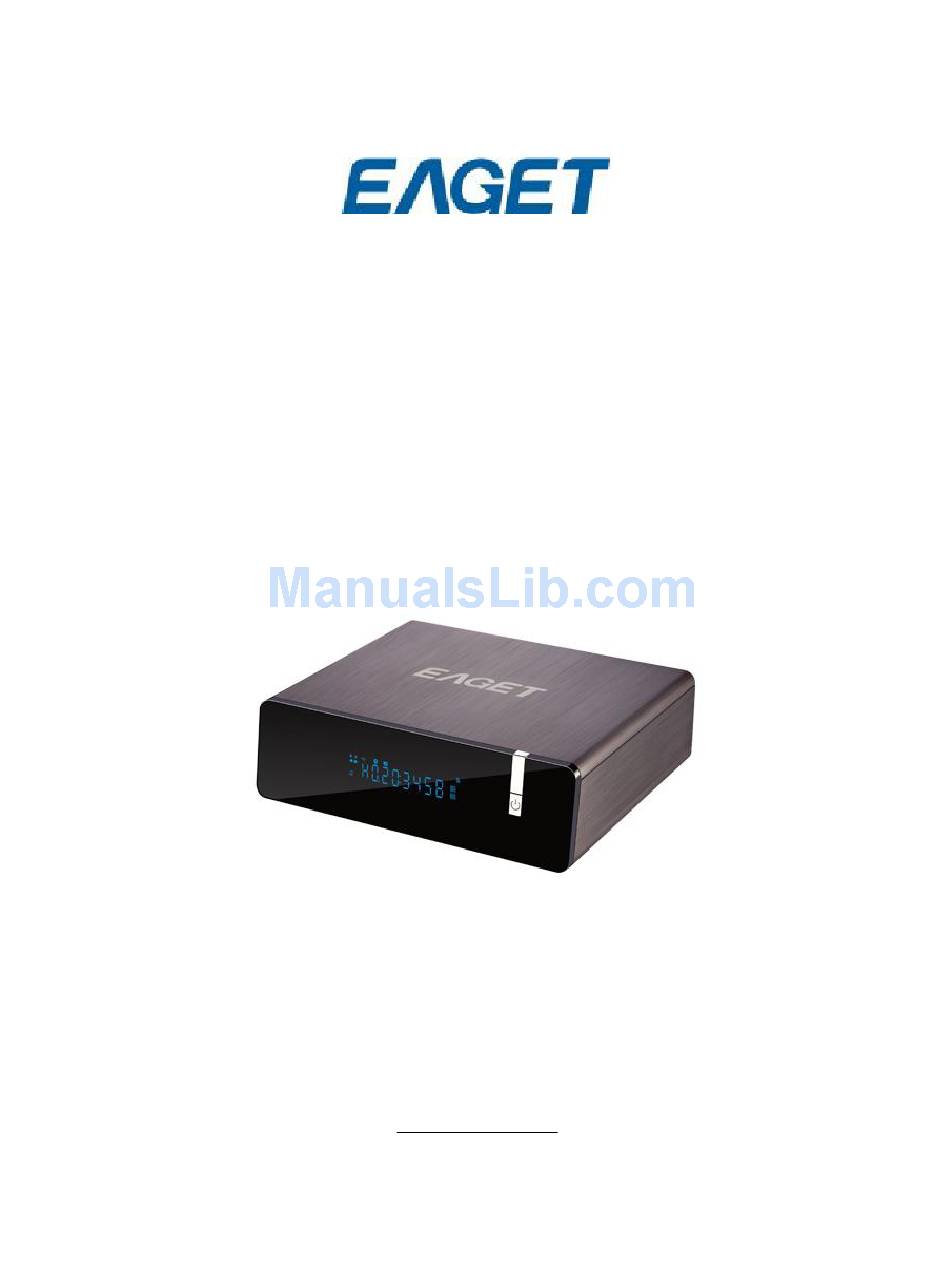

  • Page 1 1080P High Definition 3.5" HDD Network Multimedia Player User Manual www.eaget.cz...

  • Page 2: Introduction Of Product

    1. Introduction of Product 1.1 Preface The EAGET H5 is a high definition multimedia player with NAS, wired & wireless network, online video, internet radio, RSS news BT&PT downloading and DVB-T functions. You can watch movies in the highest resolution(1080P) and in all common formats on your television or home cinema system –...

  • Page 3: Main Functions

    File Management Functions Support files copy, delete, rename and other operations. DVB-T Funxtions With external USB tuner, H5 supports DVB-T and DMB-TH, it also supports terrestrial digital television HD signals and EPG(Electronic Program Guide) External Interfaces ·USB 3.0 Data Port (for computer connection);...

  • Page 4: Packing List

    Before you make use of the product, please check whether the package contents have the following parts. If there is any shortage, please contact the dealer from who you bought the product in time to guarantee your rights and interests. Item Quantity H5 player 1 piece HDMI cable 1 piece A/V cable...
  • Page 5 (1) This player may not cause harmful interference; (2) This player could accept some interference received including interference that may cause undesired operation. 1.5.4 Repair If the player has a problem, you should take it to an appointed repair center and let the specialists do the repair, never repair the player yourself, you might damage the player or endanger yourself or your data.

  • Page 6: Connecting The Power Supply

    2.1 Connecting the Power Supply (1) Follow the picture and connect the AC adaptor to the player’s DC IN jack; (2) Follow the picture and plug in the AC adaptor to the power outlet. 2.2 HDMI output (1) Follow the picture and plug one connector on your HDMI cable to the player’s HDMI jack;...

  • Page 7: Digital Audio Output

    2.4 Y/Pb/Pr Component output (1) Follow the picture and plug in the one connector to the player’s Y/Pb/Pr jack; (2) Follow the picture and plug in the 3 color connector to the TV’s Y/Pb/Pr jack. Helpful tips: As only the video signals and no audio signals are outputted in Y/PB/PR mode, So please make audio output when using Y/PB/PR mode.

  • Page 8: Connecting To A Lan

    (optical fiber) Helpful tips: To use the power amplifier to output the audio information, please set output in settings as SPDIF output”. 2.6 Connecting to a LAN To connect to a LAN you require a router or switch (Not included in the Accessories). (1) Connect one of the crystal plugs on the cable to the player’s RJ45 socket;...

  • Page 9: Connecting To A Usb Device

    following: Network chip Network type RALINK3072 RTL 8191SU NW360 RTL 8188SU NW336 RTL 8188SU NW338 RTL 8191SU NW336 RTL 8191SU Awu66N RTL 8192SU NW362 Helpful tips: the Wireless Network Card for USB is an optional and not all wireless Network cards sold on the market can be used for this player.

  • Page 10: About The Player

    2.10 Connecting to a PC (1) Make sure the player is powered on; (2) Plug in the squares connector of the USB cable to this player’s USB DEVICE port; (3) Plug in the rectangular connector of the USB cable to computer. 3.
  • Page 11 15.Info 16.Repeat 17.Photo 18.Ctrl 19.SEEK 20.Play 21.FF/FR 22.Stop 24.Previous 23.Setup /Next 25.Pause 26.Return 28.Navigation 27.OK 30.Number 29.Volume+/- keys 31.Delete 32.Goto Button Description: KEYS FUNCTION Indicates the remote control’s work status, LED blinks if any LED Indicator bottom is pressed. Stand by Press to enter standby mode or wake up.

  • Page 12: Front View

    Subtitle Press to set subtitle options. Audio Press to select an audio track. When Playing the contents of an USB DVD ROM, press to Eject eject the disc. Mute Turn on/off the sound. Info Press to hide or display the information bar during playback. Press to set the repeat mode.movie:(single repeat,repeat Repeat all,close);...

  • Page 13: Back View

    1. IR Receiver Window 2.VFD Screen 3. stand by Switch Interface Description: Item Description IR Receiver Receive the signal from remote control. display the playback status and progress and other VFD Screen information for the operation. Press the bottom to enter into standby mode; Stand by Switch&...

  • Page 14: Side View

    Colling Fan Exhausting the heat from internal. Connect with an external device with eSATA port, not for eSATA connection to computers DC-IN Power input: DC 12V. SPDIF Coaxial/Optical fiber output digital audio. (The Coaxial/ SPDIF coaxial/optical cables are not including in Optical Fiber Out attachment).

  • Page 15: Power On/Off

    If you want to take out the hard driver, take off the cover and use one hand to move the hook on the left of inside, use the other hand keep off the hard disk to hold the hard disk to avoid it pop out to much to fall down and damage the hard driver.

  • Page 16: Browse Function

    5. Browse Function 5.1 Browsing Movie Press the Left/Right keys on the remote controller to select MOVIE from the main menu above the screen; Browsing Movie Instructions of Operations Press the Up/Down keys to select the device to be previewed and press the OK key to access;...
  • Page 17 Vertical: setting the vertical of the subtitle. Place: setting the place of the subtitle(top, bottom) Outline color: setting the outline color of the subtitle. Audio Press to select an audio track. Zoom in the image. Zoom (Zoom ratio: 1,2,3,0,-1,-2,-3) Setting the scale of the viewer.(full screen, Scale standard, Real size) Info...

  • Page 18: Browsing Music

    Stop Stop playback the file. 5.1.1 Add a Plug in Subtitles 1. Download the subtitles which you need on the website; 2. Put the subtitle file to the same directory with the movie file; 3. Rename the subtitle. Keep the name is same as the movie file. When playing the movie file, press the subtitle on the remote controller you will be able to select the appropriate subtitle to display.

  • Page 19: Browsing Photos

    Press to goes forward or backward by Seek and left/right key certain time. Add or decrease volume when playback file. Up/Down key Select the Previous/Next file in preview interface. Previous/Next Play backing the previous or next file. Set the repeat mode when playing music Repeat file.
  • Page 20 Press Up/Down keys to select the device to be previewed and press Ok key to access; Press Up/Down keys to select the folder or music you want to preview and press Ok key to full screen plan state. The following buttons can be used to control video playback. Pause Pause to playback the file.

  • Page 21: System Setting

    Select movie music or pictures option on the main interface and enter into the secondary menu, there is a Network Browser option, and you can via here to browse the files shared on the computer. 7. Browsing File via DVD ROM When you connect an external DVD ROM, the system will be find the device automatically, then you can enter into the secondary menu of the movie, Music and photo option on the main menu to find the device and play.
  • Page 22 30HZ,1080p 24Hz,1080p 23.976Hz,1080i 60HZ,1080i 50HZ,720p 60HZ,720P 50HZ,576i(Compatible PAL),480i. AV:NTSC_M,PAL_BG, PAL_M, PAL_N. Select TV Aspect Ratio: 16:9: Compress the image to convert the whole image. Select when a 16:9 TV is connected. TV Aspect Ratio 16:10: Compress the image to convert the whole image. Select when a 16:10 TV is connected.

  • Page 23: Movie Setting

    device when starting. Play photo: Auto playing photo files in “auto photo” folder in storage device when starting. Play music and photo: Auto playing files in “auto music” and “auto photo” folder in storage device when starting. Language To change display language, press ok to setting. Software updates and views the current software version.

  • Page 24: Photo Setting

    8.4 Photo Setting Select time per slide on this interface: 3s, 5s, 10s, and 15s. 8.5 Changing Network Settings 8.5.1 Configure Ethernet Auto obtain IP You can get IP settings assigned automatically if your network supports, otherwise, you need to configure it manually. MANUAL IP Seeting Select to manually input the IP Address, Subnet Mask, Default Gateway, and DNS Server IP Address.
  • Page 25 Select wireless password type to input the password, if it is no password here, select no password to configure. Then the system will prompt wireless network configuration successfully. Return to the manage wireless network configuration interface, Choose the wireless ID, you can edit or delete it.
  • Page 26 Input the password as the encryption method of the router. If there is no password of the router, select no password and connect. When the connecting is successful, you will get an IP address, if it is failed, you need to return and try it again. You can also through select connect to new wireless network to find a wireless ID to connect.
  • Page 27 Turn back to the root dialog box, input the following command and press enter to executing the command. After executed the command, the configuration of the computer was completed. 2. Configuration of the Player Add NFS server NFS Host IP: Computer’s IP address which shared the files. Folder Name: the shared file’s name.
  • Page 28 the movie, music and pictures on the main menu, you can access and browse the files which you shared on the computer. In Settings-Share-connect to the NFS server, the NFS server which you added will displaying on this interface, press Ok key, and you can modify or delete it. 8.6.2 Connect to the SMB Server The list will show the connected SMB servers.
  • Page 29 2. Configuration of the player. Select Settings-Share-connect SMB server to add SMB server. SMB Host IP: Computer’s IP address which shared the files. Folder Name: the shared file’s name. Username: the user name of the computer. Password: the password of the name. Alias (optional): the share name of the shared files.
  • Page 30 8.6.3 Connect to the UPNP Server To achieve this function, first you need to install the related UPNP media server. Then share the files to the H5-definition by this UPNP media server. e.g.: using the Windows Media Player11 on windows xp to share the files.
  • Page 31 Select allow to making the device (the H5 HD player) is customized. 3). Select library->add to library. 4).On Add to library-Add to add the share files.
  • Page 32 2. Browsing the media files you shared on the computer. H5 will automatically search the UPNP media server and the UPNP servers which were added the success will appear in the secondary menu of the movie, music and photo options on the main menu as following picture, you can select and access to browse.
  • Page 33 you can choose to on or off the service. When you use for this feature, You need to go to system-file manager-storage location to select the share device first, after sharing, other UPNP devices can visit these shared resources. E.g.: Access to the player by the computer. 1) Tap My Computer-Management-Services and Applications-Services to find the Universal plug and play Device Host service and start it.
  • Page 34 If there is an UPNP device on the network, the system will automatically detect it. 8.6.5 Set the SMB sharing The player can be used as SMB server and for other devices on the network to access, you can choose to on or off the service. When you use for this feature, you need to go to system-file manager-storage location to select the share device first.
  • Page 35 Input the address as following on the address bar on the computer. Address: \\AHHHA Username: root Password: smb123 Then you will be able to access to the shared device of the player.
  • Page 36 Through my computer-tools-map network driver options to maping the shared device as a driver on the computer.then you can access it rapidly on here.
  • Page 37 8.6.6 Set the FTP sharing The player can be used as FTP server and for other devices on the network to access, you can choose to on or off the service. When you use for this feature, you need to go to system-file manager-storage location to select the share device first.
  • Page 38 Input the address as following on the address bar on the computer. Address: ftp: //the IP of the hdplayer Username: hdplayer Password: ftp123 Then you will be able to access to the shared device of the player.
  • Page 39 8.6.7 Set the NFS Sharing (Used in the Linux System) The player can be used as NFS server and for other devices on the network to access, you can choose to on or off the service. When you use this feature, you need to go to system-file manager-storage location to select the shared device first.

  • Page 40: Internet Radio

    Press left/right keys on the remote control, select Online application from the main interface and press the OK key to enter. These are three options YouTube, Internet Radio and RSS for your choose. Note: some of the online content may vary with the software update. 9.1 YouTube When the player was connected to the network, then you can connect to the YouTube website to obtain the resources and browsing.
  • Page 41 When the player is connected to the network, press ok key to see all contents of the class, select the ratio station which you like and press OK key to listen to. When you listen to the internet radio station, the following keys are valid: Item Description Press to play backing the ratio station.

  • Page 42: Internet Downloads

    9.3 RSS There are two options RSS Manage and RSS Browse on this interface. 1. Select the RSS manage option; press Ok key to edit the RSS. Select Add RSS to add a new address of RSS. And you can select an existing station to edit or delete it on this interface.
  • Page 43 There are three download resources (as different file size or different formats) for your choose. Select and press Ok key to add the download task, after add it successfully, it will prompt as add the download task successfully, go to “download task” in view. Internet Search Select Movie-Search, press Ok key enter into the internet search interface;...
  • Page 44 Setting the download speed on this interface, Please input 1-999 to set the fastest speed,0 means the speed is random. But the speed limit only to internet downloads effectively. 10.1.4 Download Task Select Manage-Download task, the download task of the player will be shown as a list on this interface.
  • Page 45 10.2.1 www.3322.org DynamicDNS Login on the www.3322.org DDNS website, and register a user on the website. After registration, login on and register a new DDNS address for your own. After register, Input the information on the player as the prompt:...
  • Page 46 User name: the user name you register on the www.3322.org website. Password: the password you register on the www.3322.org website. Host Name: the DDNS address you register on the www.3322.org website. If there is no DDNS option on you router to set, you can through here to set the DDNS address and used it in the WAN.
  • Page 47 E.g.: the player’s IP is 192.168.0.187, Input http://192.168.0.187:9091 on the address bar of the computer. The default user name is: admin The default password is: admin Input the username and the password to the next step. Tap open to add the torrent files. Then the added task will be downloading automatically.
  • Page 48 Select options-local settings or click the icon on the interface to pop up local setting dialogue box. Host: player’s IP address. Eg: 192.168.0.187, Port: 9091 After settled, tap the save and connect to the next step. 2) Add the BT or PT torrent files. Tap the icon to add the torrent file, after added, it will be download automatically.
  • Page 49 B, Dynamic DNS Settings: Register a DDNS address on the website, e.g.: register on www.oray.cn, Input the host name and the password as the following and click save to save the settings. You can also register it on another website, as register on www.3322.org. It is depend on your router supported.
  • Page 50 Then you will be able to view and manage the downloaded content by logging on your DDNS address as jianrong929.gicp.net. 10.2.3 MLDonkey Through manage-third party download to select the MLDonkey service and open it. When the MLDonkey feature is on, it will prompt that the MLDonkey services and the access address, default user and the default password are also prompt in the interface.
  • Page 51 User Name: admin Password: admin. Then will come into the main menu of MLDonkey download. 1. Transfers View the download task on this interface.
  • Page 52 2. Search You can search for the resources which you need to download on this interface. Enter the key words and click search begin to search. You can search it by name, extension or another ways. All related resources will be displayed on search result interface, select the file and click;...
  • Page 53 the download task will be started. 3. Servers All the servers are displayed on this interface. 4. Statistics...
  • Page 54 Viewing the flow statistics of download and upload on this interface. 5. Options Configure the parameters of MLDonkey on this interface. 6. help+ View the help command on this interface.
  • Page 55 7. DL On this interface you can input the resource links to add resources download. 1. Click the DL option; it will pop up a dialogue box to enter the user name and password. 2. Input the resources links and clicking input to add the task. And you can add multiple tasks to download at the same time.
  • Page 56 The seeds which you added successful will be prompted as added link to shown on the below interface and it will beginning download. Then you can access to the transfers interface to view the download task. You can also through enter a download link to add the download task on dialog box as shown below, then click input to start download the files.

  • Page 57: File Management

    11. File Management All the devices and the contents will be displayed on this interface; you can choose to browse them and use the left and right key to select the storage devices, the information of the device will be displayed on this interface. Press the ctrl key on the remote control to bring up the File Manager toolbar.
  • Page 58 Move the cursor to the file which you want to copy and press left key to select, the file which you select will displayed as tick in front of the file. Use the right key to select or cancel select the file or the folder, you can select the file or folder as one or more at one time.

  • Page 59: Upgrade Firmware

    11.2 Move Files The way of move files is similar to copy file, please refer to 11.1 copy files. Press the ctrl key on the remote controller and select cut to the next step. After executing move files, the file will does not exist in the source device, but displayed in the designation device. 11.3 Delete Files Select the files which you want to delete and press the left key to choose.

  • Page 60: Specifications

    Different Model of player cannot use the same firmware, please upgrading it with serious cautious. Please contact your dealer or choose to visit our website for the latest firmware. 14. FAQ Symptom Solve methods Please check: The plug has been plug into the power outlet. The power switch on the player or stand by key on the remote Can not work control is turned on.
  • Page 61 Supported Internal Hard 3.5” SATA hard drive up to 2TB Drive: Steel Gray and Aluminum Alloy(Brushed Surface) Enclosure Color&Material: Supported File System EXT3, FAT32 and NTFS Formats: eSATA, USB 3.0(compatible with USB 2.0/1.1/1.0), USB 2.0 Host Data Interface: Supported Networking TCP/IP, UPNP, Wi-Fi 802.11n(up to 300Mbps) and P2P Protocol: 110-220V AC input, 12V/2A DC output...

  • Page 62: Copyrights And Trademarks

    Note: The Company has the right to changes the specifications of his products or designs without further notification. 16. Copyrights and Trademarks Copyrights The Company reserves all patent, trademarks, copyright and other intellectual property rights, and the content of User manual can not be reprinted without permission. The software, music or movies owns the copyright are protected by the relevant laws, Users who use this player to copy of such content need to bear the related legal responsibility.
