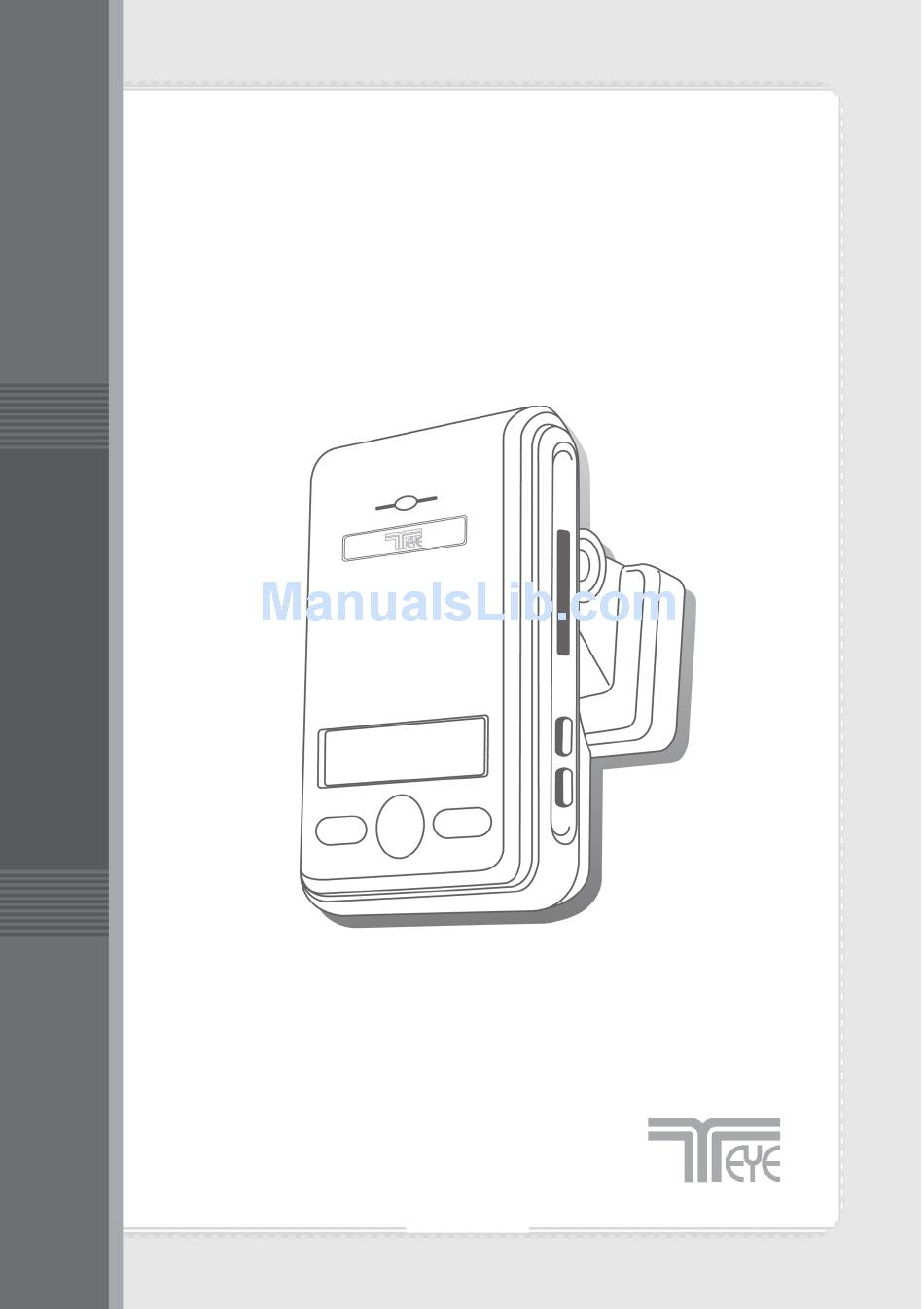

- Page 1 Automated Drive Recorder User Manual ADR3320...
-
Page 2: Main Features
Main Features Unlike other in-car recording systems, the Drive Recorder is used to record both video and audio data in a continuous loop fashion. If the vehicle is involved in an accident such as a collision, impact, and sudden acceleration-related incident, this data is marked and stored. One may thereafter analyze the data to find its root cause by playing back the scenes of interest and where acceleration, vehicle speed, direction, and location are available for review. -
Page 3: Table Of Contents
Contents Before using the product -------------------------------------------------------------------------------------- 4 Preparing for the safety ---------------------------------------------------------------------------------------- 5 Caution for use -------------------------------------------------------------------------------------- 5 Caution prior to installation ------------------------------------------------------------------------- 6 Caution for Archive ---------------------------------------------------------------------------------- 6 Components ---------------------------------------------------------------------------------------------------- 7 Technical Specifications ---------------------------------------------------------------------------------------- 7 Name of the Parts ---------------------------------------------------------------------------------------------- 8 SD Card ------------------------------------------------------------------------------------------------------- 11 Installing the products --------------------------------------------------------------------------------------- 14 Installing the Parking Surveillance --------------------------------------------------------------------------- 15... -
Page 4: Before Using The Product
Before using the product Warranty and responsibilities ◆ Damage due to production malfunction, loss of data, or other damages occurring while using this product shall not be the responsibility of the manufacturer. ◆ Although the Drive Recorder is a device used for recording/storing videos, the device is not guaranteed to record information on every accident in the case of a malfunction. -
Page 5: Preparing For The Safety
Preparing for the safety Caution! Keep your safety or property damage due to accidents and are intended to prevent discomfort. Please Read the details below please use the following. Caution for use User Manual ● To ensure proper operation please read the manual before installation and use. Failure to follow this safety notice may cause a malfunction and may void the warranty. -
Page 6: Caution Prior To Installation
Caution for installation ● Stop the car at a safe parking lot before operating the device. Do not operate the product while driving. It might be a cause of car accident. ● Do not obstruct the view of the product through the front windshield. ※... -
Page 7: Components
Components Components TV-OUT / IR cable Product & Cigarette Lighter Plug Terminal Box Emergency Recording Button Holder SD Card Remote Controller (Player, Manual) *Product package may change for product enhancement without any notification. Technical Specifications Camera Built-in 2 (1.3 Mega pixel CMOS sensor) Compression H.264/AVC Video Resolution VGA (640X480) -
Page 8: Name Of The Parts
Name of the Parts Built-in Speaker SD card Slot Provides audio output for To insert the SD card into chime and any information unit. Display window Event release button/ Displays time and speed System power off button information. Release recorded data by event locks. -
Page 9: Remote Controller
Remote controller Menu button MOVE & MENU Button The button is activate the (Press the Menu button to TV-out . activate the TV-OUT (on-screen setup) function and then choose the function with OK button.) Playback control button Playback the selected file and adjust the frames. - Page 10 T-BOX Fixing holder USB Port To install T-box to the Use the recommended SD vehicle. card reader with the recommended SD card TV-out & Remote controller IR port To connect to the LCD product like TV or Navigation to playback the live view or recorded data.
-
Page 11: Sd Card
SD Card SD Card specifications Maximum Recording Time (Min.) Total Frame (Frame/Sec.) Lowest Lower Normal Higher Highest 30 Frame 48 mins 25 Frame 22.5 Frame 20 Frame 15 Frame 10 Frame 7.5 Frame 5 Frame 13.3 3 Frame 13.3 2 Frame 26.7 13.3 1 Frame... - Page 12 SD Card Formatting Homepage > Support > Download > SD Formatter V2.0 At the bottom of the linked page, click Download to save the file to your computer.
- Page 13 Download to your computer, double-click a file and run it. Install the program on your computer. ○ 1 Select a drive on SD card reader. (SD card will be automatically recognized if SD card is inserted.) ○ 2 Click the Option and choose the Check ON and click the OK button.
-
Page 14: Installing The Products
Installing the product Caution! Make sure to install with the ignition turned off and car keys removed. ● Particularly, make sure to connect the power after installation is complete. Reception will improve when the GPS receiver is fully exposed through the front window. ●... -
Page 15: Installing The Parking Surveillance
Each part of T-BOX POWER SUPPLY VCC (+) POWER SUPPLY (+12V ~ +24V) ACC (Ignition) 2 WHITE ADR3320 signal for operation GND (-) BLACK Connect to the ground 1. Connect the black wire (GND)(-) with car frame or ground wire. - Page 16 T-BOX Installation 1. Check the location of the fuse box in the vehicle. 2. Fix the place to install the T-BOX in the vehicle. 3. Adjust the length of the wire from T-BOX to the fuse box. 4. Remove the A pillar like picture (1) and insert (install) the cable at The gap between sealing and windshield like picture (2)
- Page 17 5. After adjusting the cable, connect the power cable. Red wire is connected to “emergency button” fuse (the fuse with power after the ignition is off) (2) black wire should be connected to the ground of vehicle. white wire which is ignition wire is connected to cigarette lighter power cable after the ignition is of and check the status of cigarette lighter power.
-
Page 18: System Lcd Display
System LCD Display Display Status or Measure Displays Time & Speed The sign is ON, while Emergency recording (E button, G-Sensor detected) The sign is ON, while it is recording. The sign is ON, while front camera is recording. The sign is ON, while extra (rear) camera is recording. The sign is ON, while TV-out in process. -
Page 19: Operation Sequence
Operation sequence Preparation for video recording After inserting SD card into the product and then turn on, [----] will be shown on LCD display. If the product is within normal condition, it chimes once. Video will be recorded with [HELLO], REC, V1, V2 on LCD display. After inserting SD card into the product and then turn on, [----] will be shown on LCD display. -
Page 20: Running Player (Viewer Program)
Running Player (viewer program) PC system requirements Component Requirements Pentium4 / 1GHz processor or higher Menory 512MB of RAM or higher Orperating System Microsoft Windows XP Home Edition or higher Graphics DirectX 8.1b or higher HDD space 200MB or higher ※... -
Page 21: Player Screen Review
Player screen review To playback video, select the “Open a File” button, explore the SD card or other location where the recorded (or saved) data is located, (file called DATA is on the SD card), then double click the selected file from the list in order to play. Name Description Forward Camera view Displays the video images recorded by the forward facing camera. -
Page 22: Control Menu
Control Menu Volume control Playback speed control Name Description Volume Control Adjusts the volume level while playing back the recorded data. Playback speed Adjusts the video playback speed. control Playback Interface Controls Button Function Button Function Move to the previous file Move to the next file Playback the previous frame Open a file... -
Page 23: Playback
Playback 1. After clicking the folder icon ( ) on the lower right corner of the viewer, click “Change Directory” to select the location for the recorded data. Typically the first time you do this all the files are located on the data folder of SD card. If saved elsewhere, use this utility to explore your computer to locate the file for playback. -
Page 24: Pop-Up Display Window
Pop-up Display window With double-click the display window, the recorded images are played back at the original size. Double clicking the screen returns the view to normal, original size. Use the PC’s mouse to move the screens and adjust them within desktop window. -
Page 25: Interfacing With A Gis/City Map
Interfacing with a GIS/City map Drive Recorder simultaneously records the GPS data while driving so you can check the driver’s route on the map. Click the GIS/MAP icon ( ) on the lower right corner. The map window appears for the user to see the vehicle location and travel onto a city map. ※... -
Page 26: Converting Into Avi File Format
Converting into AVI file format Convert a portion of the recorded data into an AVI file format to playback on “Window media player” or to share the recorded data with someone else or email a file. Click the AVI conversion button ( ) at the start of video clip position to convert the images into the AVI file format. -
Page 27: System Configuration
System configuration Click on the System Setup configuration icon ( ) located at the lower right corner of the player. The following window will then appear. Name Description Video Quality Sets the video recording quality. ( 5 Levels) Video Frame rate Sets the video frame rate (1, 2, 3, 5, 7.5, 10, 15 frame/sec) Sets the video format for TV-OUT &... -
Page 28: Parking Surveillance Setting
Parking surveillance Setting Name Description Sets the parking surveillance time (none ~ 24h) Timer for parking Video Quality Sets the video recording quality. (5 Levels) Sets the video frame rate during the parking surveillance Frame Rate (1, 2, 3, 5, 7.5, 10, 15 frame(s)/sec) Audio Recording Enables or Disables the audio record function. -
Page 29: Analyzing G-Sensor Data
Analyzing G-SENSOR data The G-sensor (Gravity Sensor) furnishes data for X, Y and Z axis and stores it along with the other recorded data on the SD card. When using the playback software, this information is represented in a graphic format. The resulting graph may be used to analysis the driving condition and driver’s habits. -
Page 30: Tv-Out Viewer
TV-OUT Viewer Name Description Live Video Displays live video streaming Playback Video Playback video and audio data recorded System Setup Configuration settings Exit Closing TV-out... - Page 31 Live Video 1. Displays live video streaming. 2. With the extra camera (the 2 CH), PIP (picture in picture) function will be activated by [MODE ] button. 3. Change the live video channel to press the [OK ]button Playback recorded video data 1.
-
Page 32: Software Update
Software Update 1. Remove the SD card from the device and insert to the SD card reader. 2. Connect the SD card reader to PC through the USB port. 3. Download the latest software at the website and copy the update files to the update folder of SD card. - Page 33 AUTOMATED DRIVE RECORDER Ver 1. 0...
