Summary of Contents for T-Eye SDR1500

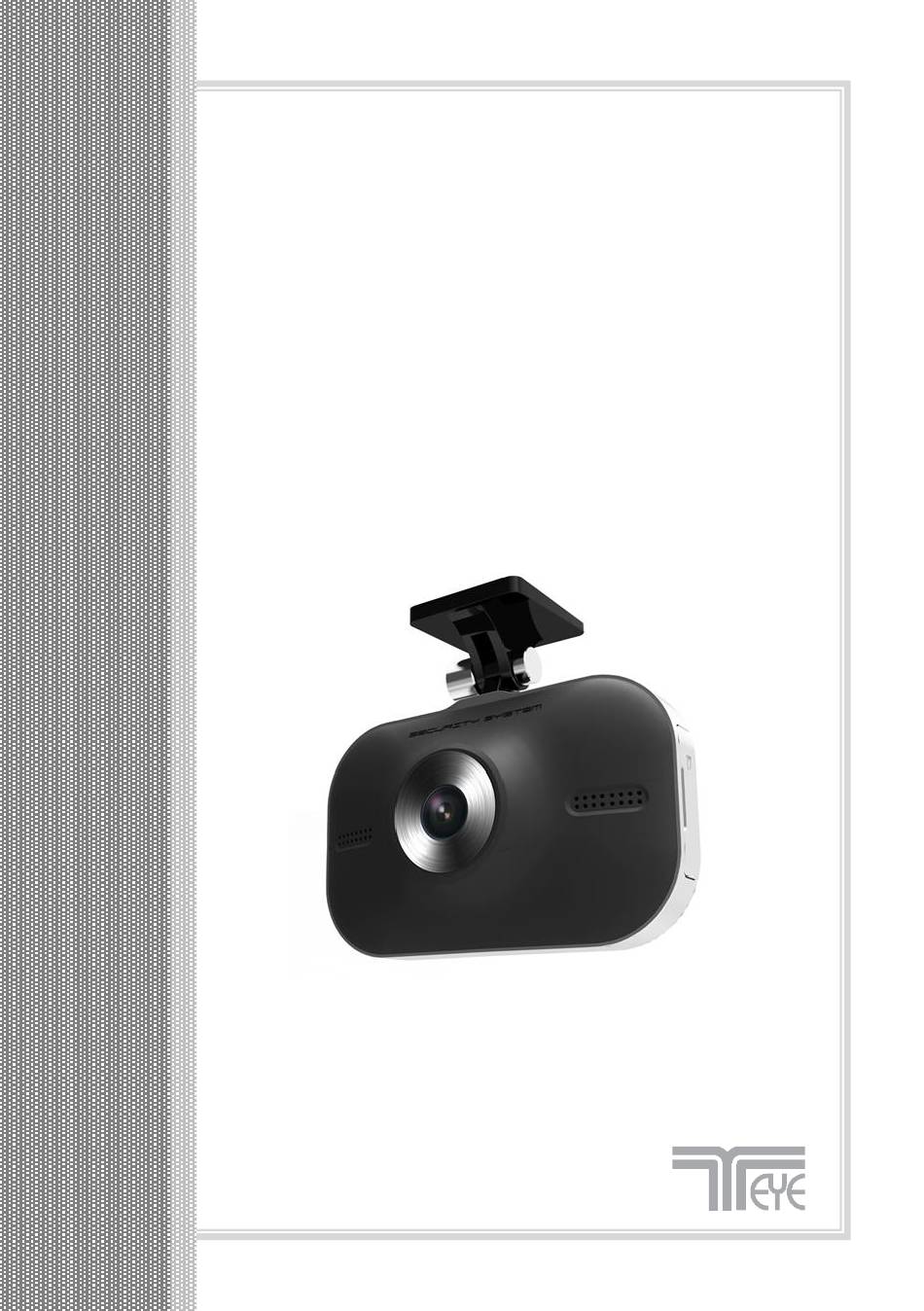

- Page 1 Automated Drive Recorder User Manual SDR1500...
-
Page 2: Main Features
Main Features Unlike other in-car recording systems, the Drive Recorder is used to record both video data in a continuous loop fashion. If the vehicle is involved in an accident such as a collision, impact, and sudden acceleration-related incident, this data is marked and stored. One may thereafter analyze the data to find its root cause by playing back the scenes of interest and where acceleration, vehicle speed, direction, and location are available for review. -
Page 3: Table Of Contents
Contents Before using the product ------------------------------------------------------- 4 Preparing for the safety --------------------------------------------------------- 5 Components --------------------------------------------------------------------- 7 Technical Specifications --------------------------------------------------------- 7 Name of the Parts --------------------------------------------------------------- 8 MicroSD card ------------------------------------------------------- 10 Installing the products --------------------------------------------------------- 13 Installing the product ----------------------------------------------- 13 Connecting the power cord----------------------------------------- 13 LED Display -------------------------------------------------------------------- 14 Operation Sequence ------------------------------------------------------------15... -
Page 4: Before Using The Product
Before using the product Warranty and responsibilities ◆ Damage due to production malfunction, loss of data, or other damages occurring while using this product shall not be the responsibility of the manufacturer. ◆ Although the Drive Recorder is a device used for recording/storing videos, the device is not guaranteed to record information on every accident in the case of a malfunction. -
Page 5: Preparing For The Safety
Preparing for the safety Keep your safety or property damage due to accidents and are intended to prevent discomfort. Please Read the details below before using the product. Caution for use User Manual ● To ensure proper operation please read the manual before installation and use. Failure to follow this safety notice may cause a malfunction and may void the warranty. -
Page 6: Caution For Installation
Caution for installation Stop the car at a safe parking lot before operating the device. ● Do not operate the product while driving. It might be a cause of car accident. Do not obstruct the view of the product through the front windshield. ●... -
Page 7: Components
Components Components Product Bracket Cigarette Lighter Plug Micro-SD Card *Product package may change for product enhancement without any notification. Technical Specifications Item Specification 1Camera, VGA CMOS Camera VGA(640 x 480), 15fps / 30fps Video 667MHz, OS: Linnux Built-in SMART GPS 3D acceleration sensor built-in G-Sensor Micro-SD/ Micro-SDHC [4GB~16GB]... -
Page 8: Name Of The Parts
Name of the Parts Release Button LED Indication Push it for more than 3 LED 1 (Red/ERR) seconds, all event files LED 2 (Yellow/STATUS) will become the normal LED 3 (Red/DTC) files to be overwritten. LED 4 (Green/COMM) Panic (event) Button Micro SD card Slot REAR VIEW Mounting Bracket... -
Page 9: Functions Of Each Part
Functions of each part Camera The camera must be horizontal and vertical. When the lens of the camera is obstructed or is dirty, clear images may not be captured. Periodic cleaning is required. To clean the lens, use a soft camera lens cloth to prevent damage. -
Page 10: Microsd Card
Micro SD card Micro SD Card specifications ※ Denotes an average time. (Motion affects recording duration. Times reflected see recordings made during the daytime in typical city downtown areas.) Maximum Average Recording Time (hours) @ 30fps Micro-SD Capacity Recording Time (hours @30fps) Normal High... - Page 11 Micro SD Card Formatting Downloads> Micro SD only by clicking on Formatter V2.0 Go to the site. At the bottom of the linked page, click Download to save the file to your computer.
- Page 12 Download to your computer, double-click a file and run it. Install the program on your computer. ○ 1 Select a drive on MicroSD card reader. (MicroSD card will be automatically recognized if Micro D card is inserted.) ○ 2 Click the Option and choose the Check ON and click the OK button.
-
Page 13: Installing The Products
Installing the product Caution! Make sure to install with the ignition turned off and car keys removed. ● Particularly, make sure to connect the power after installation is complete. Reception will improve when the GPS receiver is fully exposed through the front window. ●... -
Page 14: Led Display
BLINKING 1 sec Event Manual/auto ON or OFF (500ms ON/500ms OFF) Recording BLINKING 1 sec Shut down Power off (500ms ON/500ms OFF) Important Notice Please ignore LED DTC and LED COMM. Both LEDs are not indicating any functions or Problems on SDR1500. -
Page 15: Operation Sequence
Operation sequence Preparation for video recording Check to see whether the Micro SD has been inserted in to the device and connect the power cable. While the device prepares for acquiring GPS signal, STATUS LED Lamp is blinking at 1sec intervals. After GPS reception complete and STAUTS LED lamps is ON. -
Page 16: Running Player (Viewer Program)
Running Player program (Viewer program) PC system requirements Component Requirements Pentium4 / 1GHz processor or higher Menory 512MB of RAM or higher Orperating System Microsoft Windows XP Home Edition or higher Graphics DirectX 8.1b or higher HDD space 200MB or higher ※... -
Page 17: Player Screen Review
Player screen review To playback video, select the “Open a File” button, explore the Micro SD card or other location where the recorded (or saved) data is located, (file called DATA is on the Micro SD card), then double click the selected file from the list in order to play. -
Page 18: Control Menu
Control Menu Volume control Playback speed control Name Description Adjusts the volume level while playing back the recorded data. Volume Control Playback speed Adjusts the video playback speed. control Playback Interface Controls Button Function Button Function Move to the previous file Open a file Playback the previous frame Convert the fi le into an AVI format... -
Page 19: Playback
Playback After clicking the folder icon ( ) on the lower right corner of the viewer, click “Change Folder” to select the location for the recorded data. Typically the first time you do this all the files are located on the data folder of MicroSD card. If saved elsewhere, use this utility to explore your computer to locate the file for playback. -
Page 20: System Configuration
System configuration Click on the System Setup configuration icon ( ) located at the lower right corner of the player. The following window will then appear. Name Description G-Sensor Sensitivity Sets the sensitivity of G-Sensor. (OFF/LOW/NORMAL/HIGH) Sets the quality of Video (LOW/NORMAL/HIGH) Video Quality Unit for Speed Set the unit of the car speed. -
Page 21: Analyzing G-Sensor Data
Analyzing G-SENSOR data The G-sensor (Gravity Sensor) furnishes data for X, Y and Z axis and stores it along with the other recorded data on the MicroSD card. When using the playback software, this information is represented in a graphic format. The resulting graph may be used to analysis the driving condition and driver’s habits. -
Page 22: Software Update
Software Update Copy Remove the MicroSD card from the device and insert to the MicroSD card reader. Connect the MicroSD card reader to PC through the USB port. Download the latest software at the website and copy the update files to the update folder of MicroSD card. - Page 23 JOUTEC Co., Ltd 4FL, 25-13 SEONGNAMDAERO 997 BEON GIL JUNGWON-GU, SEONGNAM CITY, GYEONGGI-DO REPUBLIC OF KOREA TEL: +82 31 607 5900 FAX: +82 31 722 5907 Http://www.joutec.com E-mail: info@joutec.com...
