Summary of Contents for Palsonic TFTV3925FL
-
Page 2: Table Of Contents
Table Of Contents Important Safety Instructions............................2 View of Unit..................................4 Front Panel ......................................... 4 Rear Panel........................................... 5 Remote Control................................6 Remote Control Drawing ....................................6 Preparation of Remote Control................................... 8 Using of Remote control ....................................8 System Connections..............................9 Connecting to the Power Supply................................9 Connecting a USB Device ..................................... -
Page 3: Important Safety Instructions
Important Safety Instructions Thank you for choosing our product. Please read this manual carefully and observe all safety and operating instructions. Store the manual in a safe place for later reference. This symbol indicates that dangerous voltage instituting a risk of electric shock is present within this unit. - Page 4 Important Safety Instructions NOTES: Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use near water. Clean only with dry cloth. Do not block any ventilation openings. Maintain well ventilated conditions around the product. Do not put product on a bed, sofa or anything that blocks ventilation. Install according to the manufacturer’s instructions.
-
Page 5: View Of Unit

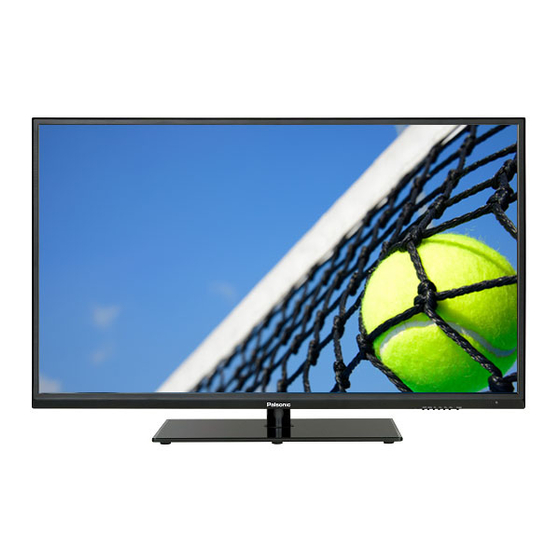

View of Unit Front Panel 1. Color TFT screen Presents high resolution picture. 2. Remote Sensor Remote sensor window for the remote control. 3. Power Indicator In active mode, it is green; in standby mode, it turns red. POWER button Press to switch on or off the device (enter or exit the standby mode). -
Page 6: Rear Panel
View of Unit Rear Panel 1. Headphone Jack 6. COMPONENT IN Jacks (Y/P When headphone is inserted, the Connecting for the Y/P input in YPBPR loudspeaker is switched off. mode. share the same audio jack with AV. 2. COAXIAL Jack Output the coaxial digital audio signal. -
Page 7: Remote Control
Remote Control Remote Control Drawing Standard, Mild, User or Dynamic. 4. CH.LIST button Press to display the channel list. 5. SUBTITLE button In DTV/DVD mode, press to select alternate subtitle languages during view/playback of a DTV program. 6. TV.RADIO button Press to select DTV program playback or Radio program playback in DTV mode. - Page 8 Remote Control In teletext mode, it is the teletext color 27. DISPLAY button button. Press to display the reference information Other defined functions on the OSD menu. of the current mode. 16. TV/TXT 28. REC LIST button Press to change the mode between TV and Press to display the Record List.
-
Page 9: Preparation Of Remote Control
Remote Control Preparation of Remote Control Using of Remote control Softly push the back cover to open the Point the remote control unit from no more battery compartment. than about 7 meters from the remote control sensor and within about 60 degrees of the front Insert two batteries (1.5V, size AAA), please of the unit. -
Page 10: System Connections
System Connections Do not connect the power cord until all other connections have been made. Ensure that you observe the color code when connecting audio and video cables. Connecting to the Power Supply Connect the plug of the power cord on the rear panel of the unit to the AC100~240V wall outlet. Connecting a USB Device This unit is designed with a USB port so that you can connect your USB device for media play, record or software... -
Page 11: Connecting An External Av Signal Source (Yp )
System Connections HDMI provides both audio and video signals and typically provides superior image quality to AV and YPBPR. Connecting an External AV Signal Source (YP Use the AV cables to connect the external AV signal source to the MINI AV input jacks on the rear panel of the unit. -
Page 12: Connecting To Coaxial Digital Output
System Connections Connecting to Coaxial Digital Output This unit is designed with a coaxial digital audio jack, can be connected to the digital amplifier, see the figure below. This feature is available only for amplifiers equipped with coaxial digital audio input connectors. -
Page 13: Connecting To Earphones
System Connections Connecting to Earphones Connect earphones (headphones) to the earphone jack on the rear panel of the unit for listening to the audio output in seclusion. The internal speakers output will turn off automatically after the earphones have been connected. Excessively loud volume could damage your hearing. - Page 14 System Connections If you want to hang the machine on the wall, you must envelop the machine base firstly. Use the screwdriver to remove base pillar stiffener. Keep flat the machine with the screen toward the table softly and carefully and then put the base panel to the port of the machine base.
-
Page 15: Basic Operation
Basic Operation Turning the TV On and Off Connect the power adaptor to wall AC Outlet. A front mounted indicator light will be illuminated red indicating the TV has power. Press the POWER button on the remote control or the TV set. The TV’s indicator light will be illuminated blue indicating the TV is turned ON. -
Page 16: Tv Operation And System Setup
TV Operation and System Setup Press the MENU button to display the setup menu. It includes different categories, such as Picture, Sound, Channel, Feature and Setup. You can change the category using the ▲▼ buttons and press OK button or the ►button to enter it. -
Page 17: Sound Setting
TV Operation and System Setup Noise Reduction Press the ▲▼ buttons to select Noise Reduction, then press OK or ► to enter it. With the ▲▼ buttons you can select Off, Low, Middle or High. Sound Setting The sound settings include the options for Sound Mode, Bass, Treble, Balance, Surround, AVL and SPDIF. -
Page 18: Channel
TV Operation and System Setup Channel CHANNEL includes Channel Management, Favorite Management, Country, Auto Search, DTV Manual Search and ATV Manual Search. NOTE: The Channel category is only active in DTV and ATV mode. When in DTV mode, the ATV Manual Search is not available;... - Page 19 TV Operation and System Setup Favorite Management In the Favorite Manager, there are four groups of your favorite programs: Fav1, Fav2, Fav3 and Fav4. With the ▲▼ buttons select a program and press the different coloured button to set it in different group. Press red coloured button to set it in group Fav1.
-
Page 20: Feature
TV Operation and System Setup ATV Manual Tuning Press the ▲▼ buttons to select ATV Manual Search and press the OK or ► button to enter the submenu. The screen will display as shown on the right: Press the ▲▼ buttons to select desired item, press the OK or ►... - Page 21 TV Operation and System Setup Language Press the ▲▼ buttons to select language and press the OK or ► button to enter the submenu. In the submenu, you can select your desired OSD Language, Preferred Subtitle, Preferred Audio, DTV Teletext Language and ATV Teletext Language. Clock Press the ▲▼...
- Page 22 TV Operation and System Setup Record File Format Select between TS and PS. Partition Select Select a disk to store the recorded file. ▲▼ Press the button to select Partition Select and press the OK button to prompt a sub-menu. ▲▼...
-
Page 23: Setup
TV Operation and System Setup Setup The Setup category includes the options for OSD Timer, PC Setup, Blue Screen, Reset TV Setting and Software Upgrade. OSD Timer This option is for setting the OSD time out. Press the ▲▼ buttons to select OSD Timer and press he OK or ► button to enter the OSD timer list. Press the ▲... -
Page 24: Pvr Function
PVR Function In DTV Mode Only PVR function allows the unit to record live DTV program and make it available for reviewing at any time. NOTES: When PVR function is in progress, please don’t unplug the power and the external USB device at will. -
Page 25: Playing Recorded Program
PVR Function Playing recorded program You can play the selected program in the Recorded List. Press the REC.LIST button on the remote control to enter the Record List, as shown right: ▲▼ Press the button to se lect desired record file and press OK to play it. -
Page 26: Epg Function
EPG Function In DTV Mode Only The electronic program guide (EPG) can be activated by pressing the EPG button as well and the EPG window appears on the screen. Press the red coloured button on the remote to change the EPG mode between Daily and Weekly. Press the yellow coloured button on the remote to return to the previous day. -
Page 27: Teletext Function
TELETEXT Function Teletext is a free service broadcast by most TV stations which provides up-to-the-minute information on news, weather, television programs, stock prices and many other topics. The teletext decoder of this TV can support the SIMPLE and FASTEXT systems. SIMPLE (standard teletext) consists of a number of pages which are selected by directly entering the corresponding page number. -
Page 28: Nicam Function
NICAM Function The unit supports NICAM function. Under NICAM TV broadcast: When receiving stereo audio signals, press the NICAM/A2 button on the remote control repeatedly to select the sound tracks between NICAM STEREO and Mono, the screen will show the corresponding display as shown below: When receiving bilingual audio signals, press the NICAM/A2 button on the remote control repeatedly to shift the sound tracks between NICAM DUAL I, NICAM DUAL II, NICAM DUAL I+II and Mono and the screen will show the corresponding display as shown below:... -
Page 29: Media Playback
Media Playback This unit is designed with a USB ports so that you can connect your USB device and playback the files in the USB device. NOTES: The recognition speed of a USB storage device may depend on each device. Please do not turn off the TV or unplug the USB device when the connected USB storage device is working. -
Page 30: Function Buttons
Media Playback 3. In the Music submenu as shown right, press the▲▼ direction button to select your storage device and press the OK button to open it. The songs list will appears. ▲▼ 4. In the songs list, you can use the buttons to select one of them and press the red coloured button on the remote to delete it;... -
Page 31: Troubleshooting
Troubleshooting SYMPTOM CHECK ITEM Make sure the system connection is correct. There is no sound. Make sure the speakers are not muted. Set the correct sound mode. Make sure the unit is turned on and the connections are LED has no display. correct. -
Page 32: Specifications
Specifications Model TFTV3925FL Screen Size 39-inch LED Native Resolution 1920× 1080Pixels Brightness 280 cd/ m Contrast Ratio 5000 :1 Response time (ms) 8 ms Teletext 1000 pages Speaker Output 6W+6 W Power Consumption < 80W Standby Power < 1 W Dimension (with stand) 890 mm ×... - Page 33 Palsonic Customer Service Telephone (Australia) 1300 657 888 Palsonic C ABN 34 000 474 108 1 Joynton Avenue, Waterloo NSW 2017 Australia Telephone (02) 9313 7111 Facsimile (02) 9697 0655 www.palsonic.com.au...
