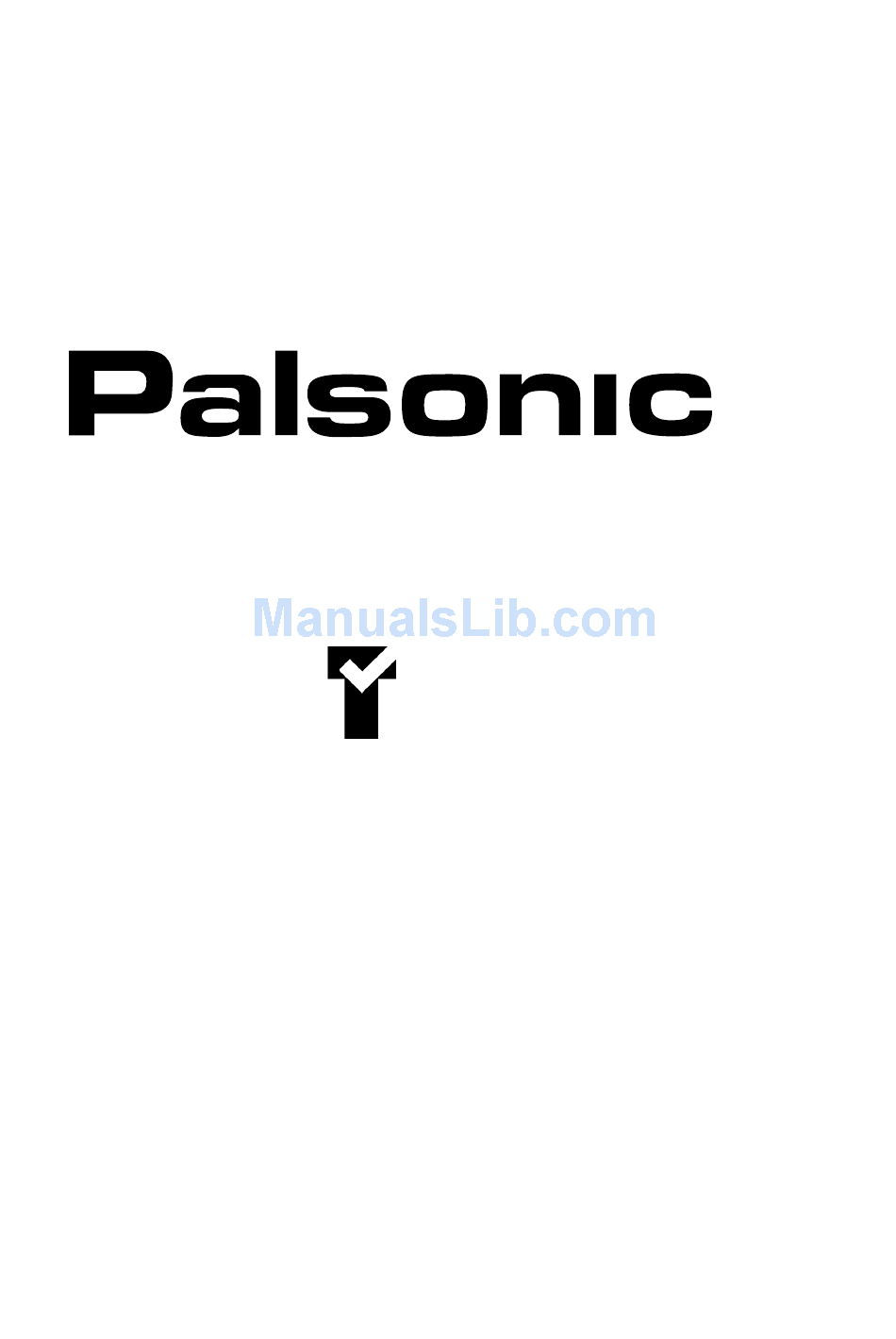

OWNER'S MANUAL
38CM CORDLESS REMOTE LCD TV/MONITOR
MODEL: TFTV-380
Type Tested
Electrical
Safety
AS/NZS 3250 Lic 3250
Standards Australia
APP No: N17340
PALSONIC CORPORATION PTY LTD
1 JOYNTON AVENUE
WATERLOO NSW 2017 AUSTRALIA
TEL: (02) 9313 7111
FAX: (02) 9313 7555
www.palsonic.com.au
PALSONIC CUSTOMER SERVICE
TELEPHONE
AUSTRALIA: 1300 657 888

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TFTV-380 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Palsonic TFTV-380

Summary of Contents for Palsonic TFTV-380

  • Page 1 38CM CORDLESS REMOTE LCD TV/MONITOR MODEL: TFTV-380 Type Tested Electrical Safety AS/NZS 3250 Lic 3250 Standards Australia APP No: N17340 PALSONIC CORPORATION PTY LTD 1 JOYNTON AVENUE WATERLOO NSW 2017 AUSTRALIA TEL: (02) 9313 7111 FAX: (02) 9313 7555 www.palsonic.com.au PALSONIC CUSTOMER SERVICE TELEPHONE...

  • Page 2: Table Of Contents

    Congratulations on your purchase of this Palsonic LCD TV/MONITOR. We recommend that your thoroughly read this manual before use to fully enjoy the many functions and excellent effects of this LCD TV/MONITOR. Retain this manual in an easily accessible location for future reference.

  • Page 3: Important Safety Cautions

    Important Safety Cautions When any unusual situation occurs, turn off the power supply at once and remove the plug from the wall outlet. Contact a qualified service department in your local area. Water and moisture - Do not use this product near water - for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.
  • Page 4 This TV set can be operated on a power of ~240V 50Hz or 12V DC power. You must not use a power supply of any other type. When relocating the product placed on a trolley, it must be moved with the utmost care.

  • Page 5: Identification Of Controls

    Identification of controls Front VOL - CH - MENU SOURCE Channel up Volume down Volume up To select input signal enter into MENU Channel down...

  • Page 6: Back

    Back Power switch DC power input VGA input S-video input PC audio line in Earphone jack AV input (VIDEO, AUDIO L/MONO, R) Antenna input...

  • Page 7: Remote Control

    Identification of controls Remote Control Power on/Standby Direct channel select Signal input select To enter into MENU Quickly adjust picture Volume down Sleep timer (continued) Sound Mute Auto correct picture in VGA input mode Clock/Timer setting Previous channel Channel up On-screen display Volume up Picture mode select...

  • Page 8: Battery Installation

    Battery installation Please install the batteries before using the remote control unit. Open the battery cover. Install two "AA" batteries matching the +/- polarities of the battery to the +/- marks. Replace the battery cover. Notes: When the remote control will not be used for a long period of time or when the batteries are worn out, remove the batteries.

  • Page 9: Installation

    Installation Antenna installation Before using this equipment, please connect the AC power adaptor correctly. Optimum reception of colour requires a good signal and will generally mean that an outdoor aerial must be used. The exact type and position of the aerial will depend upon your particular area. Notes: Turn off the power firstly when you connect a outdoor antenna to the Antenna input terminal.

  • Page 10: Connecting Video/Audio Equipment

    Connecting video/audio equipment Y Yellow (video) White (audio L/MONO) Red (audio R) To S-video output Video equipment with S-video terminal To ANT output To video To audio output outputs To ANT output Video equipment without S-video terminal...

  • Page 11: Vga Interface Connection

    Installation (continued) VGA interface connection To VGA input To line in Equipment with VGA interface To line out To VGA output...

  • Page 12: Elevation Adjustment

    Elevation adjustment You can adjust the angle of the LCD TV/Monitor as follows. The elevation can be adjusted from -5 to 90...

  • Page 13: Menu Introduction

    Menu Introduction VOL - CH - MENU The selected item displays in white.. Press MENU button once SOURCE Press MENU button twice Press MENU button three times Press MENU button in PC mode Join to page 13 Press MENU button Press MENU button Note: There is only one MENU page in PC mode.
  • Page 14 Join to page 12 In MENU operations, the CH+/- buttons are used to select item upwards or downwards; the VOL+/- buttons are used to adjust or confirm selected item. To adjust the picture's brightness. To adjust the picture's contrast. To adjust the picture's colour saturation. To adjust the picture's sharpness.

  • Page 15: Turning On/Off

    Turning On/Off VOL - CH - MENU VOL + CH + Turning On 1. Insert the outlet plug of the AC power adaptor into the DC power input of the unit. 2. Press the power switch and the red indicator lights up, the TV/MONITOR is in STANDBY mode.

  • Page 16: Channel Preset

    VOL - CH - MENU VOL + CH + To enter into PRESET menu 1. Press MENU button repeatedly to display PRESET menu. 2. Press CH+/CH- button to select item. 3. Press VOL+/VOL- button to confirm or adjust selected item. Auto Search Please enter into PRESET menu and select Auto Search item.

  • Page 17: Channel Skipping

    Channel Preset MENU VOL - CH - CH + VOL + (continued) Channel Skipping You can skip unnecessary channels by using Skip function when you browse program by CH+/- buttons. Use 0~9 digit buttons or CH+/- buttons to select a position number firstly, then enter into PRESET menu and select Skip setting item.

  • Page 18: Channel Select

    MENU VOL - VOL + CH - CH + Use 0~9 digit buttons and -/-- button Use 0~9 digit buttons to select one-digit channel number. Press -/-- button to display "-". To select two-digit channel: SOURCE Press -/-- button repeatedly to display "--".

  • Page 19: Picture Adjustment

    Picture Adjustment MENU VOL - CH - CH + VOL + Adjusting picture 1. Press MENU button to display Picture menu. 2. Press CH+/- button to select item. 3. Press VOL+/- button to adjust the selected item. Item Bright Contrast Saturation SOURCE Sharpness...

  • Page 20: System Setting

    VOL - CH - MENU VOL + CH + Setting Blue Background Press MENU button twice to display SYSTEM menu and select Blue Background item by CH+/- button. Press VOL+ or VOL- button to select Enable or Disable. If is you set the Blue Background item to Enable, when there no signal or the signal is too poor, then a blue background will appear.

  • Page 21: Other Functions

    Other Functions VOL - CH - MENU VOL + CH + Use MUTE button Press button to mute the sound. If you want to cancel sound muting, you can press this button again or press VOL+/- buttons. Use CLOCK button SOURCE Press the CLOCK button, the CLOCK menu appears.

  • Page 22: Adjustment In Pc Mode

    MENU VOL - CH - CH + VOL + Adjustments in PC mode To enter into PC mode Repeatedly press AV button on the remote control or SOURCE button on the control panel until the screen display PC, which indicates that the set is in PC mode. PC signal format Please connect VGA input and be sure that there is VGA input signal.

  • Page 23: Use Auto Correct Button

    Adjustments in PC mode VOL - CH - MENU VOL + CH + (continued) When there is correct input signal, press MENU button and PC menu appears. Use CH+/- to select item and VOL+/- to adjust Adjusting bright and contrast You can adjust bright and contrast in PC mode and this adjustment does not effect the bright and contrast in TV and AV mode.

  • Page 24: Trouble Shooting

    Before calling service personnel, please check the following chart for a possible cause to the trouble you are experiencing. Symptoms Power is not turned on. Poor colour, poor tint. Spots appear on the screen. Stripes appear on the screen. Double images or "ghosts". Snowy picture.

  • Page 25: Specifications

    Specifications Power Supply for AC adaptor: Power Supply of this TV set: Power Consumption: AC 35W Dimensions (mm): 585 (W) x 515 (H) x 257 (D) Gross Weight (kg): SCREEN (cm): TV system & channel range. SYSTEM PAL-D/K 1-12 PAL-B/G 2-12 PAL-I 2-12...
  • Page 26 PALSONIC CORPORATION PTY LTD 1 JOYNTON AVENUE WATERLOO NSW 2017 AUSTRALIA TEL: (02) 9313 7111 FAX: (02) 9313 7555 www.palsonic.com.au PALSONIC CUSTOMER SERVICE TELEPHONE AUSTRALIA: 1300 657 888 604-L1513-01...
