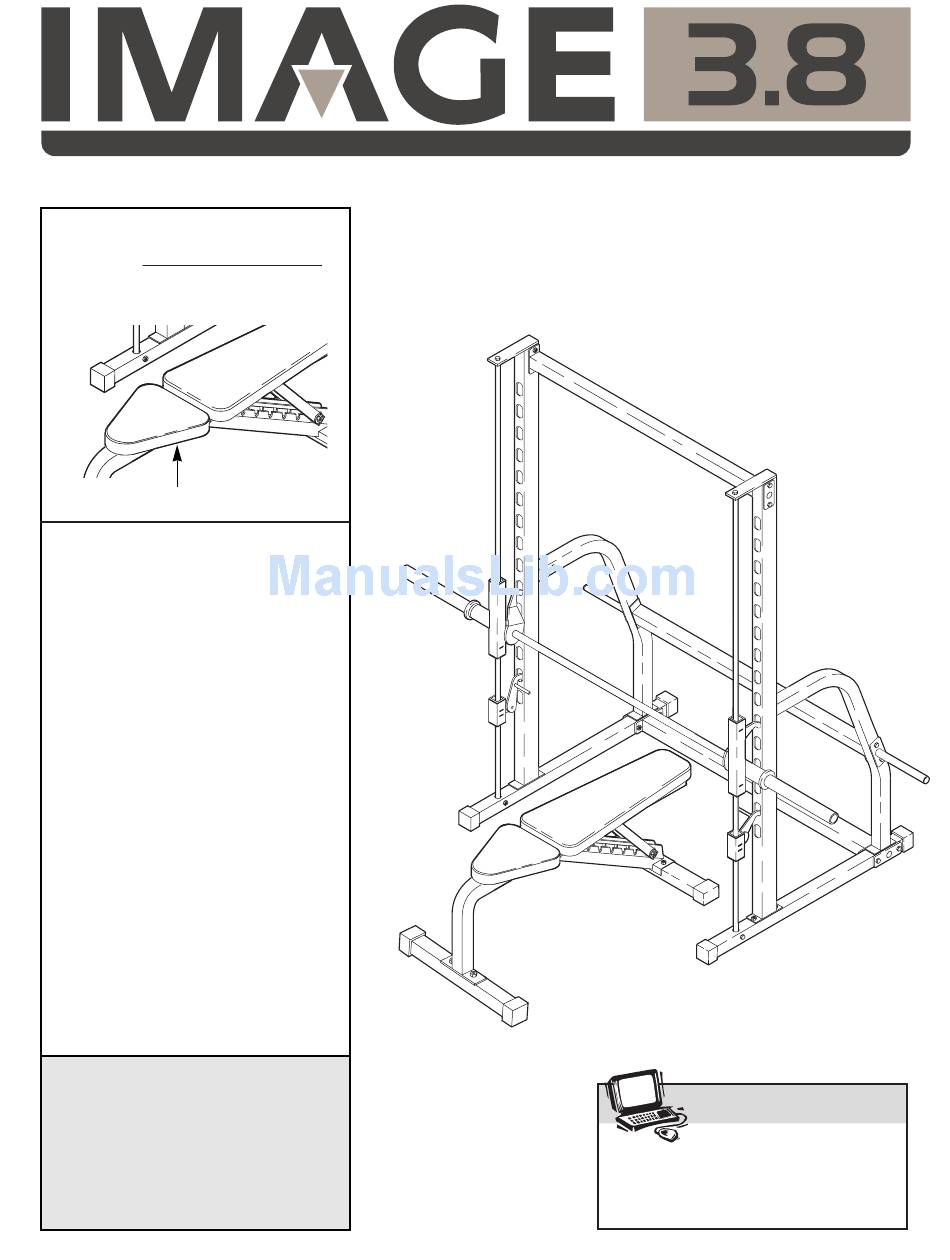

Model No. IMBE41990
Serial No.
Write the serial number in the
space above for reference.
Serial Number Decal (under seat)
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or find that there
are missing parts, we will guar-
antee you complete satisfaction
through direct assistance from
our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained techni-
cians on our customer hot line
will provide immediate assis-
tance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.ÐFri., 6 a.m.Ð6 p.m. MST
CAUTION
Read all precautions and instruc-
tions in this manual before
using this equipment. Save this
manual for future reference.
¨
USERÕS MANUAL
Visit our website at
www.imagefitness.com
new products, prizes,
fitness tips, and much more!
Advertisement
Related Manuals for Image Fitness IMBE41990
Summary of Contents for Image Fitness IMBE41990
- Page 1 Model No. IMBE41990 Serial No. Write the serial number in the space above for reference. Serial Number Decal (under seat) QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or find that there...
-
Page 2: Table Of Contents
Table of Contents Important Precautions ..............3 Before You Begin . -
Page 3: Important Precautions
Important Precautions WARNING: To reduce the risk of serious injury, read the following important precautions before using the weight bench. 1. Read all instructions in this manual before using the weight bench. Use the weight bench only as described in this manual. 2. -
Page 4: Before You Begin
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please note the product model number and serial number before calling. The model number is IMBE41990. The serial number can be found on a decal attached to the IMAGE ¨... -
Page 5: Part Identification Chart
Part Identification ChartÑModel No. IMBE41990 M6 x 38mm Bolt (60)Ñ1 M6 x 16mm Screw (3)Ñ2 M6 Washer (30)Ñ5 M8 Nylon Locknut (54)Ñ13 M8 Washer (52)Ñ10 M8 x 70mm Bolt (41)Ñ4 M8 x 65mm Carriage Bolt (59)Ñ4 M8 x 60mm Bolt (39)Ñ2 M8 x 30mm Bolt (38)Ñ2... -
Page 6: Assembly
Assembly Before beginning assembly, carefully read the following information and instructions: Make Things Easier for Yourself! This manual is designed to ensure that the weight bench can be assembled successfully by anyone. By setting aside plenty of time, and by deciding to make the task enjoyable, assembly will go smoothly. - Page 7 3. Slide a Brace (2) onto the bracket on one of the Uprights (1). Attach the Brace to the Upright with two M10 x 65mm Bolts (42), four M10 Washers (6), and two M10 Nylon Locknuts (11). Do not tighten the Nylon Locknuts yet.
- Page 8 5. Press a 25mm Round Inner Cap (51) into the end of a Weight Storage Tube (21). While a second person holds a Crossbar (8) in the position shown, insert two M10 x 70mm Bolts (46) through the bracket on the Weight Storage Tube (21), the left Brace (2), and the bracket on the Crossbar (8).
- Page 9 8. Press a 25mm Bushing (48) into each end of the Locking Bar (34). Insert the Barbell (35) through the Locking Bar (34) until the Barbell is centered in the Locking Bar. 9. Identify the Left Weight Glider (32) by looking at the position of the round tube.
- Page 10 12. Place the Right Safety Spotter (23) on the right Base (7) and center it over the indicated hole. Note: The handle must point toward the center of the bench. Have a second person hold the Locking Bar (34) so that the Right Weight Glider (31) rests on top of the Right Safety Spotter (23).
- Page 11 15. Press a 50mm Square Outer Cap (17) onto each end of the Small Stabilizer (25). Attach the Small Stabilizer (25) to the Bench Frame (5) with two M10 x 65mm Carriage Bolts (40) and two M10 Nylon Locknuts (11). Note: There is an inden- tation around the holes on one side of the Small Stabilizer.
- Page 12 19. Lubricate an M10 x 180mm Bolt (22). Attach the Backrest Tubes (27) to the indicated tube on the Bench Frame (5) with the Bolt, two M10 Washers (6), and an M10 Nylon Locknut (11). Note: Do not over- tighten the Nylon Locknut; the Backrest Tubes must pivot easily.
- Page 13 23. Turn the Seat (14) as shown. Attach the wide end of the Seat to the bracket on the Seat Support Tube (37) with two M6 x 16mm Screws (3). Tilt the Seat Support Tube (37) upwards and attach the narrow end of the Seat (14) to the Seat Support Tube with an M6 x 38mm Bolt (60) and an M6 Washer (30).
-
Page 14: Adjusting The Weight Bench
Adjusting the Weight Bench This section explains how the weight bench is adjusted. See the included exercise guide for important informa- tion about how to perform a variety of exercises and how to get the greatest benefit from your exercise program. Inspect and tighten all parts each time you use the weight bench. -
Page 15: Adjusting The Backrest
ADJUSTING THE BACKREST To raise the Backrest (15), grip the end of the Backrest with one hand and pull it upward. The Backrest Adjustment Frame (36) will automatically lock into one of the tabs on the bracket on the Bench Frame (5). To lower the Backrest (15), grip the end of the Backrest with one hand and pull it slightly upwards. - Page 16 Part ListÑModel No. IMBE41990 Key No. Qty. Description Upright Brace M6 x 16mm Screw M6 x 55mm Bolt Bench Frame M10 Washer Base Crossbar M8 x 80mm Bolt 50mm x 70mm Outer Cap M10 Nylon Locknut Large Support Plate Large Weight Clip...
- Page 17 Exploded DrawingÑModel No. IMBE41990 R1299A...
-
Page 18: Ordering Replacement Parts
This warranty gives you specific legal rights. You may also have other rights which vary from state to state. ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813 IMAGE is a registered trademark of ICON Health & Fitness, Inc. Part No. 160469 R1299A ¨...
