Faber INHC29SS Installation

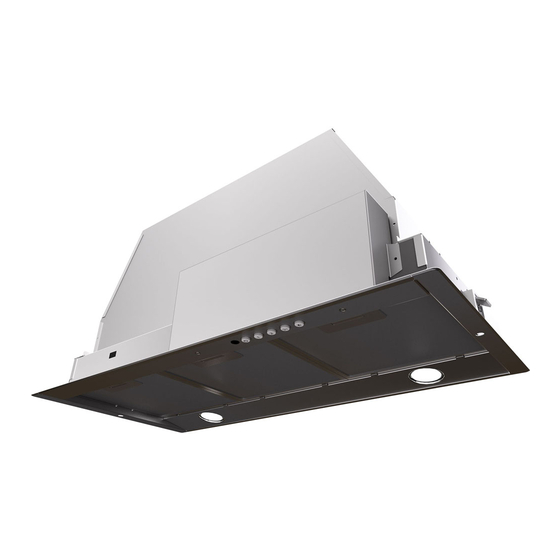

Inca HC SS Insert Hood
versatile built in vent hood
The Inca HC SS builit in insert range hood is perfect for the homeowner who needs powerful
ventilation, but does not want to see a range hood at all. This exceptionally finished power pack installs
effortlessly into your custom cabinet or hood (30" wide and up)
Model # Size | Color
INHC29SS 29 Stainless
Min. / Max. Ceiling Height
Cabinet Cut Out
Convertible to Recirculating
Controls
Lighting
Ducting Top
Ducting Direct Rear
Grease Filters
Built In Mounting Hardware
10 Minute Intensive Speed
AC Input
AC Power
Annual Electricty Costs
* Note – ran 30 minutes a day on low speed, 365 days, using the North American average of 12.2 cents per kWh.
p.o. box 435 • Wayland, MA 01778 • tel: (508) 358-5353 • fax: (508) 358-5730 • e-mail: info@faberonline.com • www.faberonline.com
Performance Range
160 - 600 CFM

Feature Chart

N / A
27 5/8" W / 13 5/32"D
Yes - charcoal filter needed, need air return
back into kitchen out of the cabinet
3 Speed Electronic Push w/ Blue LED
2 X 20 (W) Halogen
6" Round
Yes - 6" Round
dishwasher safe SS mesh
Yes - Easy Snap Mounting Clips
Yes
120 V - 60 hz
Max 370 W at 3.1 A
$6.17 / Year *
Blue LED Backlit electronic controls
to indicate the current speed and
lighting on/off
Sound Levels
3.5 - 6.5 sones
