Edit Mode - Studio Logic Numa nano Instruction Manual

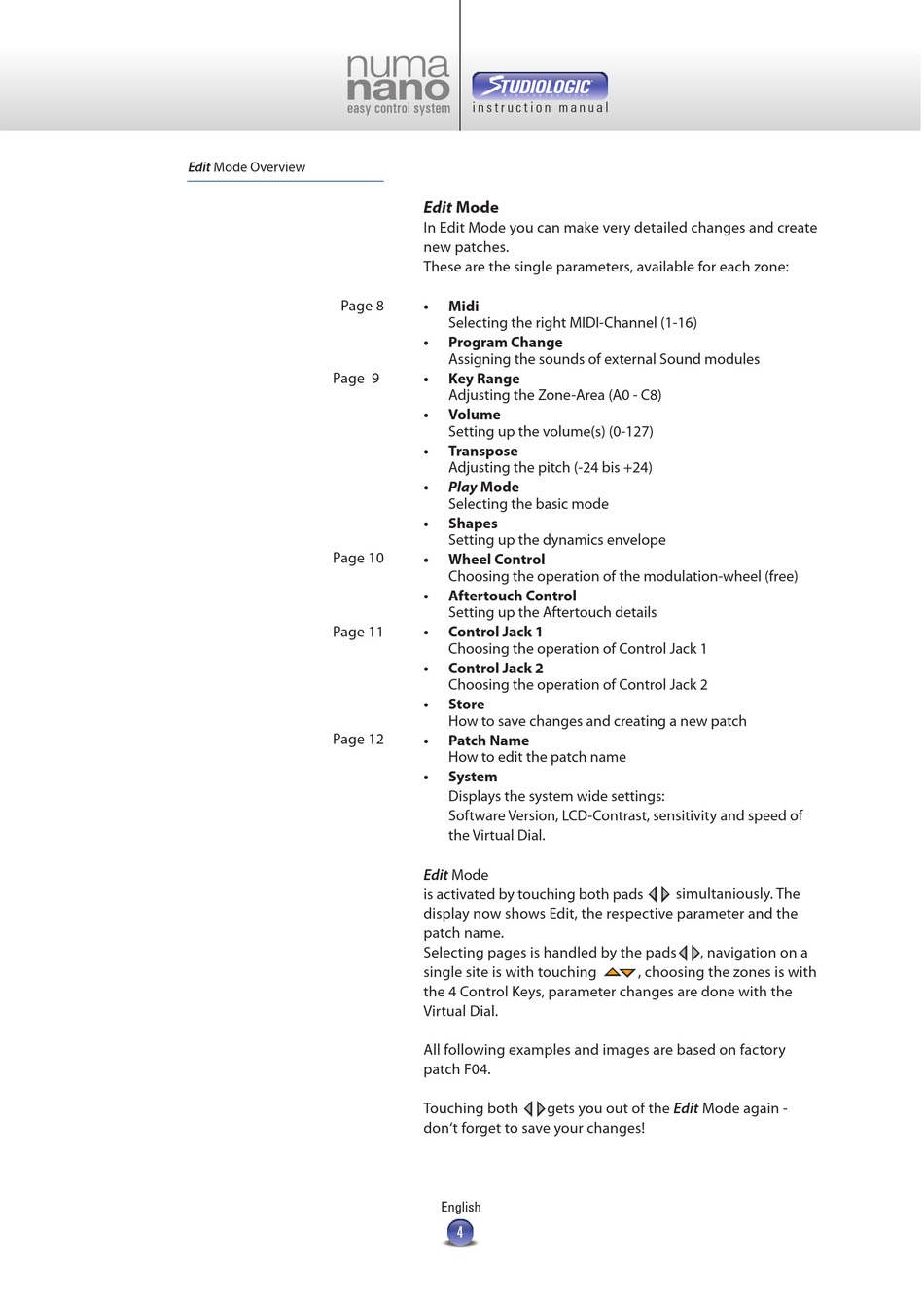

Edit Mode Overview
Page 8
Page 9
Page 10
Page 11
Page 12
8 NUMA by Studiologic®
i n s t r u c t i o n m a n u a l

Edit Mode

In Edit Mode you can make very detailed changes and create
new patches.
These are the single parameters, available for each zone:
• Midi
Selecting the right MIDI-Channel (1-16)
• Program Change
Assigning the sounds of external Sound modules
• Key Range
Adjusting the Zone-Area (A0 - C8)
• Volume
Setting up the volume(s) (0-127)
• Transpose
Adjusting the pitch (-24 bis +24)
• Play Mode
Selecting the basic mode
• Shapes
Setting up the dynamics envelope
• Wheel Control
Choosing the operation of the modulation-wheel (free)
• Aftertouch Control
Setting up the Aftertouch details
• Control Jack 1
Choosing the operation of Control Jack 1
• Control Jack 2
Choosing the operation of Control Jack 2
• Store
How to save changes and creating a new patch
• Patch Name
How to edit the patch name
• System
Displays the system wide settings:
Software Version, LCD-Contrast, sensitivity and speed of
the Virtual Dial.
Edit Mode
is activated by touching both pads
display now shows Edit, the respective parameter and the
patch name.
Selecting pages is handled by the
single site is with touching
the 4 Control Keys, parameter changes are done with the
Virtual Dial.
All following examples and images are based on factory
patch F04.
gets you out of the Edit Mode again -
Touching both
3 4
don't forget to save your changes!
English
4
simultaniously. The
3 4
pads3 4 , navigation on a
, choosing the zones is with
5 6
