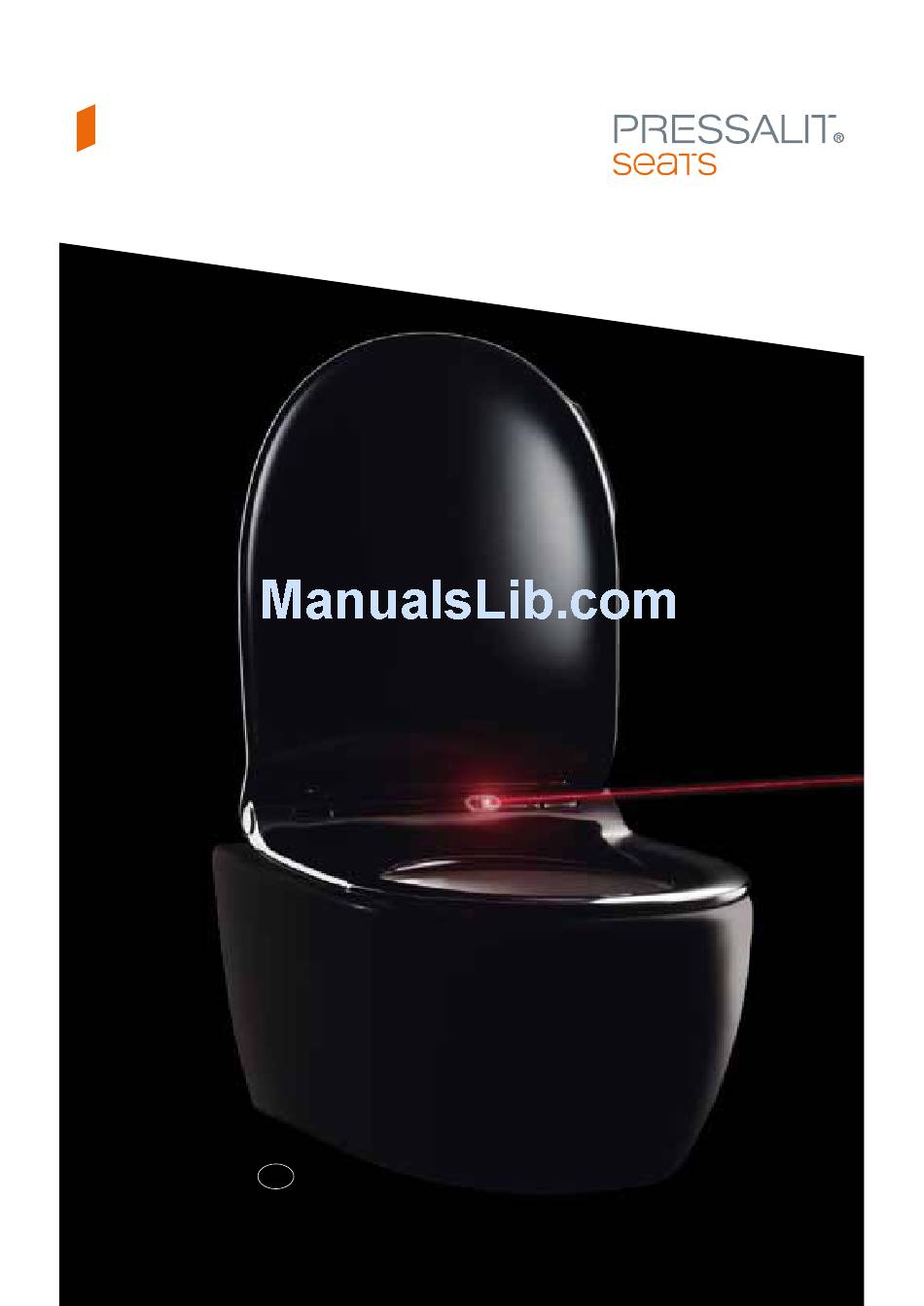

- Page 1 AutoClose by Pressalit ® Page 2-15 Instruction manual AutoClose by Pressalit ®...
-
Page 2: Before Use
Before use Congratulations on your new AutoClose toilet seat. ® Please read this instruction manual carefully before use and keep it in a safe place for later reference. Make sure that the seat fits your toilet. Check toilet pan on www.pressalitseats.com under ”See what seats fit your toilet”. -
Page 3: Table Of Contents
Replacing the batteries ................8-11 Troubleshooting ................... 12-15 Enclosed key ..................Backside Registered design Patent Pending Maximum load 240 kg Guarantee Pressalit offers a 10-year product guarantee for AutoClose oilet seats ® excluding electronic components, which are guaranteed for two years. -
Page 4: Use
Get to know your toilet seat: All Pressalit toilet seats are made from solid colour ingrained duroplast. The seats are scratch-resistant and have a smooth easy-to-clean surface. Functions: Pressalit AutoClose seats features a ® number of practical functions. AutoClose ® The seat and lid close automatically using a sensor. -
Page 5: Extended Opening
® function or if the batteries are dead, the lid can be closed manually. When the lid is pushed downwards, you will hear a click. This is normal. When the lid is fully opened again, CLICK! the AutoClose function will be reactivated. ®... -
Page 6: Description Of Quick-Release
Description of quick-release It is easy to remove the seat with quick- release in order to thoroughly clean the toilet pan and seat. Raise the seat to an angle of approx. 15 degrees, push the buttons at the sides and lift off the seat. 15° Remount the seat by pressing the buttons and placing the seat over the console tube. -
Page 7: Mounting Instructions, Top Mounted Hinge
Mount the seat by pressing the buttons and placing the seat over the console tube. Release the buttons. Open and close the seat and lid until the buttons click into place. 15° If the seat and lid tend to fall over in open position replace the plain rubber disc with one or two of the enclosed oblique washers in each side. Pay attention to the arrow’s direction. 5-7 ° Check that the distance between top of the lid and wall is minimum 35 mm. -
Page 8: Battery Change Indicator
Battery change indicator When the lid is opened, the red diode in the console tube panel flashes twice to indicate if there is sufficient power. When the diode no longer flashes it is time to change the batteries. You need to use 2 x AAA alkaline batteries (IR3-1.5V). - Page 9 T urn and remove the key. Insert the batteries with plus and minus as shown in picture 19. You will need 2 x AAA alkaline batteries (lR3 1.5V). Use high-quality batteries to avoid changing the batteries too often. Avoid changing the batteries over the toilet pan as you may drop the components. Check to see if the black tube can be CLICK turned.
-
Page 10: Replacing The Batteries
Replacing the batteries Gently insert the module. Turn and gently push until the module slides in and the black ring disappears into the tube. Slide the key through the oblong hole at the 90° right end of the console tube and turn it 90°. STOP Turn the module until the red line is flush with the stamped line on the console tube. - Page 11 Turn and remove the key. Save it for another time in the pocket on the backside of this manual. Press the two buttons and place the seat over the console tube. Release the buttons. 15° Open and close the seat and lid until the buttons click into place. CLICK! After this test that the red diode in the console tube panel flashes when the lid is opened. Step away from the toilet and test that the lid closes after app.
-
Page 12: Troubleshooting
Troubleshooting The seat falls down First check whether the seat fits the toilet pan. – see and/or the lid stays www.pressalitseats.com and “What fits your toilet” The distance from the wall/cistern must be no more than 14 cm. The distance ahead must be at least 120 cm. - Page 13 Remove the batteries. Allow the locking module to has fallen into the toilet dry until all moisture has evapourated. If the locking in connection with device does not work, please contact Pressalit. battery replacement. The “extended The sensor has detected a person and thinks it is a opening”...
- Page 14 Troubleshooting What does two blinks The batteries have enough power. mean? What does ten blinks The seat has gone into extended open mode and mean? stays open for at least five minutes. Are the rays from No more than the rays from your remote control. the console tube dangerous? What batteries are...
- Page 15 WC cleaner, etc. The console cannot be showered off. Remove the seat before cleaning and do not leave it wet. Also see ’Cleaning’. Using the AutoClose The seat can be closed manually. It makes ® seat, even though the...
- Page 16 Pressalit A/S Pressalitvej 1 DK-8680 Ry Tel. +45 8788 8788 Fax +45 8788 8789 pressalit@pressalit.com www.pressalitseats.com...
