Craftsman 358.794741 Operator's Manual page 18

Ref.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.

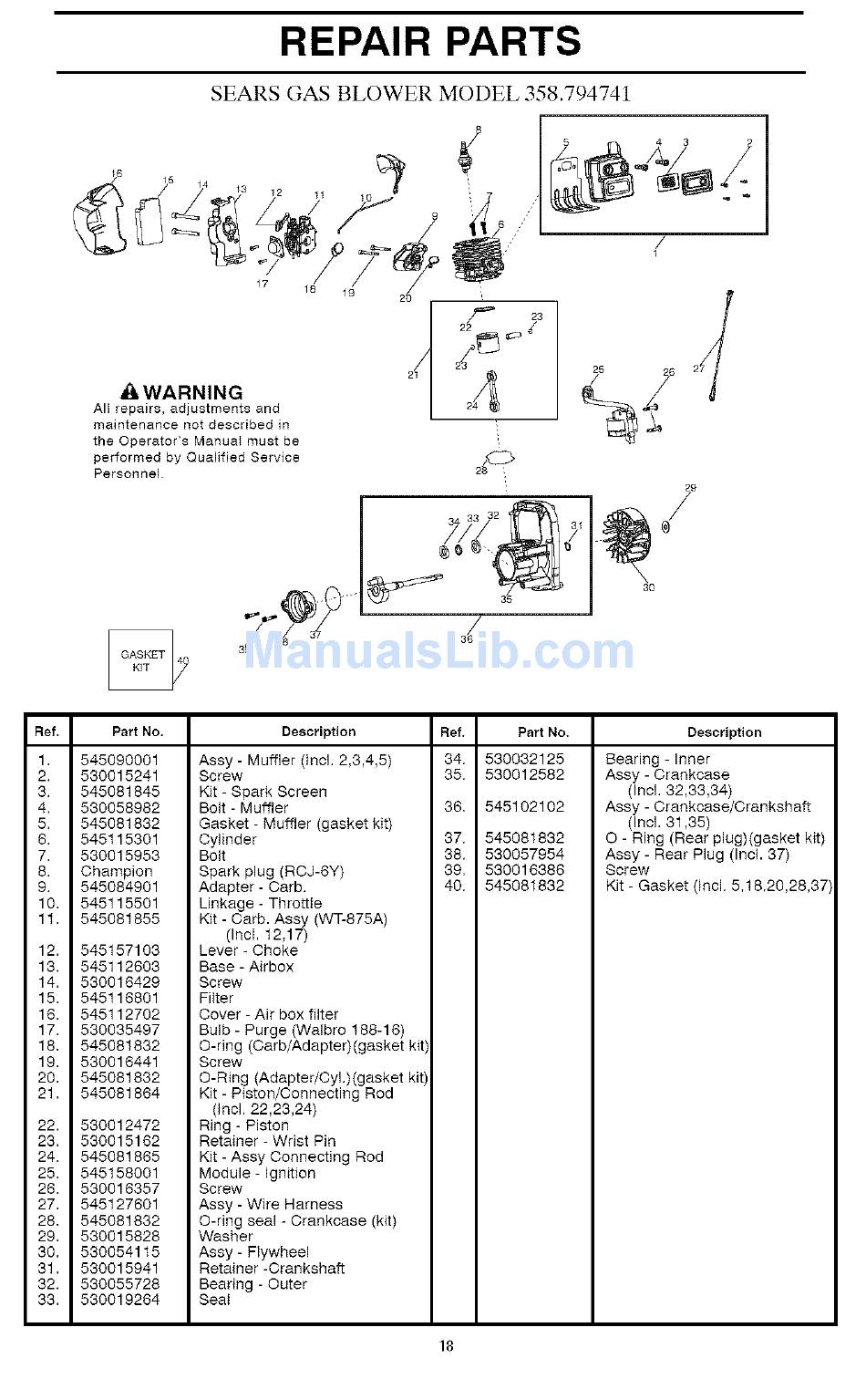

REPAIR PARTS
SEARS GAS BLOWER MODEL 358.794741
~{fln'.
m~/
17
AWARNING
All repairs, adjustments and
maintenance not described in
the Operator's Manual must be
performed by Qualified Service
Personnel
Part No. Description
545090001 Assy - Muffler (Incl. 2.3.4.5)
530015241 Screw
545081845 Kit - Spark Screen
530058982 Bolt - Muffler
545081832 Gasket - Muffler (gasket kit)
545115301 Cylinder
530015953 Bolt
Champion Spark plug (RCJ-6Y)
545084901 Adapter - Carbo
545115501 Linkage - Throttle
545081855 Kit - Carbo Assy (WT-875A)
(Incl. 12.17)
545157103 Lever - Choke
545112603 Base - Airbox
530016429 Screw
545116801 Filter
545112702
Cover - Air box filter
530035497 Bulb - Purge (Walbro 188-16)
21
545081832 O-ring (CarbjAdapter)(gasket kit)
530016441 Screw
545081832 O-Ring (AdapterjCyl.)(gasket kit)
545081864 Kit - Piston/Connecting Rod
(Incl. 22.23.24)
530012472 Ring - Piston
530015162 Retainer - Wrist Pin
545081865
Kit - Assy Connecting Rod
545158001 Module - Ignition
530016357 Screw
545127601
Assy - Wire Harness
545081832 O-ring seal - Crankcase (kit)
530015828 Washer
530054115 Assy - Flywheel
530015941 Retainer -Crankshaft
530055728
Bearing - Outer
530019264 Seal
l
®
Ref. Part No. Description
34. 530032125
Bearing - Inner
35. 530012582
Assy - Crankcase
(Incl. 32.33.34)
36. 545102102 Assy - Crankcase/Crankshaft
(Incl. 31.35)
37. 545081832 O-Ring (Rear plug)(gasket kit)
38. 530057954 Assy - Rear Plug (Incl. 37)
39. 530016386 Screw
40. 545081832 Kit - Gasket (Incl. 5.18.20.28.37)
18
