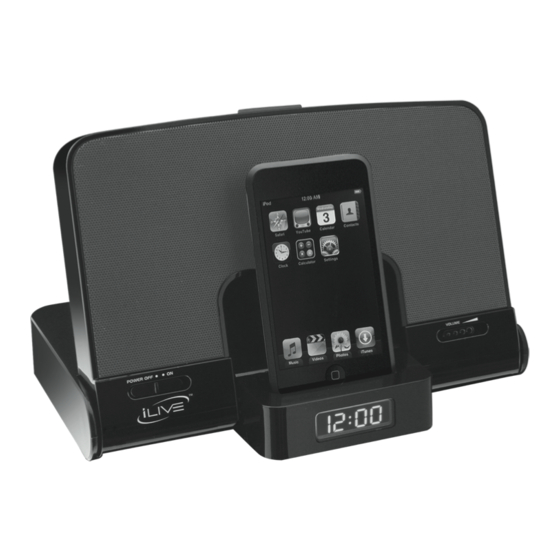

IS108B
INSTRUCTION MANUAL
Contents
Warnings and Precautions ............................................................................... 2
Important Safety Instructions ............................................................................ 3
In the Box ......................................................................................................... 4
Powering the Unit & Battery Information .......................................................... 5
Docking an iPod ............................................................................................... 6
Playing an iPod & Setting the Clock ................................................................. 7
Connecting to an Audio Player using the Aux Input ......................................... 8
Location of Controls & Control Definitions ...................................................9-10
Service Information......................................................................................... 12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for iLive IS108B
Summary of Contents for iLive IS108B
-

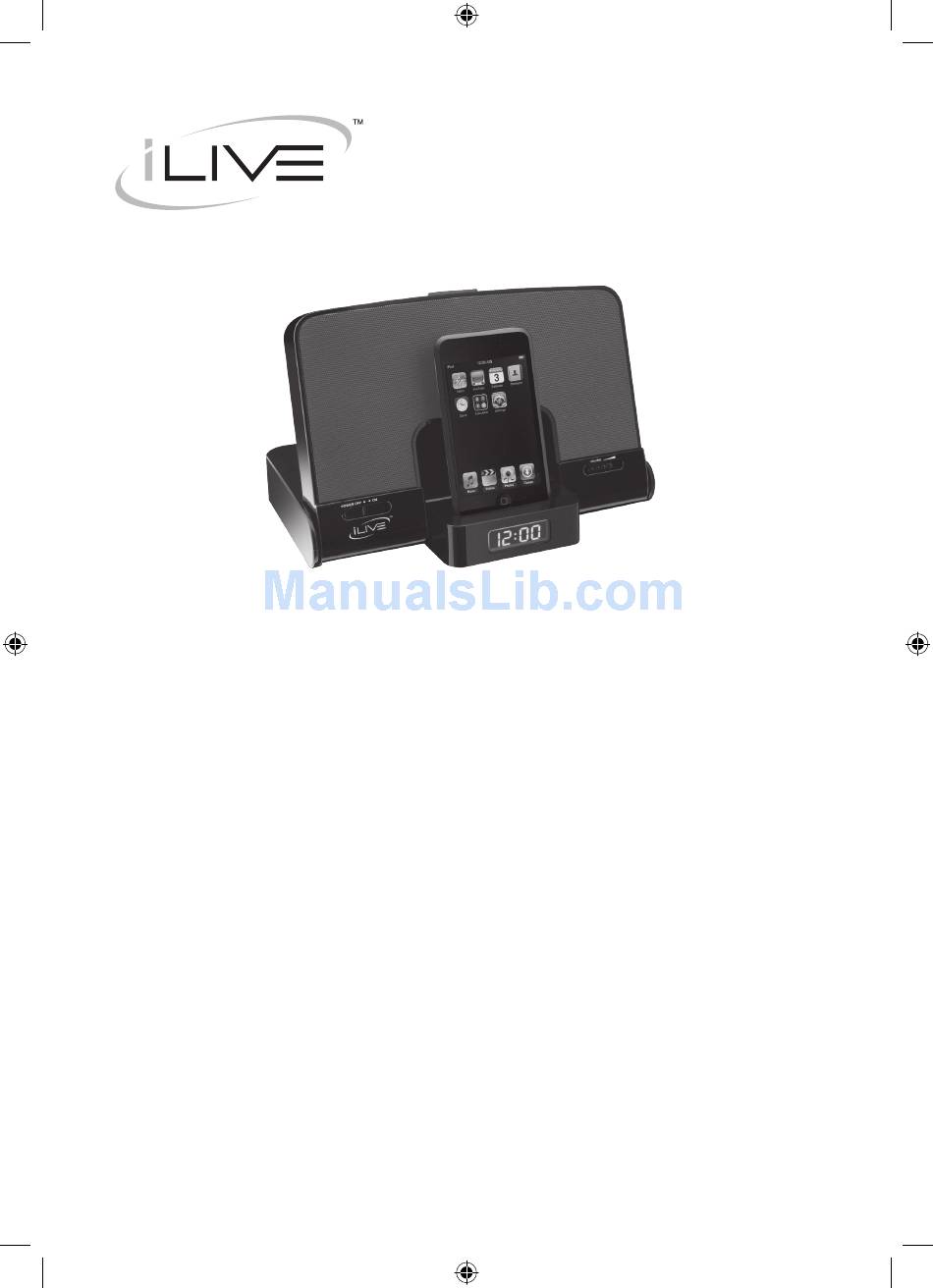

Page 1: Table Of Contents
IS108B INSTRUCTION MANUAL Contents Warnings and Precautions ... 2 Important Safety Instructions ... 3 In the Box ... 4 Powering the Unit & Battery Information ... 5 Docking an iPod ... 6 Playing an iPod & Setting the Clock ... 7 Connecting to an Audio Player using the Aux Input ... -
Page 2: Warnings And Precautions
Warnings and Precautions TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. This symbol, located on back or bottom of the unit, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. -
Page 3: Important Safety Instructions
Important Safety Instructions 1. Read Instructions - All the safety and operating the other). This plug will fit into the power outlet instruction should be read before the product only one way. This is a safety feature. If you are is operated. -
Page 4: In The Box
In the Box • IS108B • iPod Docking Brackets • AC/DC Adapter • Documentation iPod BRACKETS (7) Features • iPod® Docking Station • Certified iPod Connector installed for iPod docking • Controls Connected iPod players • Stereo Speakers built in •... -
Page 5: Powering The Unit & Battery Information
Powering the Unit AC 10V ~ 60Hz Battery Information Batteries power for Back-up only. Battery back-up will save the clock and alarm times in case of a power outage. -
Page 6: Docking An Ipod
Docking an iPod 1. Locate the numbered Bracket that fits the iPod that will be docked. Each included Bracket has a number on it, indicating which iPod model that bracket is compatible with. See the separate bracket chart page to identify which bracket is needed. . Snap the Bracket into place over the iPod connector in the Docking Station. All Brackets will only fit one way onto the Dock. When inserting an iPod nano (first or second generation), slide the Dock connection on the unit so that it matches the opening on the iPod nano (first or second generation). . Connect the iPod to the iPod connector inside the Docking Station. Once an iPod is connected to the Docking Station, the unit will play and charge the docked iPod. -
Page 7: Playing An Ipod & Setting The Clock
Playing an iPod 1. Connect an iPod to the Docking Station. (See “Docking an iPod” on page 6) . Adjust the Power Switch to the on position. . Adjust the Volume Switch to increase or decrease the volume of the unit. 4. Control the docked iPod using it’s native controls. Setting the Clock 1. -
Page 8: Connecting To An Audio Player Using The Aux Input
Connecting to an Audio Player using the Aux Input When connecting two products using an RCA Cable, match the colored ports with the same colored connection. (Red to Red, White to White, and Yellow to Yellow) 1. Plug one end of a .5 mm Cable (not included) or a .5 mm - RCA Cable (not included) into the AUX (Auxiliary) Input on the unit. . Plug the other end of the .5 mm Cable into the audio output/headphone output on an Mp Player or Other Audio Source. -
Page 9: Location Of Controls & Control Definitions
Location of Controls... -
Page 10: Control Definitions
Control Definitions 1 Power Switch Adjust the Power Switch to turn the unit off and on. 2 Set Button Press the Set Button to set the clock. 3 Battery Compartment (Requires 4 AA Batteries, not included) 4 DC Power Input Connect the DC Power Input to a standard AC Outlet to power the unit. -
Page 12: Service Information
© 007 DPI, Inc. iPod not included. iPod is a trademark of Apple Inc., registered in the U.S. and other countries. TruBass, SRS and the SRS logo are trademarks of SRS Labs, Inc. All other trademarks appearing herein are the property of their respective owners.
