Summary of Contents for MBL Corona Line
Page 1

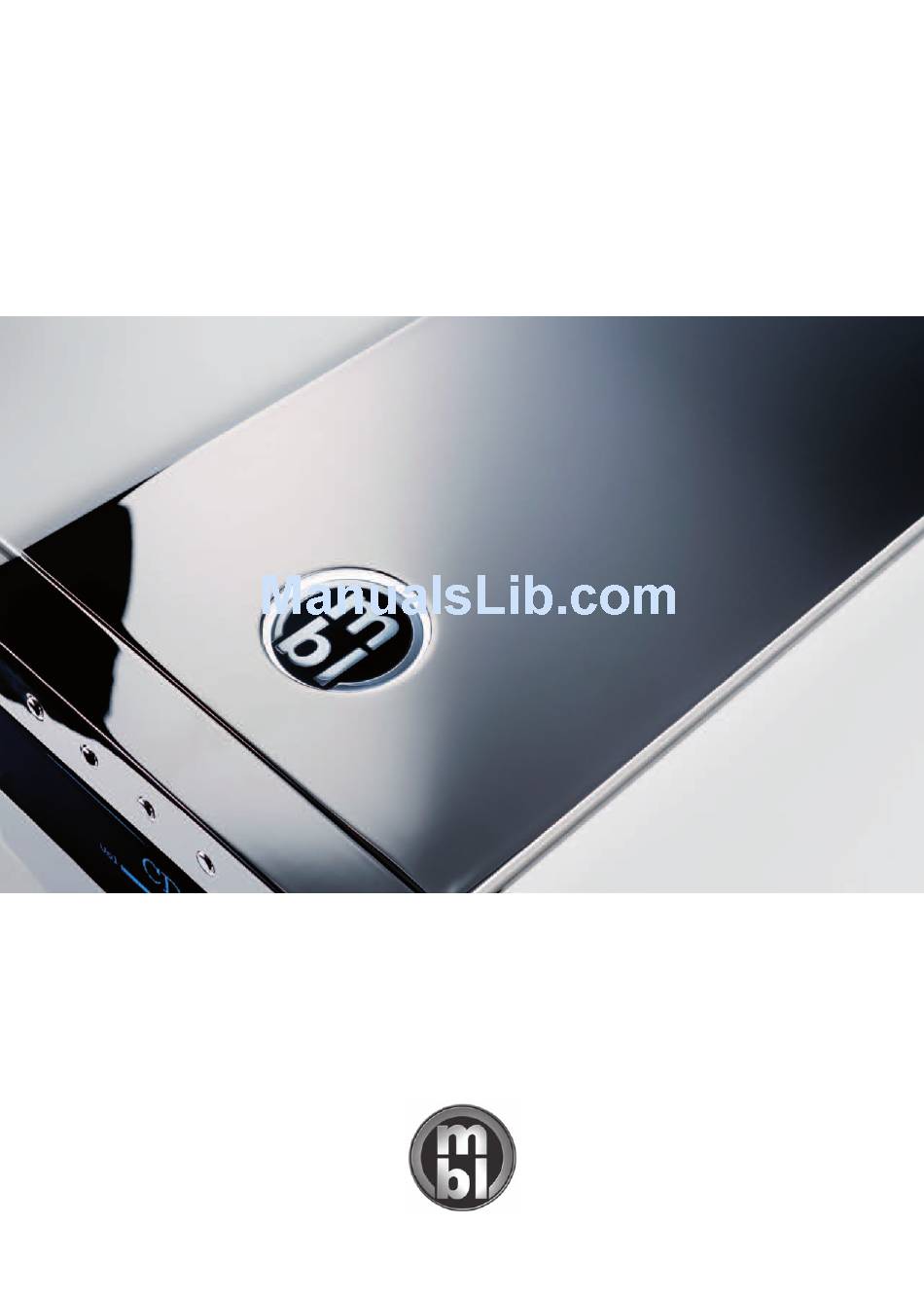

CORONA LINE Owner’s Manual Bedienungsanleitung unique high end audio...
Page 2
Along with me personally, the entire MBL team puts its heart, soul, and meticulous care into the development and fabrication of each MBL product. The fruit of all our efforts now stands before you, waiting to be connected and thrill you with your favourite music.
NEVER switch power amplifier on when no speaker is connected! KETI, CE-Marking This product conforms to the requirements of the EMC directive and low-voltage directive. Your MBL component com- plies with the household power and safety requirements in your area.
2.4 Standby 6.3.5 Connecting the Power Supply Cable 2.5 Using the Controls 2.6 Firmware Update 7. Cleaning the Unit 3. Menu navigation mbl C11 / mbl C51 8. Specifications 3.1 Menu 8.1 mbl C31 CD Player 3.2 Input Setup 8.2 mbl C11 Preamplifier 3.3 C31 Input Mapping...
A system remote control* • White gloves * the remote control is not included in the packing for the mbl C21 Stereo Power Amplifier nor the mbl C15 Mono Power Amplifier. 1.1 What you still require To connect the components of your Corona Line stereo system, you will need the following cables: •...
CORONA LINE 2.3 Display Brightness By activating the „Corona button“ the display may be dimmed in five steps. This setting is transmitted to all mbl devices which are connected via MBL SmartLink (required cable type Cat.5 UTP or Cat.6 UTP).
CORONA LINE “In- / In+” activates the desired input channel including the inputs of the mbl C31. In case a digital input of the mbl C31 is selected, no functions of the CD player are available. 3.1 Menu Within the menu two control buttons, ““ and ““ on the right side, are used to move the cursor (*), “Select” enters the chosen menu point, “Exit”...
At this point you can adjust the brightness of the ring around the “standby“-button when standby is activated. This set- ting is sent to all other devices within the MBL SmartLink chain. If the value has been readjusted, and “Exit” has been pressed, further Options appear, “Cancel, “Discard”, and “Save”.
All the functions of your MBL Corona Line equipment can be activated by the remote control. The table below gives you an overview of the functions assigned to each respective button.
CORONA LINE 5. General Views 5.1 mbl C31 CD Player Corona-Button (Display Brightness) Context-Sensitive Control Buttons “softkeys“ Standby-Button Display CD-Input Digital Inputs USB (MBL MCMI) Update Toslink (S/P-DIF) Digital Coax (S/P-DIF) Interface MBL SmartLink Power Switch Connector for Power Cord...
6. Wiring Set-ups In the following section we take you step by step to ensure correct wiring of the components in your MBL Corona Line Stereo System. The Corona Line also offers you other wiring set-ups in addition to the recommended installations given here.
6.1.2 Creating an MBL SmartLink Connection Plug one end of the MBL SmartLink cable into either one of the two MBL SmartLink sockets on the CD player and the other end of the cable into one of the two MBL SmartLink sockets on the mbl integrated amplifier.
Secure the other end of the pair of cables in the sockets on the preamplifier labelled “CD 1” or whichever input you desire. Please ensure that the same channels are connected together in the two devices (right to right; left to left). mbl C31 CD Player mbl C11 Preamplifier...
6.2.3 Creating the MBL SmartLink Connection Plug one end of the MBL SmartLink cable into one of the two MBL SmartLink sockets on the CD player and the other end of the cable into one of the two MBL SmartLink sockets on the preamplifier. Take the second MBL SmartLink cable and plug one end into the vacant MBL SmartkLink socket on the preamplifier and the other end of the cable into the one of the two MBL SmartLink sockets on the stereo power amplifier.
6.2.5 Connecting the Power Supply Cable Now connect your Corona Line devices with the power socket (or multipoint connector) using the power supply cable supplied (or appropriate 3rd party cable), and switch on your devices with the “Power” switch on the rear panel.
Secure the other end of the pair of cables in the sockets on the preamplifier labelled “CD 1”. Please ensure that the same channels are connected together in the two devices (right to right; left to left). mbl C31 CD Player mbl C11 Preamplifier...
5.3.3 Creating the MBL SmartLink Connection Plug one end of the MBL SmartLink cable into one of the two MBL SmartLink sockets on the CD player and the other end of the cable into one of the two MBL SmartLink sockets on the preamplifier. Take the second MBL SmartLink cable and plug one end into the vacant MBL SmartkLink socket on the preamplifier and the other end of the cable into the one of the two MBL SmartLink sockets on the mono power amplifier.
5.3.5 Connecting the Power Supply Cable Now connect your Corona Line devices with the power socket (or multipoint connector) using the power supply cable supplied (or appropriate 3rd party cable), and switch on your devices with the “Power” switch on the rear panel.
CORONA LINE 7. Cleaning the Unit Prior to cleaning, disconnect the unit from the power supply! Clean the housing of the unit with a dry, soft cloth. To remove fingerprints and other grease spots, use a soft cloth moist- ened with mild soapy water.
CORONA LINE 8. Specifications 8.1 mbl C31 CD Player General Weight 15,5 kg / 34.2 lbs Dimensions (without cables) W 45,0 cm / D 44,5 cm / H 14,5 cm W 17.7 in / D 17.5 in / H 5.7 in...
CORONA LINE Digital Outputs 1 x S/P-DIF Connection Output Impedance 75 Ohm Nominal Output-Level 0.5 Vpp electrically/galvanically Isolated galvanically isolated Analog Outputs Maximum Output Level Unbalanced RCA Out 2 V @ 0 dBFS Balanced XLR Out 4 V @ 0 dBFS...
< 20 VA Maximum < 20 VA Connections Inputs RCA unbalanced 2 x MBL CD1 / CD2 2 x Tuner AUX1 / AUX2 1 x Processor By-Pass XLR balanced (unity gain) 1 x Symmetrical Options 1 x optional 2nd Symmetrical In (XLR) or...
Page 27
CORONA LINE Output Impedance All RCA Outputs 100 Ohm XLR Output 200 Ohm Input Impedance CD and Processor By-Pass Inputs ≥ 5 kOhm AUX Inputs 50 kOhm XLR Input 10 kOhm Signal to Noise Ratio > 110 dB (A) @ 2 V Input, Volume set to 0 dBr / unity gain...
Maximum < 1000 VA (w. 2 x 300 W @ 4 Ohm) Connections Inputs RCA unbalanced 2 x MBL CD1 / CD2 2 x Tuner AUX1 / AUX2 1 x Processor By-Pass XLR balanced (unity gain) 1 x Symmetrical Options...
Page 29
CORONA LINE Output Impedance All RCA Outputs 100 Ohm Input Impedance CD and Processor By-Pass Inputs ≥ 5 kOhm AUX Inputs 50 kOhm XLR Input 10 kOhm Signal to Noise Ratio > 110 dB (A) @ 2 V Input, Volume set to 0 dBr / unity gain...
CORONA LINE 8.4 mbl C21 Stereo Power Amplifier General Weight 22 kg / 48.5 lbs Dimensions (without cables) W 45,0 cm / D 44,5 cm / H 14,5 cm W 17.7 in / D 17.5 in / H 5.7 in...
CORONA LINE 8.5 mbl C15 Mono Power Amplifier General Weight 22 kg / 48.5 lbs Dimensions (without cables) W 45,0 cm / D 44,5 cm / H 14,5 cm W 17.7 in / D 17.5 in / H 5.7 in...
Page 32
CORONA LINE Lieber Musikliebhaber! Sie haben sich für den Kauf eines hochwertigen Produktes aus dem Hause MBL entschieden. Herzlichen Glückwunsch - damit haben Sie eine gute Wahl getroffen, die Sie nicht bereuen wer- den. Sie und uns verbinden die Begeisterung für Musikgenuss auf höchstem Niveau sowie die Freude an exklusiven und liebevoll gefertigten Produkten.
Page 33
Verwendung einer nicht ausschließlichen Musikwiedergabe kann zu irreparablen Schäden an der Anlage führen. Verstärker NIEMALS anschalten, wenn keine Lautsprecher angeschlossen sind! KETI, CE-Zeichen Dieses MBL Gerät entspricht den KETI sowie EMC Richtlinien. Garantie Bitte beachten Sie die dem Gerät beiliegende Garantiekarte. Die Garantie kann ausschließlich nach Einsenden der origi-...
Systemfernbedienung* • Weiße Handschuhe * nicht enthalten im Lieferumfang des mbl C21 Stereo Endverstärkers und des mbl C15 Mono Endverstärkers. 1.1 Was Sie noch benötigen Um die Komponenten Ihrer Corona Line Stereo-Anlage miteinander zu verbinden, benötigen Sie folgende Kabel: •...
Unter den Funktionstasten („softkeys“) wird die den Tasten momentan zugewiesene Funktion dargestellt. „Mute“ schaltet bei Betätigung die Lautsprecher stumm und durch nochmaliges Betätigen wieder ein. „Amp on/off“ schaltet die eingebaute Endstufe aus (nur bei mbl C51). Dadurch kann der mbl C51 als reiner Vorverstärker...
„Menu“ aktiviert ein Auswahlmenü für weitere Funktionen, das durch „Exit“ wieder verlassen werden kann. „In-“ / „In+“ schaltet die Eingänge inklusive der Eingänge des mbl C31 um. Sollte ein digitaler Eingang des mbl C31 aus- gewählt sein, so ist keine Funktion des CD-Players verwendbar.
An dieser Stelle können Sie einstellen, mit welcher Helligkeit der Ring um die „Standby“-Taste bei Aktivierung der Stand- by-Funktion leuchten soll. Diese Information wird an alle weiteren Geräte der MBL SmartLink Kette weitergegeben. Wur- de der Wert geändert, so erscheinen beim Drücken von „Exit“ weitere Auswahlmöglichkeiten: „Cancel“, „Discard“ und „...
Position ein. Anschließend schrauben Sie den Deckel wieder fest. Bei einem Batteriewechsel entsorgen Sie die Altbatterien bitte über eine Batteriesammelstelle. Sämtliche Funktionen Ihres MBL Corona Line Gerätes können über die Fernbedienung aktiviert werden. Die folgenden Tabelle bietet Ihnen eine Übersicht über die der jeweiligen Taste zugeordneten Funktionen.
CORONA LINE 6. Anschlussschemata Im Folgenden beschreiben wir Ihnen Schritt für Schritt, wie Sie die Komponenten Ihrer Corona Line Stereoanlage richtig miteinander verbinden können. Die Corona Line bietet Ihnen zusätzlich zu der nachfolgend dargestellten empfohlenen Verbindungsart weitere Verbindungs-Varianten. Ihr Hi-Fi Händler berät Sie gern.
CORONA LINE 6.1.2 Herstellen der MBL SmartLink-Verbindung Stecken Sie das eine Ende des MBL SmartLink-Kabels in eine der beiden MBL SmartLink-Buchsen am CD Player und das andere Ende des Kabels in eine der beiden MBL SmartLink-Buchsen am Vollverstärker. Achtung: Bitte achten Sie darauf, dass Sie bei der Verbindung des MBL SmartLinks keinen geschlossenen Kreis herstel- len.
Das andere Ende des Kabelpaares stecken Sie bitte auf das Buchsenpaar des Vorverstärkers, welches mit „CD 1“ be- schriftet ist. Achten Sie dabei darauf, die jeweils gleichen Kanäle an beiden Geräten miteinander zu verbinden (rechts zu rechts, links zu links). mbl C31 CD Player mbl C11 Vorverstärker...
6.2.3 Herstellen der MBL SmartLink-Verbindung Stecken Sie das eine Ende des ersten MBL SmartLink-Kabels in eine der beiden MBL SmartLink-Buchsen am CD Player und das andere Ende des Kabels in eine der beiden MBL SmartLink-Buchsen am Vorverstärker. Nehmen Sie das zweite MBL SmartLink-Kabel und stecken Sie das eine Ende in die noch freie MBL SmartkLink-Buchse des Vorverstärkers und...
C21 Stereo Endverstärker 6.2.5 Verbinden der Netzkabel Verbinden Sie nun Ihre Corona Line Geräte über die mitgelieferten Netzkabel mit der Steckdose (oder Steckerleiste) und schalten Sie die Geräte jeweils mit dem Powerschalter an der Geräterückseite an. Wenn Sie diese Schritte durchgeführt haben, ist Ihre Musikanlage betriebsbereit. Um Musik zu hören, müssen Sie ledig- lich noch eine CD einlegen, diese starten und am Vorverstärker die richtige Eingangsquelle wählen.
Das andere Ende des Kabelpaares stecken Sie bitte auf das Buchsenpaar des Vorverstärkers, welches mit „CD 1“ be- schriftet ist. Achten Sie dabei darauf, die jeweils gleichen Kanäle an beiden Geräten miteinander zu verbinden (rechts zu rechts, links zu links). mbl C31 CD Player mbl C11 Vorverstärker...
6.3.3 Herstellen der MBL SmartLink-Verbindung Stecken Sie nun das eine Ende des ersten MBL SmartLink-Kabels in eine der beiden MBL SmartLink-Buchsen am CD Player und die andere Seite des Kabels in eine der beiden MBL SmartLink-Buchsen am Vorverstärker. Nehmen Sie an- schließend das zweite MBL SmartLink-Kabel und stecken Sie das eine Ende in die noch freie MBL SmartkLink-Buchse des...
6.3.5 Verbinden der Netzkabel Verbinden Sie nun Ihre Corona Line Geräte über die mitgelieferten Netzkabel mit der Steckdose (oder Steckerleiste) und schalten Sie die Geräte jeweils mit dem Powerschalter an der Geräterückseite an. Wenn Sie diese Schritte durchgeführt haben, ist Ihre Musikanlage betriebsbereit. Um Musik zu hören, müssen Sie ledig- lich noch eine CD einlegen, diese starten und am Vorverstärker die richtige Eingangsquelle wählen.
CORONA LINE 7. Reinigen des Gerätes Trennen Sie vor dem Reinigen den Netzstecker von der Stromversorgung! Reinigen Sie das Gehäuse des Gerätes mit einem trockenen, weichen Tuch. Um Fingerabdrücke und andere fettige Fle- cken zu entfernen, eignet sich ein weiches, mit milder Seifenlösung angefeuchtetes Tuch.
CORONA LINE 8. Technische Daten 8.1 mbl C31 CD Player Allgemein Gewicht 15,5 kg / 34.2 lbs Maße (ohne Kabel) W 45,0 cm / D 44,5 cm / H 14,5 cm W 17.7 in / D 17.5 in / H 5.7 in Maße inklusive Verpackung...
Page 55
CORONA LINE Digitale Ausgänge 1 x S/P-DIF Steckverbinder Ausgangsimpedanz 75 Ohm Optimale Eingangsleistung 0.5 Vpp Art der Trennung galvanisch getrennt Analoge Ausgänge Maximale Ausgangsleistung Unsymmetrisch RCA Out 2 V @ 0 dBFS Symmetrisch XLR Out 4 V @ 0 dBFS...
< 20 VA Maximum < 20 VA Verbindungen Eingänge RCA unsymmetrisch 2 x MBL CD1 / CD2 2 x Tuner AUX1 / AUX2 1 x Processor By-Pass XLR symmetrisch (unity gain) 1 x Symmetrisch Optionen 1 x optionaler zweiter symmetrischer Eingang (XLR) oder 1 x optionales Phono Modul (RCA) Ausgänge...
Page 57
CORONA LINE Ausgangsimpedanz Alle RCA Ausgänge 100 Ohm XLR Ausgang 200 Ohm Eingangsimpedanz CD und Processor By-Pass Eingänge ≥ 5 kOhm AUX Eingänge 50 kOhm 10 kOhm XLR Eingang Rauschabstand > 110 dB (A) @ 2 V Input, Volume set to 0 dBr / unity gain (Alle Ein- und Ausgänge bis auf Phono)
Maximum < 1000 VA (w. 2 x 300 W @ 4 Ohm) Verbindungen Eingänge RCA unsymmetrisch 2 x MBL CD1 / CD2 2 x Tuner AUX1 / AUX2 1 x Processor By-Pass XLR symmetrisch (unity gain) 1 x Symmetrisch Optionen...
Page 59
CORONA LINE Ausgangsimpedanz Alle RCA Ausgänge 100 Ohm Eingangsimpedanz CD und Processor By-Pass Eingänge ≥ 5 kOhm AUX Eingänge 50 kOhm XLR Eingänge 10 kOhm Rauschabstand > 110 dB (A) @ 2 V Input, Volume set to 0 dBr / unity gain (Alle Ein- und Ausgänge bis auf Phono)
CORONA LINE 8.4 mbl C21 Stereo Endverstärker Allgemein Gewicht 22 kg / 48.5 lbs Maße (ohne Kabel) W 45,0 cm / D 44,5 cm / H 14,5 cm W 17.7 in / D 17.5 in / H 5.7 in Maße inklusive Verpackung W 59,0 cm / D 54,0 cm / H 35,5 cm W 23.2 in / D 21.3 in / H 21.9 in...
CORONA LINE 8.5 mbl C15 Mono Endverstärker Allgemein Gewicht 22 kg / 48.5 lbs Maße (ohne Kabel) W 45,0 cm / D 44,5 cm / H 14,5 cm W 17.7 in / D 17.5 in / H 5.7 in Maße inklusive Verpackung W 59,0 cm / D 54,0 cm / H 35,5 cm W 23.2 in / D 21.3 in / H 21.9 in...
