MBL REFERENCE Series Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

ENGLISH 
DEUTSCH 

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the REFERENCE Series and is the answer not in the manual?

Questions and answers

Related Manuals for MBL REFERENCE Series

Summary of Contents for MBL REFERENCE Series

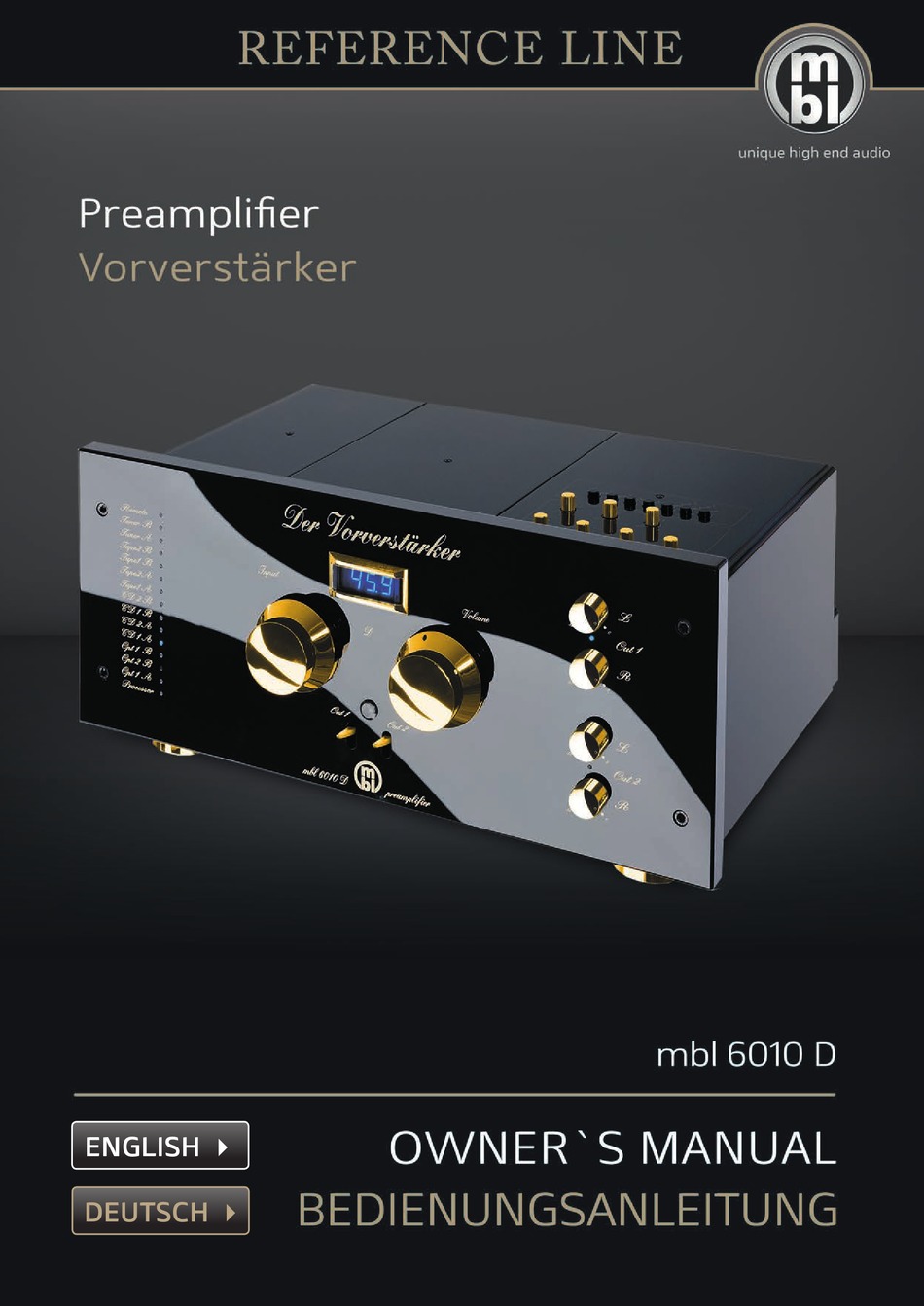

  • Page 1 ENGLISH  DEUTSCH ...

  • Page 2: Warranty

    Please discard used batteries in accordance to your country´s laws. KETI, CE-Marking This product conforms to the requirements of the EMC directive and low-volt- age directive. Your MBL component complies with the household power and safety requirements in your area. Warranty Please pay attention to the details given in the warranty card which accompa- nies the unit.
  • Page 3 5.1 Output on /off switches 5.2 Output Level Unit 6. Remote control 7. Options (modules) 7.1 Balanced-In 7.2 Phono 8. Maintenance 9. mbl 6010 D Construction 9.1 mbl 6010 D - Base Unit 9.2 mbl 6010 D - Options 10. Troubleshooting Specifications...

  • Page 4: Scope Of Delivery

    6010 D unique high end audio Scope of Delivery mbl 6010 D Preamplifier A/C Power Cord mbl System Remote Control SFBG3 (batteries included) mbl System Remote Control SFBG3...
  • Page 5 6010 D unique high end audio input level unit with record selector indicator LEDs display input selector volume control output selector switches output level unit...
  • Page 6 6010 D unique high end audio balanced-in optional input RCA inputs power switch variable output group 2 variable output group 1 connector for power cord and fuse holder...

  • Page 7: Installation

    Note: If you connect your preamplifier to the outlet with an inadequate voltage setting, it will result in heavy dam- age. MBL assumes no responsibility for accidents and damages caused by improper settings. Further, changes made to the voltage setting by a technician will not be covered by the warranty either.

  • Page 8: Connecting Other Components

    1 x balanced XLR output (23) per channel 1 x balanced XLR output (13) per channel 2.2 Inputs Up to 7 source devices can be connected to your mbl 6010 D. For this purpose, it provides the following analog inputs: OPTION 1...

  • Page 9: Front Panel Controls

    6010 D unique high end audio 3. Front Panel Controls 3.1 Input Selector With the input selector switch you can select one of the various sources connected to the preamplifier. The pro- cessor enables the connection of an extern surround-decoder. Choosing this input will engage a signal to the con- nected amplifier (Bypass).

  • Page 10: Input Section

    6010 D unique high end audio 3.2 Input Section The input section is composed of level encoders and record buttons. Record selector With the record select buttons the signal source for a connected tape machine can be controlled. The recording procedure can be performed independently of playback;...

  • Page 11: Processor / Bypass

    6010 D unique high end audio 3.3. Volume Control The volume control is a “MSP” special metal potentiometer with a channel alignment of better than 0.8 dB. This MSP is shielded against magnetic and electrostatic fields. Rotating the Volume control clockwise will increase the volume, rotating it counter clockwise will lower the volume.

  • Page 12: Output Level Unit

    6010 D unique high end audio 5.1 Output on/off Switches Out 1 and Out 2 are used for switching on and off GROUP 1 and/or GROUP 2 output sections. Sliding a switch upward the respective outputs are on, sliding it downward they are off.

  • Page 13: Options (Modules)

    6010 D unique high end audio 7. Options (modules) All installations must be performed exclusively by your MBL dealer. 7.1 Balanced-In The Balanced-In module contains an active balancing stage for connecting a balanced signal to the preamplifier inputs. Balanced:...
  • Page 14 Unplug the unit before cleaning! To clean the exterior surfaces of your mbl 6010 D use a dry, soft cloth. To wipe off fingerprints and other grease spots, use a soft, damp cloth moistened with a mild detergent dissolved in water.
  • Page 15 6010 D unique high end audio 9. Features of the mbl 6010 D 9.1 mbl 6010 D – Base Unit The base unit includes all features of a high-quality preamplifier: • 2 optional input slots for special functions (1 already equipped with a Balanced-In) •...

  • Page 16: Troubleshooting

    6010 D unique high end audio 10. Troubleshooting Please consider the following notes for installing your preamplifier. Proper functionality can be affected by: • excessively high temperatures (>40°C (104°F); e.g. near a radiator), • excessively low temperatures (<10°C (50°F)), •...

  • Page 17: The Remote Control Does Not Work

    6010 D unique high end audio If so, check whether the volume control of the preamplifier is appropriately set and whether the source units and power amplifiers are not muted. Check whether the output indicators on the preamplifier are lit.
  • Page 18 6010 D unique high end audio Frequency Range High level DC - 600 kHz Phono MC 20Hz - 200 kHz Output level 1Veff - 11Veff max. Output Impedance 100 Ω Noise Distortion (1 kHz, 2V) High level <0,0006% Phono MC <0,0015%...
  • Page 19 9007 Mono/Stereo Power Amplifier For best performance we recommend the High End Audio components of the MBL Reference Line. Your MBL dealer will help you to choose the optimal components for your perfect High End Audio system. mbl 101 X-treme Radialstrahler System...
