NEED HELP?
Call our ventilation experts toll free al 800-966-8300
AVEZ-VOUS BESOIN D'AIDE ?
Contactez nos experts au numéro gratuit 800-966-8300
¿NECESITA AYUDA?
Póngase en contacto con nuestros expertos a través del número gratis 800-966-8300

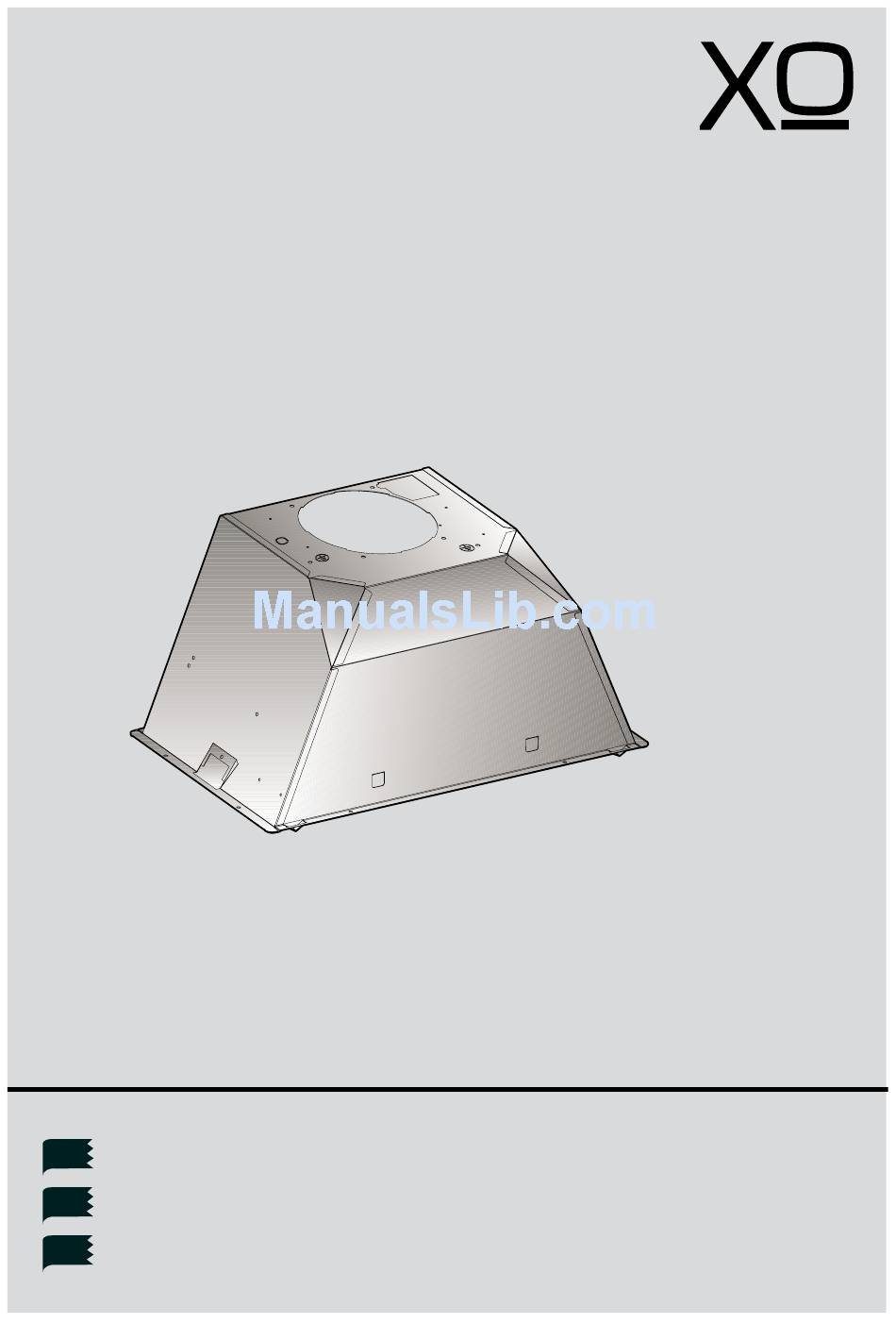

RANGE HOOD - User instructions
USA
HOTTE DE CUISINE - Notice d'utilisation
F
CAMPANA EXTRACTORA - Manual de utilización
E
XOI27S

Advertisement

Table of Contents
loading

Related Manuals for Xo XOI27S

Summary of Contents for Xo XOI27S

  • Page 1 XOI27S NEED HELP? Call our ventilation experts toll free al 800-966-8300 AVEZ-VOUS BESOIN D’AIDE ? Contactez nos experts au numéro gratuit 800-966-8300 ¿NECESITA AYUDA? Póngase en contacto con nuestros expertos a través del número gratis 800-966-8300 RANGE HOOD - User instructions HOTTE DE CUISINE - Notice d’utilisation...
  • Page 2 The warranty is extended to the original purchaser for products purchased for ordinary home use in North America. Should you require service for your XO product call a product service specialist at 800.966.8300 What is not covered Improper Installation.
  • Page 3 ENGLISH IMPORTANT SAFETY INSTRUCTIONS FOR RESIDENTIAL USE ONLY READ AND SAVE THESE INSTRUCTIONS PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING. IMPORTANT: Save these Instructions for the Local Electrical Inspectors use. INSTALLER: Please leave these Instructions with this unit for the owner. OWNER: Please retain these instructions for future reference.

  • Page 4: Installation Instructions

    Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambè ). C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter. D. Use proper pan size. Always use cookware appropriate for the size of the surface element. E.
  • Page 5 E. This unit must be grounded. WARNING - TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. WARNING - UNDER CERTAIN CIRCUMSTANCES DOMESTIC APPLIANCES MAY BE DANGEROUS. A. Do not check filters with hood working. B. Do not touch the lamps after a prolonged use of the appliance. C.

  • Page 6: Duct Fittings

    DUCT FITTINGS: Equivalent Total Duct Quantity This Hood Must Use an Dimensions: Number Equivalent Piece: Used: Length*: Length: 6" Round Duct. It Can Transition to 3-1/4" x 1 ft. (per foot Round, straight 10" or 3-1/4" x 12" Duct. lenhgth) 3-1/4"...

  • Page 7: Install The Ductwork

    WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside, unless using the recirculating option. Use single wall rigid Metal ductwork only. Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct Tape.
  • Page 8 PRODUCT DIMENSIONS AND CLEARANCE XOI27S: › Front of hood › Side of hood ����� �������� �������� �������� �������� ��������� › Top of hood › Mounting height and clearance: ����������������� ��� - 8 -...
  • Page 9 INSTALLATION INSTRUCTIONS INSTALLATION - VENTED TO THE OUTSIDE 1. FIXING THE HOOD TO THE LOWER PART OF THE WALL CABINET: This type of appliance must be fitted inside a cabinet or inside another type of support structure. The overall measurements of the range hood are given in figure 1-2.
  • Page 10 � � Fig.3 � � � � � � � � � � � � � � � � � � Fig.4 � Fig.5 - 10 -...

  • Page 11: Power Supply

    POWER SUPPLY: IMPORTANT – (Please read carefully) WARNING: FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED. Remove house fuse or open circuit breaker before beginning installation. Do not use an extension cord or adapter plug with this appliance. Follow National electrical codes or prevailing local codes and ordinances.

  • Page 12: Connect Electrical

    2. CONNECT ELECTRICAL: • Power Supply Connection: For connection to the power supply refer to the follows Fig.6: BLACK = L line WHITE = N neutral GREEN / YELLOW = G ground - A double-pole switch properly rated must be installed to provide the range hood power supply disconnection.
  • Page 13 DUCTLESS RECIRCULATING OPTION: � � � CARBON FILTER KIT XORFK04: The kit includes an air diverter A, 2 screws and 2 expan- sions plugs B and 2 round filters C. To convert this model from the sunction to the filter- ing version, it is not necessary to use the air deviator A and the screws B.
  • Page 14 � Fig.2: The filters C must be applied to the suction unit inside the hood, centering them inside of it and turning them 90° until they snap into place. � � Fig.3: Put the aluminum panels back in place (Fig.1). - 14 -...
  • Page 15 • If the apparatus is equipped with the following controls: A = LIGHT B = OFF C = SPEED I D = SPEED II E = SPEED III G = MOTOR WORKING indicator. � � � � � � - 15 -...

  • Page 16: Maintenance

    MAINTENANCE • We recommend that the range hood is switched on before any food is cooked. We also recommend that the appliance is left running for 15 minutes after the food is cooked, in order to thoroughly eliminate all contaminated air. The effective performance of the range hood depends on constant maintenance;...
  • Page 17 water marks. - For discolorations or deposit that persist, use a non-scratching household cleanser or stainless steel polishing powder with a little water and a soft cloth. - For stubborn cases, use a plastic scouring pad or soft bristle brush together with cleaser and water.
  • Page 18 FUSE • The halogen lamps circuit is controlled by a fuse 5x20 mm, 125V 5A. In case of necessity it can be replaced only by spe- cialized personnel. • Replacing halogen light bulbs: To replace the halogen lamps B, from the inside of the cooker hood press downwards �...
  • Page 19 XOI27S: ��� ��� ��� ��� �� ��� ��� ��� ��� �� ��� �� ��� ��� �� ��� �� - 19 -...

  • Page 20: Options And Accessories

    OPTIONS AND ACCESSORIES: Model XORFK04 Ductless Recirculating Filter Kit. - 20 -...

  • Page 21: Installation Preparation

    INSTALLATION PREPARATION: Check installation hardware: Locate the hardware package packed with the hood and check contents. TYPE DESCRIPTION N° 1/8" x 1/2" Aluminum filter - 21 -...
  • Page 22 - AC 120v-60Hz (4.35amp). Options: - Optional recirculating kit if outside venting is unavailable. Model: XORFK04 XO is Exclusively Distributed by: Eastern Marketing Corp 24 Eisenhower Parkway Roseland, New Jersey 07068 800-966-8300 www.easternmarketingcorp.com www.xoappliace.com - 22 -...
