Summary of Contents for Fluid HDMI DVD PLAYER

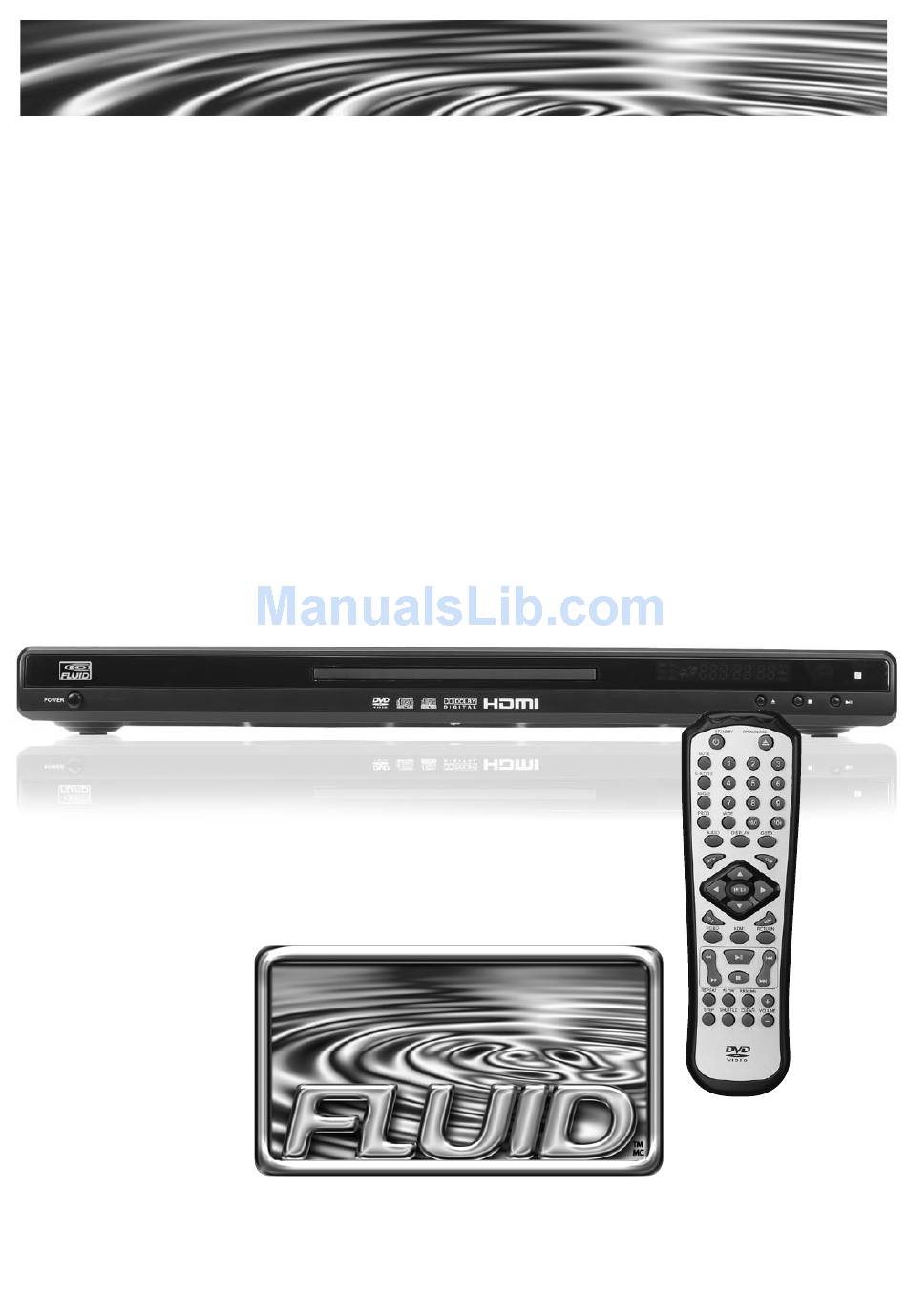

  • Page 1 1607000 HDMI DVD PLAYER User Guide...
  • Page 2: Table Of Contents

    Contents 1) Your DVD Player page 2 2) Your DVD Remote page 3 All Region Code 3) Set Up page 4 DVD discs are restricted with a region code that means that they can only be 4) Everyday Use page 7 used in a specific part of the world.
  • Page 3 Welcome Congratulations on purchasing this HDMI DVD Player with 5.1 surround sound. As well as playing all your DVDs, HDMI works with compatible televisions to give the best possible picture quality and can High-Definition Multimedia Interface combine with a 5.1 Home Theatre System uses a single cable to transmit to give high quality surround sound.
  • Page 4: Your Dvd Player

    1) Your DVD Player Remote Sensor Power DVD Tray Open/Close Stop Play/Pause Button Component Video Composite Video Output Jack Output Jacks 5.1 CH Outputs S-Video Output Jack HDMI Jack Digital Signal COAXIAL Audio Output Jack Right Stereo Audio Output Jack Left Stereo Audio Output Jack...
  • Page 5: Your Dvd Remote

    2) Your DVD Remote Standby Puts the DVD in low power standby mode. Mute Open/Close Subtitle Turn on and select subtitles. Display Angle Press to show the on screen Change viewing angles information display for your DVD. (if available) GoTo Prog Jump to a specific point on your DVD.
  • Page 6: Set Up

    3) Set Up Insert Batteries 1. Insert the batteries supplied into your remote control - ensure that the positive (+) and negative (-) symbols on the batteries match the symbols inside the remote control unit. Remove all packaging and place your DVD player in a location where there is good ventilation and do not cover or place anything on top of...
  • Page 7 3) Set Up 4. To find the correct input channel for your DVD player, use your television remote. Try pressing the AV button if there is one, otherwise consult the user guide for your television. With the DVD player on, the screen will look like this.
  • Page 8 3) Set Up Which video cables should you use? The table below is designed to help you choose the best video option available for your TV. Please note that unless you are using a HDMI you will still have to use the red and white sound cables supplied, (audio L and R) to send sound to your TV.
  • Page 9: Everyday Use

    4) Everyday Use Play a Disc Skip to a Different Section 1. Ensure the power switch on the Use the PREVIOUS and NEXT front of the DVD player is ON. buttons to skip backwards and forwards 2. Press the OPEN/CLOSE button through the chapters and titles on your on the remote, or front of the disc.
  • Page 10 4) Everyday Use Display Screen Information Showing Subtitles Press DISPLAY to show the on screen If the subtitles are available on your information display for your DVD DVD they can be switched on with the including title, chapter and run time. SUBTITLE button.
  • Page 11: Advanced Use

    5) Advanced Use Repeat Sections of your DVD Playing MP3’s The REPEAT button allows you to repeat To play MP3’s through your DVD player: a section of your DVD. Press REPEAT to cycle through the options and choose 1. Insert a MP3 CD into your DVD whether to repeat current Chapter, Title, player.
  • Page 12: Adjust System Settings

    6) Adjust System Settings The setup menu allows you to adjust the general settings for your DVD player as well as the language, audio and video setings. Press SETUP to enter the setup menu, use the arrow buttons to select each option and the ENTER button to select it. System Setup •...
  • Page 13 6) Adjust System Settings • Audio Lang: The audio language want using the arrrow buttons and the setting changes which audio track ENTER key. Please Note: the rating the DVD player will select for you. option will not be available unless the Where available you can set the password has been unlocked in the DVD player to choose one of four...
  • Page 14: Video Setup

    6) Adjust System Settings • Saturation: To alter the colour - RAW - Select if the unit is connected to an saturation, select the menu item amplifier with a Dolby Digital or DTS decoder via the digital audio outputs. with the enter key and use the - PCM - Select if the unit is connected to a arrow buttons to select the setting...
  • Page 15: Digital Setup

    6) Adjust System Settings Digital Setup If you are using a HDMI connection to a HDMI enabled television then you can select the digital sound output that your DVD player will generate. • OP mode: Choose between: - LINE OUT - Standard digital audio setting.
  • Page 16: Troubleshooting

    7) Troubleshooting If you experience problems with your DVD player the following guide may help you resolve the problem. PROBLEM POSSIBLE CAUSE WHAT TO DO DVD player won’t Main power adaper unplugged Check main power adapter is firmly in the socket. switch on Main fuse blown Check the fuse.
  • Page 17: Maintenance

    8) Maintenance Cleaning Placement • Use a soft cloth with a mild detergent • Place the DVD player in an area to wipe the cabinet, panel and with proper ventilation. controls. • Never put the DVD player in direct • Never use abrasive paper, polishing sunlight or near heat sources.
  • Page 18: Technical Specifications

    9) Technical Specifications Laser wavelength 650nm Video NTSC / PAL / AUTO Disc format DVD, VCD, MPEG4, Picture-CD, CD, CD-R, DVD-R Frequency response 20Hz ~ 20kHz (± 1dB) Signal / noise ratio ≥ 90dB Channel separation ≥ 85dB (1kHz) Dynamic range ≥...
  • Page 19: Warnings

    10) Warnings This product was designed and manufactured to meet strict quality and safety standards. There are, however, some operation precautions that you should be aware of: The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
  • Page 20 10) What the FCC wants you to know This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 21: Warranty

    (2) years from the date of purchase. Within this period, simply take the product and your proof of purchase to any ORBYX Electronics store or dealer and the product will be repaired without charge for parts and labour. ORBYX Electronics reserves the right to charge for transportation.
