INSTALLATION & OPERATING GUIDE
To ensure you have the latest revision of the Operating Manual, or to view the Illustrated Parts
Catalog, Programming Manual, or Service Manual, please visit the Bunn-O-Matic website, at
www.bunn.com. This is absolutely FREE, and the quickest way to obtain the latest catalog and
manual updates. For Technical Service, contact Bunn-O-Matic Corporation at 1-800-286-6070.
49063.0002A 04/14 ©2014 Bunn-O-Matic Corporation
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644

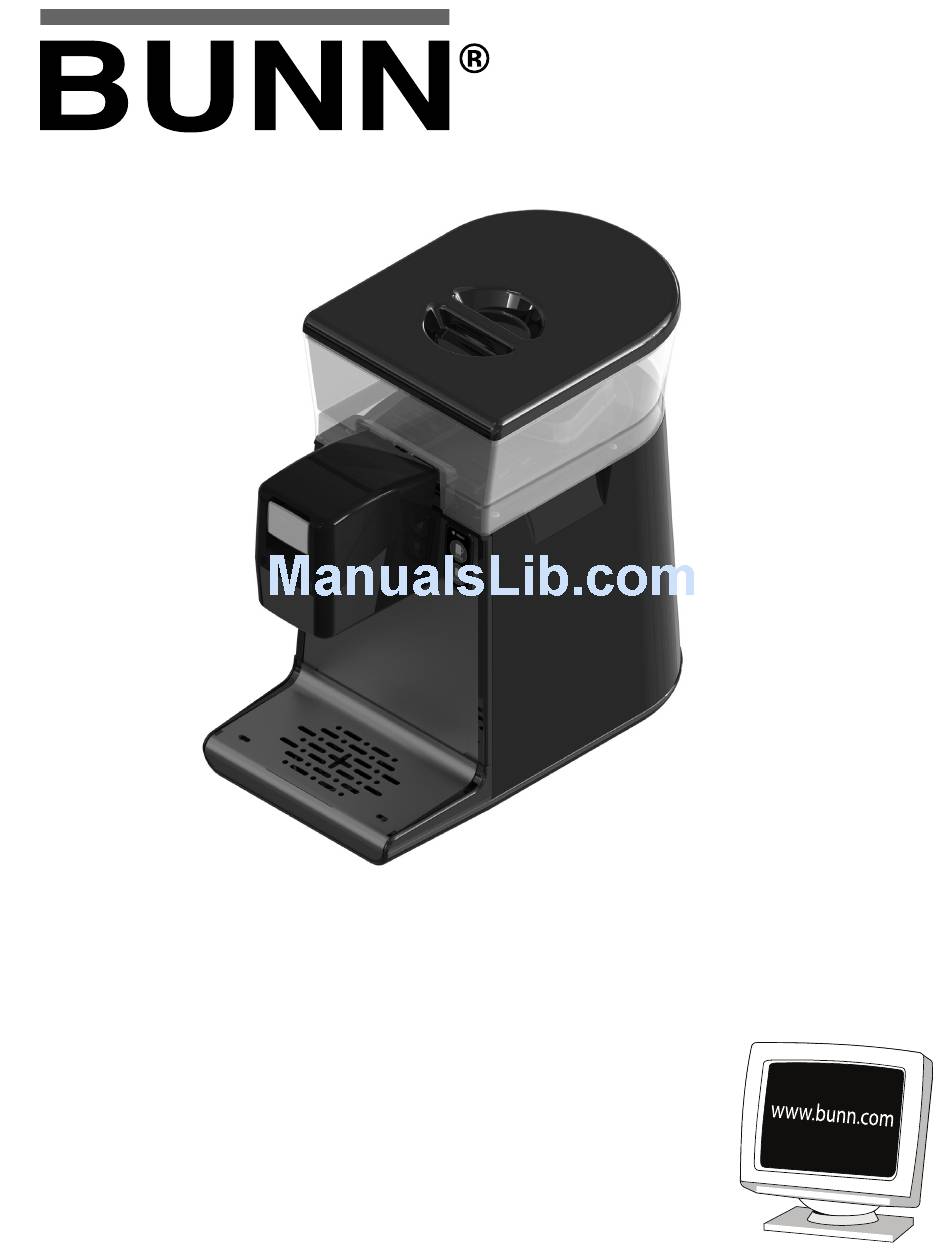

My Café
®
MCR

Advertisement

Table of Contents

   Summary of Contents for Bunn My Cafe MCR

  • Page 1 To ensure you have the latest revision of the Operating Manual, or to view the Illustrated Parts Catalog, Programming Manual, or Service Manual, please visit the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE, and the quickest way to obtain the latest catalog and manual updates. For Technical Service, contact Bunn-O-Matic Corporation at 1-800-286-6070.
  • Page 2: Warranty

    AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profi ts, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.
  • Page 3: Table Of Contents

    U.S.A., you must comply with the applicable Plumb- ing /Sanitation Code for your area. READ THE ENTIRE OPERATING MANUAL BEFORE USING THIS PRODUCT 00986.0002F 10/07 ©1994 Bunn-O-Matic Corporation #00986.0002 #00656.0001 To reduce the risk of electric shock, Authorized service personnel only.
  • Page 4: Electrical Requirements

    ELECTRICAL REQUIREMENTS CAUTION - The brewer must be disconnected from the power source until specifi ed in Initial Set-Up. Refer to Data Plate on the Brewer, and local/national electrical codes to determine circuit requirements. 120 VOLT Model 230 VOLT CE Model 230 VOLT UK Model Note: This electrical service consists of 2 current carrying conductors (L1 and Neutral) and a separate con-...
  • Page 5: Plumbing Requirements

    (0.345 MPa). The water inlet fi tting is .75-11.5 NH (HOSE THREAD). For convenience an elbow adaptor is provided to convert to a ¼˝ fl are fi tting. Bunn-O-Matic does not recommend the use of a reverse-osmosis or deionized water supply to this equipment.
  • Page 6: Initial Setup

    INITIAL SET-UP CONNECT TO POWER SOURCE Turn on main power switch. Water will fl ow from reservoir to fi ll the POUROVERS ONLY: PLACE CUP internal tank. Wait approximately REMOVE TOP COVER Place a large empty cup (10 ten minutes for the water to heat. Pour in water to the max fi...
  • Page 7: Brewing

    BREWING OPEN BREW CHAMBER INSERT CUP PLACE CUP Pull bottom or push top of Push lid down to close brew Place empty cup under the brew handle to open. chamber. chamber. LARGE BREW SMALL BREW REMOVE TOP COVER NOTE START Pour in water up to fi...
  • Page 8: Cleaning

    1. Lift the driptray cover straight up. 2. Pull the driptray out and clean as needed. The use of a damp cloth rinsed in any mild, nonabra- sive, liquid detergent is recommended for cleaning all surfaces on Bunn-O-Matic equipment. 49063.2 032014 Page 8...
  • Page 9: Tank Draining

    TANK DRAINING TANK DRAINING 1. Disconnect the power and water supply to brewer. Allow brewer to cool before proceeding. 2. Remove the top cover. 3. Lift reservoir up and set aside. 4. Remove 5 screws securing rear cover. 5. Remove cover. 6.
  • Page 10: Programming

    PROGRAMMING Setting the Large and Small Brew volume: 1. Press and hold the Large (to adjust Large brew)or Small brew switch (to adjust Small) for 5 seconds while the brew chamber is open. During that time the red/green LEDs will fl ash rapidly. After 5 seconds the leds will turn off.
