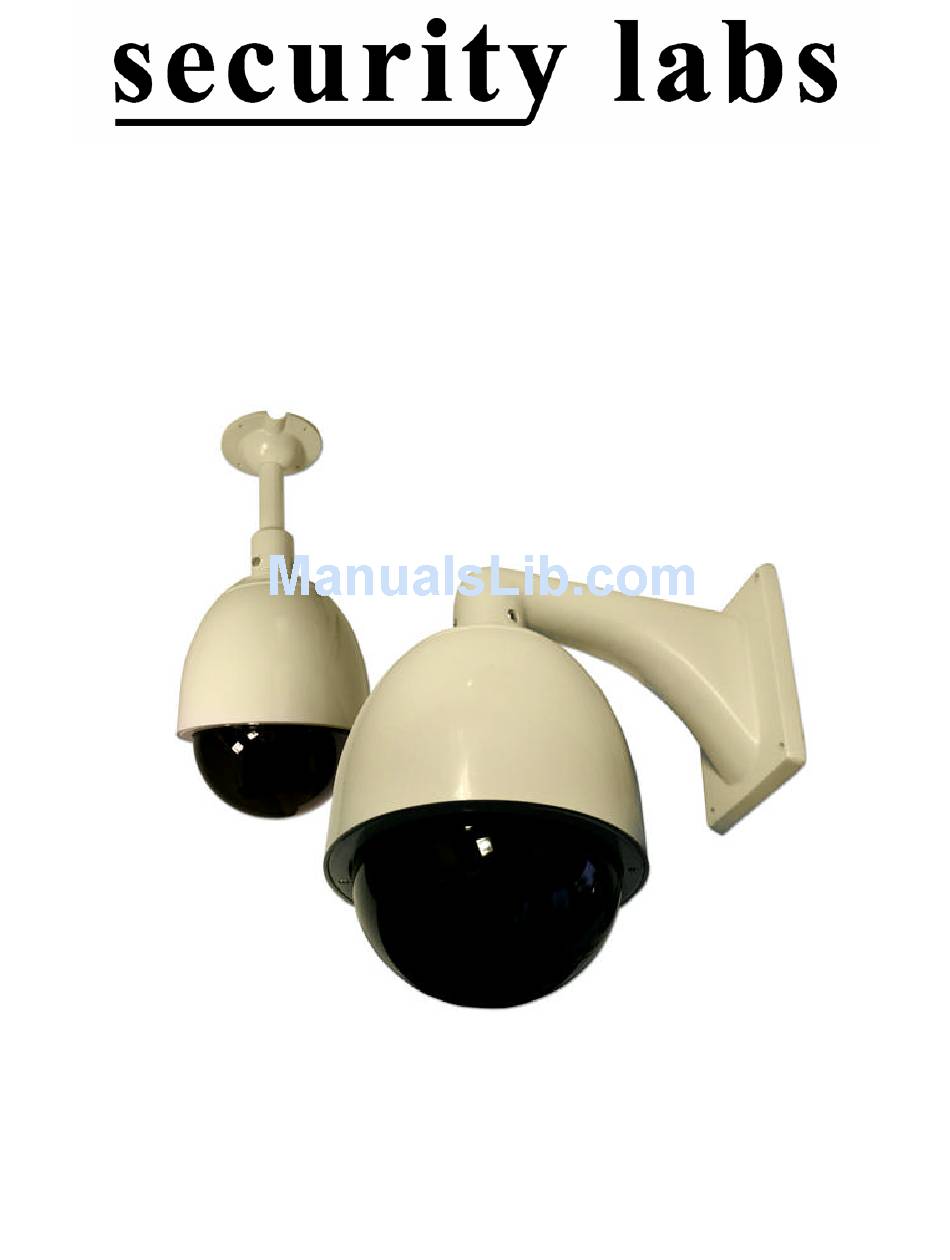

- Page 1 Model SLC-171C Weatherproof Pan/Tilt 22X Optical Zoom Speed Dome Owner’s Manual 15540 Herriman Blvd. Noblesville, IN 46060 - Customer Support 1-800-774-0284 www.security-labs.com...
-
Page 2: Table Of Contents
Important Safety Measures 1) Please read this manual before installing the equipment. 2) Please follow all warning notices on the equipment and in the manual. 3) Please only use accessories which are recommended by your dealer or ones that are listed at the end of this manual. -
Page 3: Dome Operation, Use, & Installation 1. Dome Wiring
1. Wiring CAUTION Please confirm supply voltage meets requirements of the dome camera’s power supply. Wiring for Dome System 100 feet of CAT5E twisted pair cable, and a 12VDC power supply is included with your dome camera. Additional CAT5E cable can be purchased from a variety of stores or distributors and easily spliced to your cable. -
Page 4: Switch Settings
construction project. 3) Mark the location for the bracket mounting screws and drill the appropriate size holes for your installation. Run wiring from the dome through the bracket, and attach the dome to the bracket exerting equal pressure on the three screws around the neck of the dome. Connect the house wiring from the control unit or DVR to the dome before mounting the dome if access to the dome wiring will be limited after mounting. -
Page 5: Communication Protocol Setting
This ID setup switch shows 10010011 corresponding to ID148. Each camera ID setting and OSD are entered as below: Switch Position Selection CAM-001 CAM-002 CAM-003 CAM-255 Other ID numbers can be setup according to the Address Code Correspondence Table at the end of the manual. -
Page 6: Camera Selection
Preset positions can be set with your control equipment. Some DVRs have the ability to do this directly (i.e. Security Labs Pro line, and Piczel Dual-Codec models). Typically the PTZ is adjusted to a target view, a <SET> button on the DVR is pressed, and then a number or channel button... - Page 7 Preset Call To view a preset position with most DVRs, a <CALL> button is pressed followed by the earlier programmed number or channel button. Please refer to the DVR or controller’s instructions for specific information on both functions. When using preset functions, the typical accuracy for horizontal and vertical duplication of stopping points is within 0.3°.
-
Page 8: Tour Groups
Call not display zoom change icon 10. Tour Groups Tour group scanning combines auto scanning between a series of presets with a certain sequence and a certain speed, and stay a certain time at each preset. The scanning speed and the stay time at each preset can be set according to the user's actual requirements. -
Page 9: Horizontal Scanning
Stay Time For Preset Setting Stay time for each preset of the tour group can be setup as 3 seconds, 5 seconds or 7 seconds. [43]+[Call]--------- setting stay time for preset of the group is 3 seconds [44]+[Call]--------- setting stay time for preset of the group is 5 seconds [45]+[Call]--------- setting stay time for preset of the group is 7 seconds If you wish to setup the stay time for preset as 7 seconds, input "45"... -
Page 10: Pan/Tilt/Zoom Lens Matching
[42]+[Call]--------- setting scanning with high speed If you wish to setup the horizontal scanning with middle speed, input “41” on the control keyboard, then press the key [call]. 12. Pan/Tilt Speed and Zoom Lens Automatic Matching This speed dome has the function of pan/tilt speed and zoom lens automatic matching. When the function is ON, the pan/tilt speed will auto decrease when the zoom lens is increased helping you track objects far away. -
Page 11: Camera Specifications
16. Camera Specifications Image Device 1/4" Color Sony Super HAD (Hi-Res.) Picture Elements NTSC:768x494, PAL:752x582 Resolution 470 TVL Min. Illumination 0.7 Lux / F1.6 S/N Ratio More than 48dB Electronic Shutter NTSC:1/60~1/30,000, PAL:1/50~1/30,000 Flickerless Mode On / Off (NTSC:1/100, PAL:1/120) Iris Control Auto / Manual Lens Furnished 22x Auto Focus Zoom (3.9~85.8mm / F1.6~3.7) Digital Zoom Ratio Basic 16x (Total Zoom Ratio 352x),... -
Page 13: Optional Accessories
19. Optional Accessories 1) Pendant Mount (Ceiling) Bracket 2) Wall Mount Bracket 3) Pole Mount Bracket 4) Corner Mount Bracket Wall Mount Ceiling Mount Corner Mount Pole Mount... - Page 14 Installation Notes:...
