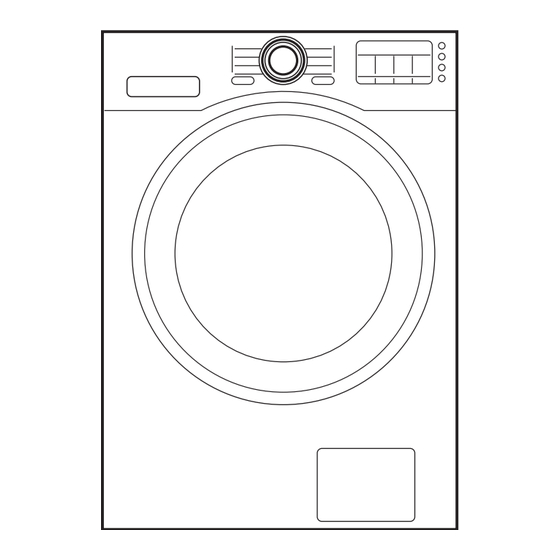

Washing Machine Instruction Manual PW-F85-W ■ Economic wash system Using artificial intelligence, the washer uses minimum energy and water by selecting optimal water level and washing time. ■ Low noise system The washer minimizes the washing and spinning noises by sensing the amount of laundry.
A NOTE TO YOU Thank you for buying a PARMCO appliance. PARMCO washers are easy to use, save time, and help you manage your home better. This manual contains valuable information about how to operate and maintain your washer properly and safely.
Contents Parts and features The parts and features of your washer are illustrated on the page. Become familiar with all parts and features before using your washer. NOTE The drawings in the book may vary from your washer model. They are designed to show the different features of all models coverd by this book. Your model may not include all features.
Washer safety Save these instructions Your safety is important to us. To reduce the risk of fire, electrical shock, or injury when using your washer adhere to the following basic precautions. Read all instructions before using your washer • Flammable fluids (dry-cleaning solvents, Please ...
Installation instructions Removing transit bolts 1. Before operating the washer, remove the transit 2. Unscrew the 4 bolts with the 10mm hex wrench bolts (4ea) along with the rubber. or spanner or cross-tip screwdriver. Keep the 4 • If the bolts are not removed, it may cause bolts for a later time.
Inlet hose connection The washer should be connected to the water mains using new hose sets and old hose sets should not be reused. In using only one water tap or in case of only one water inlet valve, connect the inlet hose to the cold water inlet valve.
El Electrical requirements Electrical shock hazard Failure to follow these instructions could result in death or serious injury. WARNING • Electrical earth is required on this washer • Don’t earth to a gas pipe. • If it does not fit the outlet, have a proper outlet •...
Electrical requirements (cont.) Adjust the level of washer using adjustable legs. • Please check if there is any gap between the four adjustable legs and the floor. • Adjust the level of washer by turning adjustable legs. And make it sure that there is no swaying of washer.
Operating your washer (cont.) Sorting • Separate heavily soiled items from lightly soiled ones, even if they would normally be washed together. • Separate dark colors from light colors, colorfast items from non-colorfast item. Soil (Heavy, Normal, Light) Separate clothes according to amount of soil. Color (White, Lights, Darks) Separate white clothes from colored clothes.
The functions of the control panel ■ PW-F85-W Steam(option) Water +(option) Steam(option) Water +(option) Option Steam(option) Water +(option) Press this switch to turn the power on or off. Steam(option) Water +(option) Operation and temporary pausing is alternated as it is pressed.
Washing procedure and program selection 1. COTTON IS AUTOMATICALLY SELECTED UPON POWER ON • Press the Power button to start. • Press the Start/Hold button • Initial programme - Program : Cotton - Wash : main wash - Rinse : 3 times - Spin : 800 RPM - Water temperature : 40°C 2.
Page 12
Washing procedure and program selection (cont.) 4. FUNCTION • Recommended programs according to the laundry type Fabric Proper Maximum Program Option Type Temp. Load First check if laundry is machine 60°C Pre Wash washable.(white cotton, linen (Cold, 30°C, Rating Rinse+ towel and sheets..) 40°C, 95°C) Cotton/Normal...
Page 13
Washing procedure and program selection (cont.) * COTON/NORMAL PROgRAM Put the laundry in to the drum. Put detergent and softener into the detergent case. Then close the door. • Put detergent into the main wash and prewash compartments in the detergent case. Softener should be below the ‘MAX’...
Page 14
Washing procedure and program selection (cont.) * SYNTHETIC PROgRAM Put the laundry in the drum. Put detergent and softener into the detergent case. Then close the door. • Put detergent into the main wash and prewash compartments in the detergent case. Softener should be below the ‘MAX’...
Page 15
Washing procedure and program selection (cont.) * DELICATE / HANDWASH PROgRAM Put the laundry in the drum. Put detergent and softener into the detergent case. Then close the door. • Put detergent into the main wash compartments in the detergent case. Softener should be below the ‘MAX’...
Page 16
Washing procedure and program selection (cont.) * INTENSIVE PROgRAM Put the laundry in the drum. Put detergent and softener into the detergent case. Then close the door. • Put detergent into the main wash and prewash compartments in the detergent case. Softener should be below the ‘MAX’...
Page 17
Washing procedure and program selection (cont.) * QUICk 20 Put the laundry in the drum. Put detergent and softener into the detergent case. Then close the door. • Put detergent into the main wash compartments in the detergent case. Softener should be below the ‘MAX’...
Page 18
Washing procedure and program selection (cont.) * SPORTS WEAR PROgRAM Put the laundry in the drum. Put detergent and softener into the detergent case. Then close the door. • Put detergent into the main wash and prewash compartments in the detergent case. Softener should be below the ‘MAX’...
Page 19
Washing procedure and program selection (cont.) * TUB CLEAN PROgRAM Press the Power button. • The LED shows only ‘---’ signal. Select the ‘Tub Clean’ program using program selection dial. • ‘Soak’ and spin ‘400’ rpm and ‘Cold’ water temperature. Press Start/Pause button.
Page 20
Washing procedure and program selection (cont.) * DRAIN PROgRAM Press the Power button. • The LED shows only ‘---’ signal. Select the ‘Drain’ program using program selection dial. Press Start/Pause button. • Drain program will start. NOTE • All programs are not selectable. E-20 E-20...
Guide for other useful programs * DELAY START (RESERVED WASHINg) Put the laundry into the Drum and put the detergent and softerner into the detergent case. Then close the Door. • Put the detergent into the main wash room (I I marking) and prewash room (I marking) in the detergent case.
Page 22
Guide for other useful programs (cont.) * ONLY WASH Put the laundry into the Drum and put the detergent and softerner into the detergent case. Then close the Door. Press the Power button. • The LED shows only ‘- --' signal. Select the ‘WASH PROGRAMME' you want by pressing ‘Wash' button.
Maintenance Proper care of your washer can extend its life. This section explains how to care for your washer properly and safely. Cleaning your washer Exterior Interior Wipe up detergent, bleach, and other spills with a Clean interior with 250ml of chlorine bleach soft, damp cloth or sponge as they occur.
How to clean the filter Lint Filter Filter Frame Filter Frame Lint Filter Lint Filter Filter Frame Cleaning the water inlet filter Clean the filter when water leaks from the water inlet. Pull the power plug Turn off the water Pull the inlet filter out.
Removing Stains (Guide Only) This is a guide only to getting the best results from your machine and is not intended to guarantee results. Always check material for colour fastness and ensure that materials cannot be damaged before undertaking actions. Stained, heavily-soiled, or greasy items may need to be prewashed or soaked for best results.
Trouble shooting Most problems are easily solved if you understand the cause. Check the following list for problem before calling for service. If the error mode such as IE, OE, UE were displayed on the control part, in order to solve these problem, first turn off the power of the washing machine and then turn on the power pressing Power button.
Specification MODEL PW-F85-W Dimension (mm) 600 X 645 X 850 Maximum mass of textile (kg) 8.5 Kg Unit Weight (net/gross) 69/73 67 ℓ Standard Water Consumption Spin Speed (RPM) MAX 1400 Operating Water Pressure 0.03MPa ~ 0.8MPa (0.3kgf/cm² ~ 8kgf/cm²)
Page 29
English Português Disposal of Used Electrical & Electronic Equipment Eliminação de Equipamento Eléctrico e Electrónico Usado The meaning of the symbol on the product, its accessory or packaging indicates that this product shall O símbolo no aparelho, nos seus acessórios ou na not be treated as household waste.
Page 30
Italiano Èesky Trattamento del dispositivo elettrico od Likvidace použitých elektrických a elektronických zaøízení elettronico a fine vita (Applicabile in tutti i paesi Tento symbol na výrobku, jeho pøíslušenství nebo obalu dell’Unione Europea e in quelli con sistema di oznaèuje, že s tímto výrobkem nesmí být zacházeno jako s raccolta differenziata) domovním odpadem.
Page 31
Svenska Dansk zení Omhändertagande av gamla elektriska och Håndtering af udtjente elektriske og elektroniske elektroniska produkter (Användbar i den produkter (gælder for den Europæiske Union og balu Europeiska Unionen och andra Europeiska andre europæiske lande med separate ko s länder med separata insamlingssystem) indsamlingssystemer) ním ých...
ABOUT THIS MANUAL ABOUT THIS MANUAL VISION CREATIVE. INC. 서울 종로구 통의동 6번지 이룸빌딩 4층 담 당 배상일 님 F.MODEL D-LD1422EFB BUYER OESM B.MODEL PW-F85-W BRAND PARMCO 언 어 영어 COUNTRY NEW ZEALAND 1차 2차 일 정 3차 4차 5차...
