INSTALLATION
AND OPERATING
INSTRUCTIONS

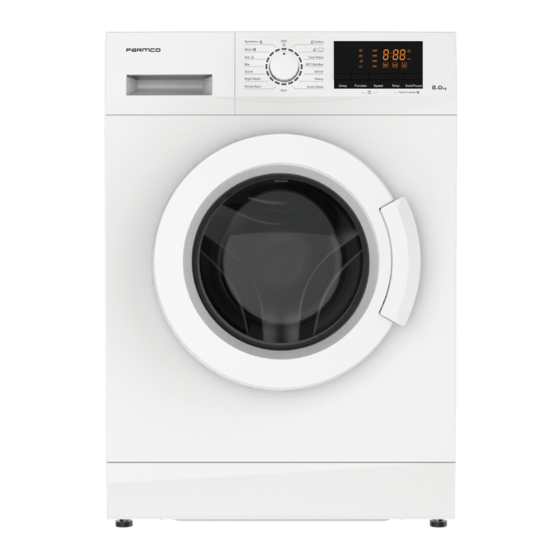

Model: WM8WF
As part of Parmco Appliances commitment to improving and updating product ranges,
we reserve the right to alter, change and update technical specifications and appearance
attributes of all Parmco Appliances products. E&OE.
727626082022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WM8WF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Parmco WM8WF

  • Page 1 INSTALLATION AND OPERATING INSTRUCTIONS Model: WM8WF As part of Parmco Appliances commitment to improving and updating product ranges, we reserve the right to alter, change and update technical specifications and appearance attributes of all Parmco Appliances products. E&OE. 727626082022...
  • Page 2 Dear Valued Customer, Thank you and congratulations on purchasing your new Parmco appliance. All Parmco products are made to the highest quality and design standards. We are sure you will enjoy your new appliance. As a note, please read through these instructions carefully. These will assist you in gaining a complete understanding of the functions and features offered by your appliance.
  • Page 3 • If proof of date of purchase is not supplied, except at the sole Service Agent. discretion of Parmco Sales. Proof of purchase can be for the • This warranty is offered as an extra benefit, and does product itself, or if installed with a kitchen or house then proof of...
  • Page 4 PREFACE This washing machine conforms to current safety requirements. Inappropriate use can, however, lead to personal injury and damage to property. To avoid the risk of accidents and damage to the washing machine, please read this manual carefully before using it for the first time. They contain important information on its installation, safety, use and maintenance.
  • Page 5: Table Of Contents

    Contents Safety notices Parts and features Installation The functions of the control panel How to use washer Cleanness and maintenance Troubleshooting guide Technical parameters Electric Diagram...
  • Page 6: Safety Notices

    Safety Notices WARNING Read and understand thoroughly these safety instructions before use. The items indicated here are very important safety precautions, which must be followed. We cannot be held liable for damage caused by non-compliance with the warning and safety instructions or resulting from incorrect use or operation. Cleaning and user maintenance shall not be made by children without supervision.
  • Page 7 If the connection cable is damaged or broken, it must only be replaced by an approved service technician to protect the user from danger. Faulty components must only be replaced by genuine manufacturer original spare parts. Only when these parts are fitted the saftey standards of the machine can be guaranteed. THIS WASHING MACHINE MUST BE EARTHED.
  • Page 8: Parts And Features

    Parts and Features Before Use Top cover Knob Drawer(for detergent or fabric softener) Control panel Door glass Case body Door seal Door Drain hose Lower cover Adjustable feet Drain pump filter Unscrew the drain pump filter to let water run out when the machine is not used for a long time.
  • Page 9: Installation

    Installation Before Use Backout packing Remove all the packing(including the foam base) or the vibration and noise may occur. Dispose all the wrappage safety and keep them out of the reach of children. Danger of suffocation! It is normal that water drops appear on the packing plastic bag and the door glass, which are resulted from the water left in the tub for checking out.
  • Page 10 Installation Use process Installation place requirement A concrete floor is the most suitable installation surface for a washing machine, being far less prone to vibration during the spin cycle than wooden floorboards or carpeted surface. The machine must be level and securely positioned. The distance between the machine and wall must be more than 10 cm .
  • Page 11 Installation Use process 2. Connected securely to a standpipe Firstly form a hook in the end of the drain hose using the “U” piece supplied. Place the drain hose into your standpipe, which should have an internal diameter of approximately 30mm thus ensuring there is an air break between the drain hose and standpipe.
  • Page 12: The Functions Of The Control Panel

    The functions of the control panel Use process The operation panel 1.Start/pause Press this button to start or pause a wash cycle. The door can not be opened when the machine starts. 2.Temp Press this button repeatedly to change the wash temperature. The detail is in the form on page 8 3.Speed Press this button repeatedly to change the spin speed.
  • Page 13 The functions of the control panel Use process Options and functions for programs Weight Time Rinse times Spin speed(rpm) Program Temp(℃) (kg) (min) Standard 00/20/40/60/95 2/3/4/5 0/400/600/800/1000/1200 00/20/40/60/95 2/3/4/5 0/400/600/800/1000/1200 2/3/4/5 0/400/600/800/1000/1200 2/3/4/5 0/400/600/800/1000 00/20/40 0/400/600/800 00/20/40/60 3/4/5 0/400/600/800 60/95 0/400/600/800/1000/1200 1/2/3/4 0/400/600/800/1000/1200...
  • Page 14 The functions of the control panel Use process Display icon explanation Digital display: This icon shows the time, speed, rinse times, Error code. Remaining time: this icon will shinning once the display show the remaining time. Delay time: this icon will shinning once the display show the delay time. Child lock: this icon will shinning once child lock function is selected, otherwisw will gone.
  • Page 15: How To Use Washer

    How to use washer Use process Before washing clothes for the first time, you must run a complete cycle without clothes. To do these: 1.Connect the power and turn on the tap. 2.Turn the knob to position “Standard”. 3.Press “Start/Pause”. It can remove the water which is left in the tub because of manufacturer’s checking out.
  • Page 16 How to use washer Use process Using the detergent drawer 1. Open the drawer and add adequate detergent into main wash compartment marked “ ” or “ ”. 2. Add the fabric softener into compartment marked “ ” or “ ”...
  • Page 17 How to use washer Use process Washing programme chart Programme Washing symbol Fabric Cottons, linens or cotton mix fabrics, e.g. table linen, towelling, Standard underwear, T-shirts etc. Small loads of items which require freshening up and which can Quick be washed in a Cotton programme. This programme can be used for rinsing items which can be Rinse+Spin washed in a Cotton programme.
  • Page 18: Cleanness And Maintenance

    Cleanness and Maintenance Use process Disconnect the machine from the mains electricity supply and withdraw the plug from the socket before cleaning the machine. The washing machine must not be hosed down. Cleaning the exterior Clean the exterior with a mild non-abrasive cleaning agent or soap and water using a well wrung-out cloth.
  • Page 19 Cleanness and Maintenance After use Cleaning the drawer housing Use a bottle brush to remove detergent residues inside the drawer housing. Cleaning the water inlet filter Use pointed nose pliers to withdraw the plastic filter. Clean, put back and secure. These filter should be checked every 6 months or so, or more often if there are frequent interruptions to the water supply.
  • Page 20: Troubleshooting Guide

    Troubleshooting guide Difficult explanation Problem Error Code Possible Cause 1. Water tap is not open. 1. Open the water tap. The machine “E01” is on the 2. Drain hose is put down. 2. Hook up the hose. fills overtime. screen. 3.
  • Page 21: Technical Parameters

    Technical Parameters Appendix Model WM8WF Parameter 220-240V~;50Hz Power Washing / spin capacity Rated power 2100W Water pressure 0.02-0.8MPa Net weight / gross weight 65kg/69kg Outer dimension 595X545X845mm (W x D x H)mm Note: Data can vary from the nominal values given depending on water pressure, water hardness, water inlet temperate, room temperature, type and volume of load, fluctuations in the electricity supply and any extra options seleceted.
  • Page 22: Electric Diagram

    Electric Diagram Appendix...
