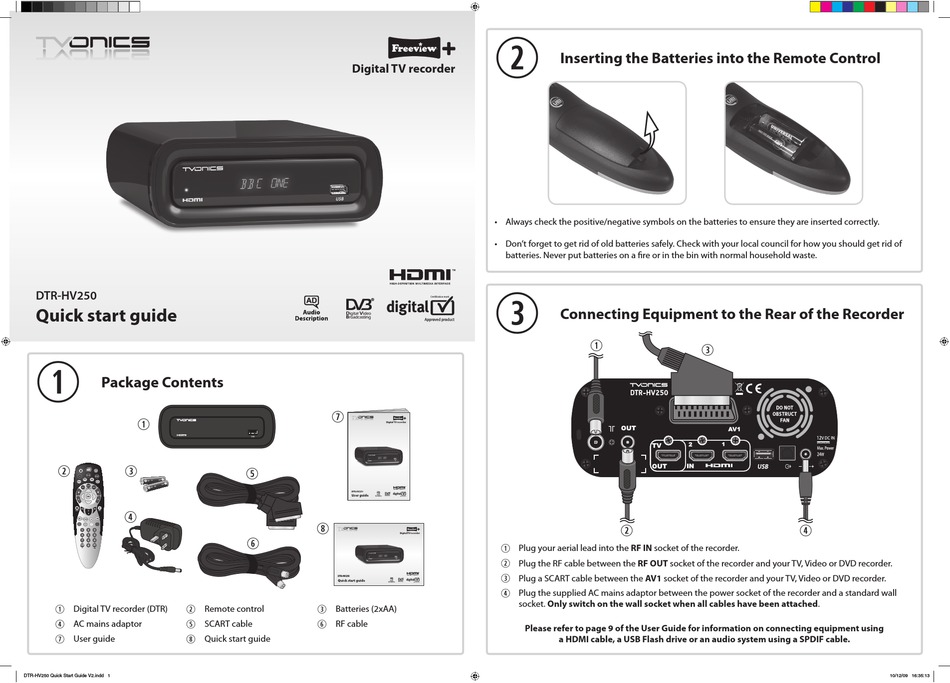

TVonics DTR-HV250 Quick Start Manual

DTR-HV250

Quick start guide

q

Package Contents

q
w e
INPUT
TEXT
r
SUB AD
Digital TV recorder (DTR)
q w
AC mains adaptor
r t
User guide
u i
DTR-HV250 Quick Start Guide V2.indd 1
Digital TV recorder
u
t
i
y
DTR-HV250
Remote control Batteries (2xAA)
e
SCART cable RF cable
y
Quick start guide
w
Inserting the Batteries into the Remote Control
• Always check the positive/negative symbols on the batteries to ensure they are inserted correctly.
• Don't forget to get rid of old batteries safely. Check with your local council for how you should get rid of
batteries. Never put batteries on a fire or in the bin with normal household waste.
e

Connecting Equipment to the Rear of the Recorder

q
w
Plug your aerial lead into the RF IN socket of the recorder.
q
Plug the RF cable between the RF OUT socket of the recorder and your TV, Video or DVD recorder.
w
Plug a SCART cable between the AV1 socket of the recorder and your TV, Video or DVD recorder.
e
Plug the supplied AC mains adaptor between the power socket of the recorder and a standard wall
r
socket. Only switch on the wall socket when all cables have been attached.
Please refer to page 9 of the User Guide for information on connecting equipment using
a HDMI cable, a USB Flash drive or an audio system using a SPDIF cable.
e
r
