Page 1: User Manual
REIMESCH KOMMUNIKATIONSSYSTEME GMBH ALPIN 200 - HF Linear Amplifier - USER MANUAL v1.0... -
Page 2: Declaration Of Conformity
This declaration is issued under the sole responsibility of the manufacturer and, if applicable, his authorised representative: - Contact: Christian Reimesch, Tel. +49 2204 584751 and Fax. +49 2204 584767 Bergisch Gladbach, 16.01.08 (Christian Reimesch, CEO) ALPIN200 Manual © Copyright 2008 by Reimesch Kommunikationssysteme GmbH... -
Page 3: Technical Data
2 x 4CX800A (GU74B) forced air cooling 230 VAC – 50Hz ,one phase supply voltage (W x D x H) (470mm x 415mm x 190mm) Dimensions 40 kg Weight AC-Power Fused at 20 A max. ALPIN200 Manual © Copyright 2008 by Reimesch Kommunikationssysteme GmbH... -
Page 4: Table Of Contents
POWER ON ........................ 9 2.3. STANDBY MODE ....................10 2.4. OPERATE MODE ....................10 2.5. ELECTRONIC BIAS SYSTEM (EBS) only ALPIN 200 MK II ......11 2.6. TUNING PROCEDURE ................... 11 2.7. TUNING EXAMPLE ....................12 2.8. TUNE TABLE ......................13 PROTECTION SYSTEM .................... -
Page 5: Installation And Setup
When the amplifier is delivered to you it is packed in a cardboard box with styropor inlays. Please handle the package with care. In case of damage you may need it for the ALPIN 200 to be transported back safely. - Page 6 2) Connect a suitable antenna or artificial load being able to handle the output power delivered by the ALPIN 200. 3) Connect the PTT – Line from your transceiver to the RELAY jack of the ALPIN 200. The voltage on the Relay Jack is 12V and the current to ground is 11mA.
-
Page 7: Transformer
• 6 pin plug socket to the high voltage board (only 2 pins connected) • 9 pin plug socket to main board and G1/G2 board • 2 pin plug socket to tube deck • 4 screws on the bottom of the box ALPIN200 Manual © Copyright 2008 by Reimesch Kommunikationssysteme GmbH... -
Page 8: Antenna
1.5. COOLING SYSTEM The cooling of the ALPIN 200 is realized by a high-quality blower. The air input port is to be found on the back panel of the amplifier and the output outlet on the top side. !!! ATTENTION !!! It is very important to guarantee a free air flow from the input- to the output side. -
Page 9: Operation

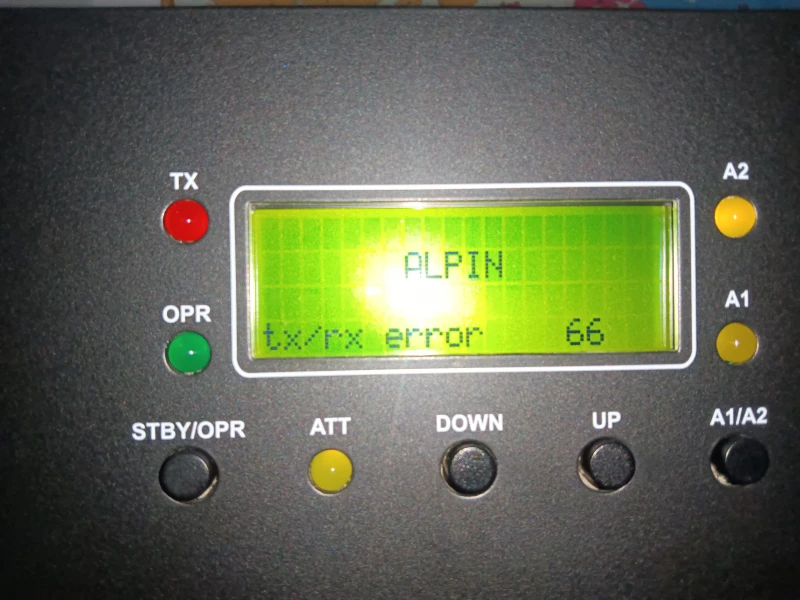

LCD display at the front panel: Now you can switch on the ALPIN 200 with the POWER SWITCH on the front panel. After this, it will need another 2:30 min for heating up the tube. The LCD display will inform you about the remaining time until the amplifier has reached STANDBY MODE with the following two messages. -
Page 10: Standby Mode
Please have a look at page 15 for more information. 2.3. STANDBY MODE When the warming-up time is over, the ALPIN 200 will move to standby mode. Here you can see the forward power for the first time, the reflected power, and the CAP meter. The fourth row of the display is used to show individual and /or the most essential values of the amplifier. -
Page 11: Electronic Bias System (Ebs) Only Alpin 200 Mk Ii
5 EXHIBIT OPERATION 2.5. ELECTRONIC BIAS SYSTEM (EBS) only ALPIN 200 MK II The amplifier has an integrated EBS which can be activated and deactivated after switching on. The buttons UP and DOWN have to be pressed down while pressing the LINE switch on the backside. -
Page 12: Tuning Example
Here, we have found the optimum point for the LOAD Capacitor. Now we can release the PTT and increase the drive power. After pressing the PTT again it might be possible to readjust the amplifier a bit. ALPIN200 Manual © Copyright 2008 by Reimesch Kommunikationssysteme GmbH... -
Page 13: Tune Table
These settings are not exact but they can give you a starting point for a faster tuning of the amplifier. Band Tune Load 3.56 7.05 10.1 14.25 18.15 21.25 24.92 28.5 50.2 These settings will vary from one amplifier to another. ALPIN200 Manual © Copyright 2008 by Reimesch Kommunikationssysteme GmbH... -
Page 14: Protection System
G1 screen current low air for > 90 s problem in low voltage supply drive power > 0.44W average plate voltage > 480V G2 screen current > 5mA ALPIN200 Manual © Copyright 2008 by Reimesch Kommunikationssysteme GmbH... -
Page 15: Errors In Operate Mode
Standby mode Temperature > 97°C ( 207° F) Warning OVERHEATING Temperature > 115°C ( 239° F) Standby mode ARC FAULT Recognized arc Standby mode GRID CURRENT Grid current too high Standby mode ALPIN200 Manual © Copyright 2008 by Reimesch Kommunikationssysteme GmbH... -
Page 16: Schematic
5 EXHIBIT SCHEMATIC 4. SCHEMATIC ALPIN200 Manual © Copyright 2008 by Reimesch Kommunikationssysteme GmbH...
