Summary of Contents for Alto ELVIS MKII

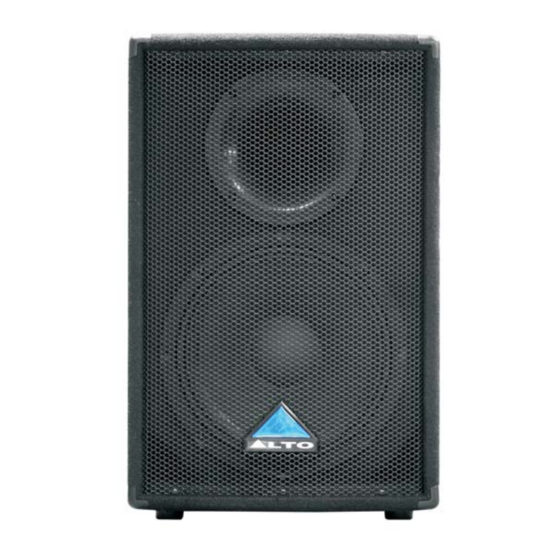

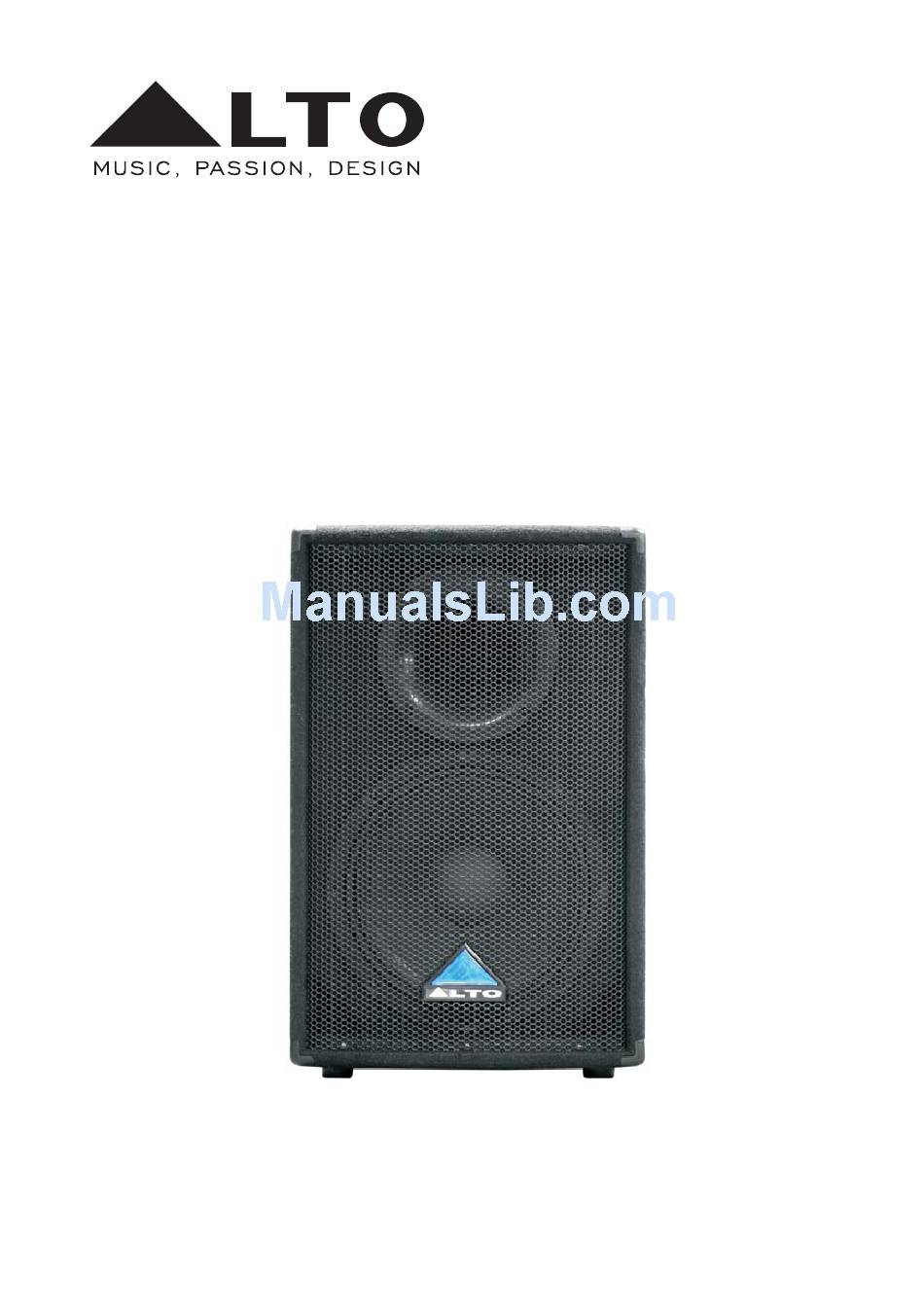

- Page 1 OWNER'S MANUAL ELVIS MKII SPEAKER ENCLOSURES ACTIVE MODELS www.altoproaudio.com Version 1.0 DEC 2008 English...
- Page 2 IMPORTANT SAFETY INSTRUCTION CAUTION WARNING To reduce the risk of electric shock RISK OF ELECTRIC SHOCK and fire, do not expose this equipment DO NOT OPEN to moisture or rain. TO REDUCE THE RISK OF ELECTRIC SHOCK PLEASE DO NOT REMOVE THE COVER OR Dispose of this product should THE BACK PANEL OF THIS EQUIPMENT.
-
Page 3: Table Of Contents
7. WARRANTY 1. INTRODUCTION Thank you for your purchasing one of our ELVIS MKII speaker enclosures. It is just one of the many Alto products that a talented, multinational Team of Audio Engineers and Musicians have developed with their great passion for music. -
Page 4: Quick Start - Active Speaker Cabinets
Active, Full-range, two speakers. It is similar to the passive example but you do not need a power amplifier in between the mixer and the 2 ELVIS MKII speakers Make all initial connections with all the equipments powered off, and ensure that all the main volume controls are turned down completely. - Page 5 1). Follow the above steps connecting the MAIN OUTPUTS of the mixer to the LINE INPUTS of 2 Elvis MKII active cabinets. 2). Connect the LINE OUT socket of the first ELVIS MKII cabinet to the LINE IN socket of the subsequent piece. You can connect as many speakers as you wish in this way.
- Page 6 Active, two subwoofers & two satellite speakers. In this example, the mixer is connected to the ELVIS MKII subwoofers and then a 125 Hz covered line signal is sent to the respective satellites. In this way, the high energetic content of the low frequencies is limited to the subwoofer and the satellite' s woofer act like a mid -woofer.
- Page 7 Main Mix Level control to manipulate the output level. 6). After use, turn off your active speaker cabinets first, then the mixer. LINE IN LINE IN LINE OUT LEFT LINE OUT RIGHT MAIN OUT LEFT LINE IN LEFT LINE IN RIGHT MAIN OUT RIGHT ELVIS MKII SUBWOOFER MIXER...
- Page 8 Your Elvis MKII cabinets come with both Line-level and with Microphone Inputs. You can directly connect a micro- phone into your Elvis MKII cabinet using the MIC input fashion shows (you can also connect a wireless microphone into the Line input,...
-
Page 9: Connections
AC FUSE Use only with a 250V fuse 100-120V: T6.3AL 220-240V: T3.15AL POWER CONSUMPTION:350W AC INPUT ELVIS MKII MODEL SERIAL DESIGNED IN ITALY ( 1 ) ON-OFF main power switch. ( 2 ) Input AC power socket with main fuse. - Page 10 LEFT RIGHT AC INPUT POWER CONSUMPTION: LINK POWER 350W ELVIS MKII MODEL SERIAL DESIGNED IN ITALY ON-OFF main power switch Input AC power socket with main fuse POWER, Green LED, indicate ON status BYPASS Switch Select the Hiqh pass filter or by pass Ground Lift Switch LINE IN RIGHT.ON XLR CONNECTOR...
-
Page 11: Wire Connections
HOOK 4. WIRE CONNECTIONS -. For Active Speaker Cabinets As to these circumstances, audio connections is mostly intended for the signal flow, so, determine the wire configuration according to your real application system and its connecting facility. Normally, you have the following choices: Balanced Ring Ring... -
Page 12: Frequency Response
5. FREQUENCY RESPONSE Audio Precision ELVIS 12A MKII 11/10/08 09:49:25 +110 +100 Audio Precision ELVIS 12MA MKII 11/10/08 10:37:43 +110 +100... - Page 13 5. FREQUENCY RESPONSE Audio Precision ELVIS 15A MKII 11/10/08 10:06:11 +110 +100 Audio Precision ELVIS 15SA MKII 11/10/08 13:35:44 +110 +100...
-
Page 14: Technical Specification
6. TECHNICAL SPECIFICATION 2-Way 12" Active Speaker Cabinets ELVIS 12A MKII Power System 300W Bi-Amp ( 235W-LOW/ 65W-HIGH ) in EIAJ Standard Frequency Response (-10dB) 57Hz-18kHz, FLAT/ 47Hz-20kHz, EQ.LOUDNESS Maximum SPL @ 1m 121dB Continuous/ 124dB Peak (Calculated ) Coverage ( HxV ) 70 x 70 nominal Transducer Low 12"... - Page 15 6. TECHNICAL SPECIFICATION 2-Way 15" Active Speaker Cabinets ELVIS 15A MKII Power System 400W Bi-Amp ( 335W-LOW/ 65W-HIGH ) in EIAJ Standard Frequency Response (-10dB) 54Hz-18kHz, FLAT/ 47Hz-20kHz, EQ. LOUDNESS Maximum SPL @ 1m 122dB Continuous/125dB Peak (Calculated) Coverage ( HxV ) 70 x 70 nominal Transducer Low 15"...
-
Page 16: Warranty
7. WARRANTY 1. WARRANTY REGISTRATION CARD To obtain Warranty Service, the buyer should first fill out and return the enclosed Warranty Registration Card within 10 days of the Purchase Date. All the information presented in this Warranty Registration Card gives the manufacturer a better understanding of the sales status, so as to provide a more effective and efficient after-sales warranty service. - Page 17 NO. 1, Lane 17, Sec. 2, Han Shi West Road, Taichung 40151, Taiwan www.altoproaudio.com Tel: 886-4-22313737 email: info@altoproaudio.com Fax: 886-4-22346757 All rights reserved to ALTO. All features and content might be changed without prior notice. Any photocopy, translation, or reproduction of part of this manual without written permission is forbidden. Copyright 2008 Seikaku Group NF03268-1.0...
