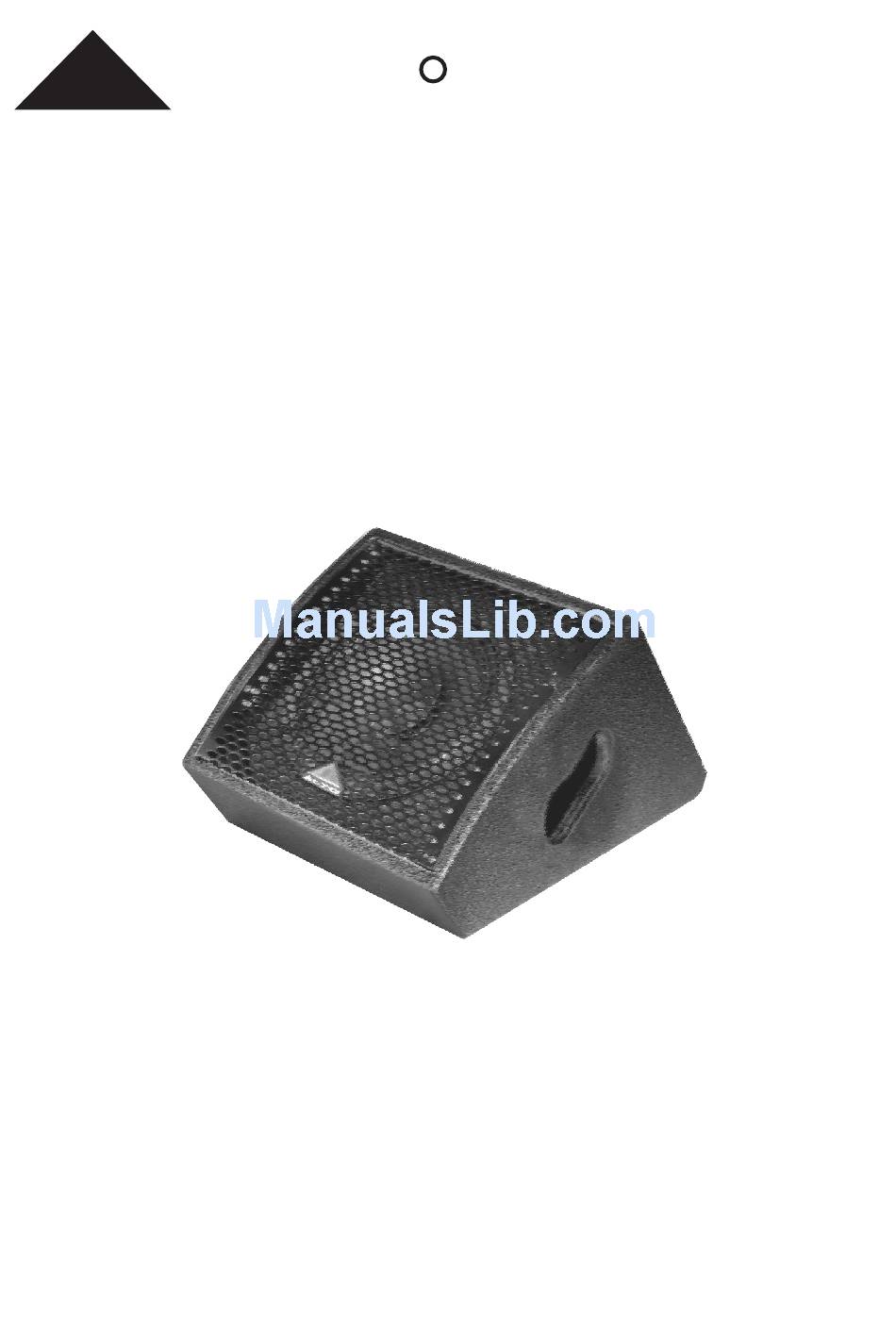

- Page 1 OWNER'S MANUAL MS MONITOR SPEAKER ENCLOSURES ACTIVE MODELS www.altoproaudio.com Version 1.1 SEPTEMBER 2007 English...
- Page 2 IMPORTANT SAFETY INSTRUCTION CAUTION WARNING To reduce the risk of electric shock RISK OF ELECTRIC SHOCK and fire, do not expose this equipment DO NOT OPEN to moisture or rain. TO REDUCE THE RISK OF ELECTRIC SHOCK PLEASE DO NOT REMOVE THE COVER OR Dispose of this product should THE BACK PANEL OF THIS EQUIPMENT.
-
Page 3: Table Of Contents
(in selected modes) that make them the lightest powered cabinets of this kind ever made. The MS full range models include another Alto innovation: The MODELLER. Thanks to this circuitry user can select 16 different tastes and applications. -
Page 4: Features
4). Turn up the volume control of the MS cabinets. 5). Use PFL function to get the proper input level for the mixer, and adjust the Main Mix Level control to reach the desired output level. 6). After use, turn off your active speaker cabinets first, then the mixer. -
Page 5: Applications
HOOK 3. APPLICATIONS For MS Monitors with stand Signal Cable Signal Cable Power Cord Power Cord Left Right Main Mix Main Mix Output Output Tripod Tripod Mount Mount MIXER For MS Monitors on the floor LINE IN LINE IN MAIN OUT LEFT MAIN OUT RIGHT MIXER... -
Page 6: Panel Description
4. PANEL DESCRIPTION POWERED MONITOR: MS8MA/MS10MA/MS12MA VOLUME STAGE POWER TWIN BOOM DRUMFILL+SUB SIDEFILL PIANO ANTIFEEDBACK TIDE GUITAR 2 LOUDNESS AC INPUT GUITAR 1 FULL RANGE+SUB VOCAL 2 ENTERTAINER VOCAL 1 ROCK & ROLL Use only with a 250V fuse SIGNAL INPUT LINK FLAT... - Page 7 4. PANEL DESCRIPTION 1. FLAT: This is the "default" MODEL. The frequency response is typical of floor monitor. This Model suits all the applications where reproduction of the whole audio content is required. 2. VOCAL 1: This Model is similar to FLAT model but includes a High-pass Filter to cut out the selected low frequencies.
-
Page 8: Wire Connections
HOOK 5. WIRE CONNECTIONS -. For Active Speaker Cabinets As to these circumstances, audio connections is mostly intended for the signal flow, so, determine the wire configuration according to your real application system and its connecting facility. -
Page 9: Frequency Response Diagram
6. FREQUENCY RESPONSE DIAGRAM MS8MA +110 +100 MS10MA +110 +100 MS12MA +110 +100... -
Page 10: Technical Specification
7. TECHNICAL SPECIFICATION Model Item MS8MA Active System Type Full Range with MODELLER Output Power 100 Watt Peak Power 150 Watt EIAJ Max SPL 1mt 114 dB SPL Nominal/116 dB Peak Frequency Response MODELLER Presets Setting Protection Low - High... -
Page 11: Warranty
8. WARRANTY 1. WARRANTY REGISTRATION CARD To obtain Warranty Service, the buyer should first fill out and return the enclosed Warranty Registration Card within 10 days of the Purchase Date. All the information presented in this Warranty Registration Card gives the manufacturer a better understanding of the sales status, so as to provide a more effective and efficient after-sales warranty service. - Page 12 NO. 1, Lane 17, Sec. 2, Han Shi West Road, Taichung 40151, Taiwan http://www.altoproaudio.com Tel: 886-4-22313737 email: alto@altoproaudio.com Fax: 886-4-22346757 All rights reserved to ALTO. All features and content might be changed without prior notice. Any photocopy, translation, or reproduction of part of this manual without written permission is forbidden. Copyright 2007 Seikaku Group NF02801-1.1...
