OWNER'S MANUAL
ELVIS MKII SPEAKER ENCLOSURES
PASSIVE MODELS
www.altoproaudio.com
Version 1.0 DEC. 2008
English

Advertisement

loading
Need help?

Need help?

Do you have a question about the ELVIS 12M MKII and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Alto ELVIS 12M MKII

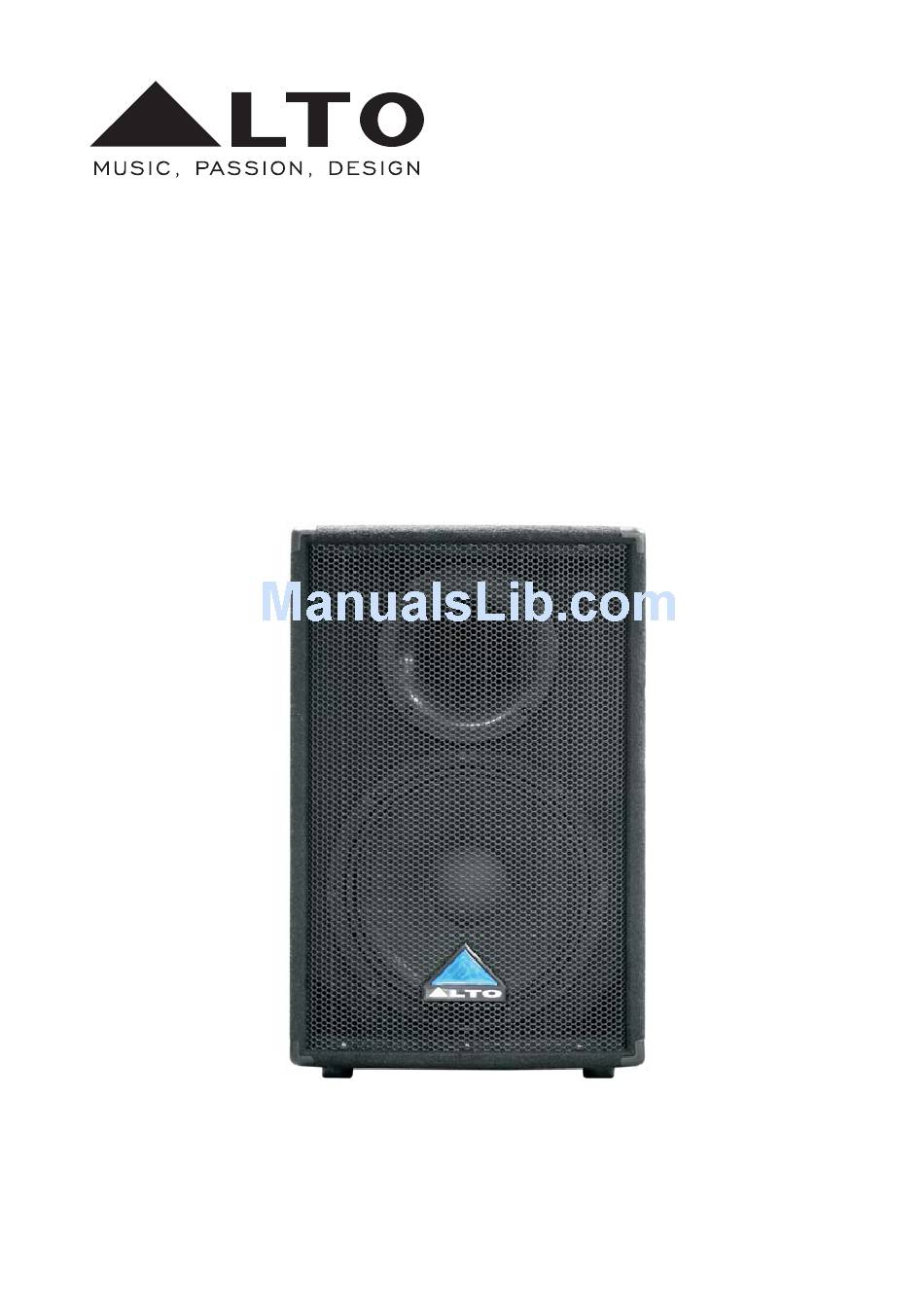

  • Page 1 OWNER'S MANUAL ELVIS MKII SPEAKER ENCLOSURES PASSIVE MODELS www.altoproaudio.com Version 1.0 DEC. 2008 English...
  • Page 2 IMPORTANT SAFETY INSTRUCTION CAUTION WARNING To reduce the risk of electric shock RISK OF ELECTRIC SHOCK and fire, do not expose this equipment DO NOT OPEN to moisture or rain. TO REDUCE THE RISK OF ELECTRIC SHOCK PLEASE DO NOT REMOVE THE COVER OR Dispose of this product should THE BACK PANEL OF THIS EQUIPMENT.
  • Page 3: Table Of Contents

    7. WARRANTY 1. INTRODUCTION Thank you for your purchasing one of our ELVIS MKII speaker enclosures. It is just one of the many Alto products that a talented, multinational Team of Audio Engineers and Musicians have developed with their great passion for music.
  • Page 4: Quick Start - Passive Speaker Cabinets

    1). Connect one side of the speaker cable to the SPEAKER OUT of your powered mixer and the other side to the Input socket of your Elvis MKII speaker cabinet. 2). Use PFL function to get the proper input level for the mixer, and adjust the Main Mix Level control to manipulate the output level.
  • Page 5 2).Connect the THROUGH socket of the first Elvis MKII cabinet to the INPUT socket of the second Elvis MKII cabinet. NOTE: Every time you connect Elvis MKII cabinets this way you parallel them to the output of the amplifier that will read half of the impedance of one speaker.
  • Page 6 Main Mix Level control to manipulate the output level. 6). After use, turn off your stereo power amplifier first, then the mixer. STEREO AMPLIFIER INPUT INPUT 500W 2 SIG CLIP PROT SIG CLIP PROT OUTPUT OUTPUT (dB) (dB) INPUT INPUT ELVIS MKII SUBWOOFER ELVIS MKII SUBWOOFER MIXER...
  • Page 7: Connections

    3. CONNECTIONS -. PASSIVE FULL-RANGE: ELVIS 12 MKII / ELVIS12M MKII / ELVIS 15 MKII INPUT: Receive the signal coming from an external power amplifier. (SPK +1/-1 connected; +2/-2 not connected). THRU: Direct LINK to connect in parallel a second speaker cabinet (SPK +1/-1 connected;...
  • Page 8: Wire Connections

    HOOK 4. WIRE CONNECTIONS -. For Passive Speaker Cabinets Please only use the power connectors to make connections with other signal source equipment for the passive speaker cabinets. The power connector has four terminals: 1+, 1-, 2+, 2-. In our cabinets, only 1+/1- are used to connect the Speaker+/Speaker-, and 2+/2- are not used.
  • Page 9: Frequency Response

    5. FREQUENCY RESPONSE Audio Precision ELVIS 12 MKII 10/23/08 10:37:10 +110 +100 10K 20K Audio Precision ELVIS 12M MKII 10/23/08 14:36:10 +110 +100...
  • Page 10 5. FREQUENCY RESPONSE Audio Precision ELVIS 15 MKII 10/23/08 10:55:18 +110 +100 Audio Precision ELVIS 15S MKII 10/23/08 10:27:58 +110 +100...
  • Page 11: Technical Specification

    6. TECHNICAL SPECIFICATION 2 - way Passive Speaker Cabinet ELVIS 12 MKII Power System 250W continuous (AES Standard) Frequency Response (-10dB) 57Hz-18kHz Sensitivity (1w @ 1mt) 96.5dB SPL Impedance (nominal) Maximum SPL @ 1m 120dB continuous/123dB peak (Calculated) Coverage ( HxV ) 70 x 70 nominal Transducer Low 12"...
  • Page 12 6. TECHNICAL SPECIFICATION 2 - way Passive Speaker Cabinet ELVIS 15 MKII Power System 300W continuous (AES Standard) Frequency Response (-10dB) 47Hz-18kHz Sensitivity (1w @ 1mt) 97dB SPL Impedance (nominal) Maximum SPL @ 1m 121dB continuous/124dB peak (Calculated) Coverage ( HxV ) 70 x 70 nominal Transducer Low 15"...
  • Page 13: Warranty

    7. WARRANTY 1. WARRANTY REGISTRATION CARD To obtain Warranty Service, the buyer should first fill out and return the enclosed Warranty Registration Card within 10 days of the Purchase Date. All the information presented in this Warranty Registration Card gives the manufacturer a better understanding of the sales status, so as to provide a more effective and efficient after-sales warranty service.
  • Page 14 NO. 1, Lane 17, Sec. 2, Han Shi West Road, Taichung 40151, Taiwan www.altoproaudio.com Tel: 886-4-22313737 email: info@altoproaudio.com Fax: 886-4-22346757 All rights reserved to ALTO. All features and content might be changed without prior notice. Any photocopy, translation, or reproduction of part of this manual without written permission is forbidden. Copyright 2008 Seikaku Group NF03267-1.0...

This manual is also suitable for:

Elvis 15 mkiiElvis 15s mkiiElvis 12 mkii
