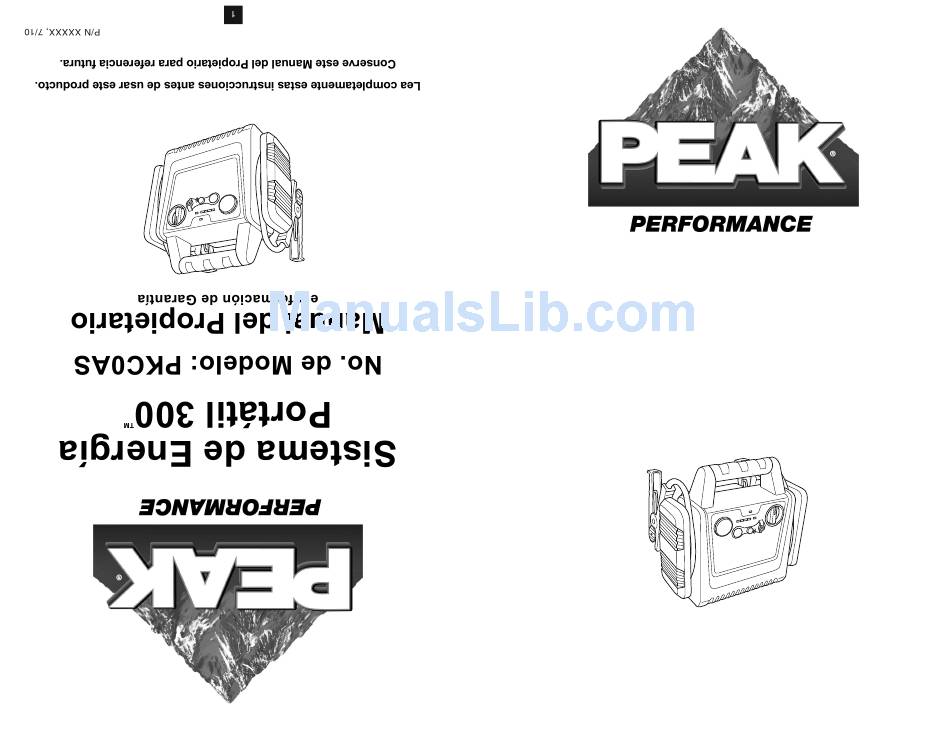

- Page 1 Portable Power System Model No.: PKC0AS Owner’s Manual and Warranty Information Read these instructions completely before using this product. Retain this Owner’s Manual for future reference. P/N XXXXX, 7/10...
-
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS ........................ 2 Portable Power System Safety ....................2 Battery Jump-Starting Safety ....................2-4 INTRODUCTION ..........................4 FEATURES ...........................4-5 OPERATION ............................ 6 Checking Portable Power System Battery Status ..............6 Low Charge Alert (LCA) ......................6 Charging Portable Power System Battery ................6 110/120-Volt AC Charging .................... - Page 3 • Do not smoke or use fl ammable items (matches, cigarette lighters, etc.) while working on a vehicle’s battery system. • Never jump-start a frozen battery, as it could explode. • Perform all jump-starting procedures in a safe, dry, well-ventilated area. •...
-
Page 4: Introduction
Please keep this manual on fi le for future reference. FEATURES • Built-in 300-amp battery jump-starter (600 peak amps) with quick-storing cables and clamps • Built-in 260 psi air compressor and quick-storing hose to infl ate vehicle tires and small sports equipment •... -
Page 5: Product View And Main Parts
Legend 12-volt DC Power Socket Rubberized Handle Jump-Starter ON/OFF Switch Battery Indicator LEDs Power/Polarity Indicator Charging Indicator Charging Jack Low Charge Alert (LCA) Plug Battery Status Button Heavy-Duty Jumper Cables Battery Cable Clamp Storage Posts Air Infl ation Hose Storage Slot Air Compressor ON/OFF Switch Air Compressor Gauge Air Infl... -
Page 6: Operation
OPERATION Checking Portable Power System Battery Status Press and hold the battery status button, located on the front of the unit, to check the Portable Power System battery charge level. Four LED lights will display the battery charge level. Two lights illuminate (green) 75-100% charged One light illuminates (green) 50-75% charged... -
Page 7: 12-Volt Dc Charging
12-Volt DC Charging DO NOT EXCEED MAXIMUM RECOMMENDED 12VDC CHARGE OF 18 HOURS. Disconnect any DC appliance from the 12-volt DC power socket. Turn the jump-starter ON/OFF switch to the OFF position. Plug the DC charger cable into any standard 12-volt cigarette lighter/accessory socket. Remove the charging jack cover and insert the DC charger cable into the charging jack located on the front panel. -
Page 8: Air Compressor Operation
Air Compressor Operation EXPLOSION HAZARD This air compressor is capable of infl ating up to 260 psi (18 bar) pressure. To avoid over- infl ating, carefully follow instructions on articles to be infl ated. Never exceed recommended pressures. Always check pressure with the pressure gauge. Never leave the compressor unattended while in use. -
Page 9: Troubleshooting
TROUBLESHOOTING Problem Situation Action Vehicle does Improper cable clamp Rotate the cable clamps back and forth to make a good not start connections connection. Very low vehicle Wait 3 to 4 minutes before starting vehicle again. battery charge Low battery charge Fully recharge Portable Power System. -
Page 10: Limited Warranty
Manufacturer warrants to the original consumer, or purchaser, that the PEAK® Portable Power System 300 PKC0AS will be free from defects in material and workmanship for ninety (90) days from the date of sale to the original purchaser. Manufacturer hereby excludes and disclaims any and all other warranties, expressed or implied, beyond those warranties specifi...
