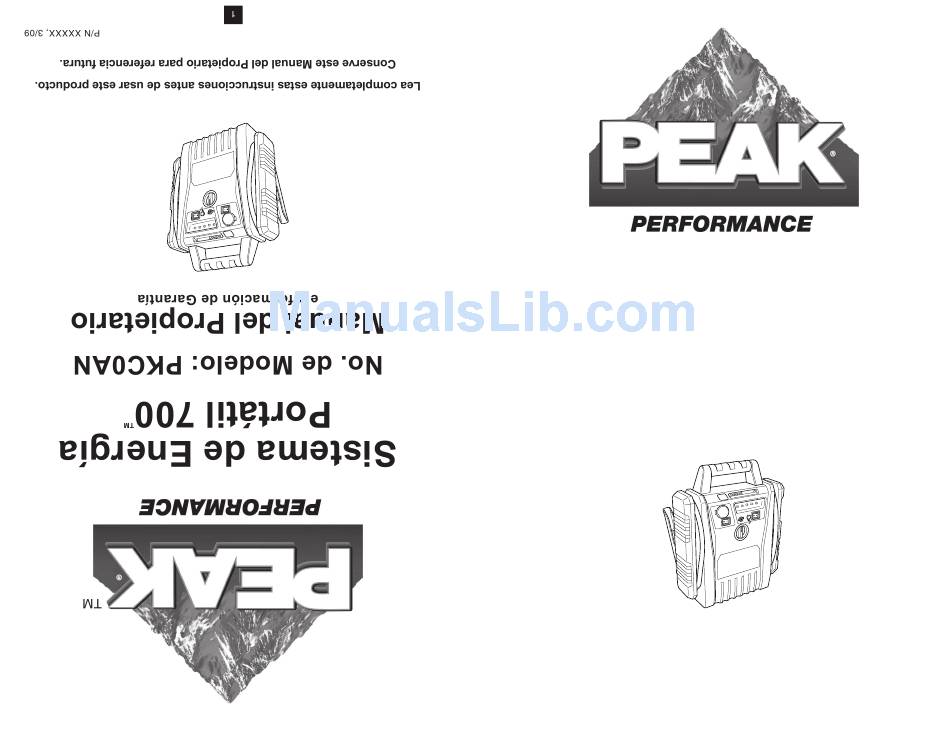

Peak PKC0AN Owner's Manual

Peak PKC0AN Owner's Manual

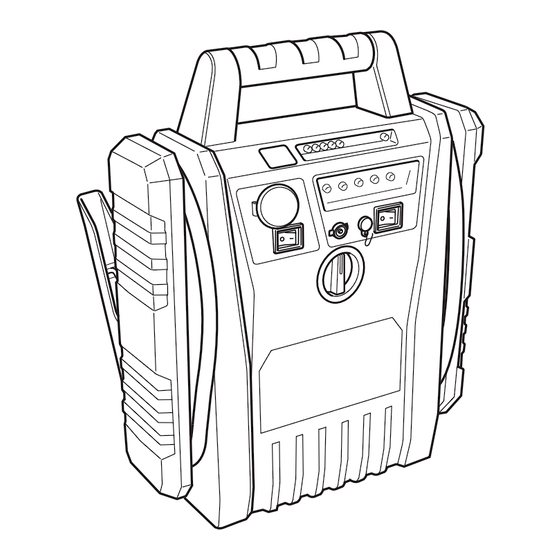

Portable power system 700

Advertisement

TM
Portable Power System
700
TM
Model No.: PKC0AN
Owner's Manual
and Warranty Information
Read these instructions completely before using this product.
Retain this Owner's Manual for future reference.
1
P/N XXXXX, 3/09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PKC0AN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Peak PKC0AN

  • Page 1 Portable Power System Model No.: PKC0AN Owner’s Manual and Warranty Information Read these instructions completely before using this product. Retain this Owner’s Manual for future reference. P/N XXXXX, 3/09...
  • Page 2: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS ........................... 2 Portable Power System Safety ......................2 Battery Jump-Starting Safety ......................2 INTRODUCTION ............................3 FEATURES ..............................4 OPERATION ............................... 4 Checking Portable Power System Battery Status ................4 Low Charge Alert (LCA) ........................5 Charging Portable Power System Battery ..................5 110/120-Volt AC Charging .......................
  • Page 3: Introduction

    • Before recycling or disposing of a battery, protect exposed terminals with heavy-duty electrical tape to prevent shorting (shorting can result in personal injury or fi re). • Always wear protective eyewear when using this product. Contact with battery acid can cause blindness and/or severe chemical burns.
  • Page 4: Features

    FEATURES • Built-in 700-amp battery jump-starter (1400 peak amps) with quick storing cables and clamps • Built-in 100 psi high-fl ow air compressor and quick storing hose to infl ate vehicle tires • Built-in 12-volt DC power socket for powering DC appliances •...
  • Page 5: Low Charge Alert (Lca)

    Low Charge Alert (LCA) On the front of the unit there is a Low Charge Alert port. There is a red plug in this port. With the plug removed, when the battery needs to be charged a continuous tone will sound telling you the battery level is low and the Portable Power System needs to be charged.
  • Page 6: Air Compressor Operation

    EXPLOSION HAZARD Jump-start cable clamp connections at the vehicle’s battery terminals must be positive to positive (red clamp to battery “+”) and negative (black clamp) to the grounding point such as the metal frame of the vehicle. A reverse polarity connection (positive to negative) may cause damage to the unit and/or create a sparking/explosion hazard.
  • Page 7: Worklight Operation

    Worklight Operation • Simply turn the worklight ON/OFF switch (on the front panel) to the ON position. • The worklight will operate. • Turn off when not in use. TROUBLESHOOTING Problem Situation Action Vehicle does Improper cable clamp Rotate the cable clamps back and forth to make a good not start connections connection.
  • Page 8: Limited Warranty

    Manufacturer warrants to the original consumer, or purchaser, that the PEAK® Portable Power System 700 PKC0AN will be free from defects in material and workmanship for ninety (90) days from the date of sale to the original purchaser. Manufacturer hereby excludes and disclaims any and all other warranties, expressed or implied, beyond those warranties specifi...
