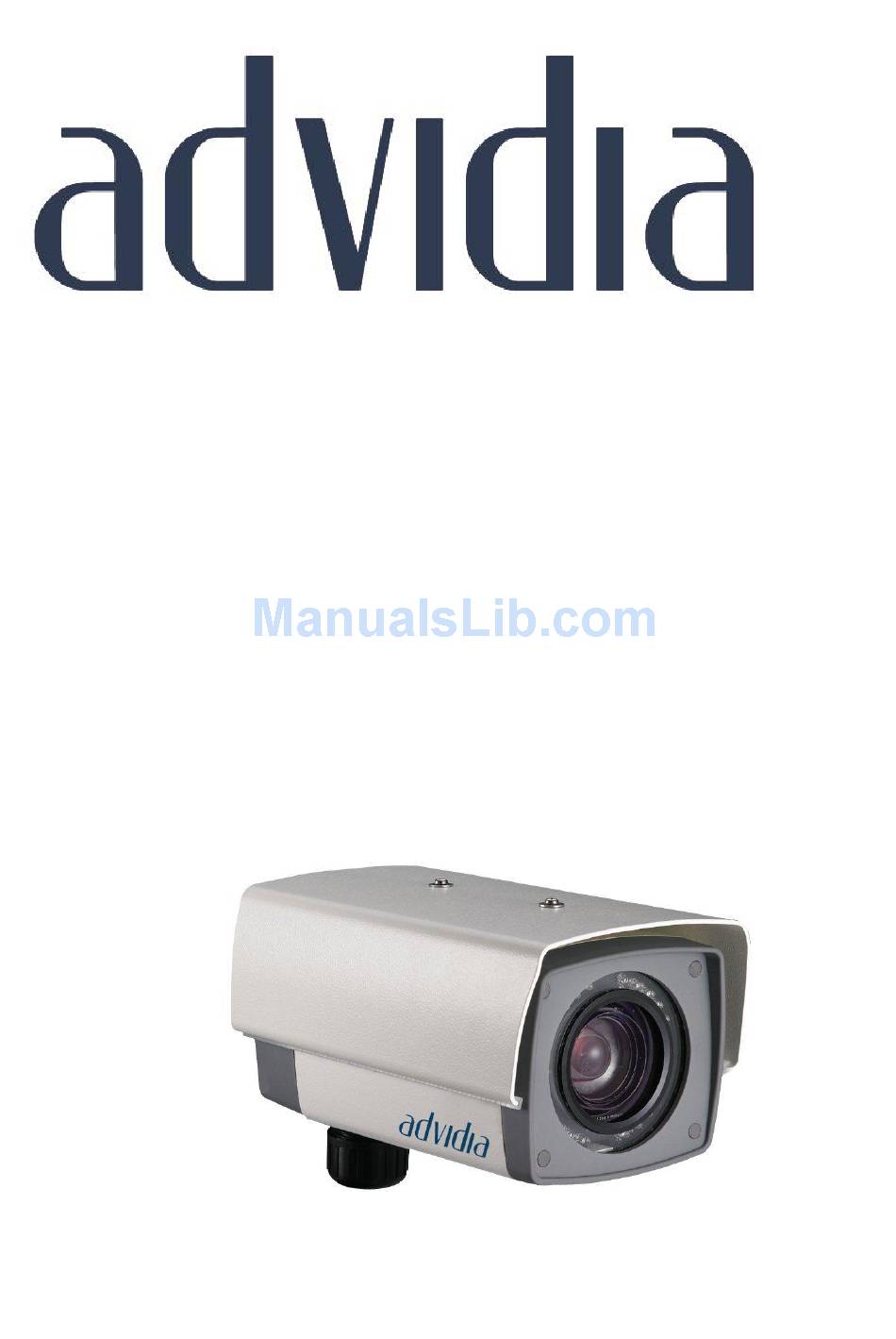

- Page 1 B-33 User’s Manual 18x Zoom H.264 4-Megapixel IP IR D/N PoE Outdoor Box Camera with Advanced WDR...
-
Page 2: Table Of Contents
Advidia B-33 User’s Manual Table of Contents Precautions Introduction Package Contents ................4 Features and Benefits ..............4 Safety Instructions ................5 Physical description ................. 7 Basic Connections ................. 10 Product Specification ......Error! Bookmark not defined. Accessing Camera If you have DHCP server / router in your network: ...... 11... -
Page 3: Precautions
Advidia B-33 User’s Manual 0. Precautions Read these instructions You should read all the safety and operating instructions before using this product. Heed all warnings You must adhere to all the warnings on the product and in the instruction manual. Failure to follow the safety instruction given may directly endanger people, cause damage to the system or to other equipment. -
Page 4: Introduction
Advidia B-33 User’s Manual 1. Introduction Package Contents 18x Zoom H.264 4 Megapixel IP IR D/N PoE Outdoor Box Camera with Advanced WDR Quick installation Guide Terminal Blocks for Power, DI/O and Serial Port Features and Benefits This is a cutting edge network video surveillance camera. It can capture, compress and transmit real time video in excellent quality (8 FPS 4Megapixel, 2032 x 1920). -
Page 5: Safety Instructions
Advidia B-33 User’s Manual With the innovative embedded Image Signal Processor (ISP), this camera responds to changing lighting condition with customized algorithm. This allows for clear image with very little noise at night. H.264/MPEG-4/MJPEG Triple Codec Dual Streaming This device supports 3 compression formats, H.264, MPEG-4 and MJPEG. It brings superior image quality at 8 frames per second up to resolution of 2032 x 1920 pixels, and offers up to 15 frames per second in Full HD 1080p (1920 x 1080). - Page 6 Advidia B-33 User’s Manual cause hazards. Water and Moisture Do not use this video product near water, for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool and the like.
-
Page 7: Physical Description
Advidia B-33 User’s Manual Physical description MicroSD / Micro SDHC Card Slot Serial Port Input Power LED Reset Button Audio Input / Output Ethernet Port DC 12V Power Input Digital Input / Output 1) Micro SD / Micro SDHC Card... - Page 8 Advidia B-33 User’s Manual Pin Number RS422 RS485 N.C. N.C, 6) Reset Button Step 1: Switch off IP device by disconnecting the power cable Step 2: Press and continue to hold the Reset Button (with a sharp tipped object, like a pen.) Step 3: Reconnect the power cable while continuing to hold the reset button.
- Page 9 Advidia B-33 User’s Manual • 1 Transistor Outputs - For connecting external devices such as relays and LEDs. Connected devices can be activated by Output buttons on the Live View page or through video management software. Connect DO1 and DO2 to their closest 12V pin to activate.
-
Page 10: Basic Connections
Advidia B-33 User’s Manual Basic Connections Follow the procedures below to connect the IP device to the respective apparatuses. If you have a PoE(Power over Ethernet) supported switch or injector: 1) Connect your IP Box Camera to the Switch / Injector by CAT5 or CAT6 cables with RJ45 connector. -
Page 11: Accessing Camera
Advidia B-33 User’s Manual 2. Accessing Camera If you have DHCP server / router in your network: Many network server / routers are able to automatically provide IP addresses through DHCP. If you are using such a network, just plug in your computer and IP Box Cam into the network and your IP device will acquire network address by itself. - Page 12 Advidia B-33 User’s Manual Please set the settings as below. IP address: 192.168. 0.xxx Subnet mask: 255.255.255. (NOTE: xxx should be a number from 1 to 254 except 100, which is used by the IP device. Please also...
- Page 13 Advidia B-33 User’s Manual If you are using a single camera, this is enough to access the device. If you are using multiple devices, you need to change the current device to another unused IP address, so that when the next device is connected to the network, no two devices use the same IP.
- Page 14 Advidia B-33 User’s Manual 10. Click “Apply” 11. Please go to System -> Save & Reboot, and click ”Apply”. Internet Explorer will close after a few seconds. This is normal. 12. Wait for 30 seconds, and open IE again to connect to the IP.
- Page 15 Advidia B-33 User’s Manual...
