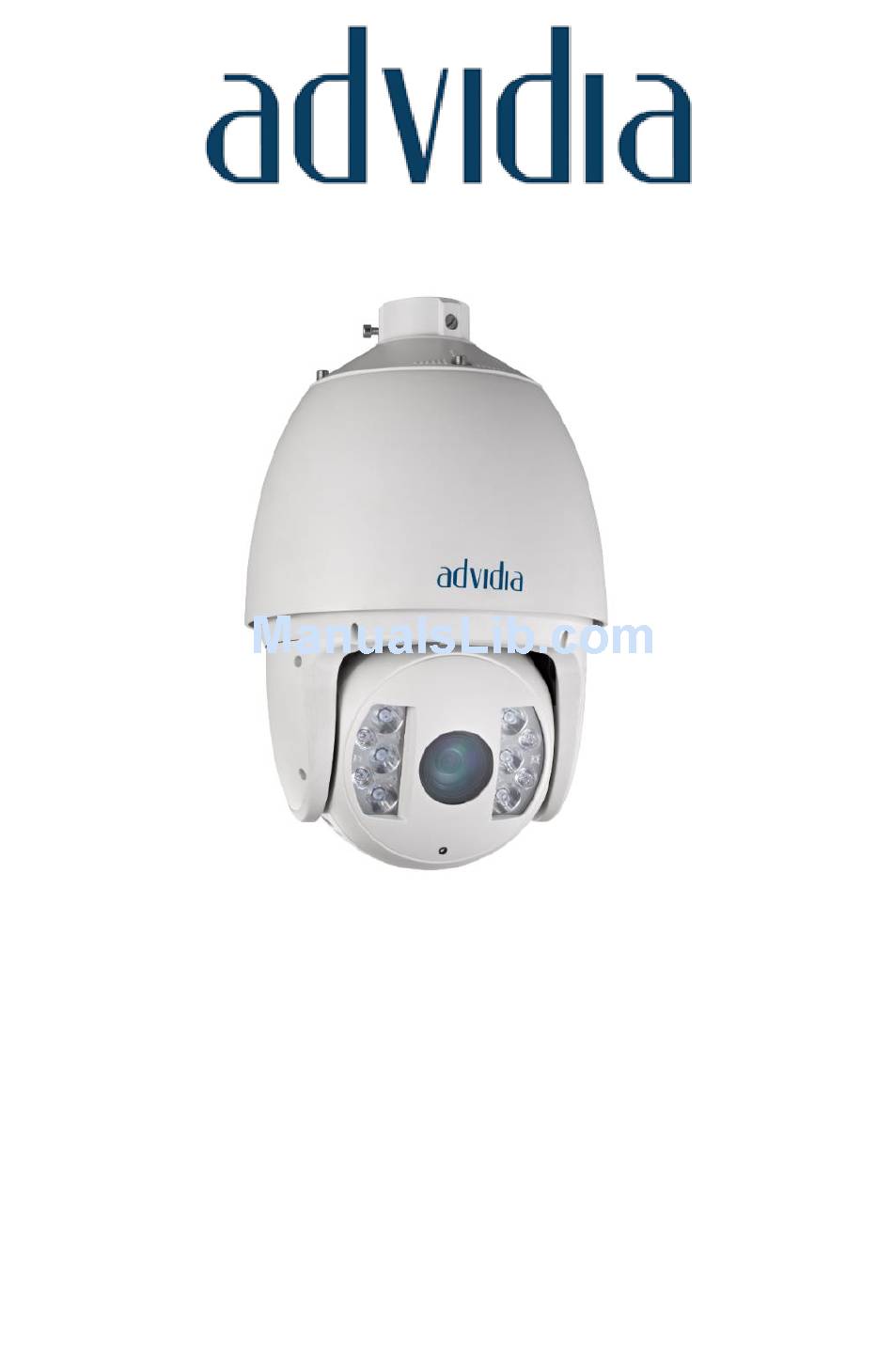

  • Page 1 A-300 Speed Dome Quick Start Guide...
  • Page 2 Advidia A-300 IR Speed Dome·Quick Start Guide Thank you for purchasing our product. If there are any questions, or requests, please do not hesitate to contact the company you purchased the unit from. This manual applies to the Advidia IR speed dome.
  • Page 3 Advidia A-300 IR Speed Dome·Quick Start Guide Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 4: Safety Instruction

    Advidia A-300 IR Speed Dome·Quick Start Guide Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into Warnings and Cautions: Warnings: Neglecting any of the warnings may cause serious injury or death.
  • Page 5 Advidia A-300 IR Speed Dome·Quick Start Guide  Exposing the equipment to direct sun light, low ventilation or heat source such as heater or radiator is forbidden (ignorance can cause fire danger).  Do not aim the speed dome at the sun or extra bright places. A blooming or smear may occur otherwise (which is not a malfunction however), and affecting the endurance of sensor at the same time.

  • Page 6: Table Of Contents

    Advidia A-300 IR Speed Dome·Quick Start Guide Table of Contents 1 Overview ...................... 6 2 Installation ....................6 2.1 Wall Mounting ......................7 3 Setting the Dome over the LAN ..............11 3.1 Wiring ........................11 3.2 Activating the Camera ................... 17 3.2.1 Accessing via Web browser ................

  • Page 7: Overview

    Advidia A-300 IR Speed Dome·Quick Start Guide 1 Overview SD CA RD Figure 1-1 Cable Interface of the Type III Speed Dome Table 1-1 Descriptions of Cable Interface Description Network Cable Audio Cable Alarm Out Alarm In RS-485 Video Cable...

  • Page 8: Wall Mounting

    Advidia A-300 IR Speed Dome·Quick Start Guide Figure 2-1 Do Not Drag the Cables 2.1 Wall Mounting Steps: 1. Remove the protective sticker as shown in Figure 2-2 Protective Sticker Figure 2-2 Protective Sticker 2. Remove the cover on the back of the speed dome as shown in Error! Reference...
  • Page 9 Advidia A-300 IR Speed Dome·Quick Start Guide SD CARD SD CARD SD CARD Figure 2-3 SD Card Slot 3. Drill 4 screw holes in the wall according to the holes of the bracket, and then insert M8 expansion screws into the mounting holes.
  • Page 10 Advidia A-300 IR Speed Dome·Quick Start Guide Safety Rope Figure 2-5 Install the Safety Rope 7. Loosen the lock screws on the bracket. 8. Align the speed dome with bracket and rotate it counterclockwise or clockwise to the bracket tightly as shown below Figure 2-6 Install the Speed dome 9.
  • Page 11 Advidia A-300 IR Speed Dome·Quick Start Guide Figure 2-7 Secure the Speed dome 10. Use L-wrench to tighten the lock screws to secure the speed dome and the bracket. Figure 2-8 Secure the Speed dome 11. Remove the protective film of the IR or laser light after you finish installing.

  • Page 12: Setting The Dome Over The Lan

    Advidia A-300 IR Speed Dome·Quick Start Guide 3 Setting the Dome over the LAN To view and configure the speed dome via LAN (Local Area Network), you need to connect the network speed dome in the same subnet with your PC. Then, install the Advidia Camera Finder Utility to search and change the IP address of the camera.

  • Page 13: Activating The Camera

    Advidia A-300 IR Speed Dome·Quick Start Guide 3.2 Activating the Camera You are required to activate the camera first by setting a strong password for it before you can use the camera. Activation via Web Browser and via Advidia Camera Finder Utility are both supported.

  • Page 14: Accessing Via Web Browser

    Advidia A-300 IR Speed Dome·Quick Start Guide Get the Advidia Camera Finder Utility from the supplied disk or the official website, and install the software according to the prompts. Follow the steps to activate the camera. Steps: Run the Advidia Camera Finder Utility to search the online devices.
  • Page 15 Advidia A-300 IR Speed Dome·Quick Start Guide RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.0.2 and above version, Mozilla Firefox 5.0 and above version and Google Chrome 18 and above version Steps: Open the web browser.
  • Page 16 Advidia A-300 IR Speed Dome·Quick Start Guide Figure 4-2 Download Plug-in Figure 4-3 Download Plug-in(1) Figure 4-4 Download Plug-in(2) Reopen the web browser after the installation of the plug-in and repeat steps 2~4 to login. Note:...
  • Page 17 Advidia A-300 IR Speed Dome·Quick Start Guide For detailed instructions of further configuration, please refer to the user manual of network camera...
