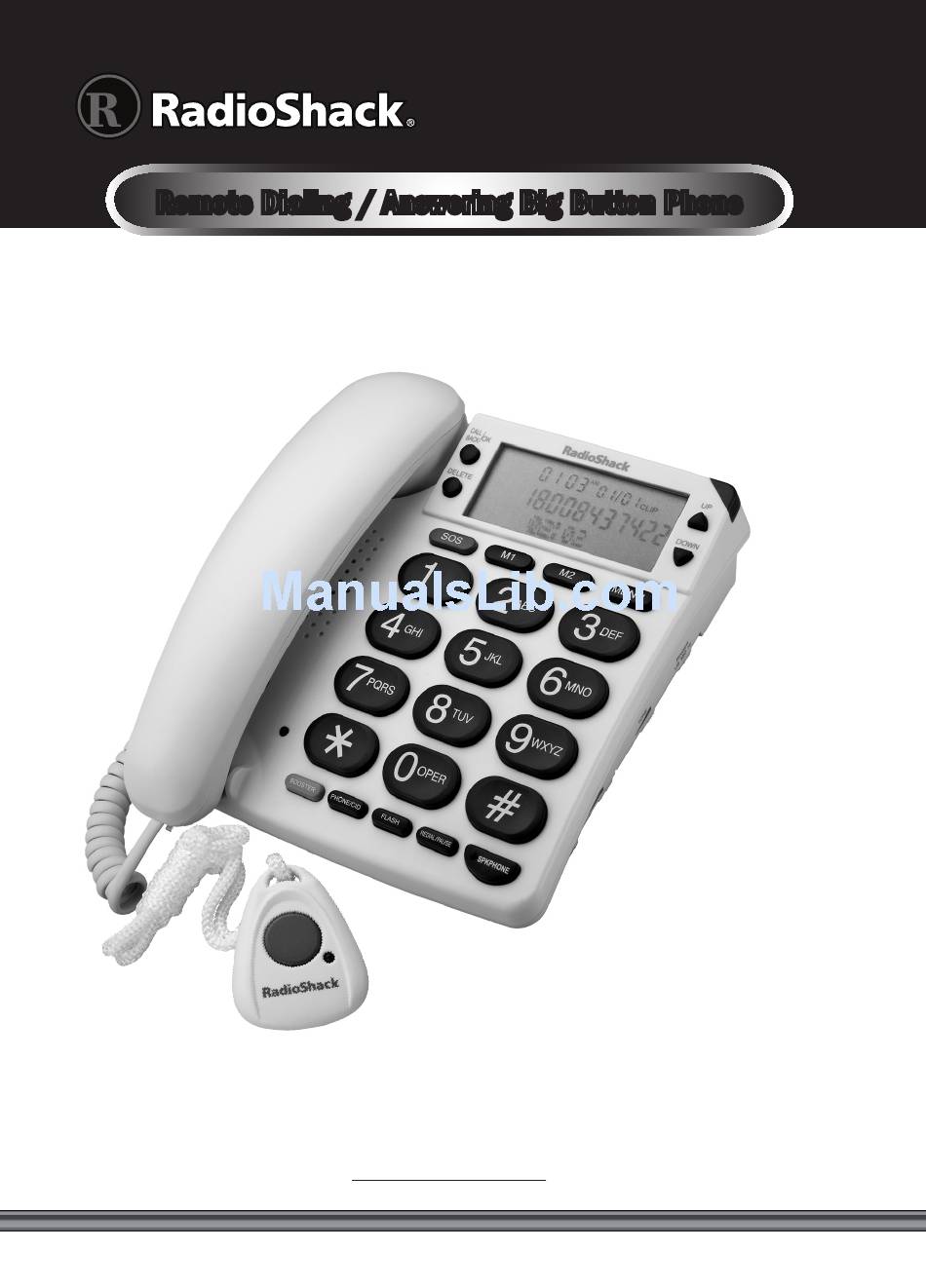

43-208 Remote Dialing / Answering Big Button Phone Thank you for purchasing your Remote Dialing / Answering Big Button Phone from RadioShack. Combining a speakerphone and a Caller ID unit in one system, your phone can display available call information. This telephone is hearing aid compatible.
Contents Important Safety Instructions ............. 3 Controls ..................4 Preparing Your Phone ..............6 Mounting the Phone ..............6 Installing Batteries ..............7 In the Phone ....................... 7 In the Pendant ......................7 Battery Notes ......................7 Setting Your Phone ..............8 Setting the Remote Pendant ..................
Contents Important Safety Instructions Follow basic safety precautions when using your telephone to reduce the risk of fire, electric shock, and injury to persons: • Plug the adapter into an outlet that is easily accessible and near the equipment. • To avoid injury, do not connect the provided power adapter to a ceiling outlet.
CALL BACK/OK Press to confirm phone functions Hold down to activate or deactivate or automatically dial the selected emergency call. caller ID record or phonebook number, or return to the standby MI & M2 mode when setting the phone. Store 2 numbers and dial with one touch of a button.
Page 5
BOOSTER SPKPHONE L�D lights when BOOSTER is activated. Press to switch between the Adjust BOOSTER/VOLUME for the desired handset and speakerphone, or volume. Press BOOSTER again to deactivate. to make, answer or end call. This function is for the handset only. RINGER LO MID HI Set the ringer volume: LO/MID/HI.
Preparing Your Phone 1. Peel the plastic label from your phone’s display before using your phone. 2. Connect the supplied AC adapter to the DC 9V 200mA jack and a standard AC outlet. DC 9V jack TEL. LINE jack 3. Plug one end of the supplied modular cord into the TEL. LlNE jack (RJ11) on the back of the phone.
Installing Batteries In the Phone (Optional) Insert 4 AA alkaline batteries (not supplied) in the battery compartment with correct polarities. When appears or the display dims, replace the batteries. In the Pendant Your pendant comes with one 12V A23 battery, when the L�D on the pendant dims, replace the battery.
Setting Your Phone After your phone is powered on, system information appears in the display. 1. Press MENU. LCD CONTRAST appears in the display. Press CALL BACK/ OK to display the current level, then press UP/DOWN to select one of five settings.
2. To pair your pendant to your phone, select PAIRING, press CALL BACK/ OK on the phone, PAIRING... appears, press the red button on the pendant. If the pendant is successfully paired, PAIRED appears, if not, PAIRED FAILURE would appear. 3.
Call Back from the Caller ID Memory Press PHONE/CID repeatedly until CLIP appears, pick up the handset, press UP or DOWN to select the desired number, then press CALL BACK/OK. If the Caller ID number is 10 digits, press CALL BACK/OK once, 1 will NOT� added before the Caller ID number automatically. Press UP or DOWN to select or unselect adding 1. Press CALL BACK/OK again, the speakerphone turns on automatically and dials the displayed number. Saving Caller ID Numbers To save a Caller ID number, use UP or DOWN to find the desired number, then hold down MENU until COPY TO MEMORY appears.
long distance numbers. Press CALL BACK/OK. Then enter the name and press CALL BACK/OK. Press UP or DOWN to select EMERGENCY ON/OFF, press CALL BACK/OK again to save if select OFF. If you select EMERGENCY ON, press UP or DOWN to select a location, then press CALL BACK/OK.
To dial a number stored in the phonebook: • Repeatedly press PHONE/CID until appears, then press UP or DOWN to find the number, press CALL BACK/OK. • Pick up the phone, find the desired number and then press CALL BACK/ OK to call the number.
Page 13
CAUTIONS • To ensure proper operation, this equipment must be installed according to the enclosed installation instructions. To verify that the equipment is operating properly and can successfully report an alarm, this equipment must be tested immediately after installation, and periodically thereafter, according to the enclosed test instructions.
RF Emissions Information This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom of this equipment is a label that contains, among other information, a product identifier in the format US: AAA�Q##TXXXX.
Page 15
a complaint with the FCC. Also, the phone company can make changes to its lines, equipment, operations, or procedures that could affect the operation of this phone. The telephone company notifies you of these changes in advance, so you can take the necessary steps to prevent interruption of your telephone service.
